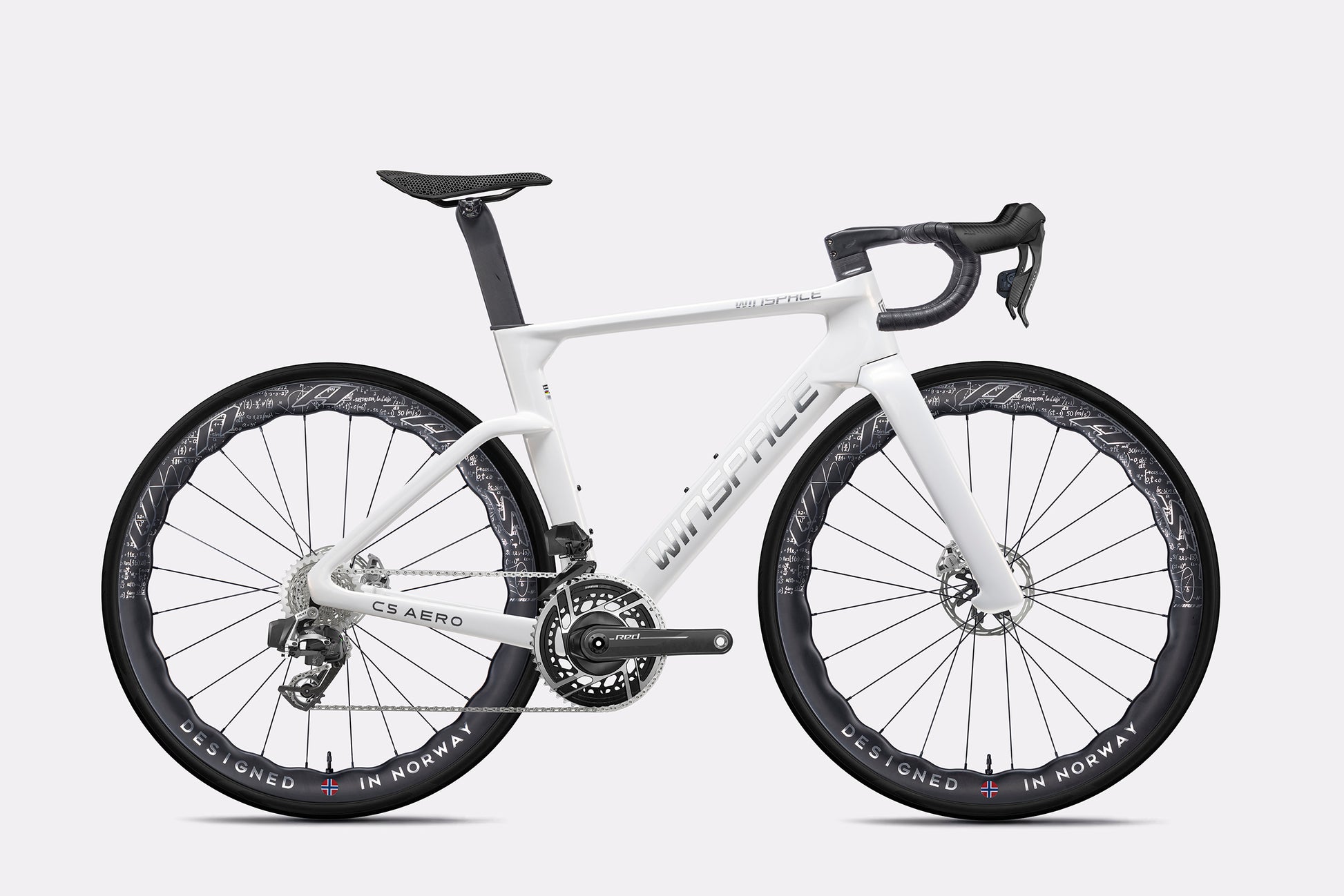

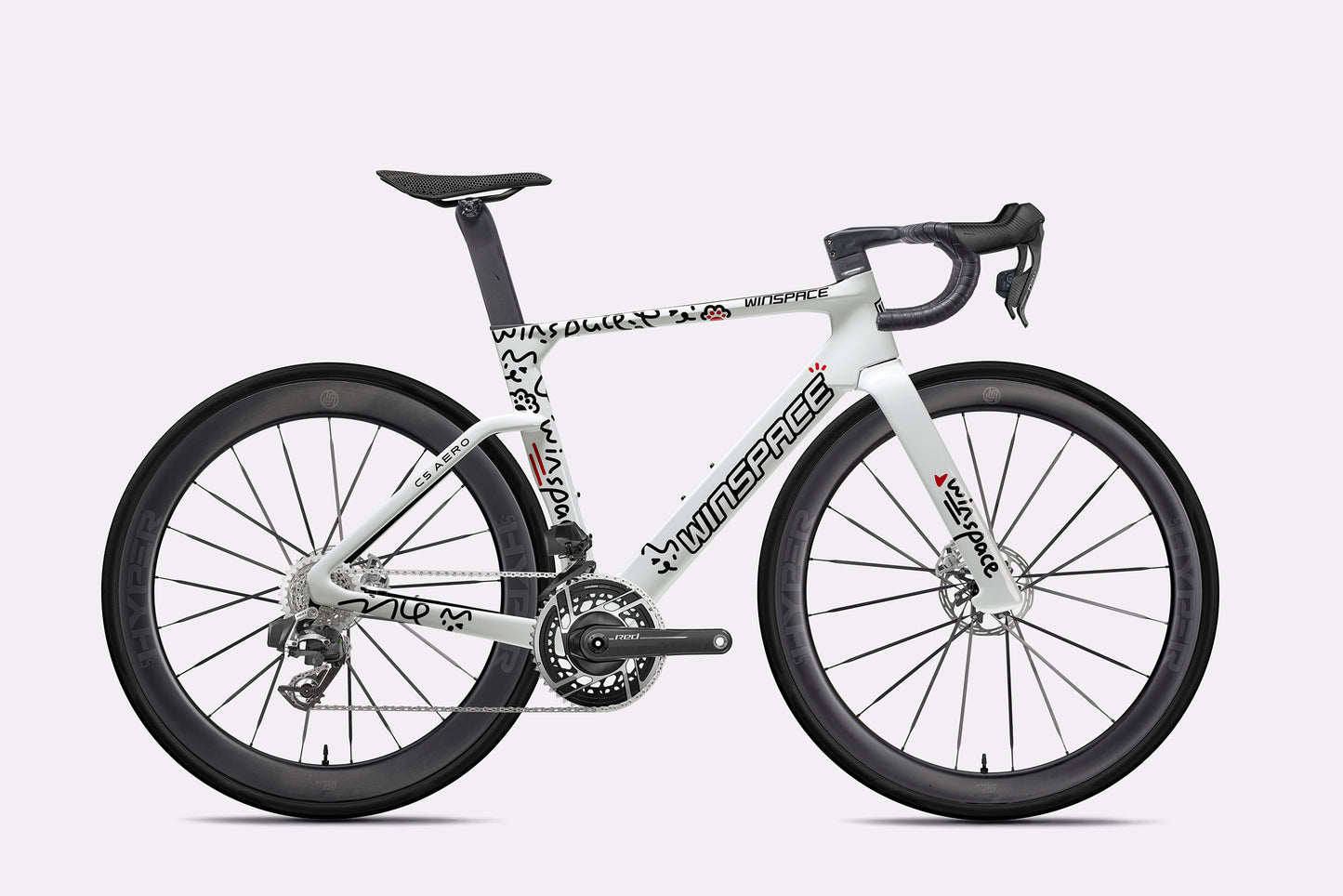

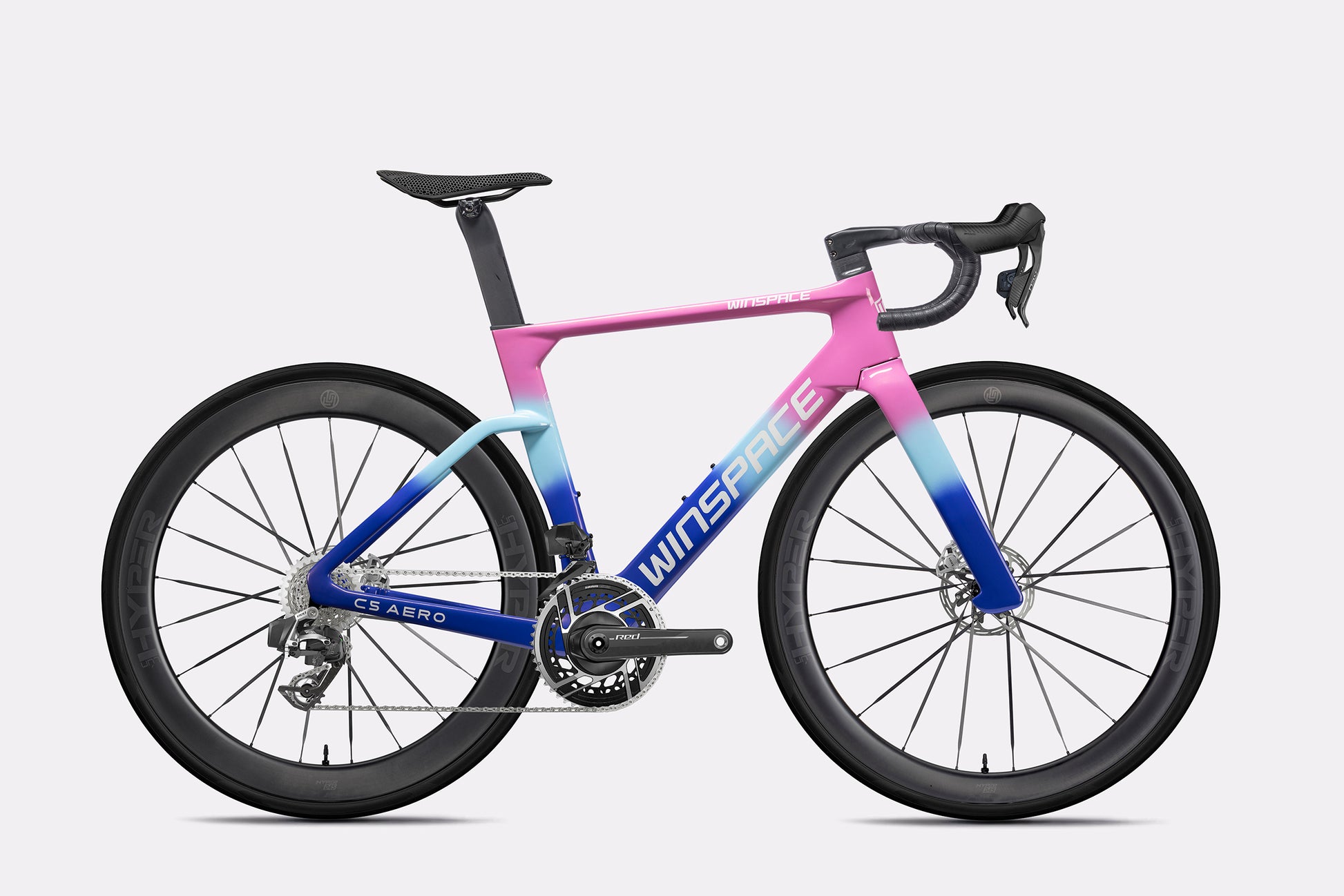

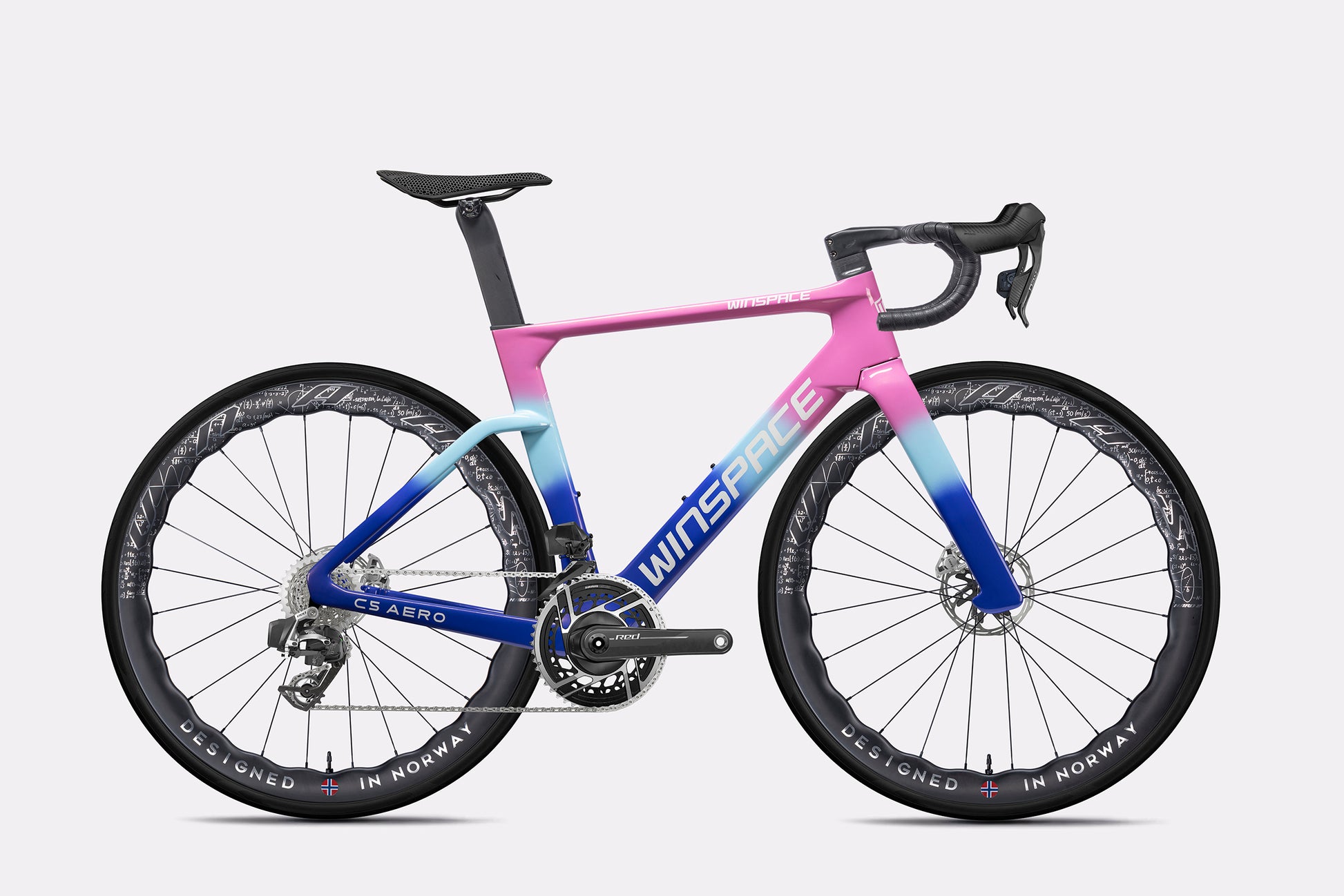

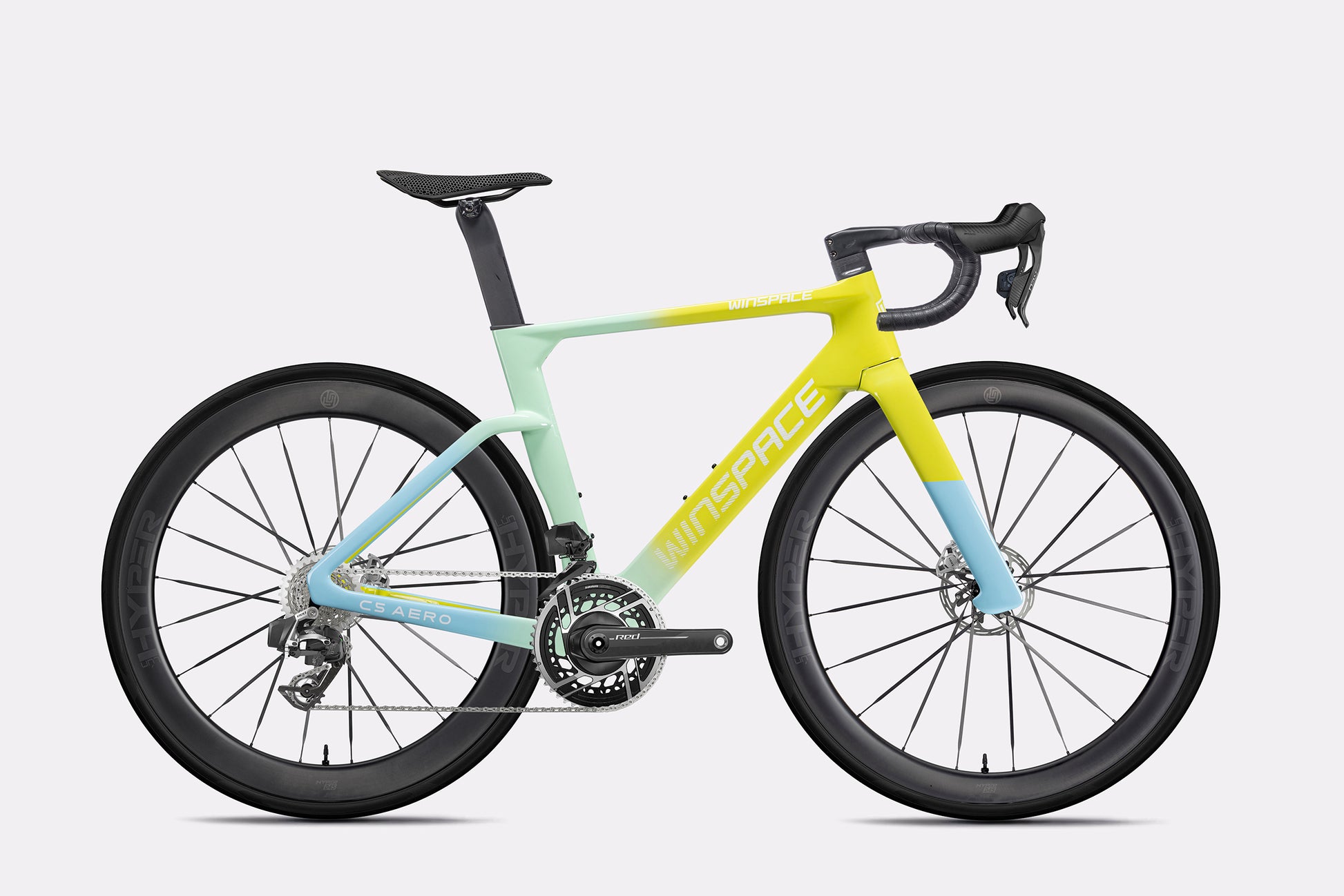

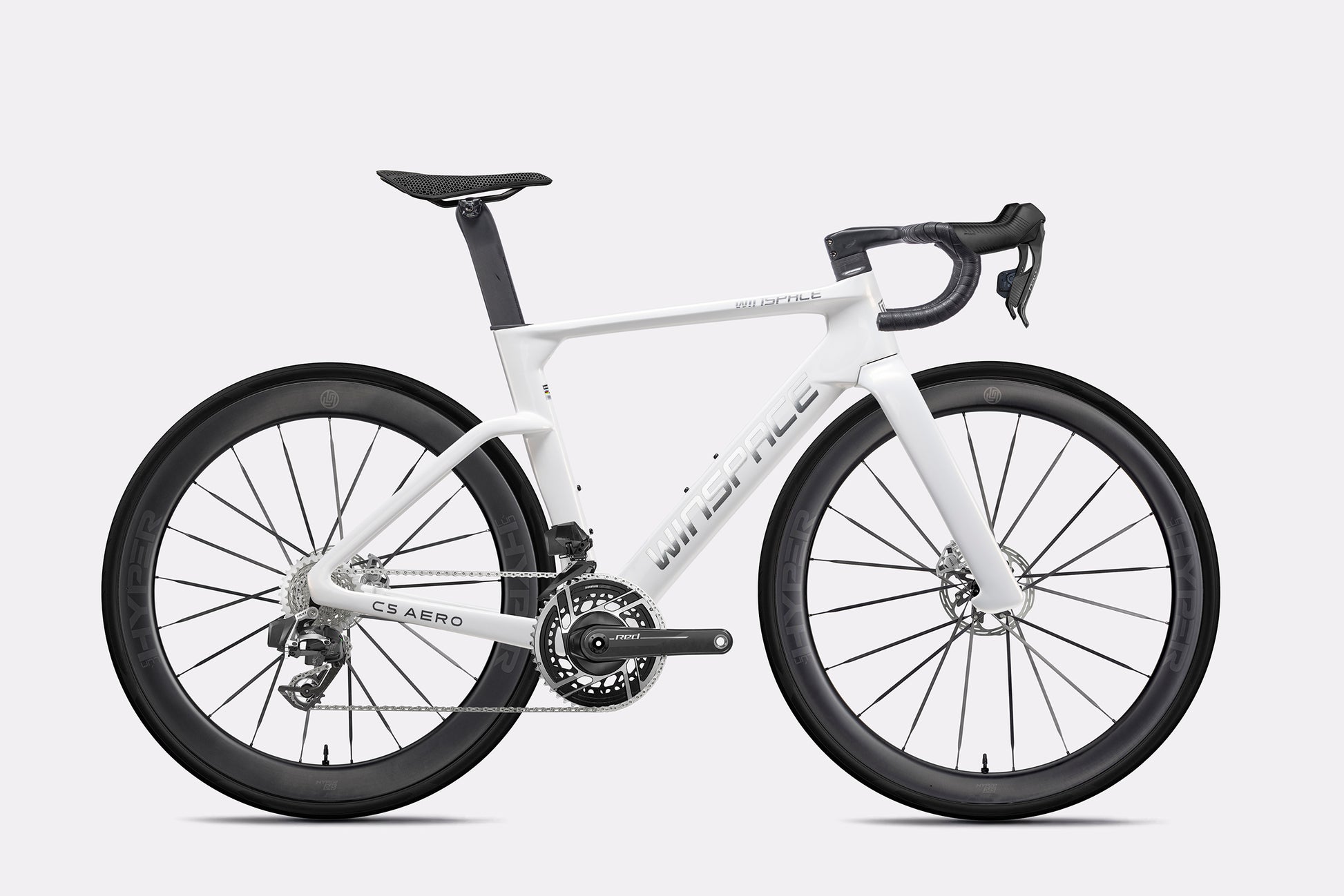

Winspace C5 Aero SRAM Red Complete Bike — Build Your Dream Bike
The all-new Winspace C5 Aero is where endurance meets aerodynamics. Constructed with Toray T800 and High-Modulus M Series carbon, it sheds 115g from its predecessor while improving high-speed stability and wind-cutting performance. Wind tunnel-tested and race-proven, it delivers a 5-minute advantage over 100km in crosswind conditions.
Complete Bike Set Up & Custom Options
- SRAM Red E1 AXS groupset, with lightning-fast, electronic shifting and world-class braking precision.
- The Carbon Project carbon 3D printed saddle weighing only 200g.
- Choose your bar and stem size. The seamless Winspace Zero SL intergrated bar and stem can be customised to your size preferences for width (380mm, 400mm, 430mm) and length (85mm-135mm).
- Choose your cassette and crank length to customise the bike to your size preferences.
- Choose your preferred wheel, rim depth and tire (28mm or 30mm, black/tan wall). Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
Technical Specifications

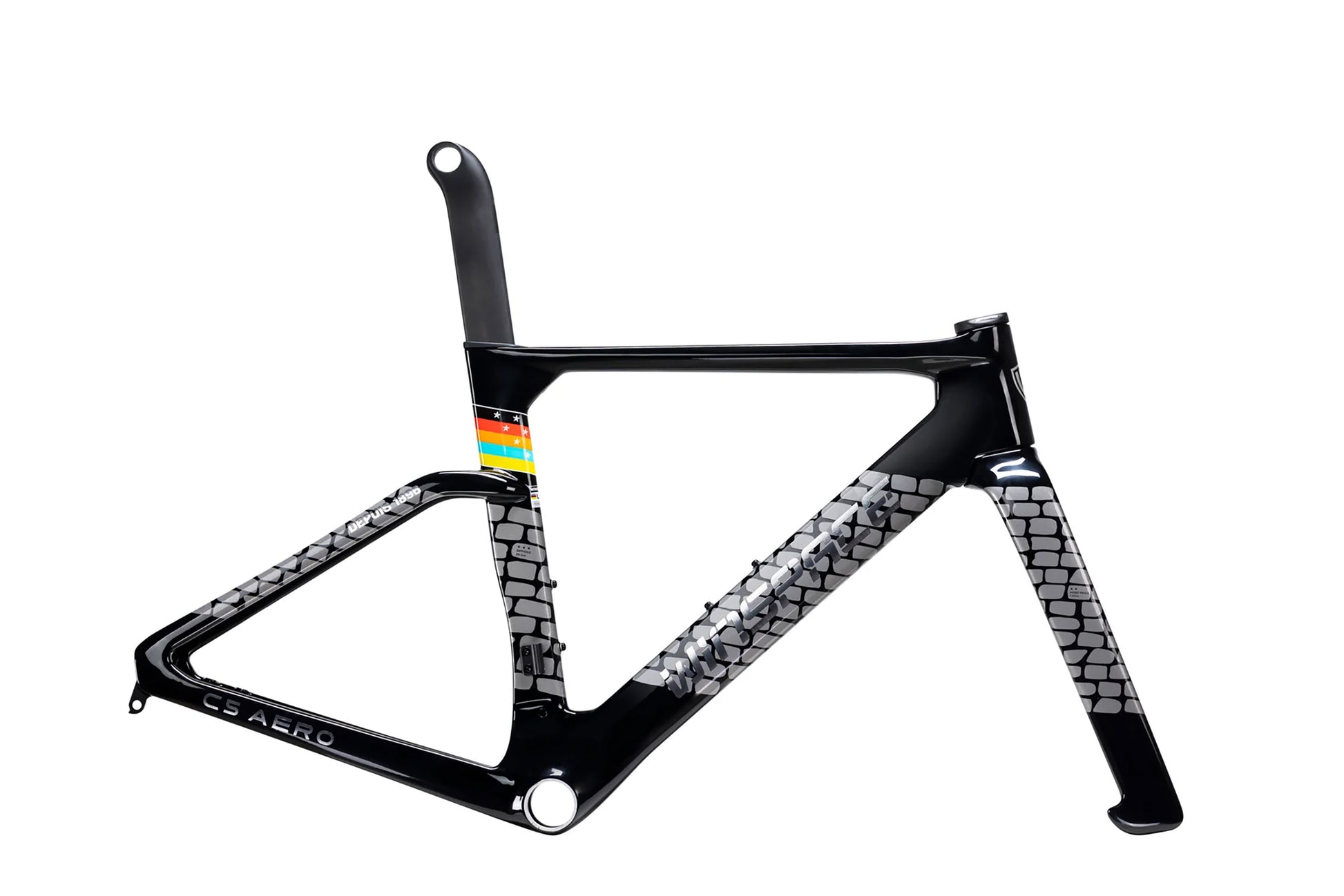

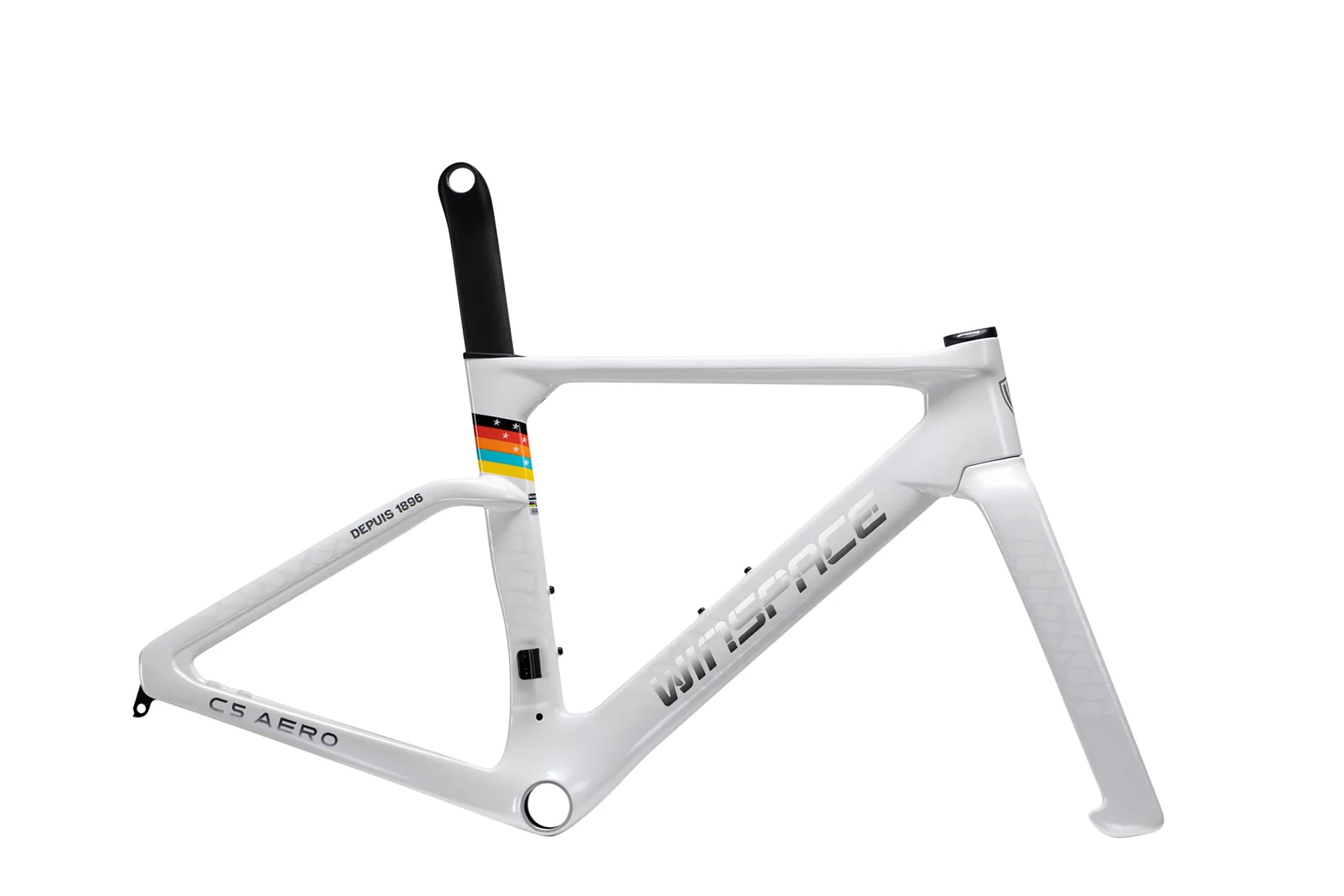

- Frame: C5 Toray T800 and High-Modulus M Series carbon
- Headtube: NO.55R 1.5 / ACR/STD
- Wheel Axles: 12mm thru-axle (F100mm, R142mm).
- Handlebar/Stem: Winspace Zero SL Integrated Bar and Stem. Customise to your size preferences.
- Seatpost: Winspace Aero seatpost
- Saddle: TCP 3D printed carbon saddle
- Drivetrain: SRAM Red E1 eTap AXS 12-speed (46/33, 48/35, or 50/34 Crankset + 10-28, 10-30, 10-33, or 10-36 Cassette)
- Front brake: SRAM Red E1
- Rear Brake: SRAM Red E1
- Shift Levers: SRAM Red E1 eTap AXS
- Front Derailleur: SRAM Red E1 eTap AXS
- Rear Derailleur: SRAM Red E1 eTap AXS
- Rotors: SRAM Paceline X Rotor (140 or 160mm)
- Crankset: SRAM Red E1 (46/33, 48/35 or 50/34) + (160, 165, 167.5, 170, 172.5 or 175mm)
- Chain:SRAM Red E1 12-Speed
- Bottom Bracket: Wishbone Ceramic T47 Inboard
- Tyres: Goodyear Eagle F1 (700x28c or 700x30c).
- Bartape: C2 Black
- Wheels: Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
| Left Hand Shifter | 00.7018.443.002 | ED RED AXS D1 SJC RR/L |
| Right Hand Shifter | 00.7018.443.005 | ED RED AXS D1 SJC FR/R |
| Crankset | 00.6118.614___ | FC RED D1 DUB |
| Rear Derailleur | 00.7518.152.000 | RED AXS D1 12-SPD RD |
| Front Derailleur | 00.7618.172.000 | FD RED ETAP AXS D1 |
| Cassette | 00.2418.116.000 | XG-1290 D1 10-33 12-SPD |
| Chain | 00.2518.044.011 | RED D1 FLATTOP 12-SPD |
| Front Rotor | 00.5018.158.003 | ROTOR PACELINE CL 160 |
| Rear Rotor | 00.5018.158.002 | ROTOR PACELINE CL 140 |
| Battery / Power Unit | 00.3018.102.000 | ETAP BATTERY x2 |
| Charger | 00.3018.117.000 | ETAP BATTERY CHARGER |
| Bottom Bracket | WB-BFPF-064BK-ABK | Wishbone T47 Inboard DUB |
