Description

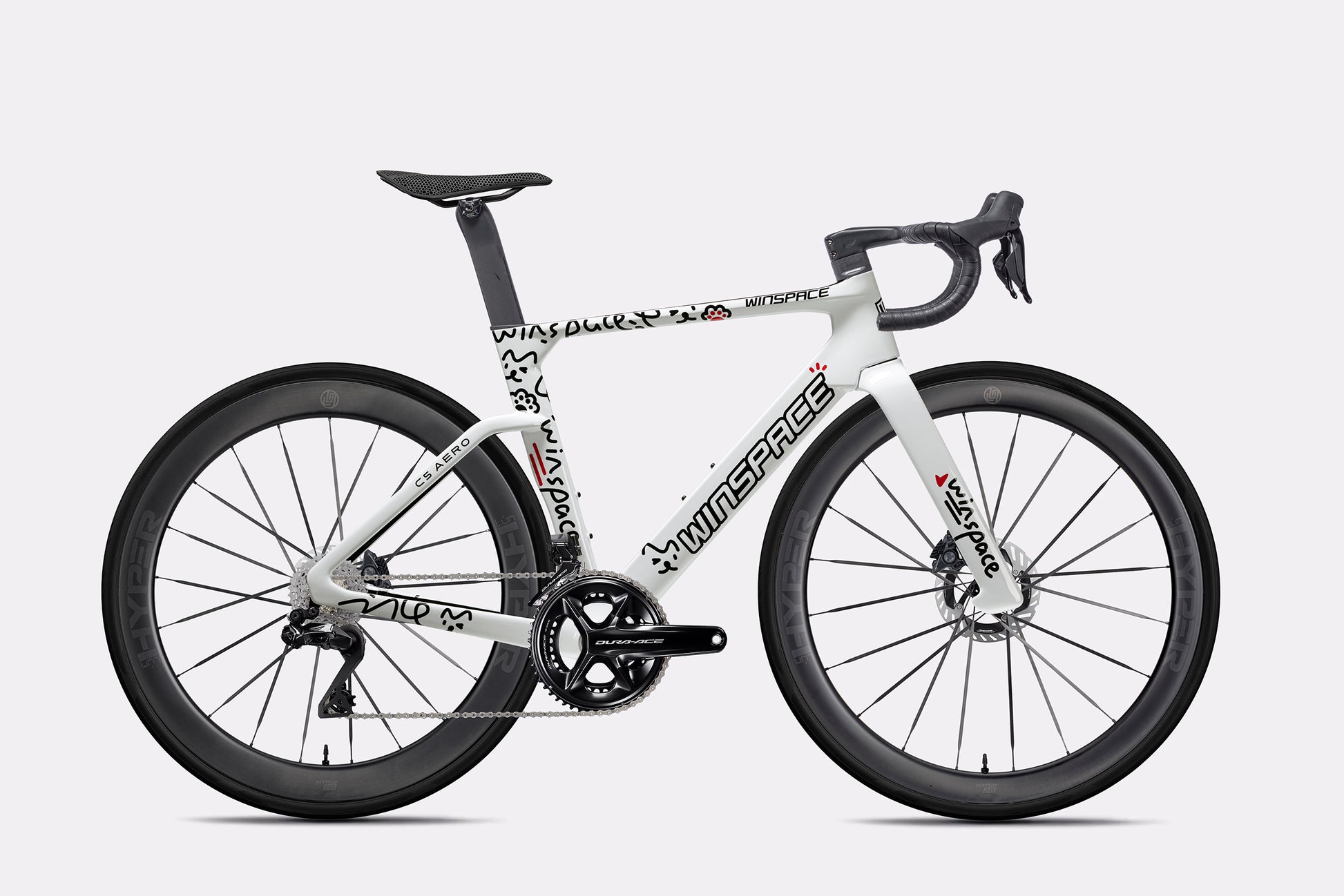

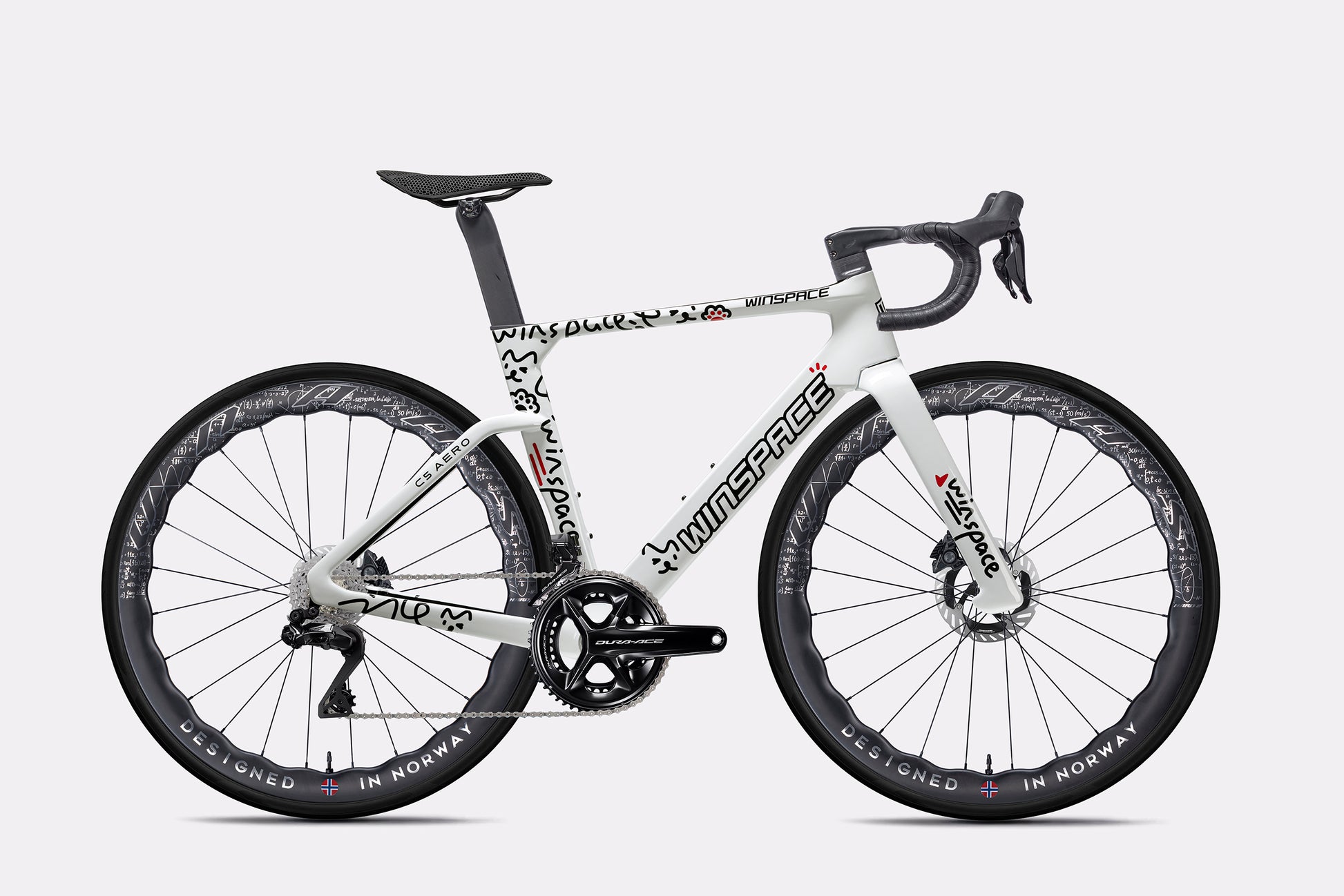

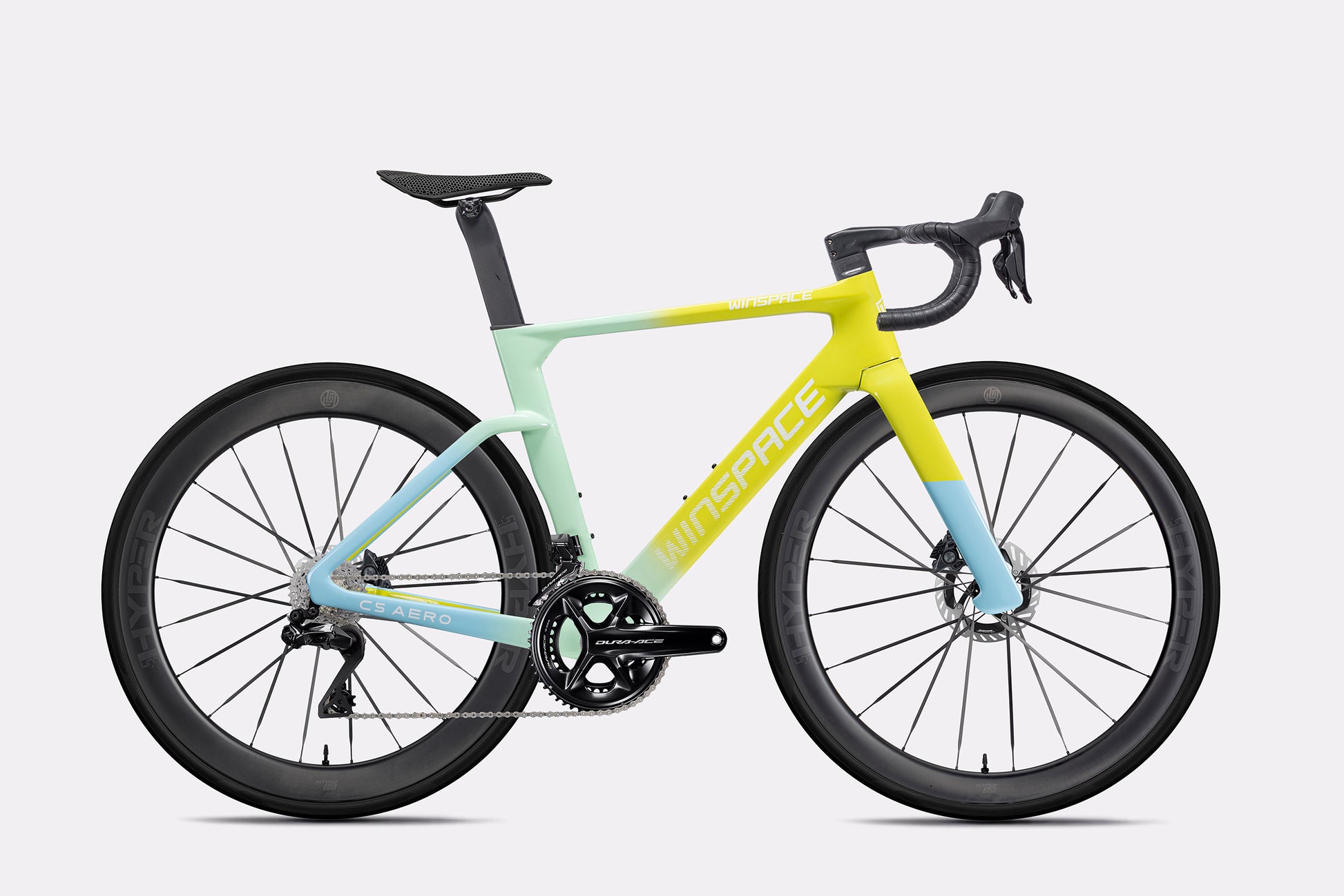

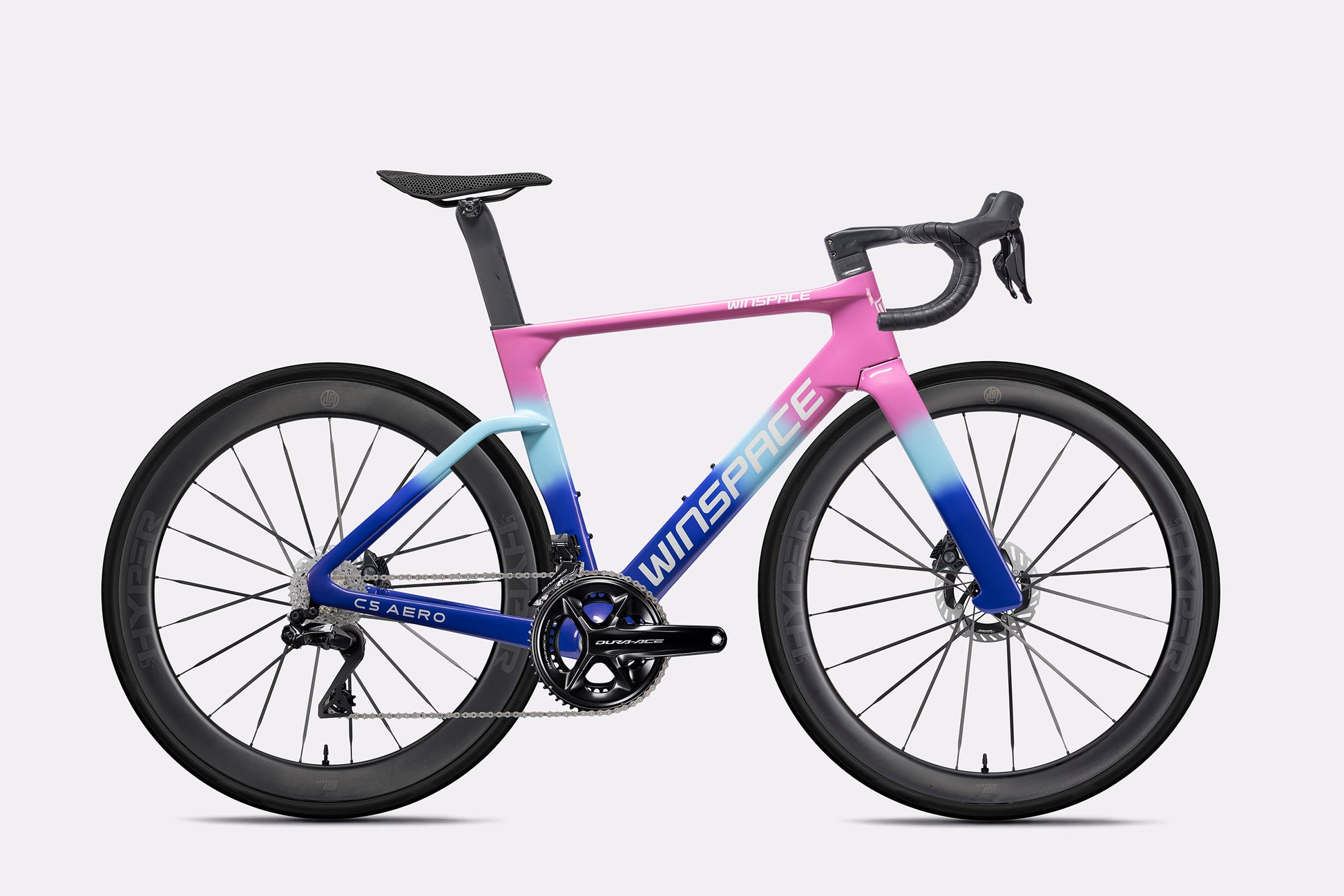

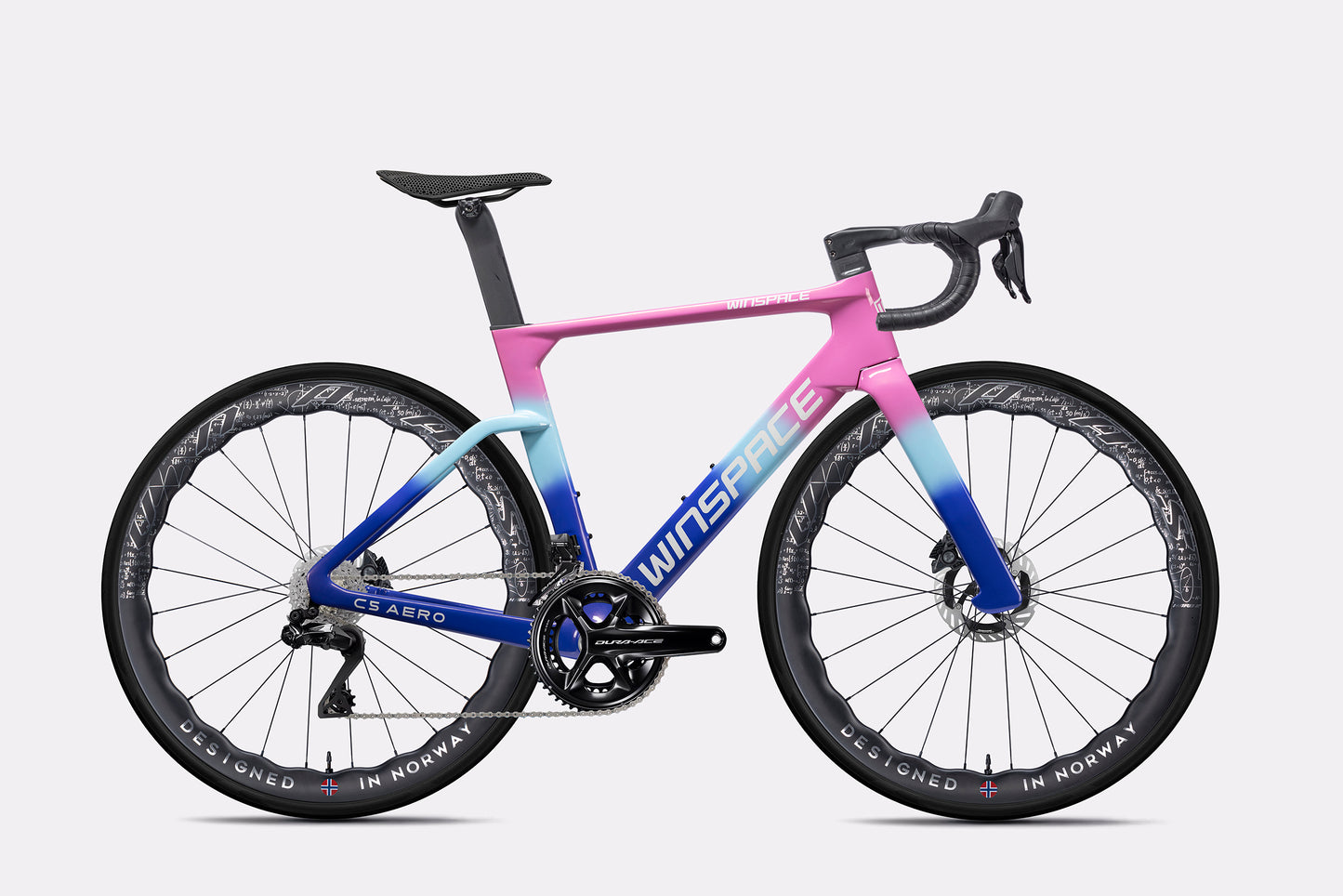

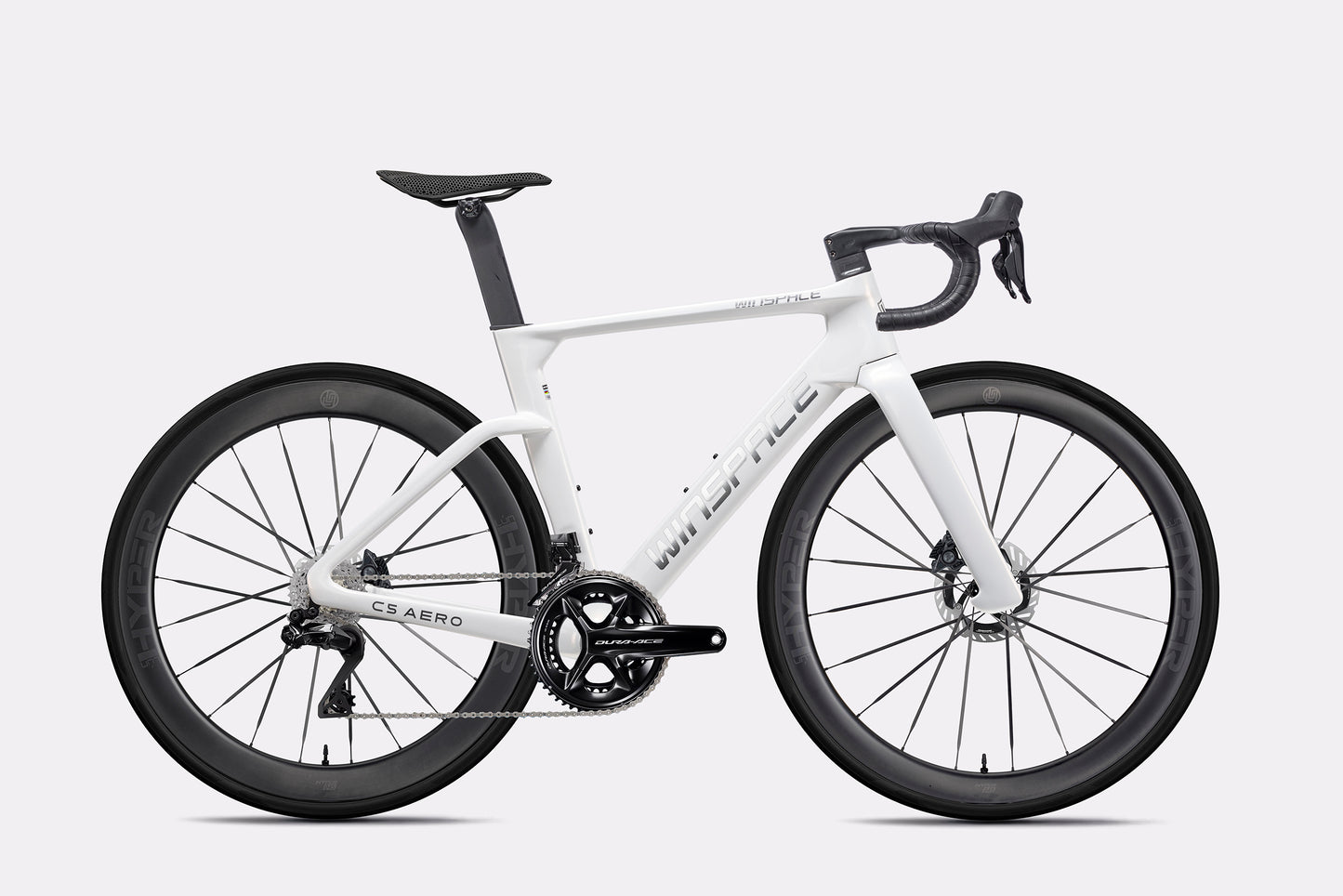

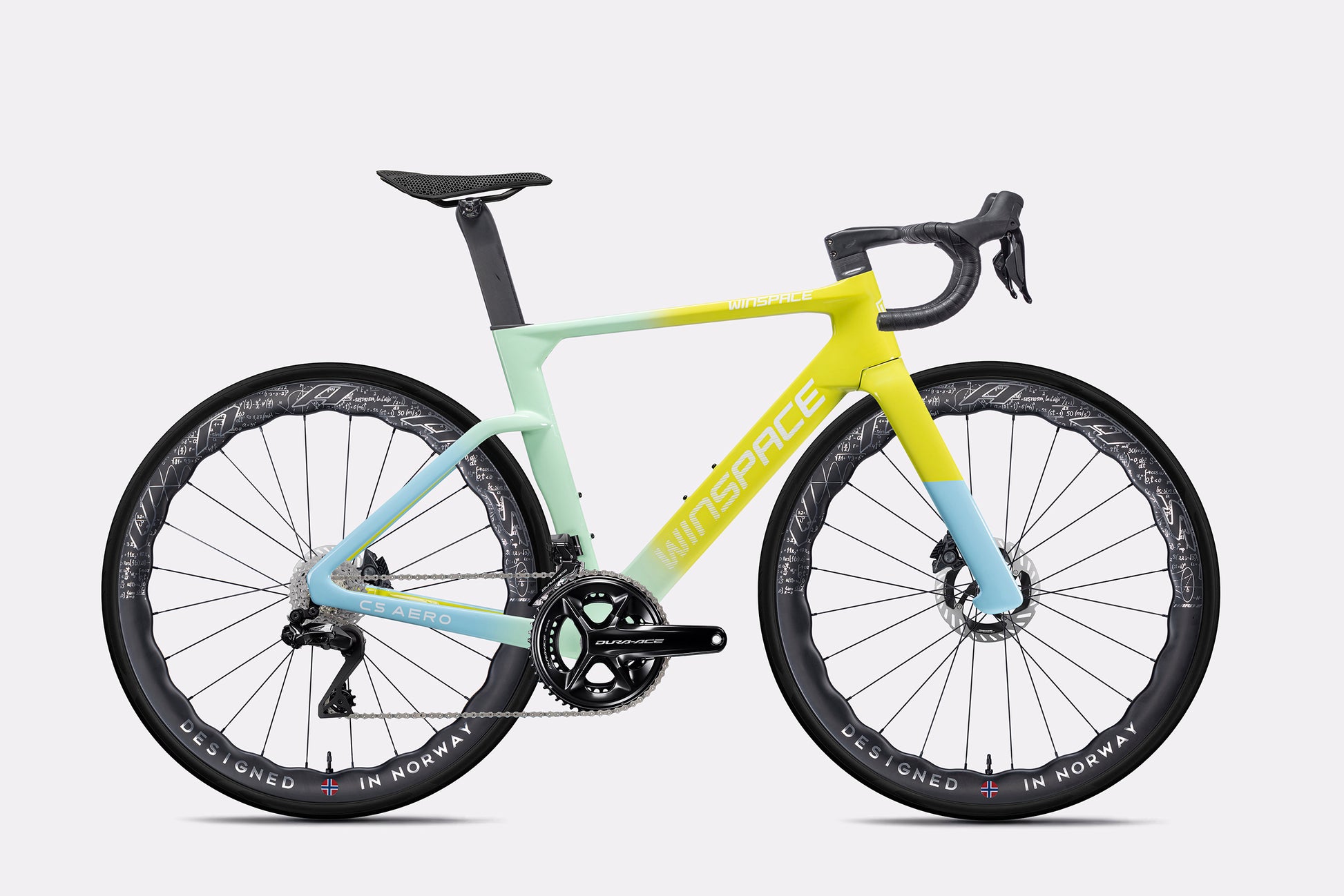

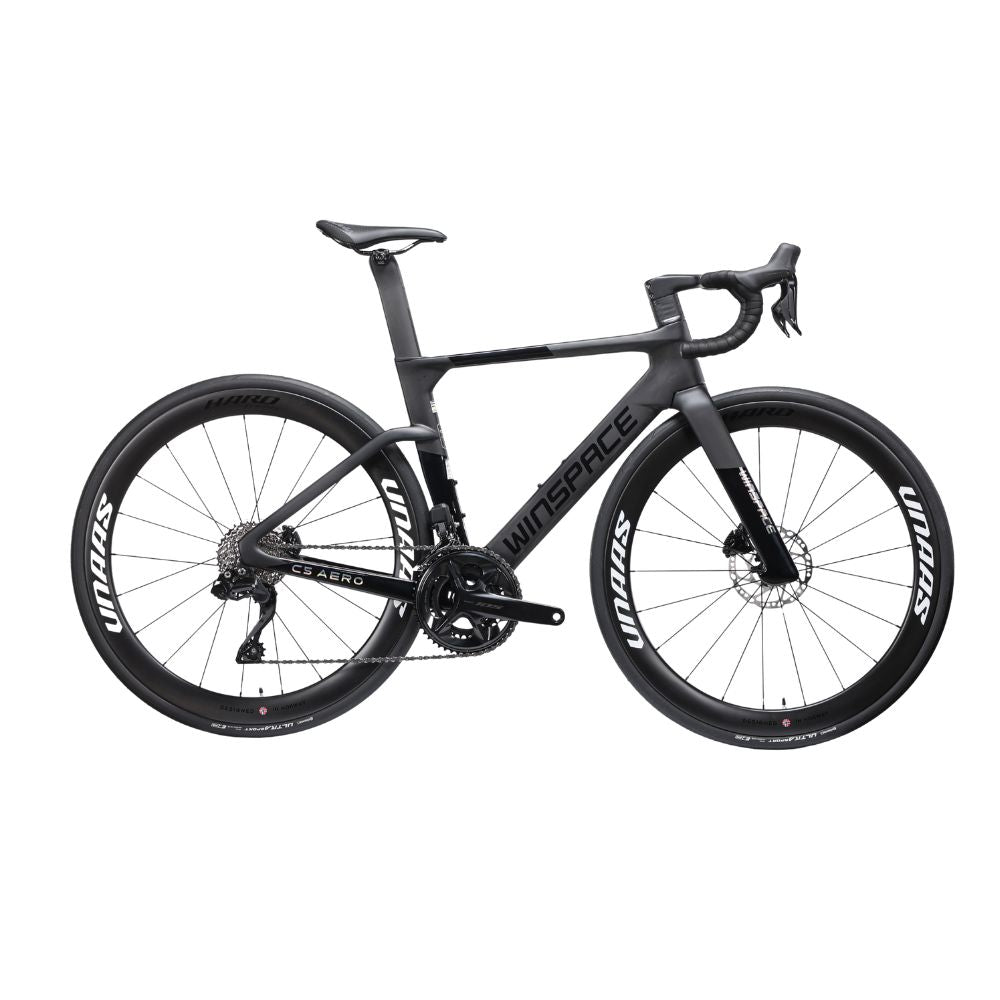

Winspace C5 Aero Dura-Ace Di2 — Build Your Dream Bike
The all-new Winspace C5 Aero is where endurance meets aerodynamics. Constructed with Toray T800 and High-Modulus M Series carbon, it sheds 115g from its predecessor while improving high-speed stability and wind-cutting performance. Wind tunnel-tested and race-proven, it delivers a 5-minute advantage over 100km in crosswind conditions.
Complete Bike Set Up & Custom Options
- Shimano Dura-Ace Di2 groupset, with lightning-fast, electronic shifting and world-class braking precision.
- The Carbon Project carbon 3D printed saddle weighing only 200g.
- Choose your bar and stem size. The seamless Winspace Zero SL intergrated bar and stem can be customised to your size preferences for width (380mm, 400mm, 430mm) and length (85mm-135mm).
- Choose your cassette and crank length to customise the bike to your size preferences.
- Choose your preferred wheel, rim depth and tire (28mm or 30mm, black/tan wall). Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
Technical Specifications

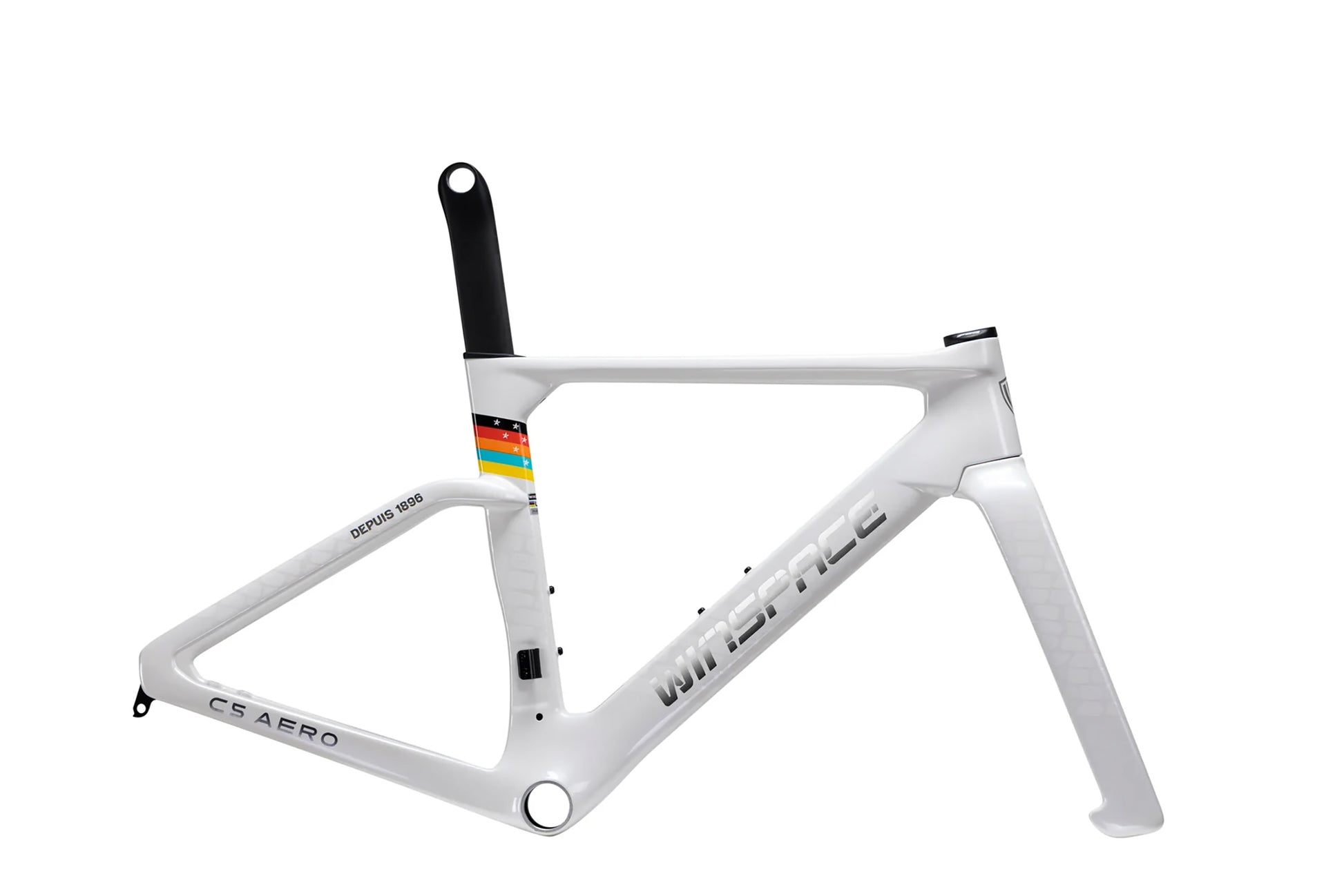

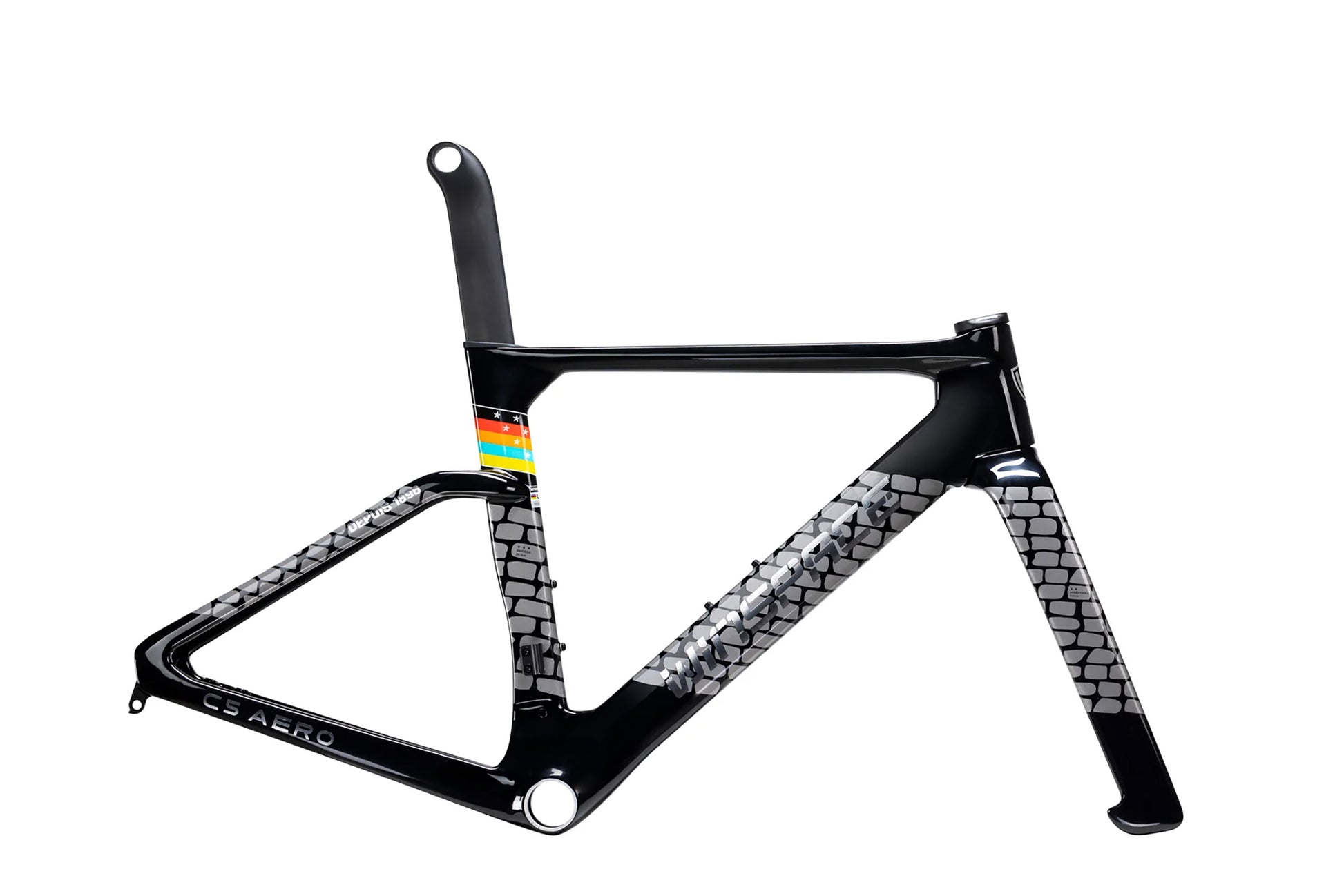

- Frame: C5 Aero Toray T800 and High-Modulus M Series carbon
- Headtube: NO.55R 1.5 / ACR/STD
- Wheel Axles: 12mm thru-axle (F100mm, R142mm).
- Handlebar/Stem: Winspace Zero SL Integrated Bar and Stem. Customise to your size preferences.
- Seatpost: Winspace Aero seatpost
- Saddle: TCP 3D printed carbon saddle
- Drivetrain: Shimano Dura-Ace Di2, 12-speed (52/36T Crankset, 11-30T or 11-34T Cassette).
- Front brake: Shimano Dura-Ace Di2
- Rear Brake: Shimano Dura-Ace Di2
- Shift Levers: Shimano Dura-Ace Di2
- Front Derailleur: Shimano Dura-Ace Di2
- Rear Derailleur: Shimano Dura-Ace Di2
- Rotors: Shimano Dura-Ace (140 or 160mm)
- Crankset: Shimano Dura-Ace (165, 170, 172.5 or 175mm), 52/36
- Chain: Shimano Dura-Ace
- Bottom Bracket: Wishbone Ceramic T47 Inboard
- Tyres: Goodyear Eagle F1 (700x28c or 700x30c).
- Bartape: C2 Black
- Wheels: Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
Choose Your Carbon Wheelset
-
UNAAS Hard2
Learn MoreDesigned with Winspace’s proprietary wavy rim profile, this wheelset revolutionises aerodynamics and crosswind stability.
- Wavy Rim 45/50mm weighing 1578g (+/- 5%).
- 4 pawl hub system for efficient power transfer
- Pillar 1423 high strength spokes
- T700 Carbon Fiber Construction: High-strength carbon ensures durability while maintaining a lightweight structure
-
HYPER 3
Learn MoreLightweight and stiff, offering balanced performance for climbing, cornering, and all-round riding.
- Choice of 33mm, 45mm and 67mm rims weighing 1249g, 1334g and 1450g (+\- 4%) respectively.
- Filament-wound carbon rims for unmatched stiffness-to-weight ratio.
- Aero Carbon Spokes for enhanced aerodynamics and responsiveness.
- Ceramic Bearings for ultra-smooth rolling and minimal resistance.
- Titanium Ratchet System, which is lighter, stronger, and more durable.
Lighter
Made from Toray T800 and M Series carbon,
top-tier materials offer enhanced load-bearing
capacity while reducing weight by 115g.
Steadier
Retains the high stiffness of the first generation, with optimised geometry and a longer RC and larger Trail for more stable handling.
Faster
The downtube, front fork, and seat tube have
been widened for a more aerodynamic design.
Wind tunnel testing
Wind tunnel tests show: C5 Aero is 4.6W more efficient and 5 minutes faster over a 100km ride with a 40km/h crosswind.
X-ray Inspection
We use precise X-ray inspection to ensure
quality, with interlayer gaps smaller than
1x10mm for dependable durability
One-Piece Moulding
One-piece moulding offers added strength and a nice smooth finish, reflecting our focus on quality and design.
