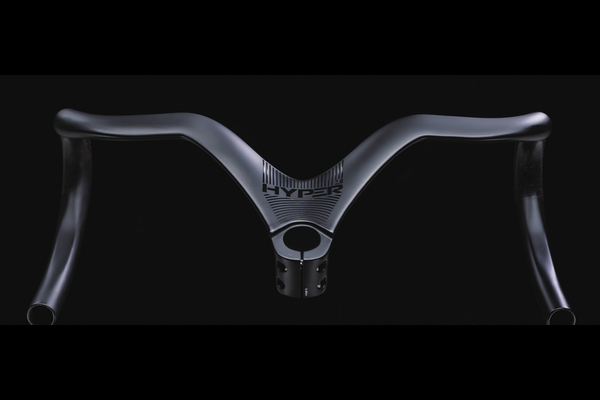

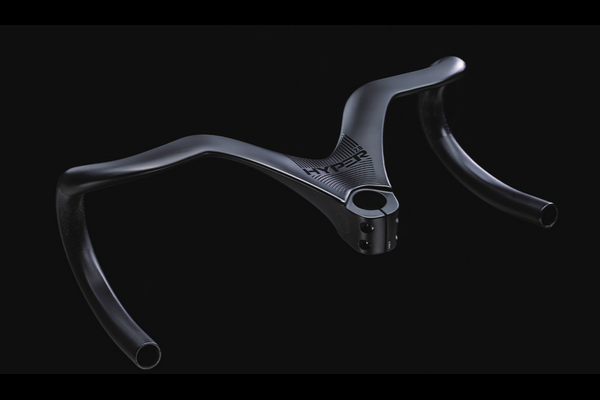

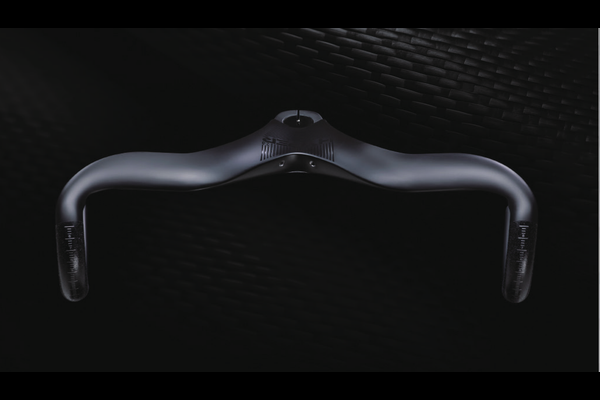

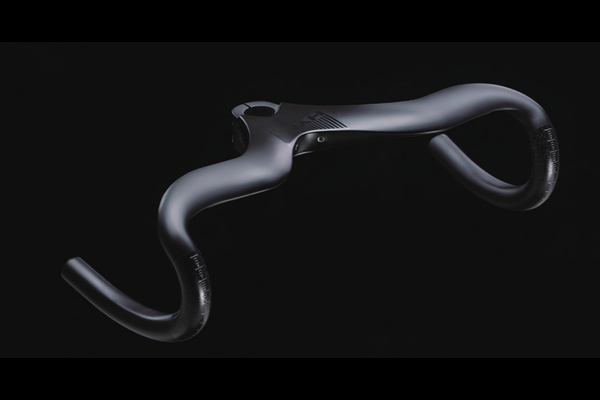

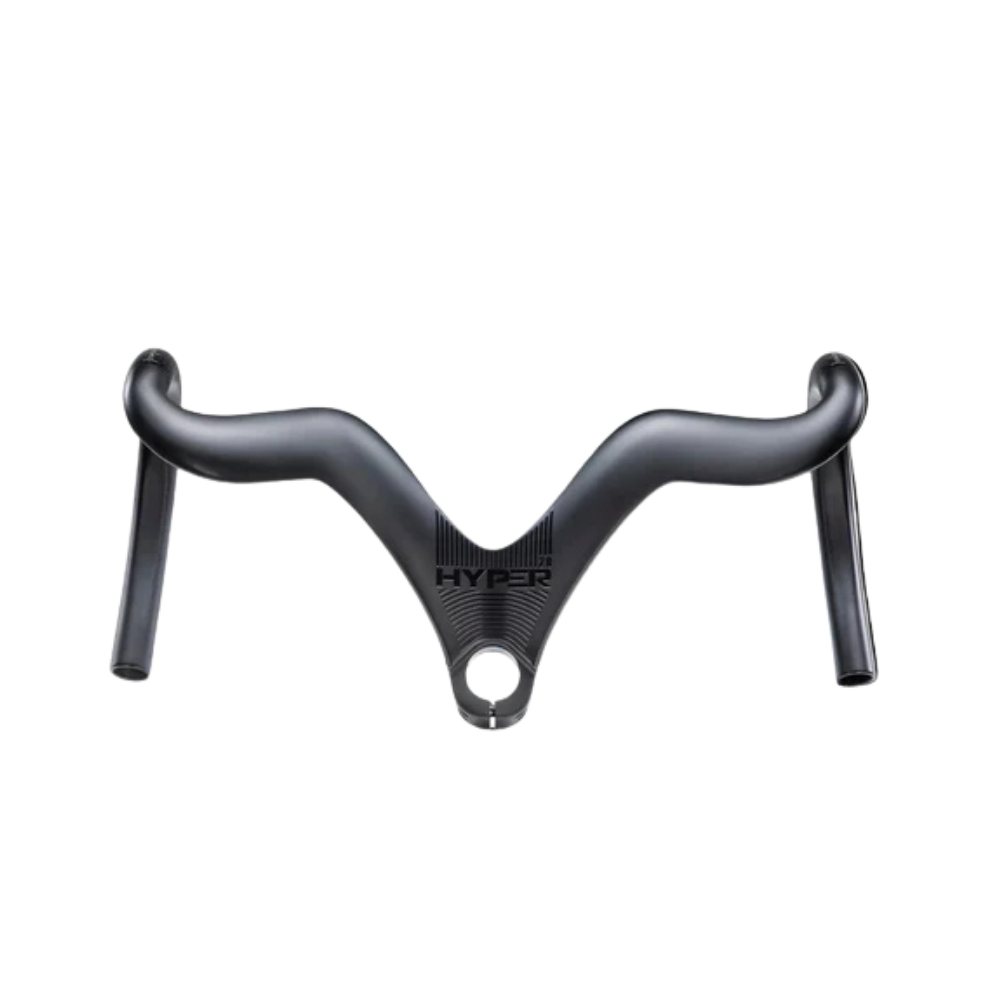

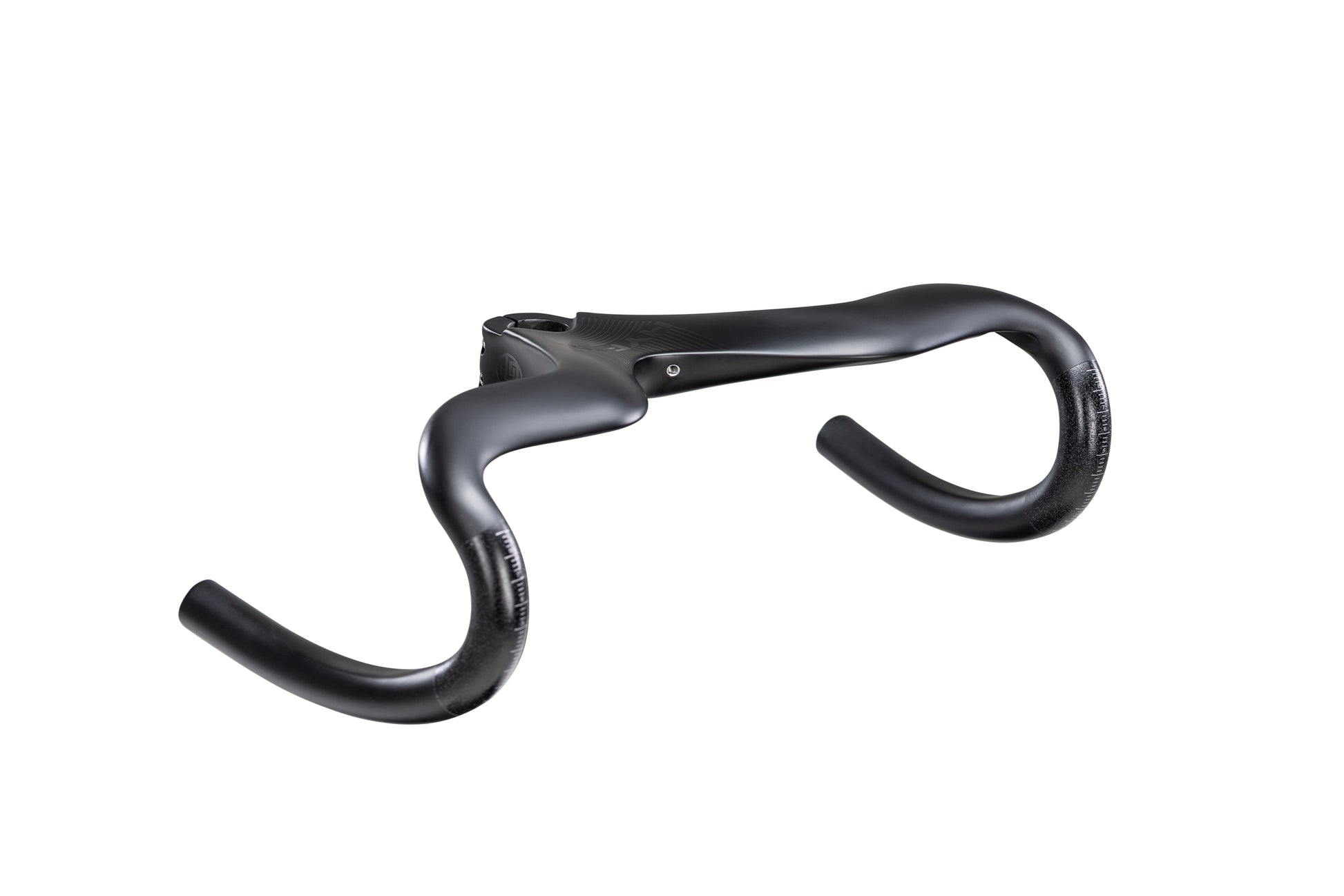

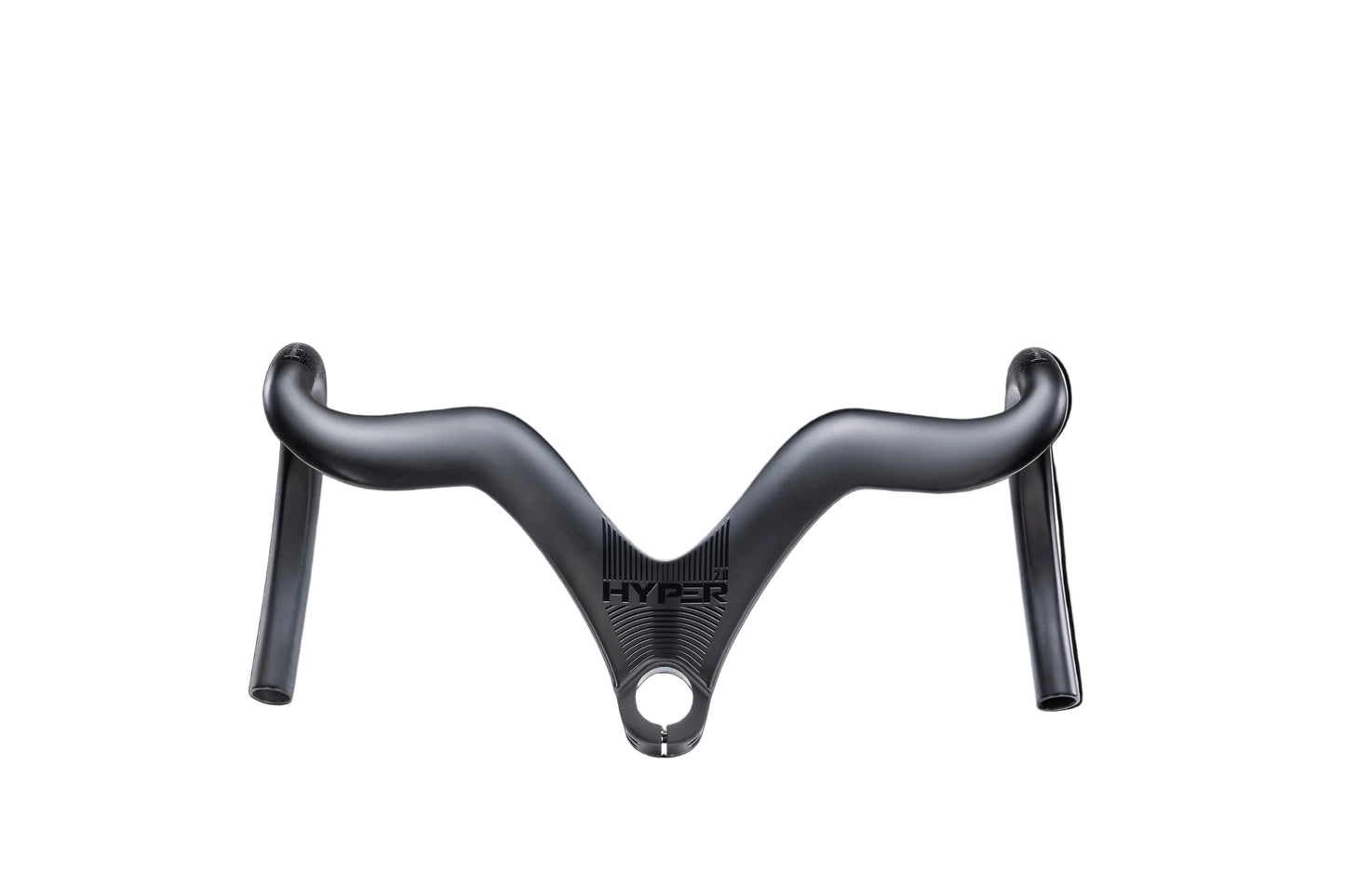

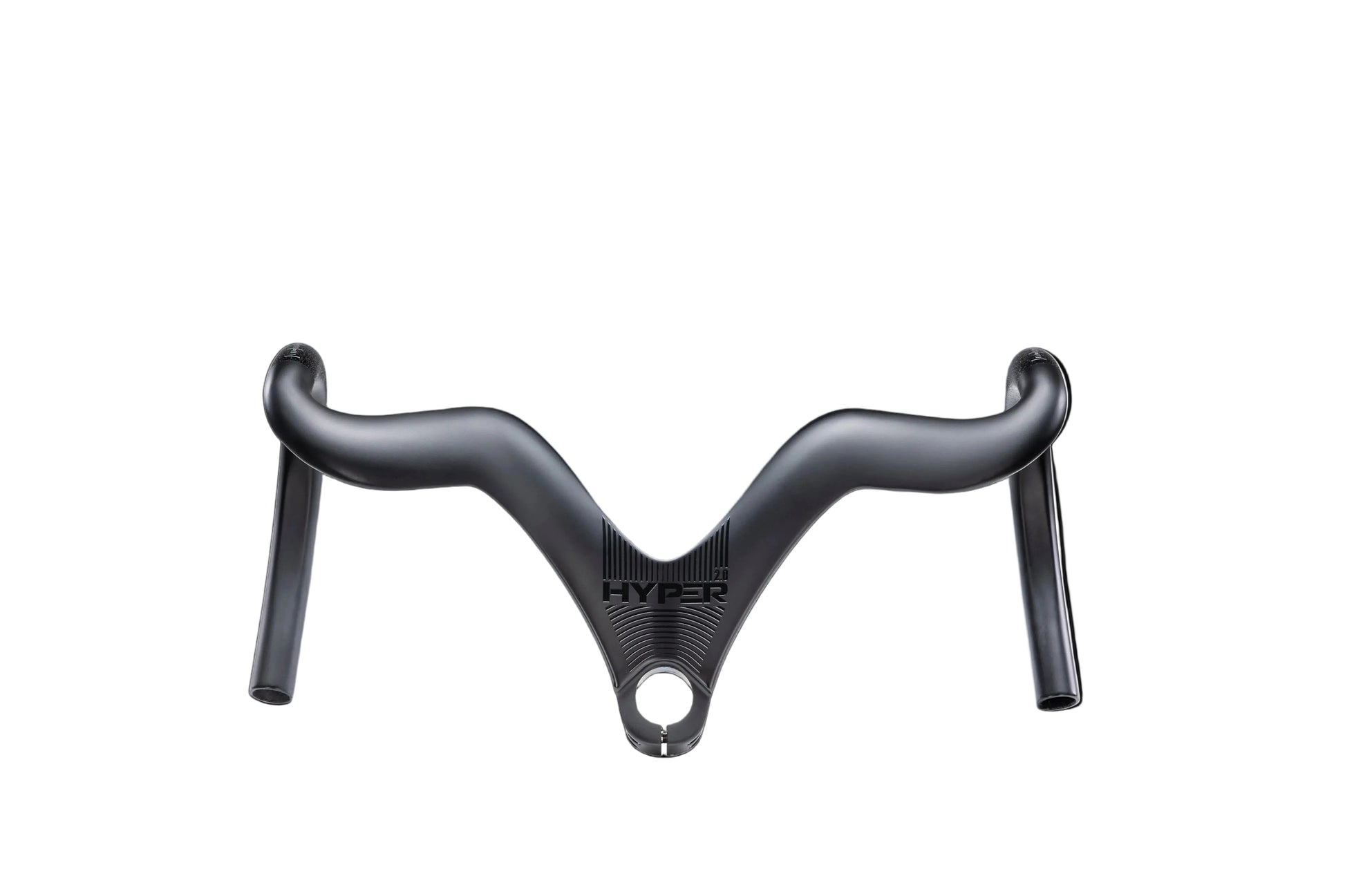

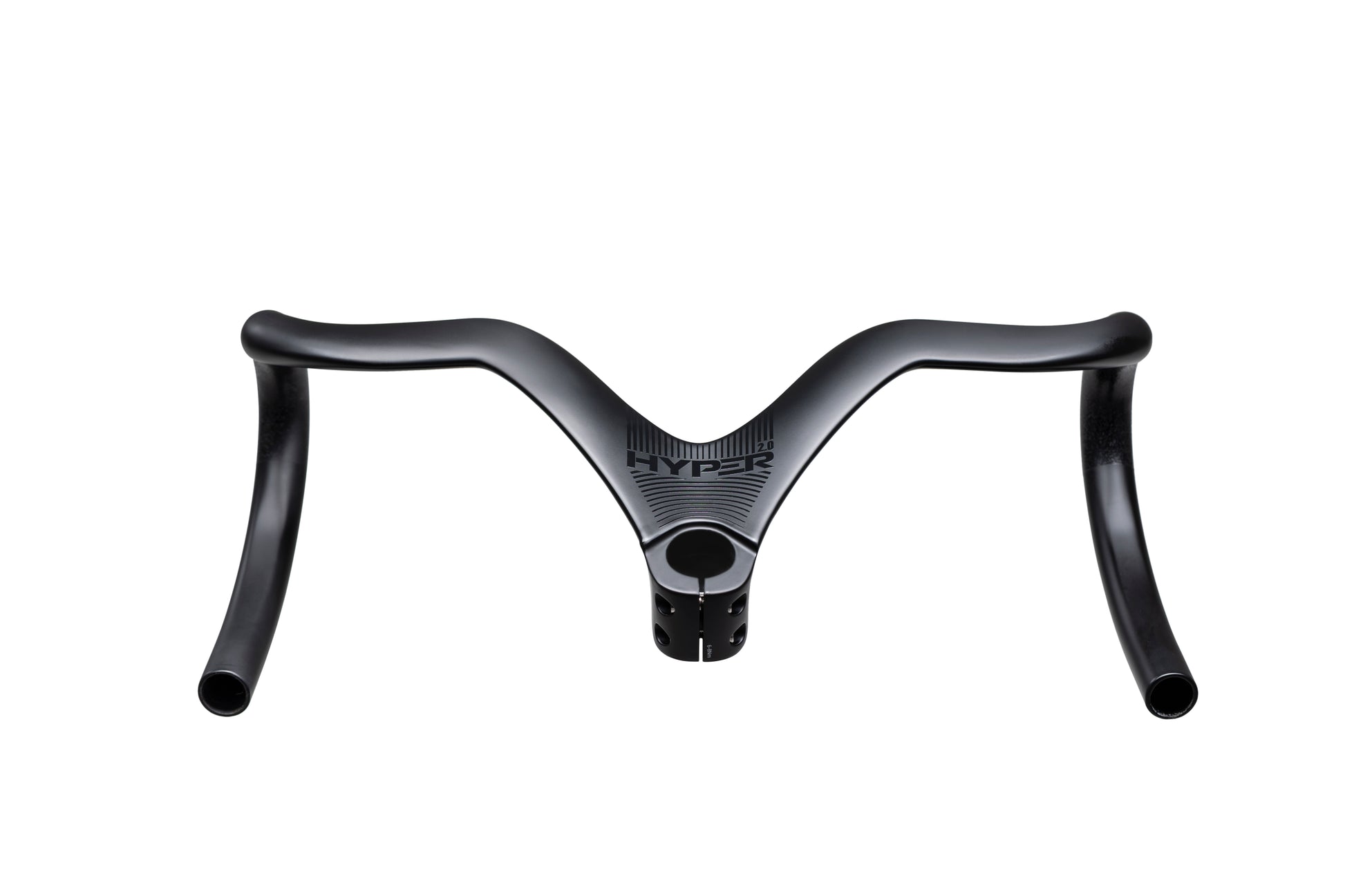

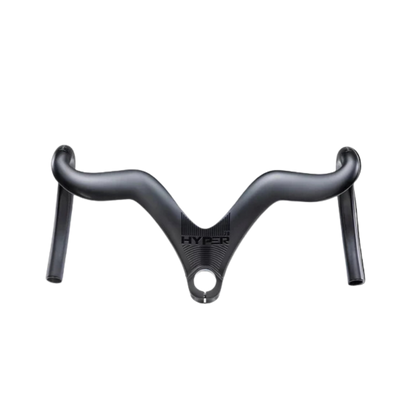

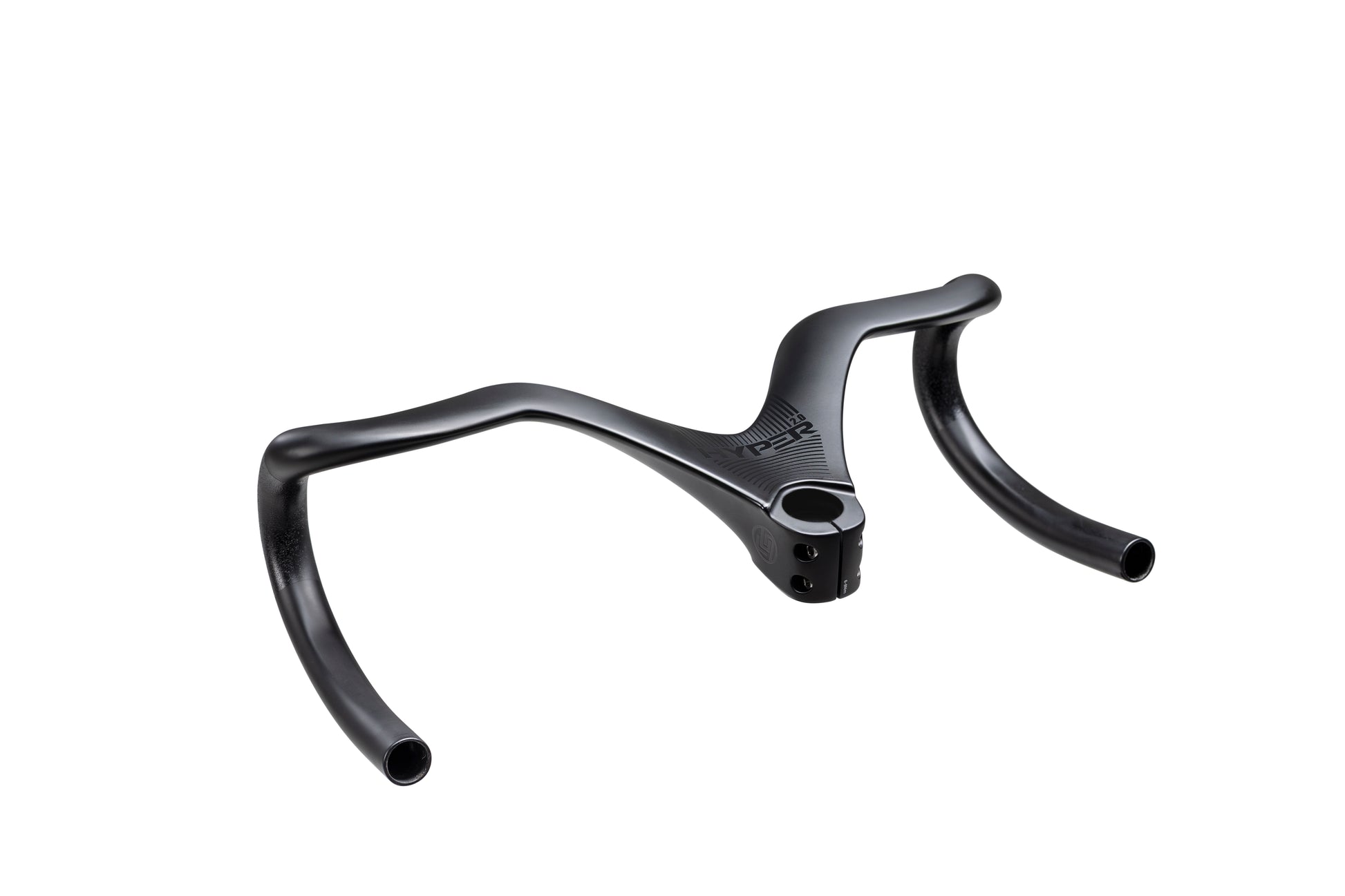

HYPER 2.0Integrated Rise Handlebar

T800 and T1000 carbon, a 40 mm rise and a shorter effective stem for a firmer front end.

Discover

320 g400 mm bar, 105 mm stem

40 mmRise

T800 + T1000Toray carbon

24Width and length combinations

73 mmReach

123 mmDrop

11 degreesStem angle

4 degreesFlare angle

6 degreesOutsweep

18Third party frames with adapters

Aerodynamics

Optimised to slice through the air

The HYPER 2.0 is designed to cut cleanly through the air, and shaped for maximum aero efficiency and stability at speed. Weighting in at 320g, it's the perfect partner for explosive sprints.

The rise

40 mm of rise, working in both directions

A raised front end means a more natural position, less strain, and a cockpit that works with your body instead of against it. The HYPER 2 Riser takes that further with full carbon construction, internal cable routing, and wide compatibility across road platforms.

The carbon

320 g, and stiff where it counts

Toray T800 through the structure with T1000 where the loads concentrate. T1000 is the higher modulus of the two, so putting it only where it earns its keep gives the stiffness without the weight penalty of building the whole bar from it.

The result is roughly 320 g in a 400 mm bar with a 105 mm stem, for a one piece integrated cockpit.

Compatibility

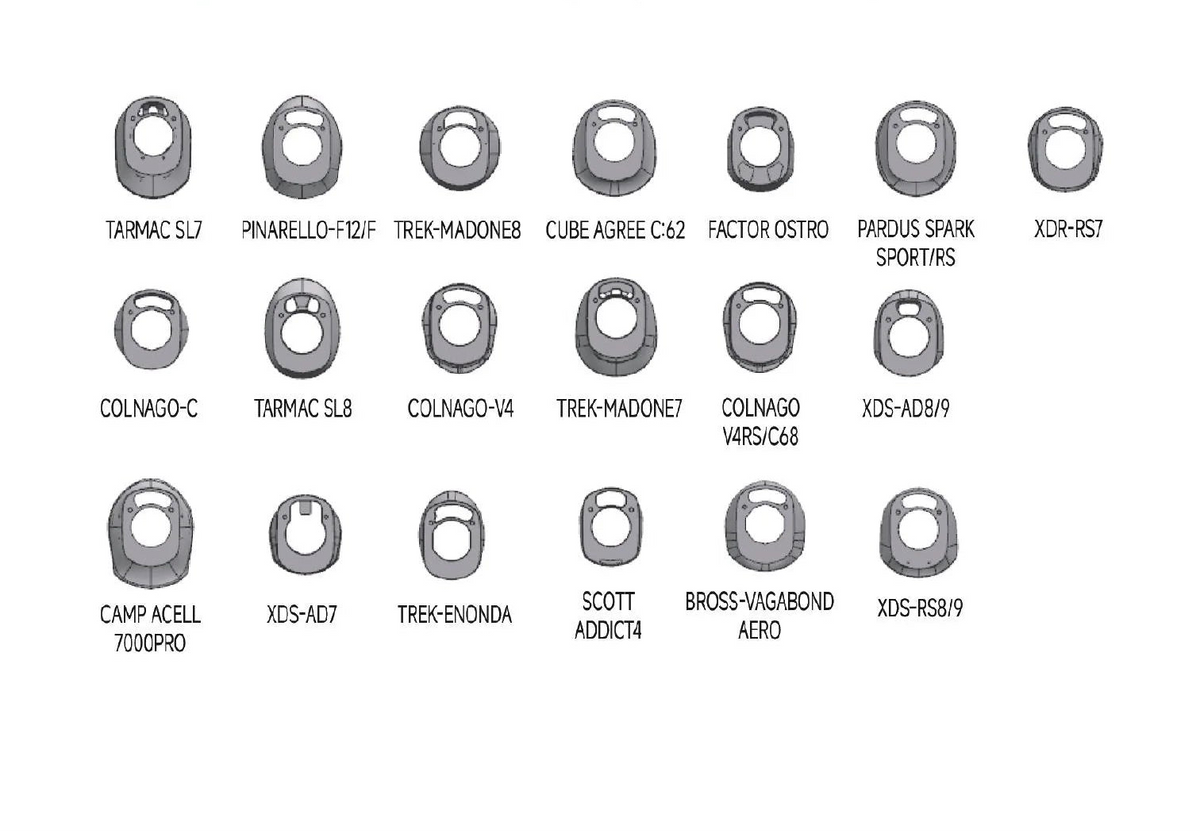

Not only for Winspace frames

It fits every current Winspace frame straight out of the box, plus we have adapters available for many other key brands and models. Please contact us to confirm compatibility.

The detail

Specification and fit

Material: Toray T800 and T1000 carbon
Weight: Approx. 320 g
Measured at 400 mm width with a 105 mm stem length. Other sizes vary.
Bar width: 360, 380, 400, 420 mm
Stem length: 85, 95, 105, 115, 125, 135 mm
Rise: 40 mm
Angles: 11 degree stem angle, 4 degree flare, 6 degree outsweep
Warranty: One year manufacturer warranty

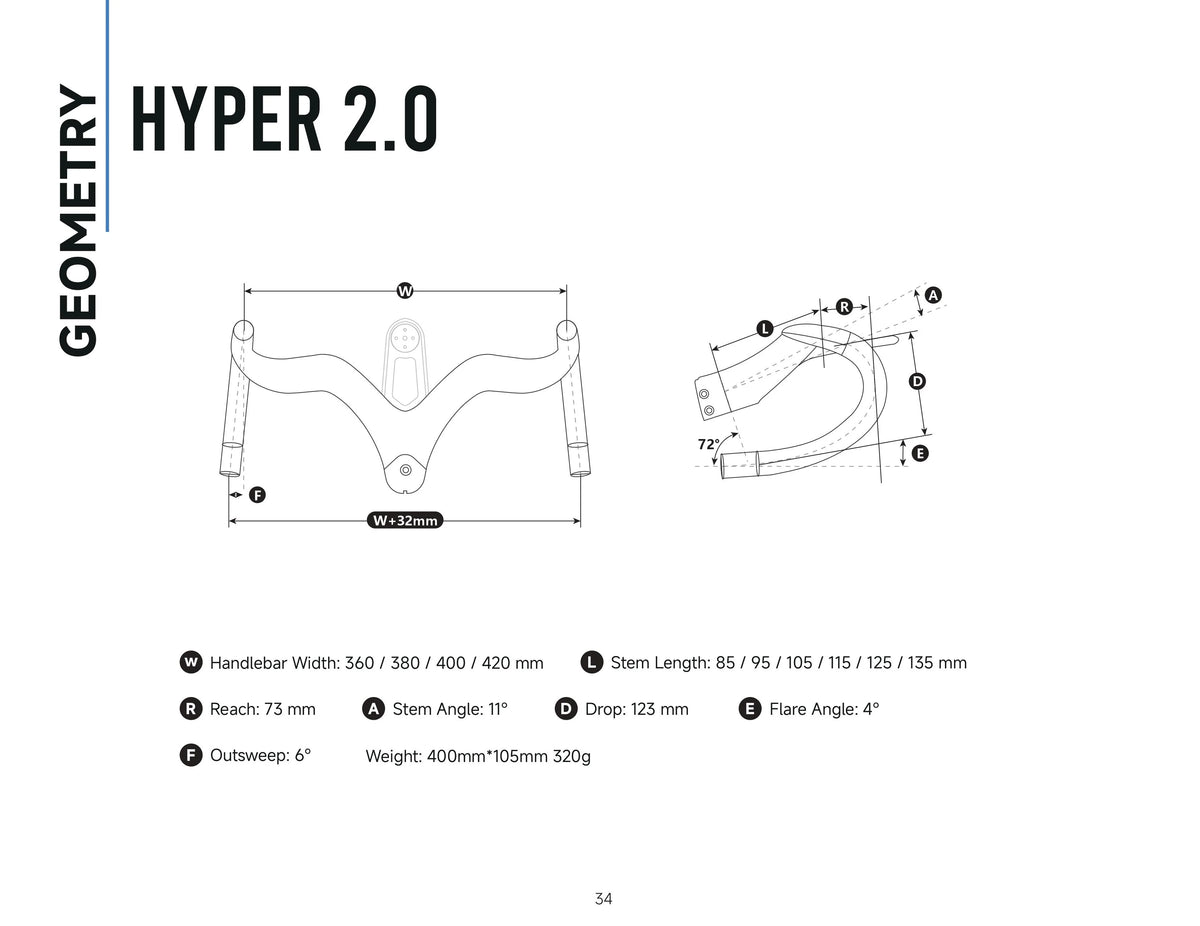

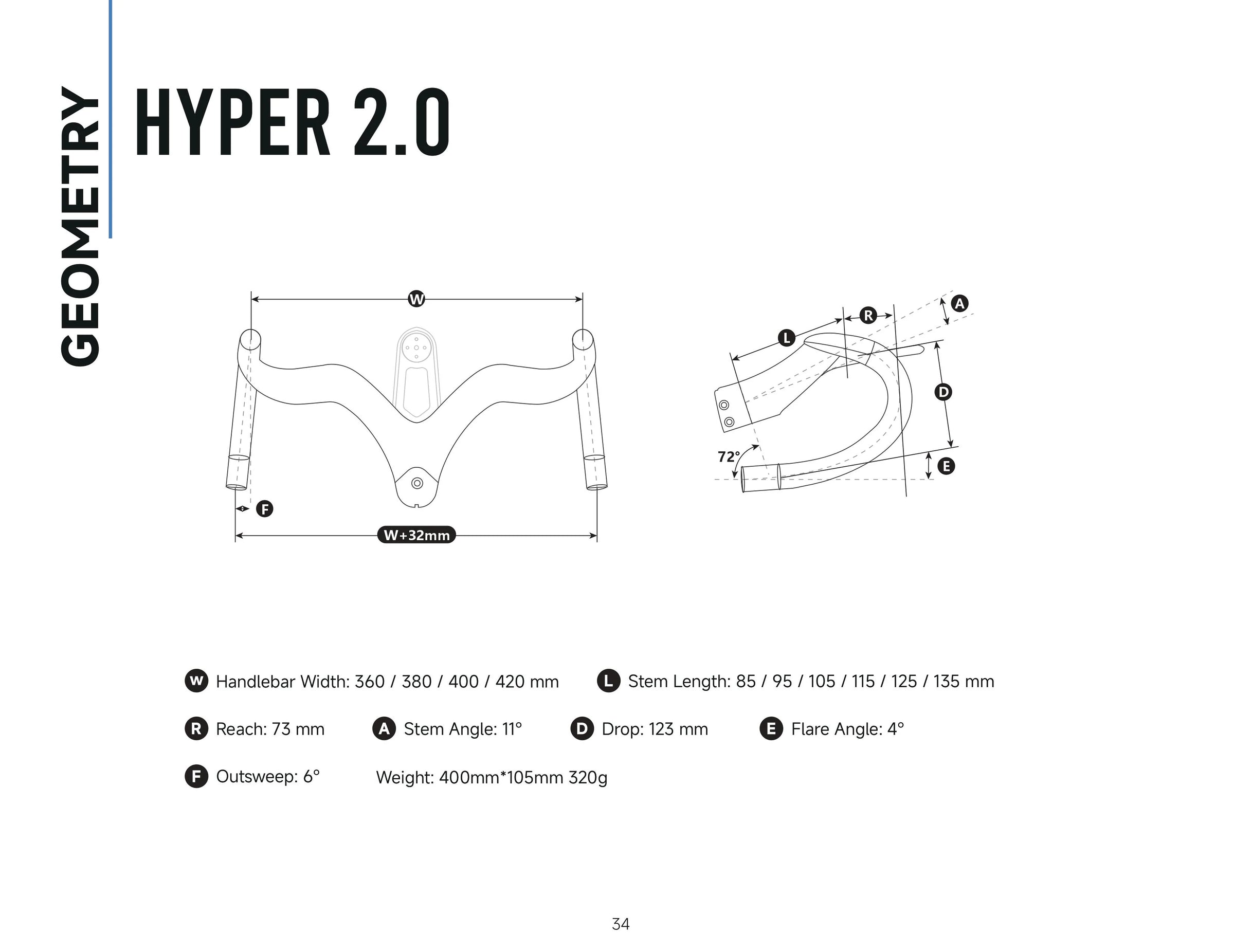

Open the chart full size
