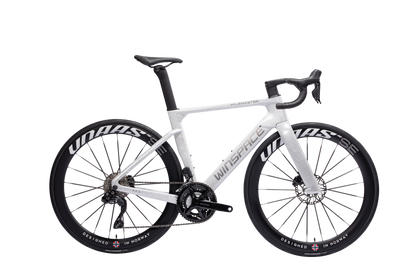

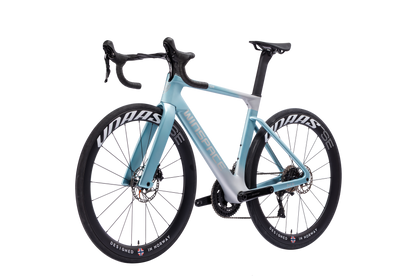

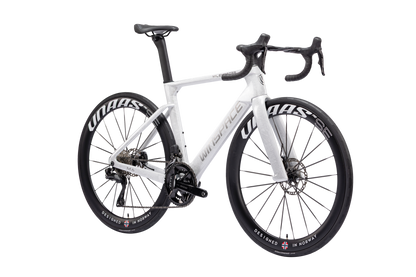

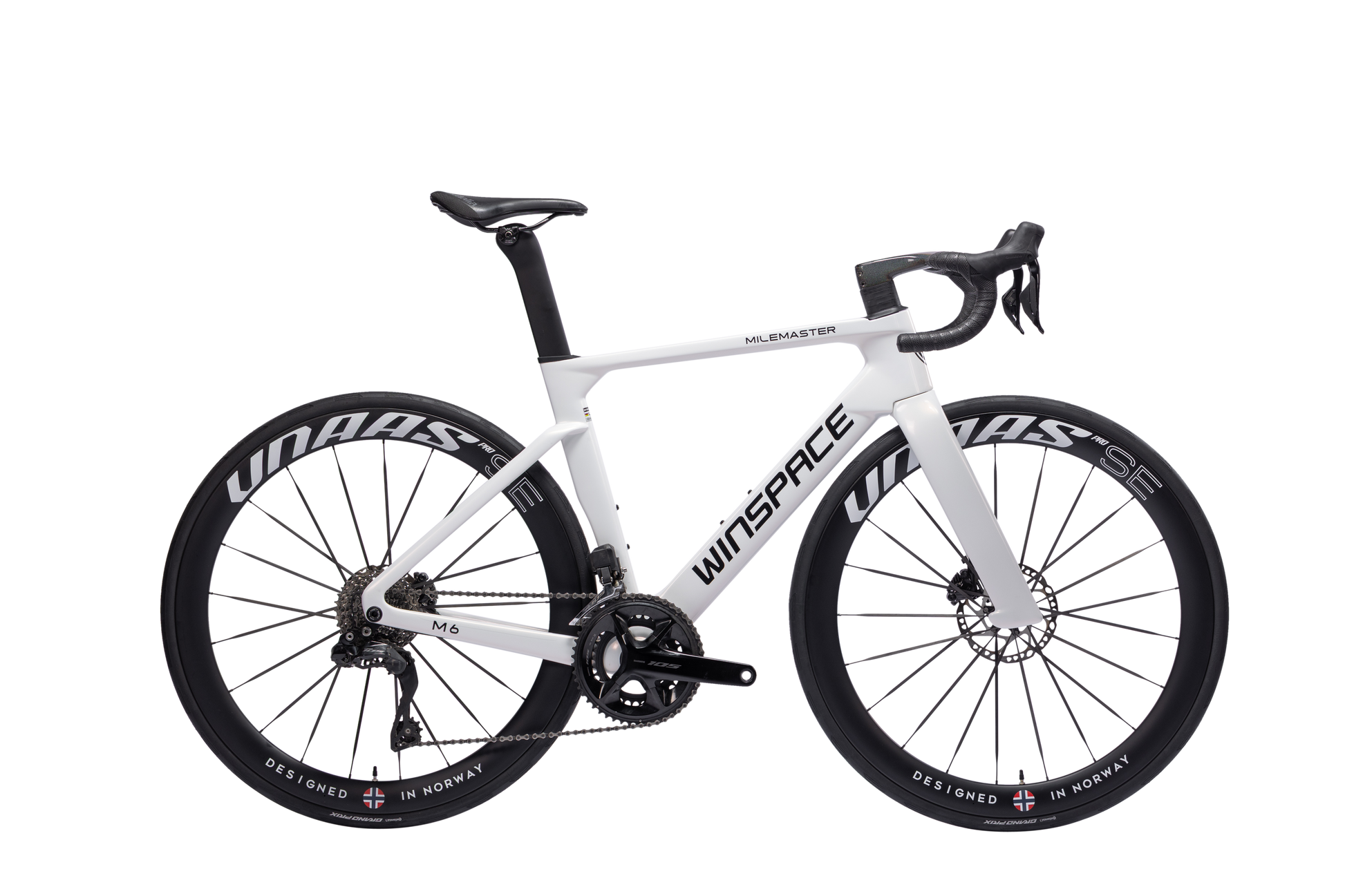

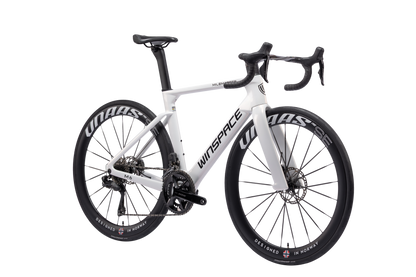

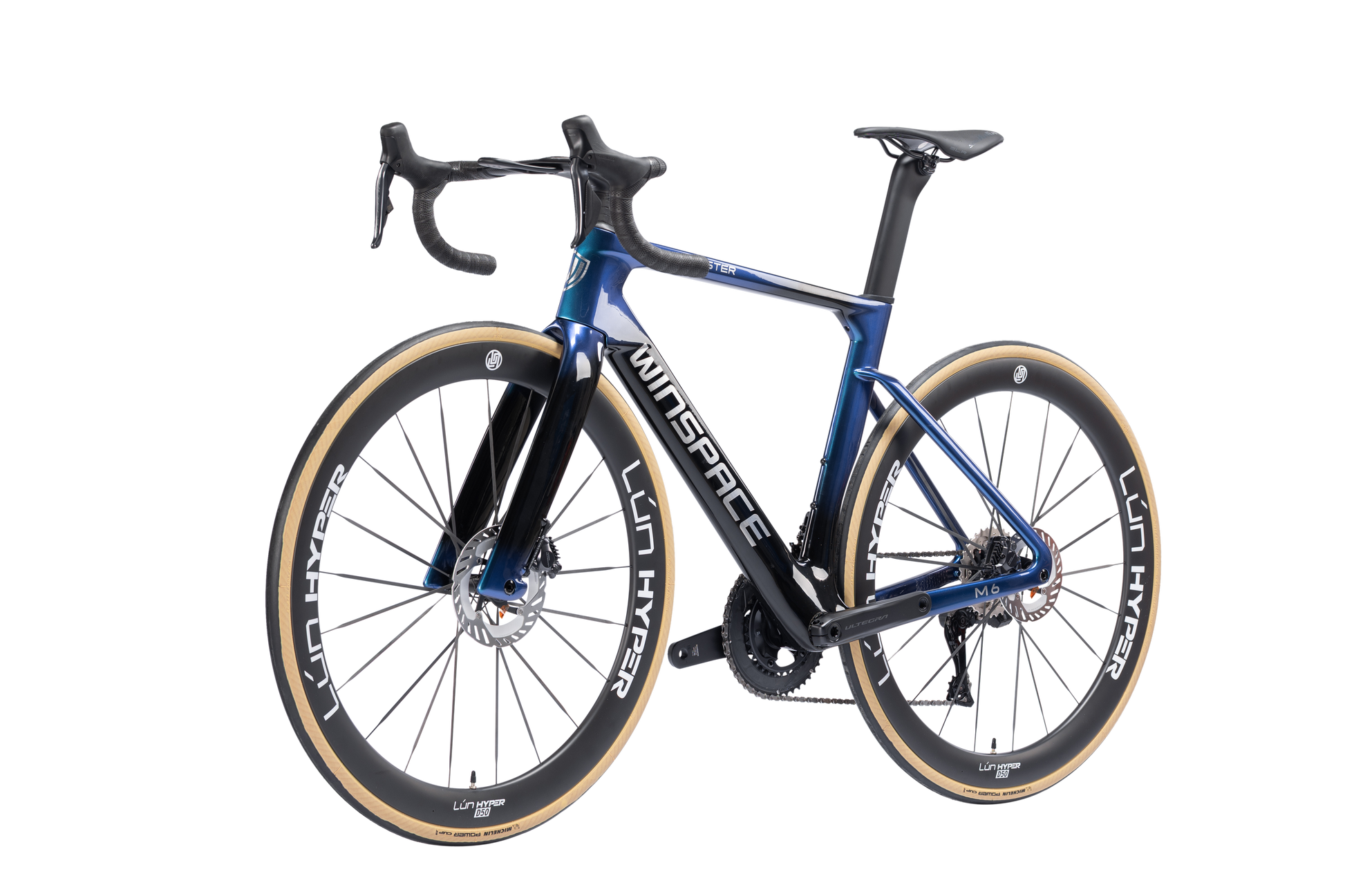

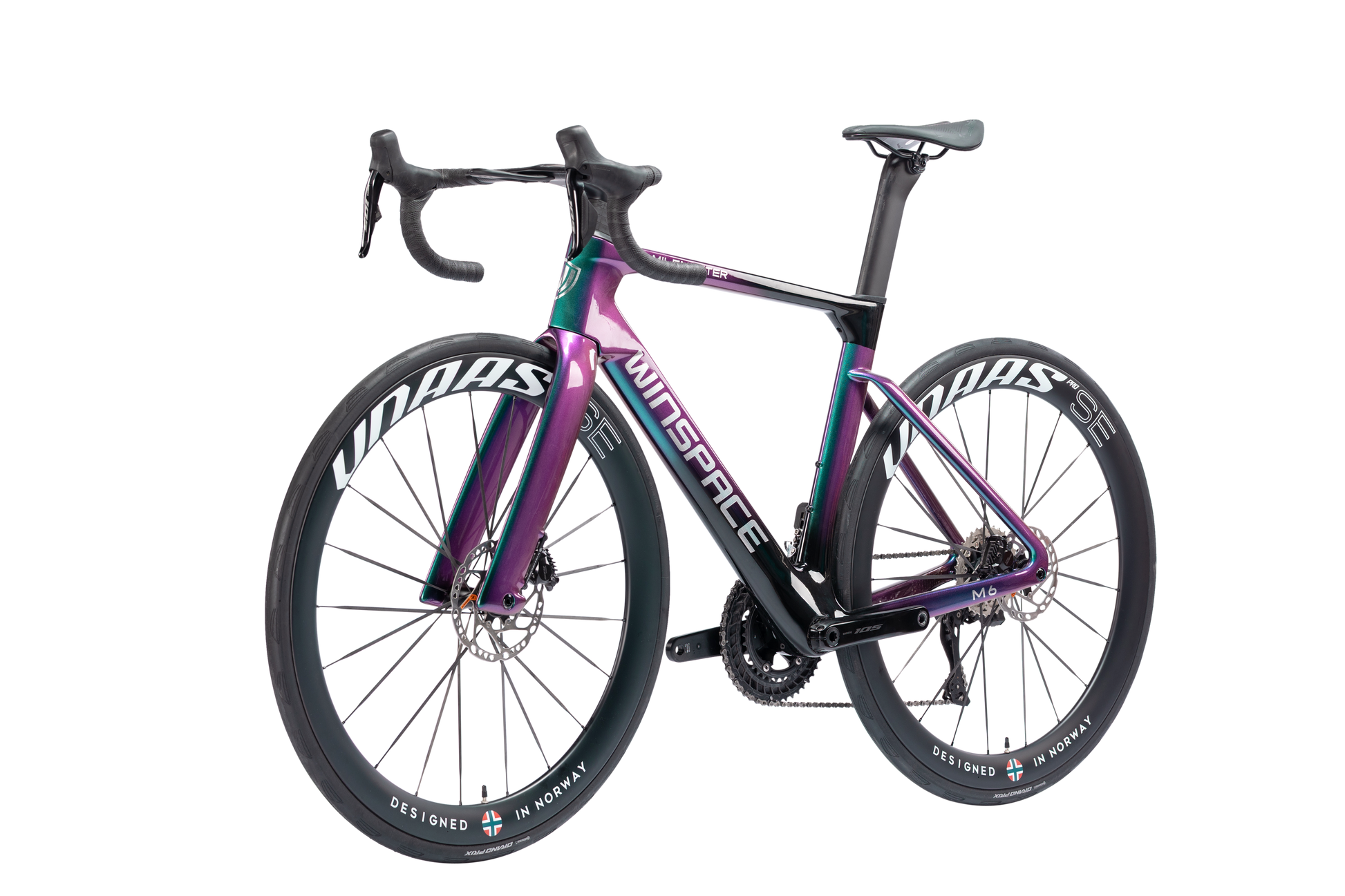

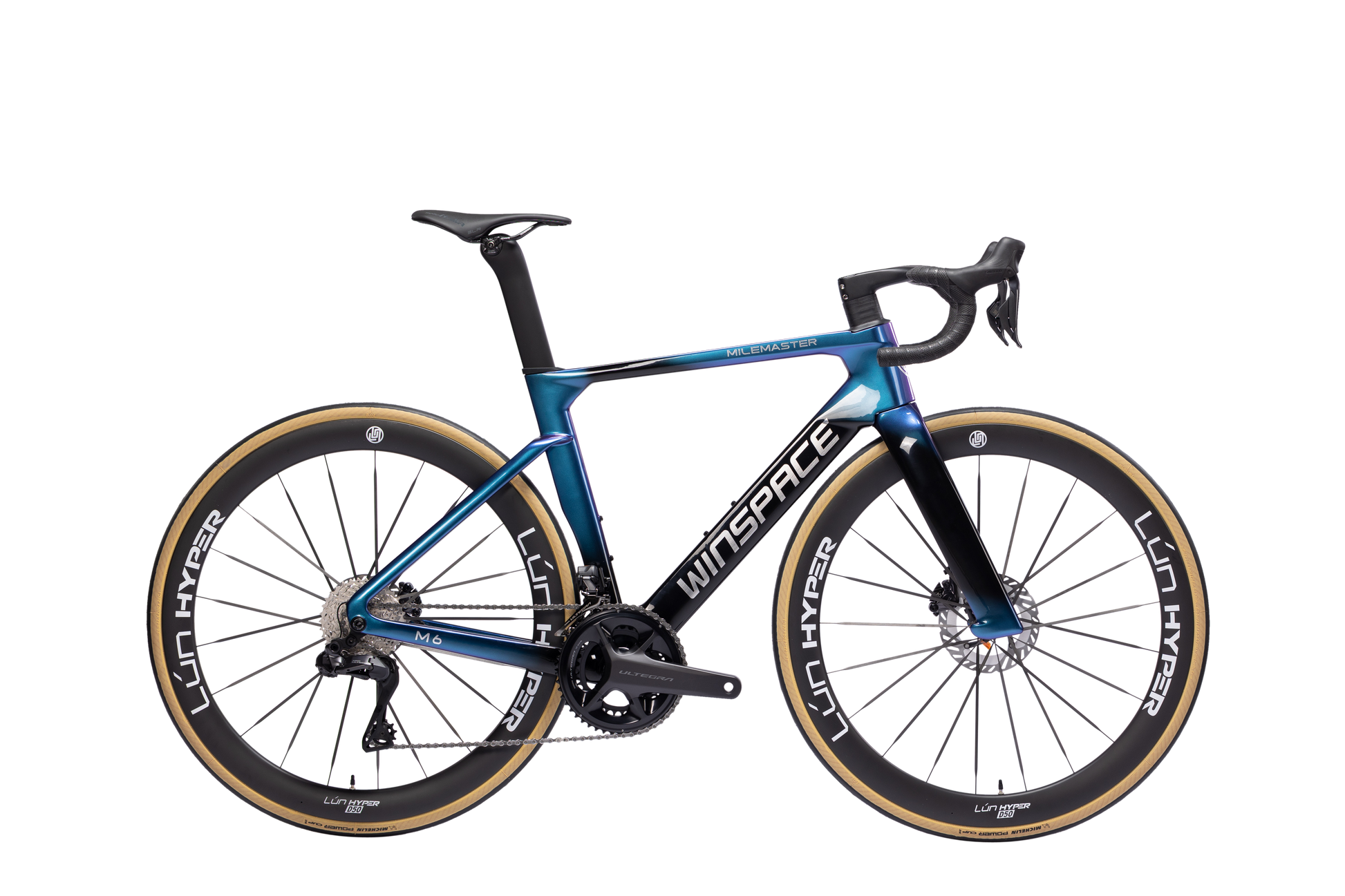

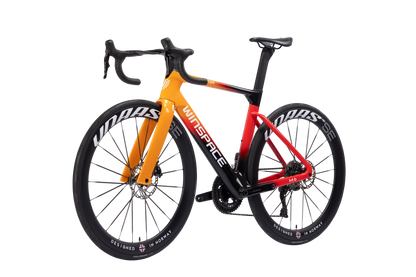

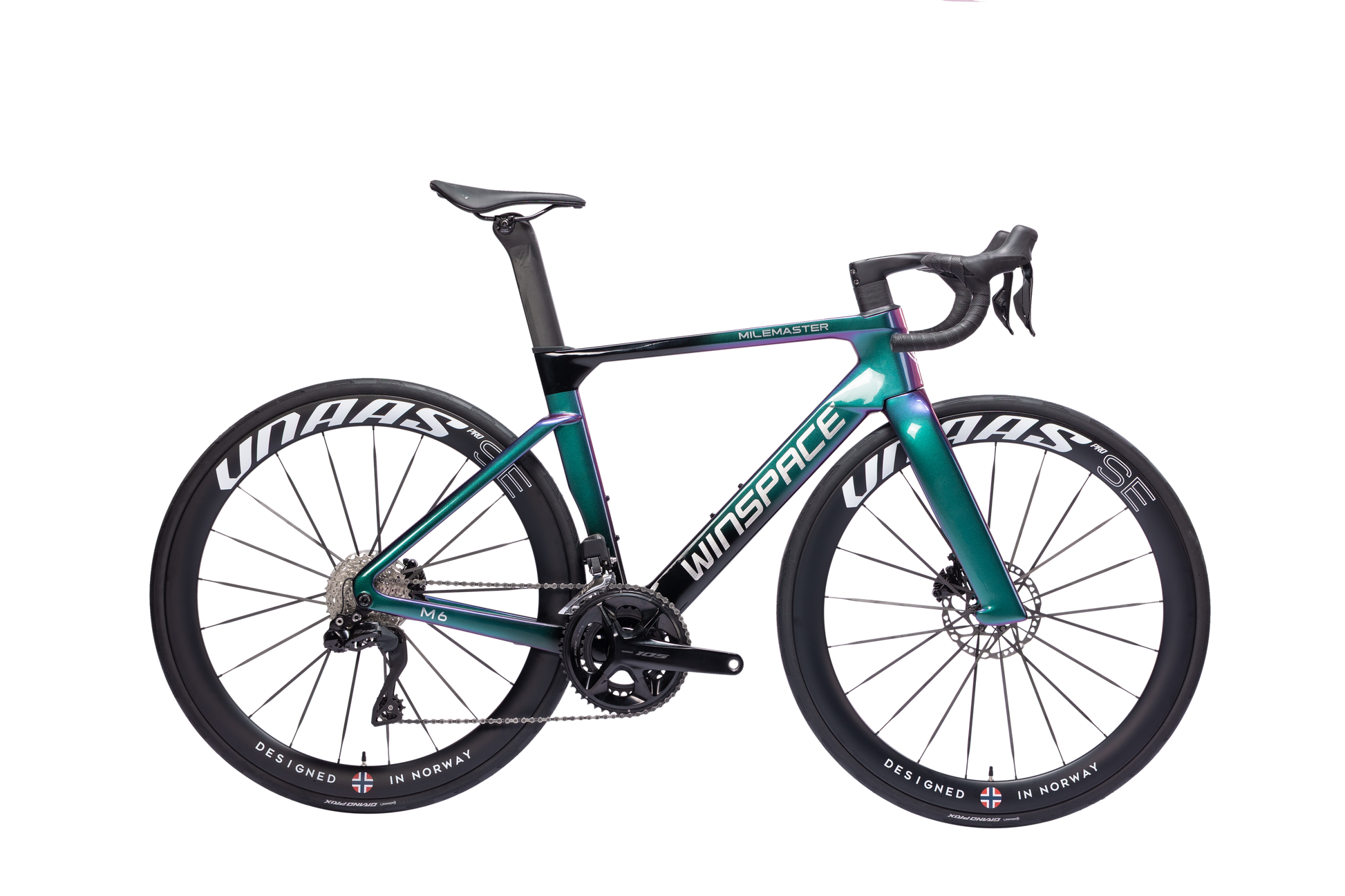

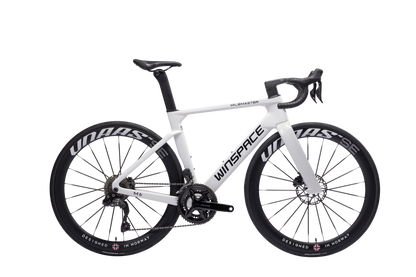

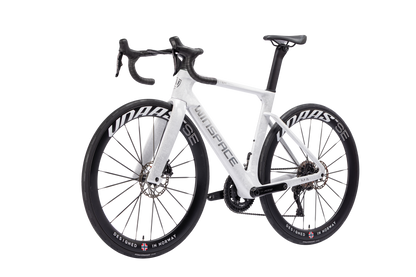

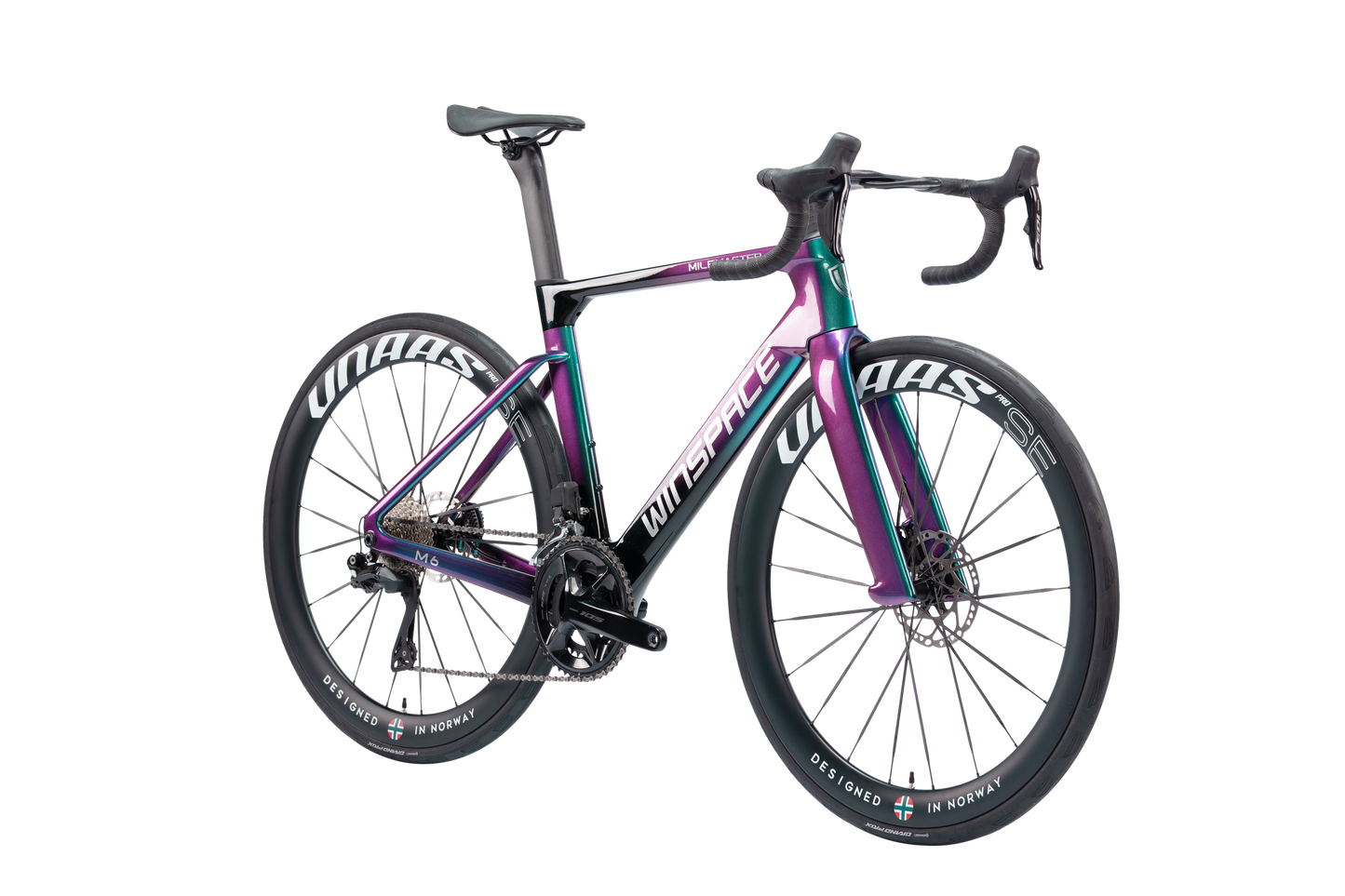

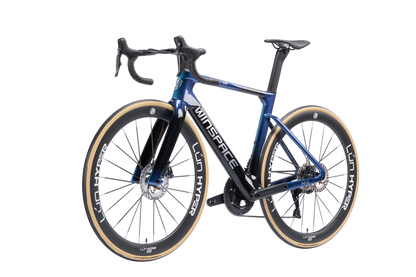

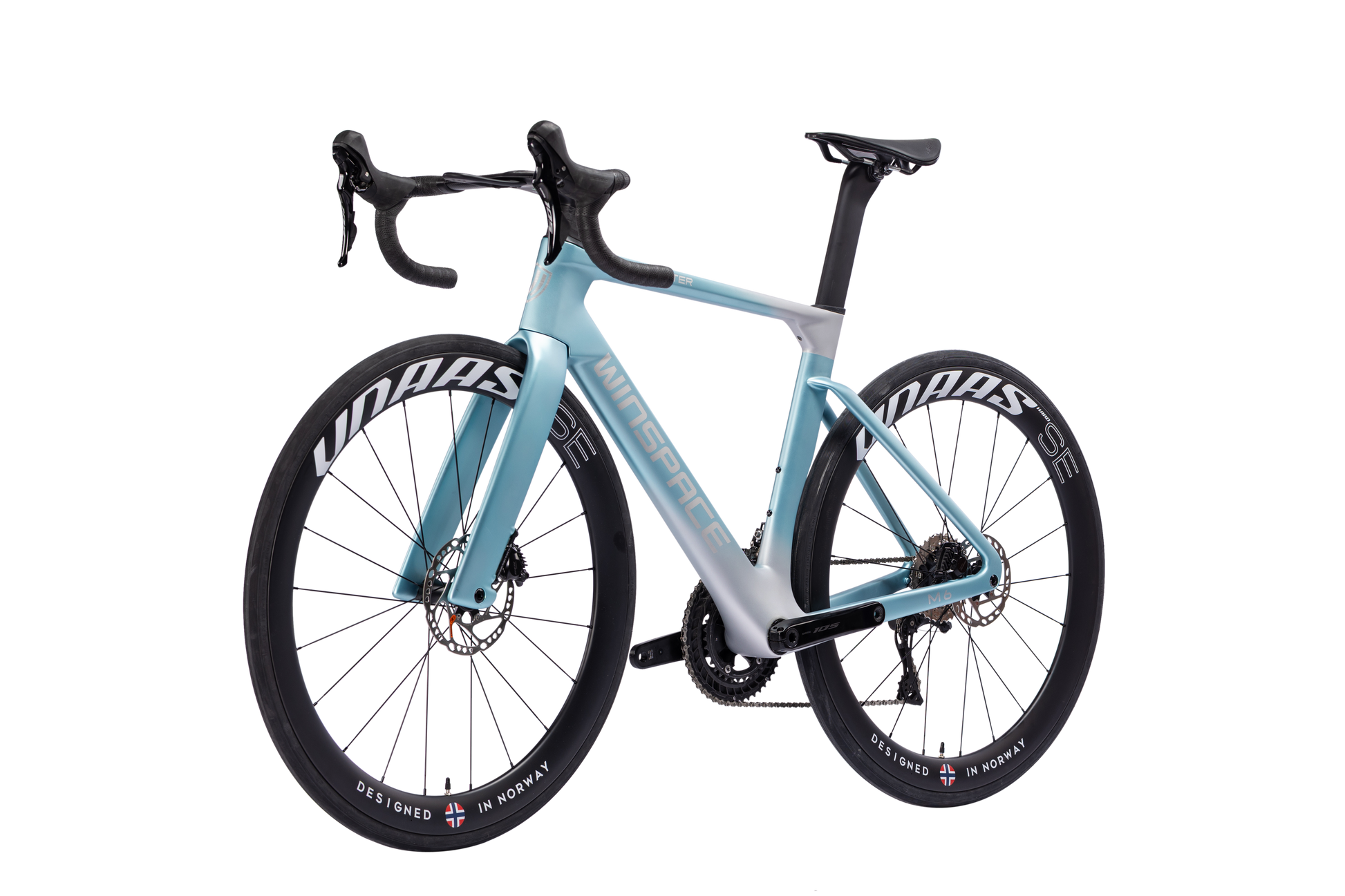

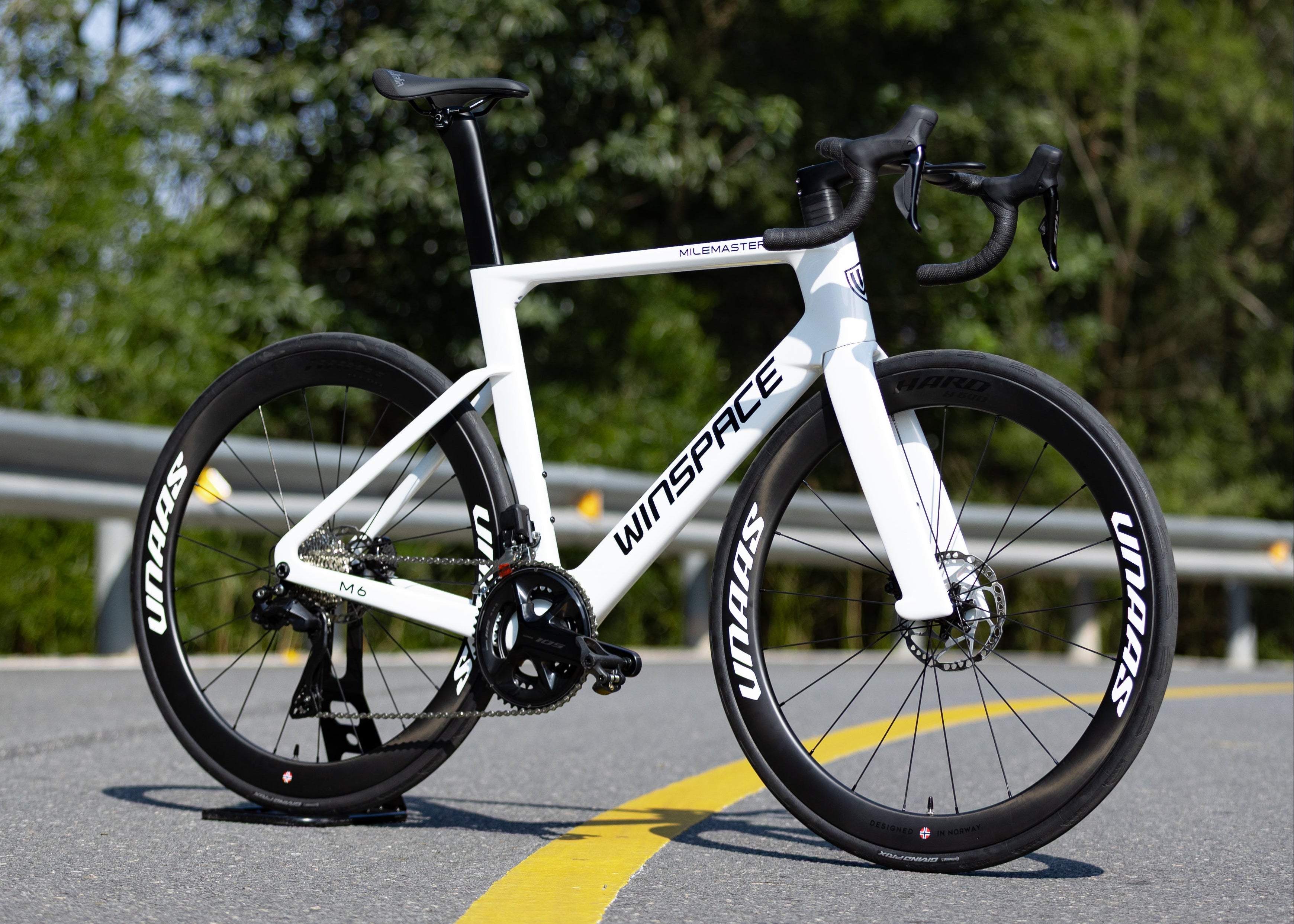

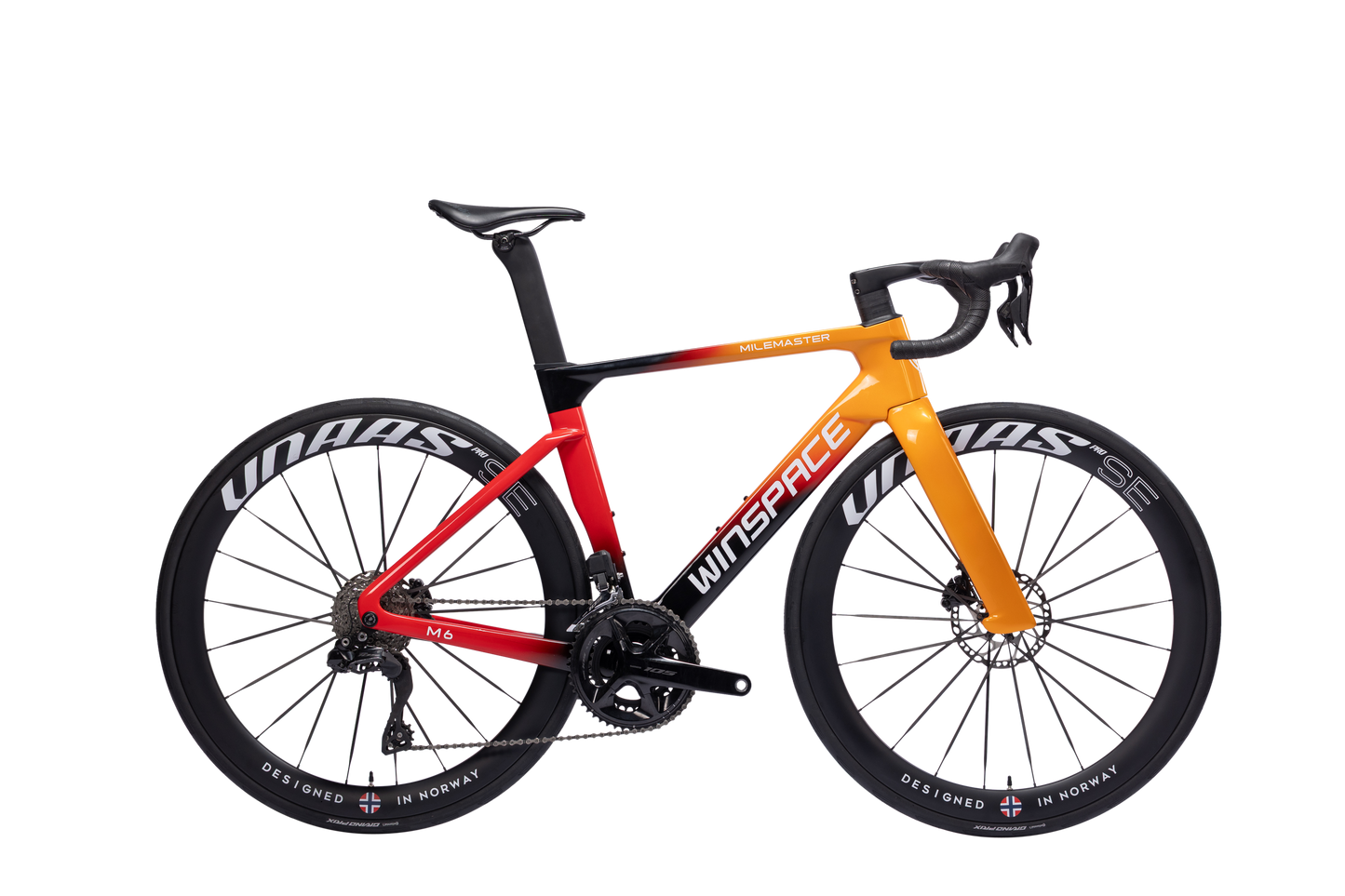

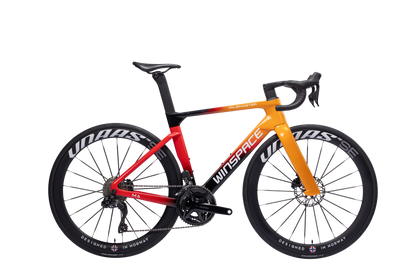

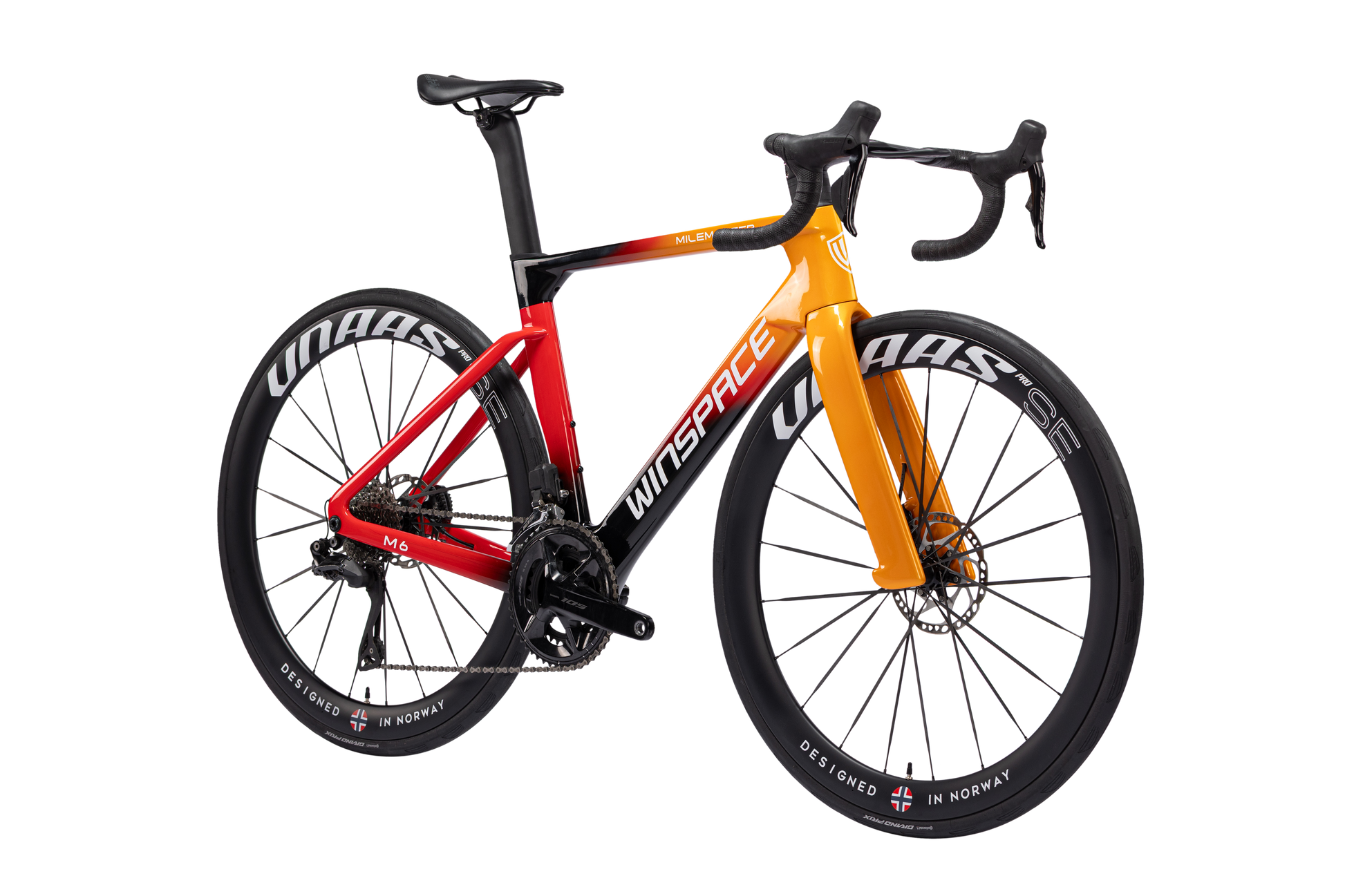

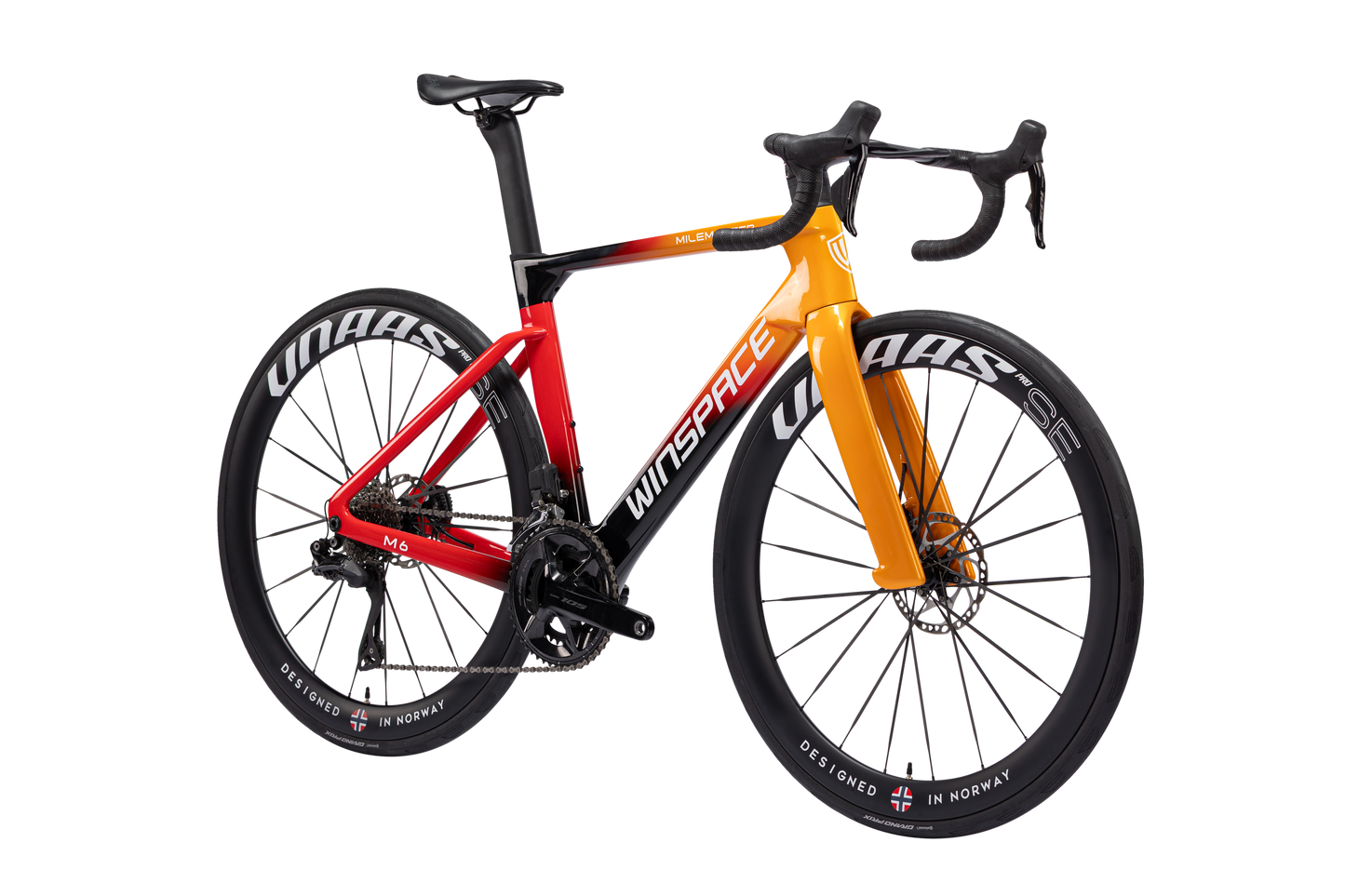

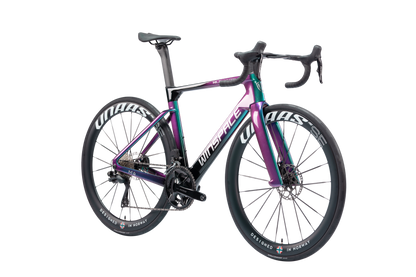

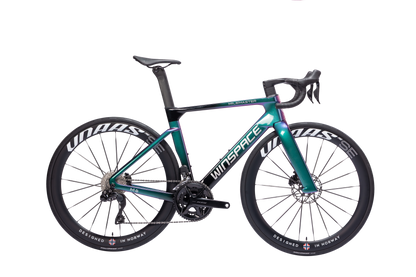

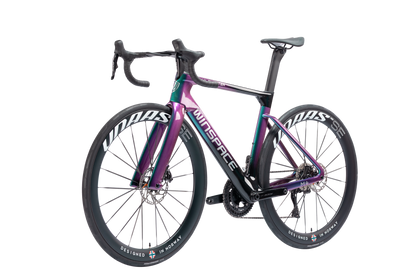

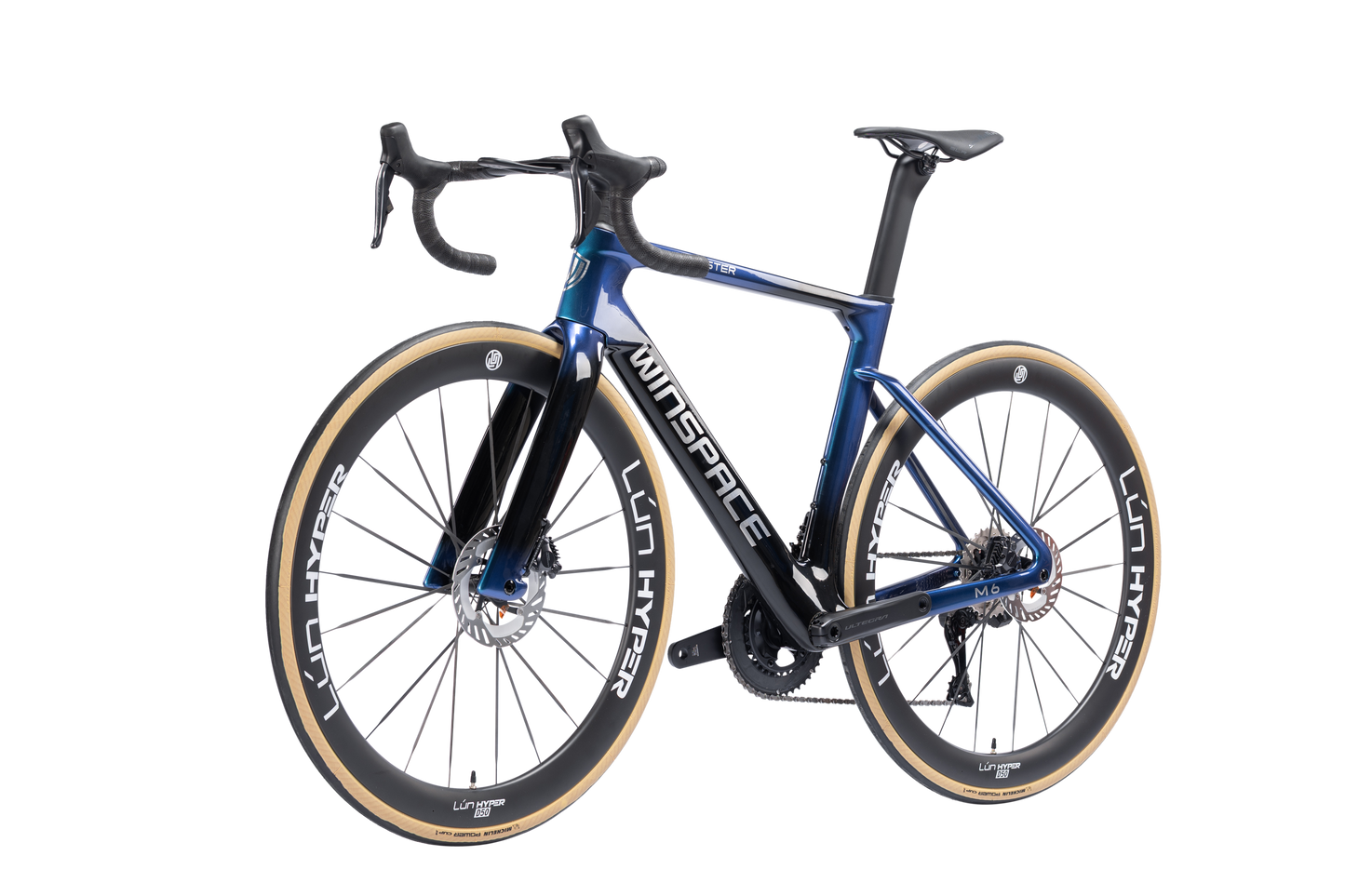

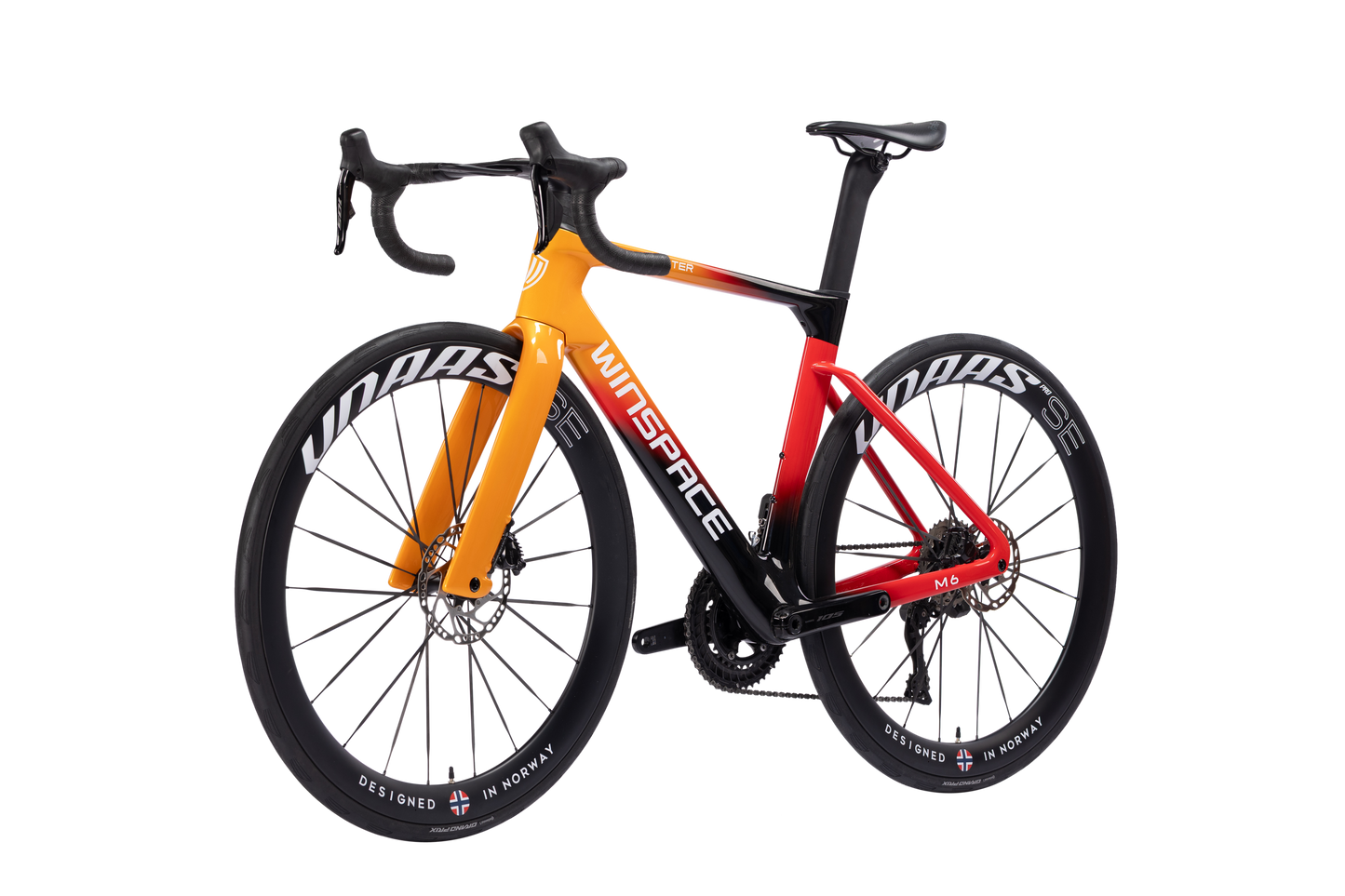

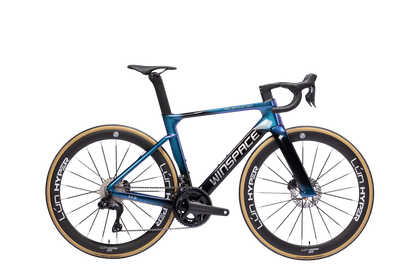

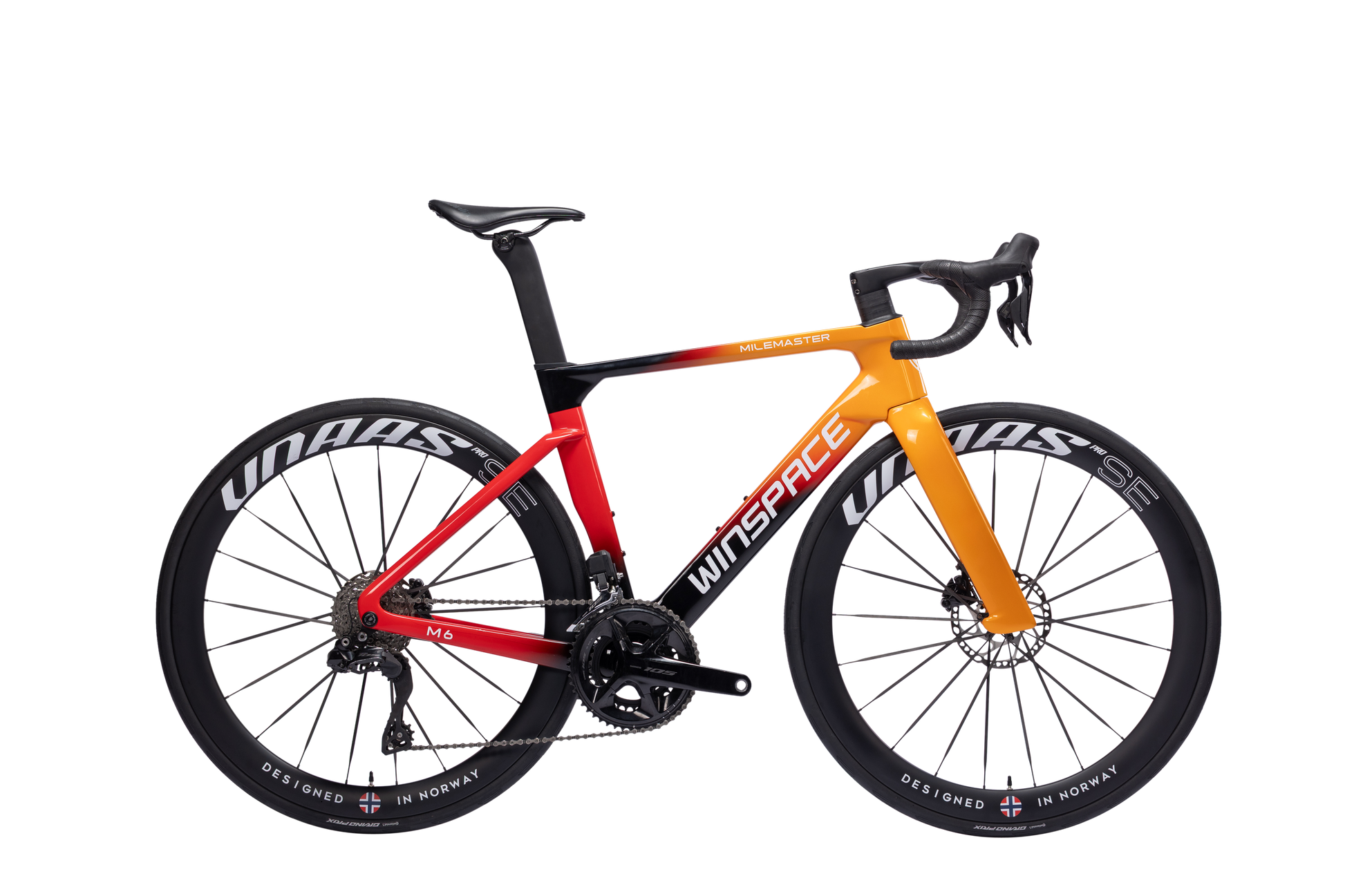

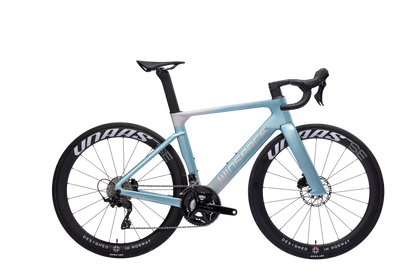

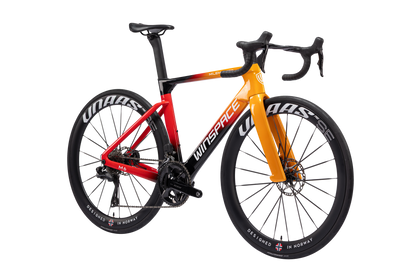

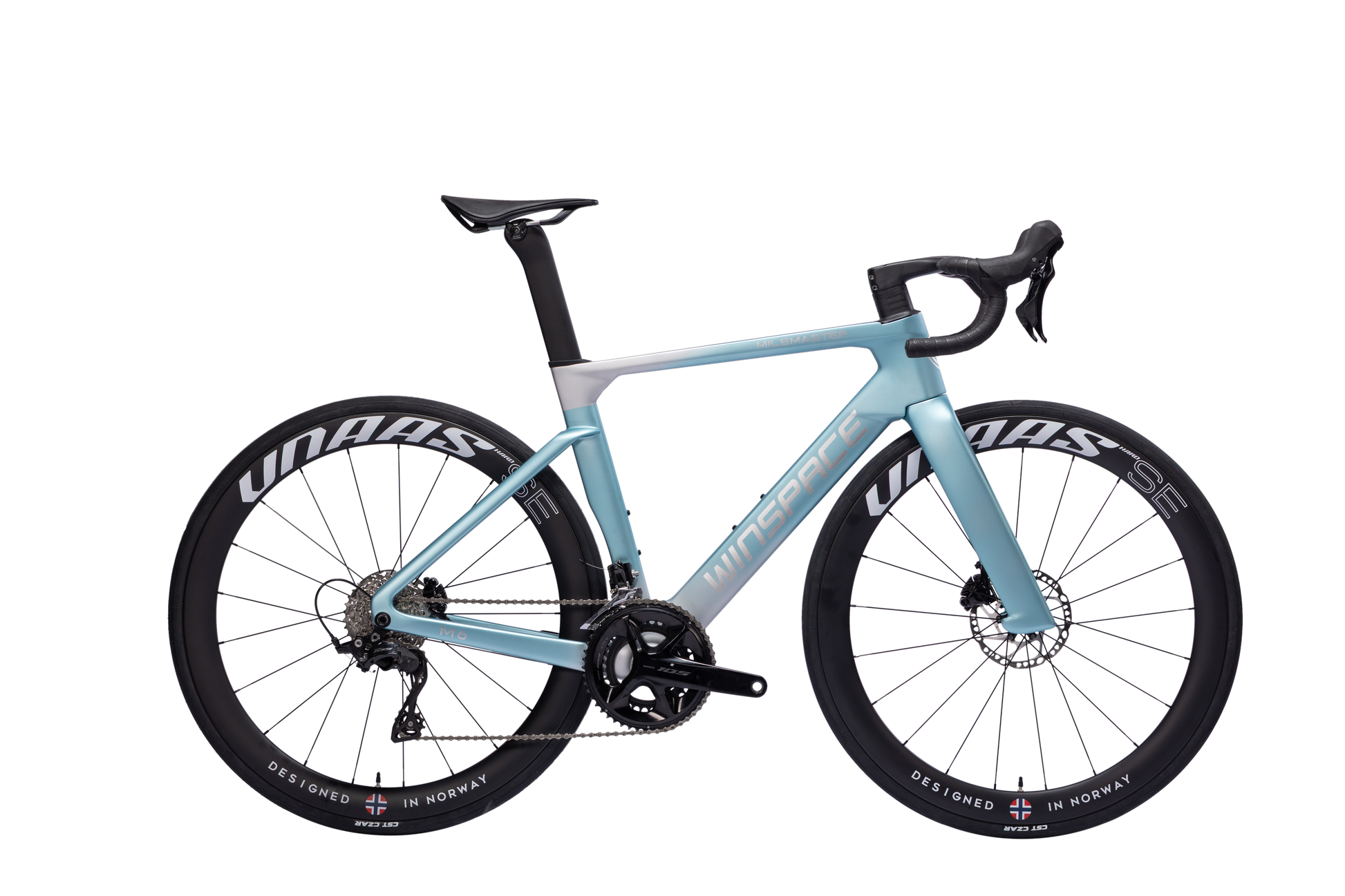

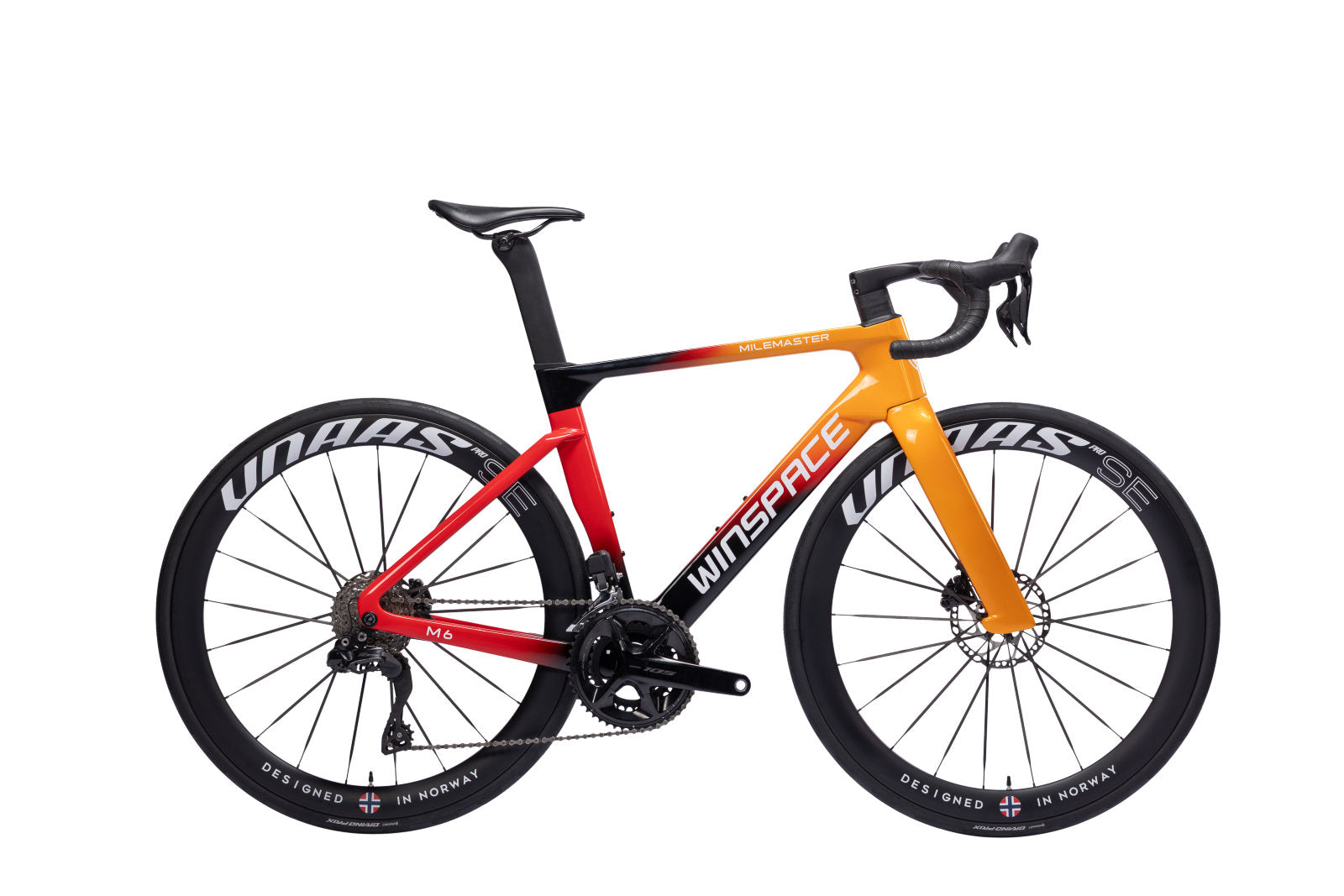

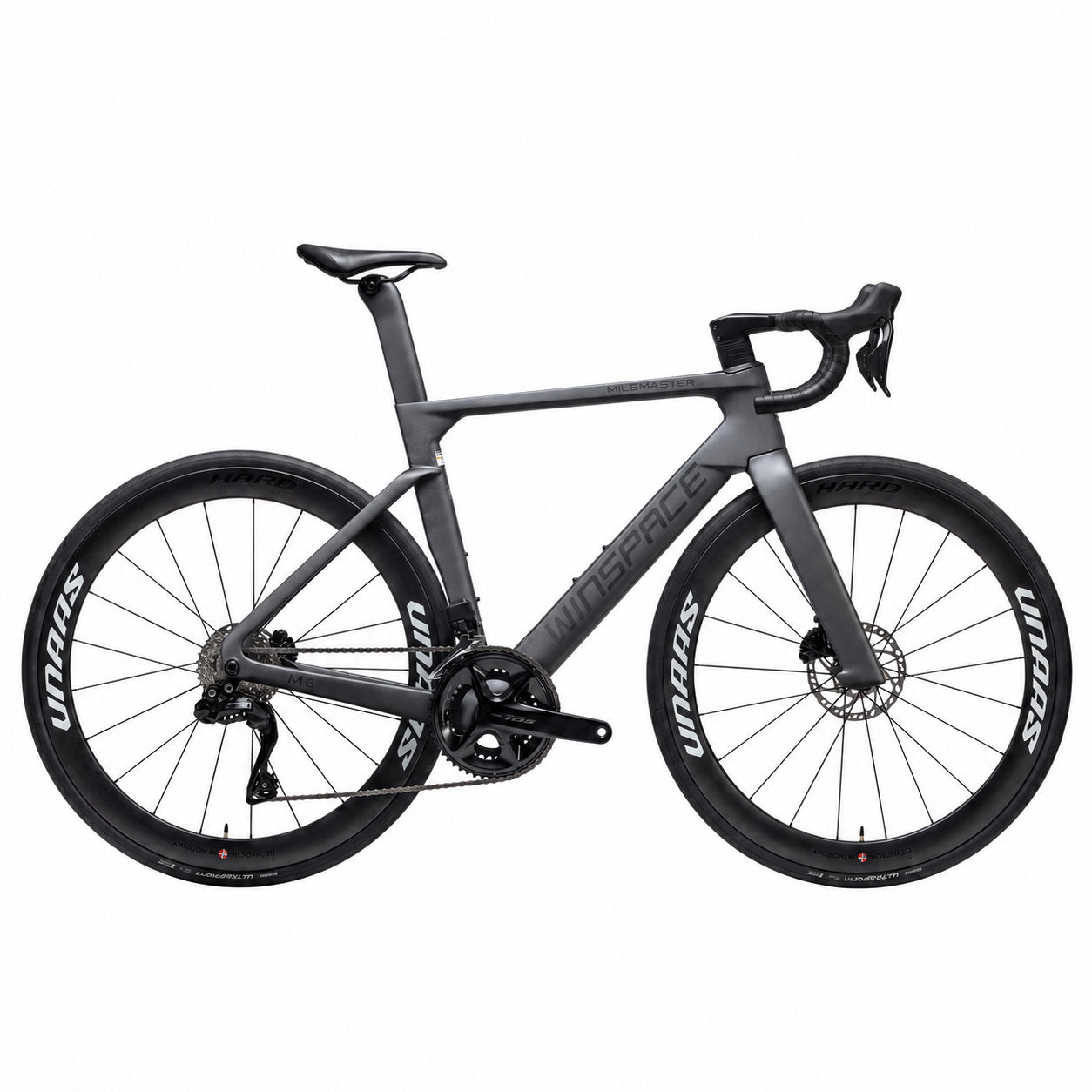

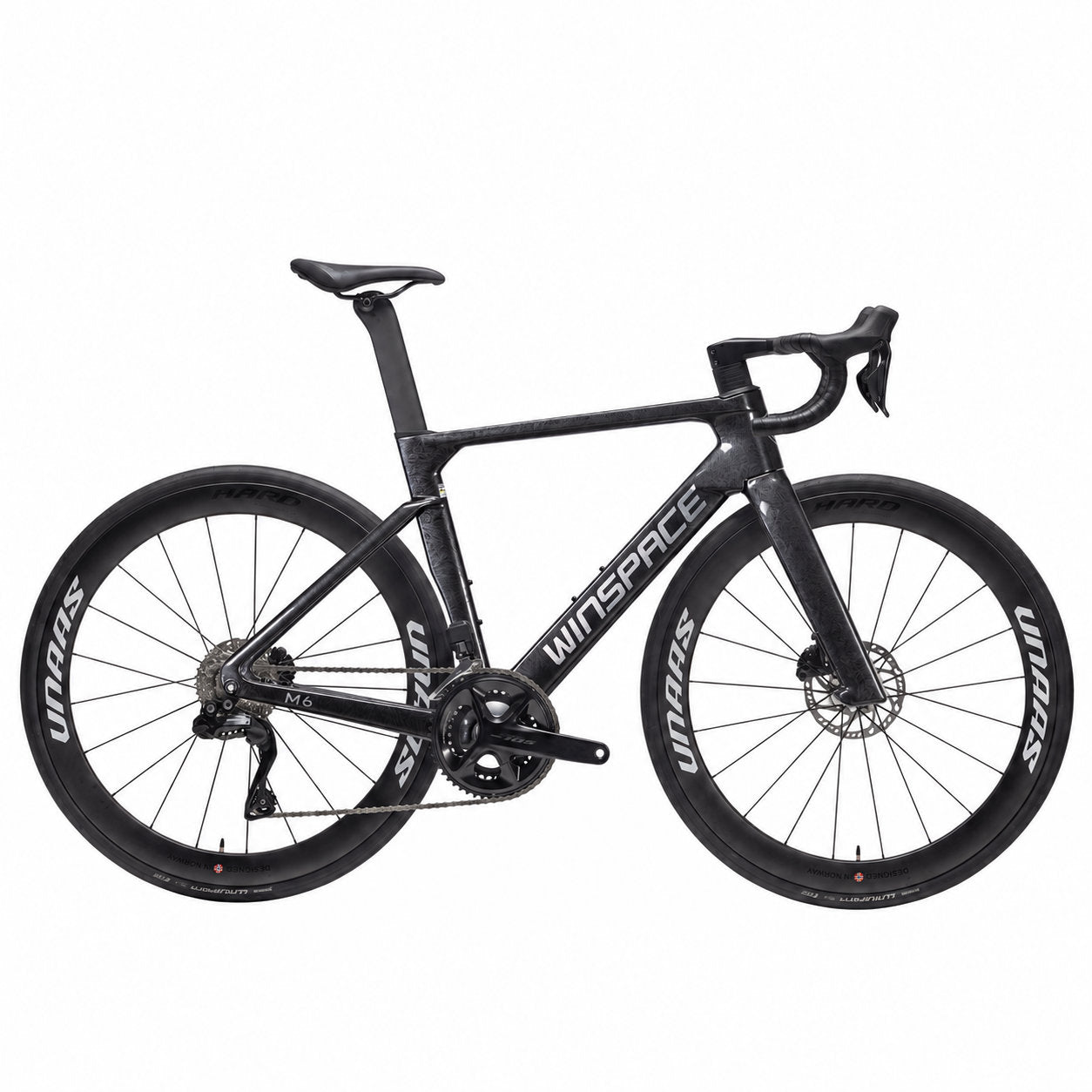

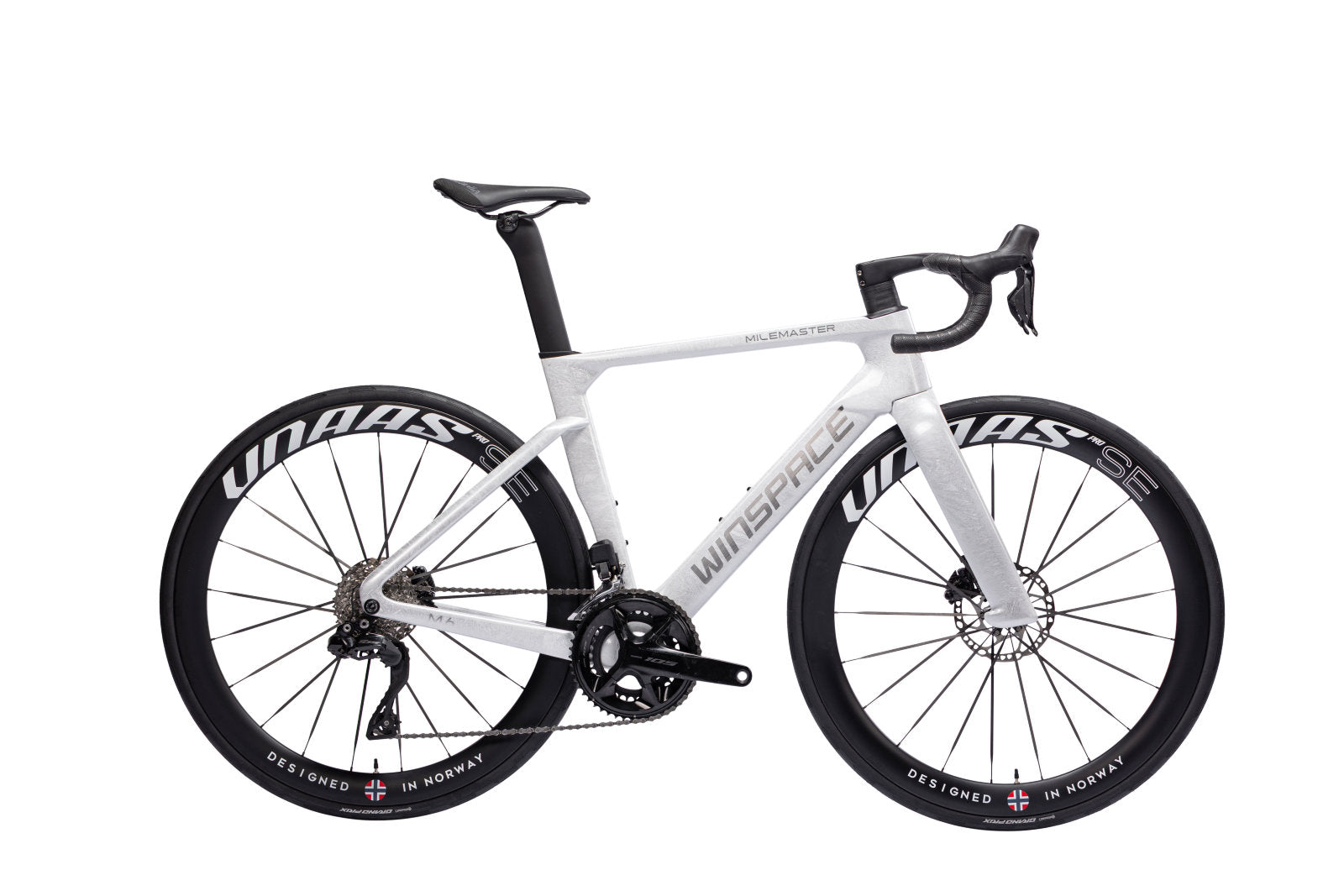

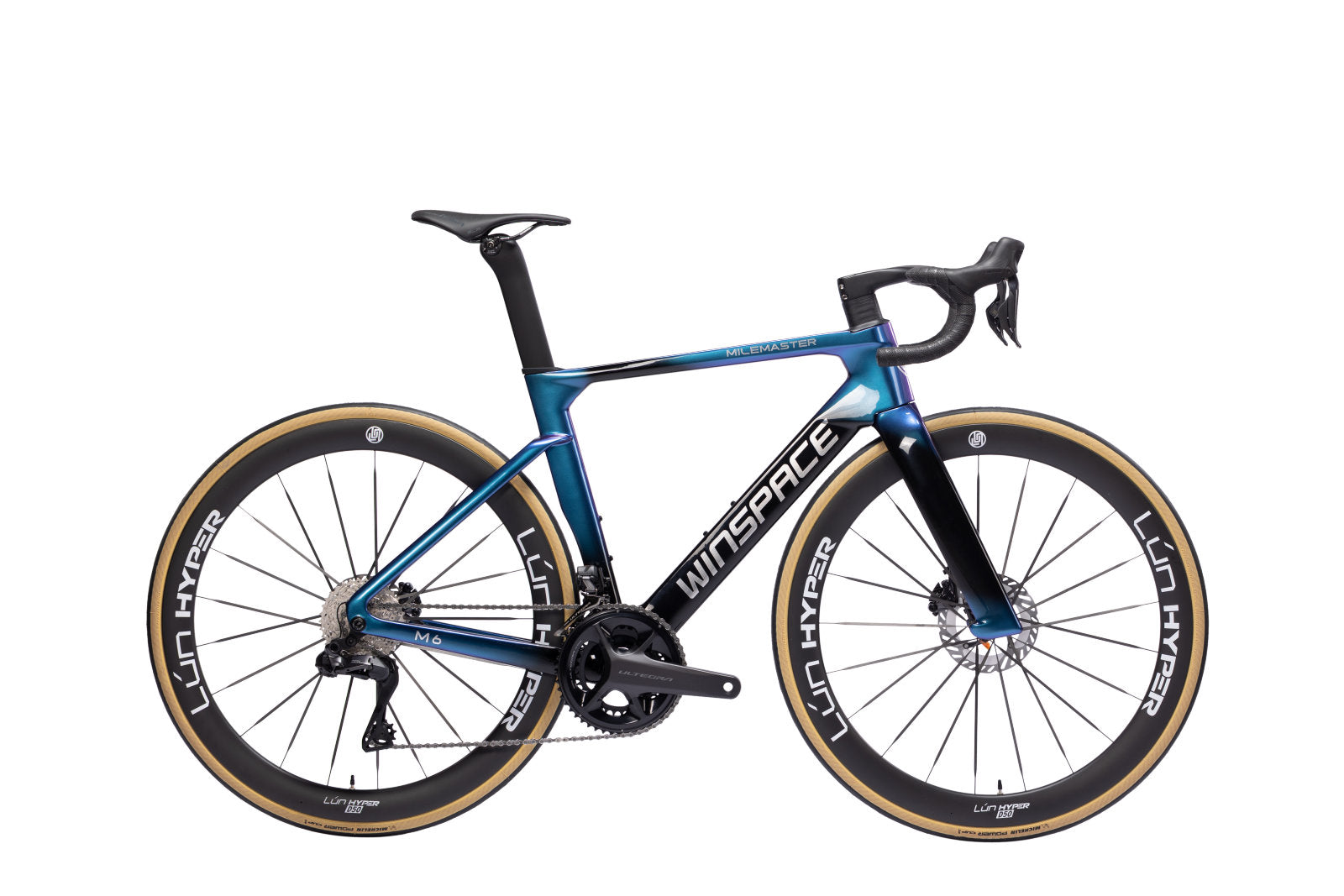

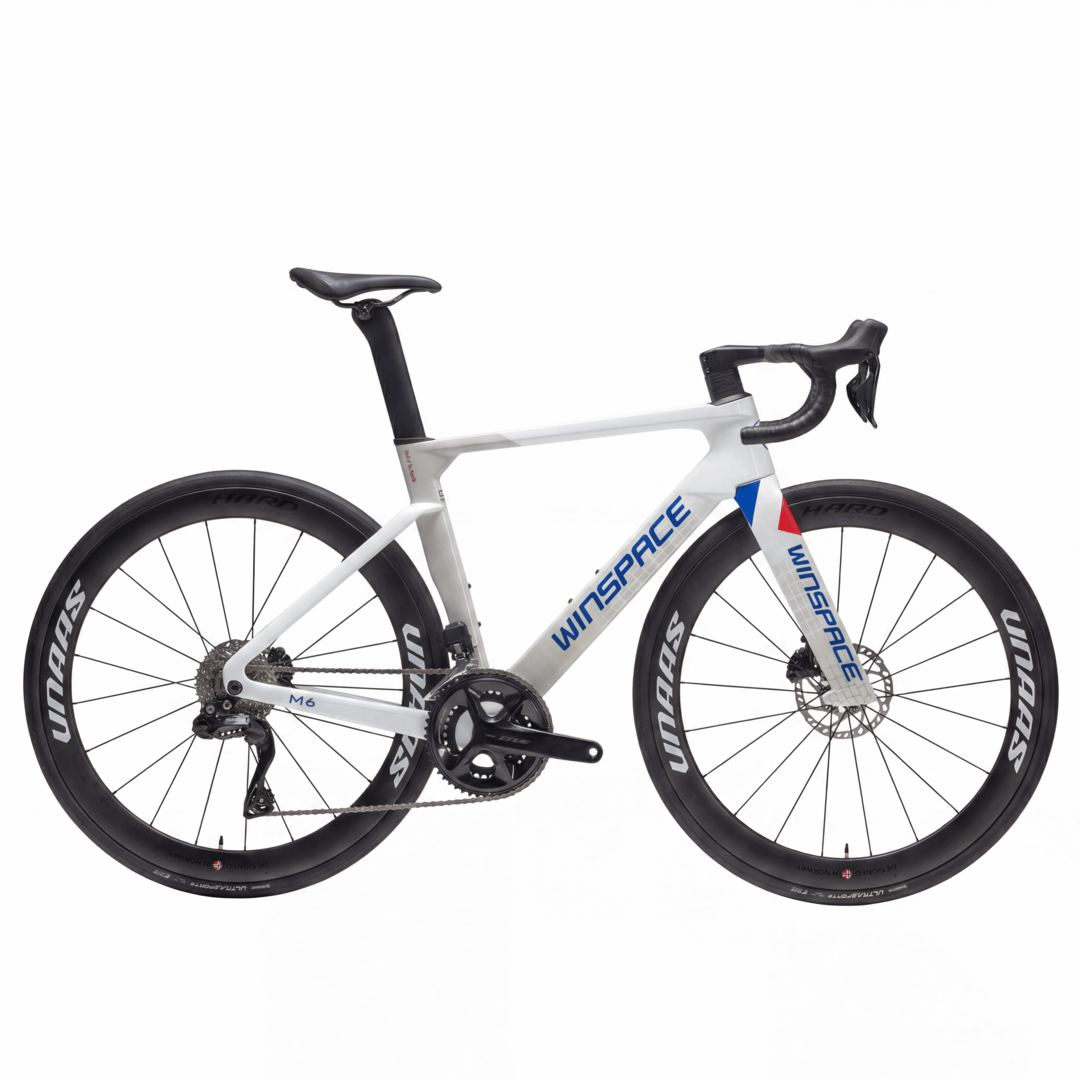

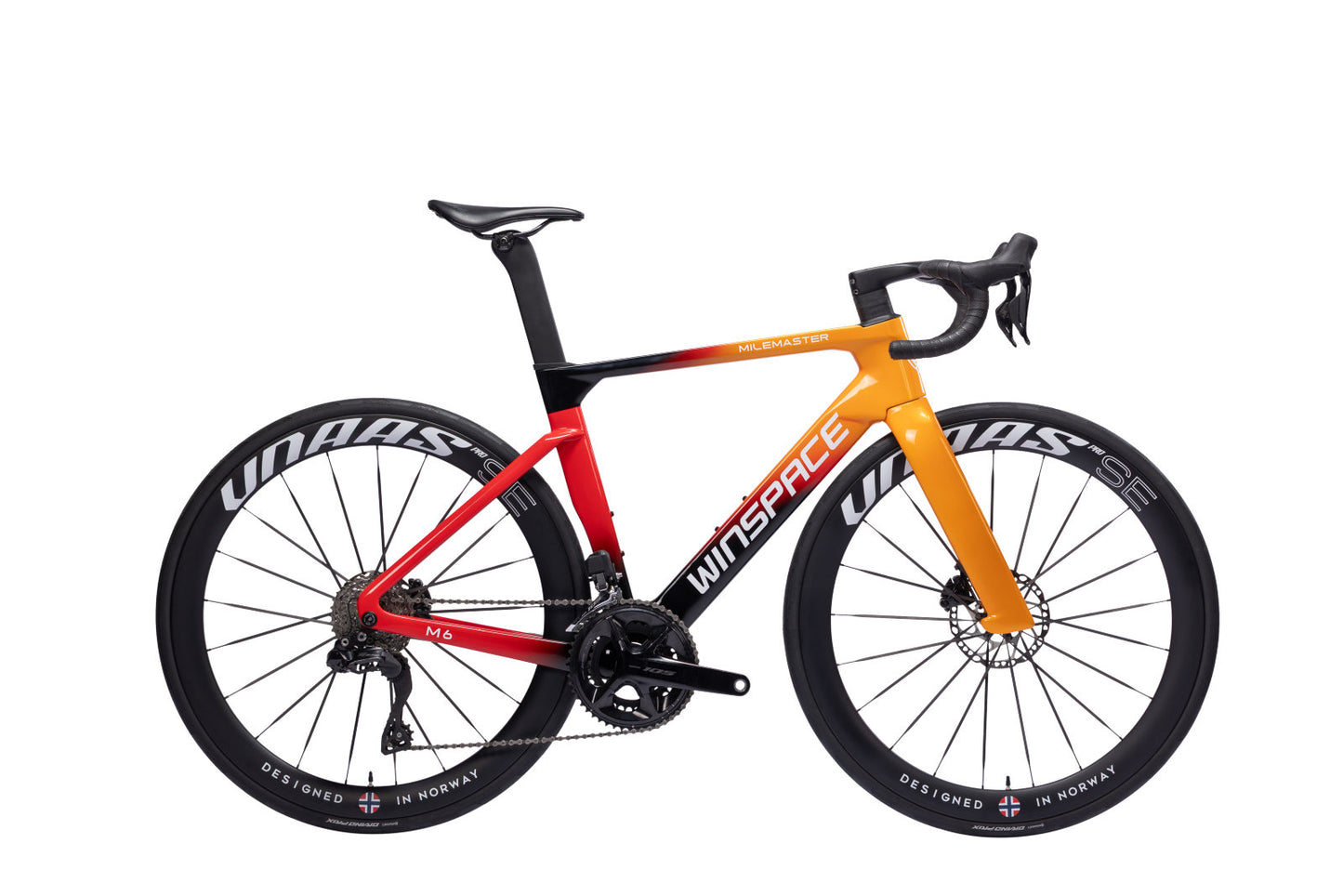

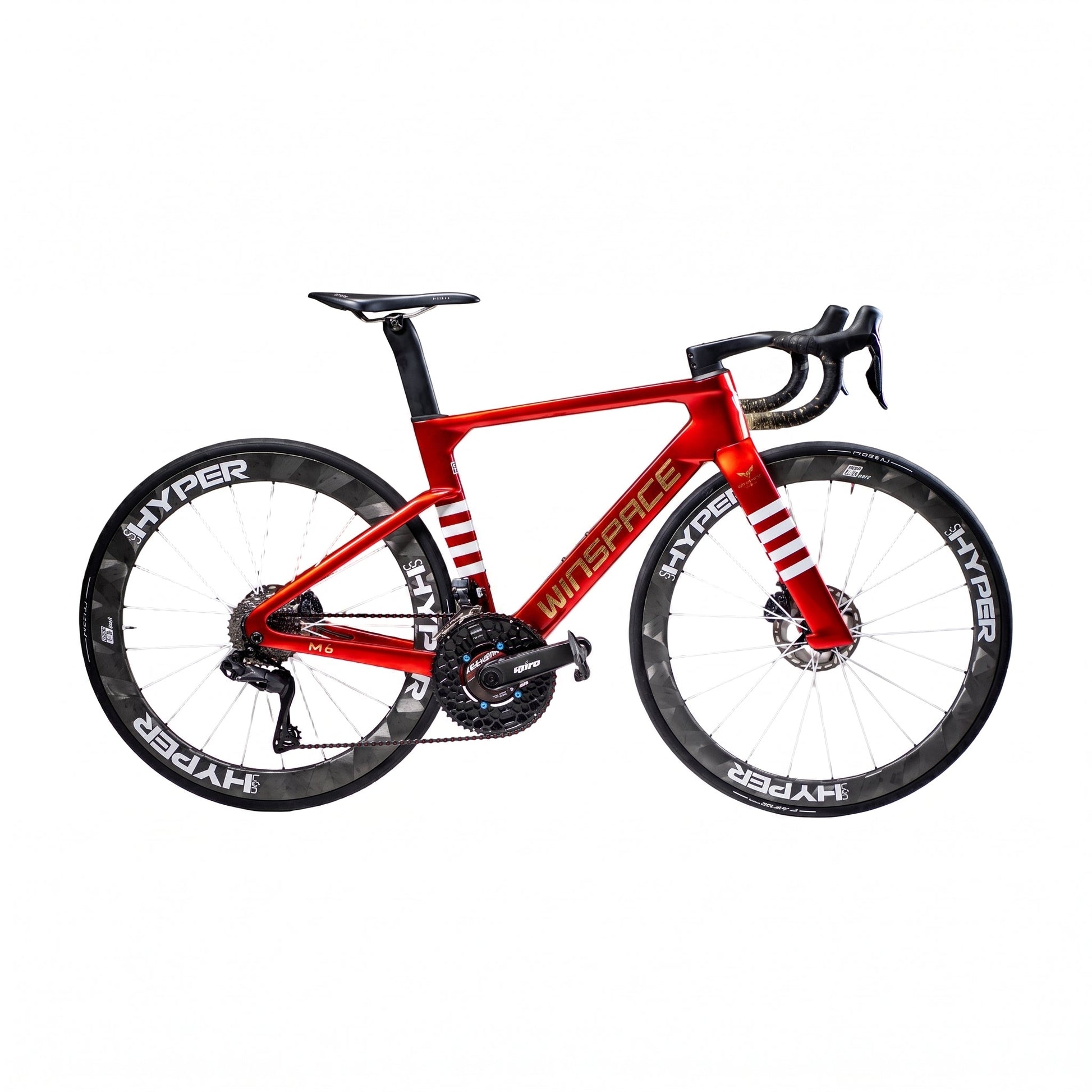

Winspace M6 Aero Road Bike - SRAM Rival E1 AXS

Winspace M6 Aero Road Bike - SRAM Rival E1 AXS

$5,990.00 AUD
$5,990.00 AUD
Sale Sold out
Shipping calculated at checkout.

The Winspace M6 is a next-generation aero road bike engineered for riders who want uncompromising speed, efficiency, and stability on every ride. Built as the evolution of the acclaimed C5 Aero platform, the M6 blends advanced aerodynamic design with refined ride comfort creating a race-ready machine that performs just as well in long, fast rides as it does in competitive situations.

Size

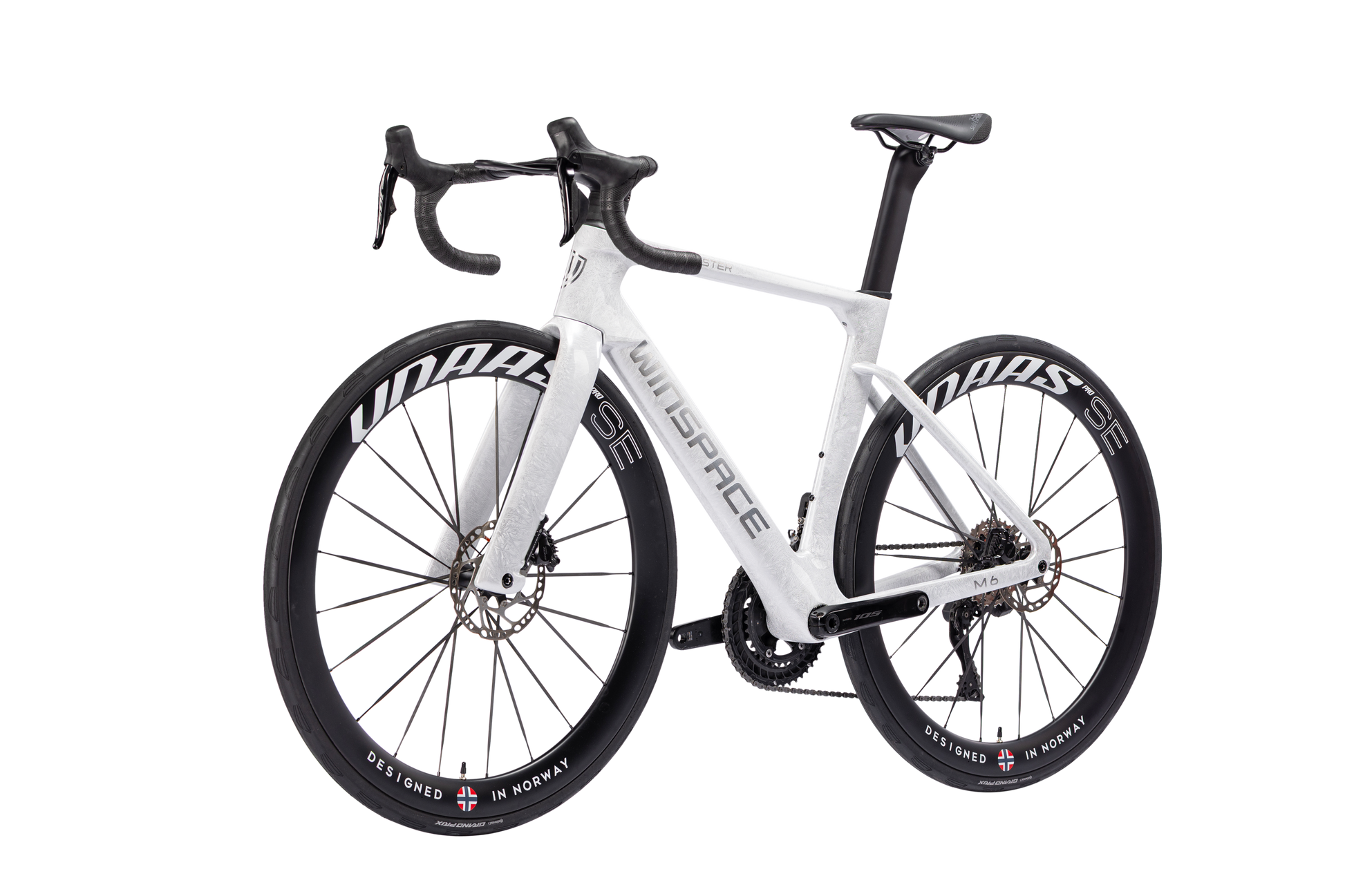

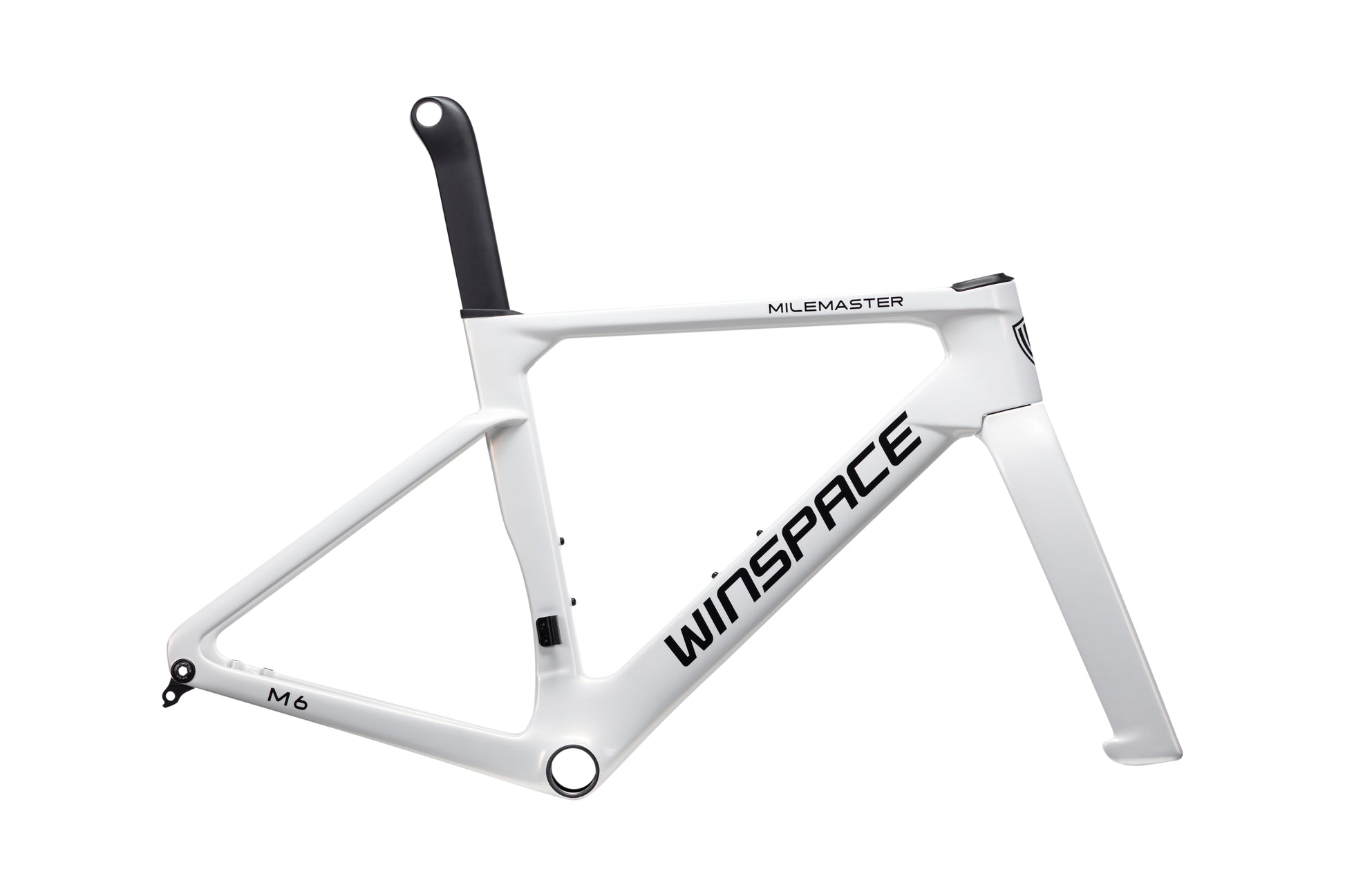

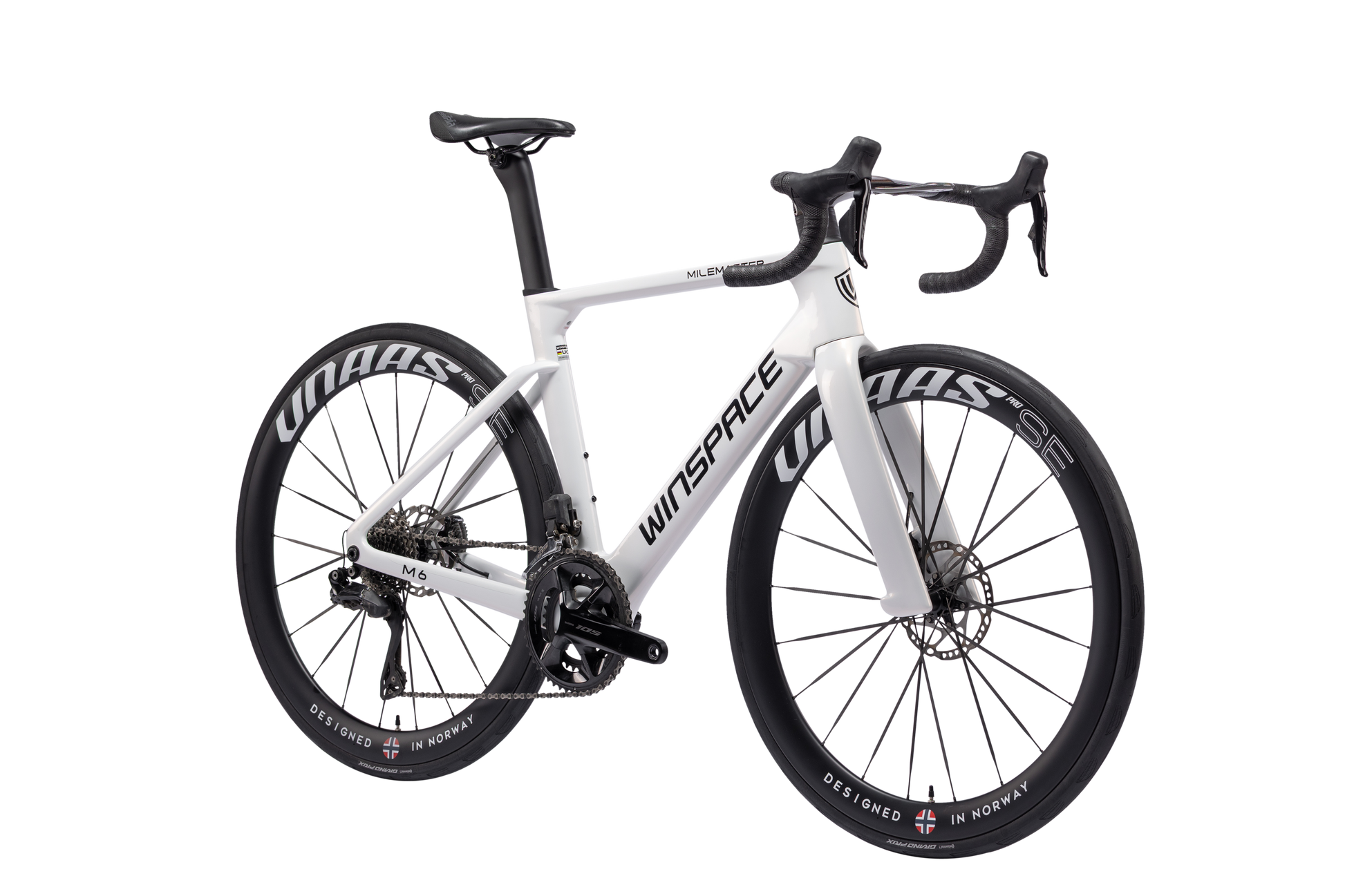

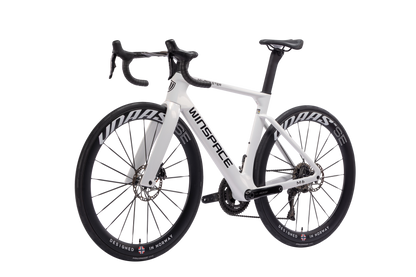

Color: Chameleon White
View full details

Description

Winspace M6 105 Di2 — Build Your Dream Bike

Designed around modern aerodynamic principles, the M6 features a sculpted frame profile, optimized fork design, and fully integrated cable routing to minimize drag and maximize speed. The result is a bike that slices through the wind while maintaining exceptional control and stability at high speeds.

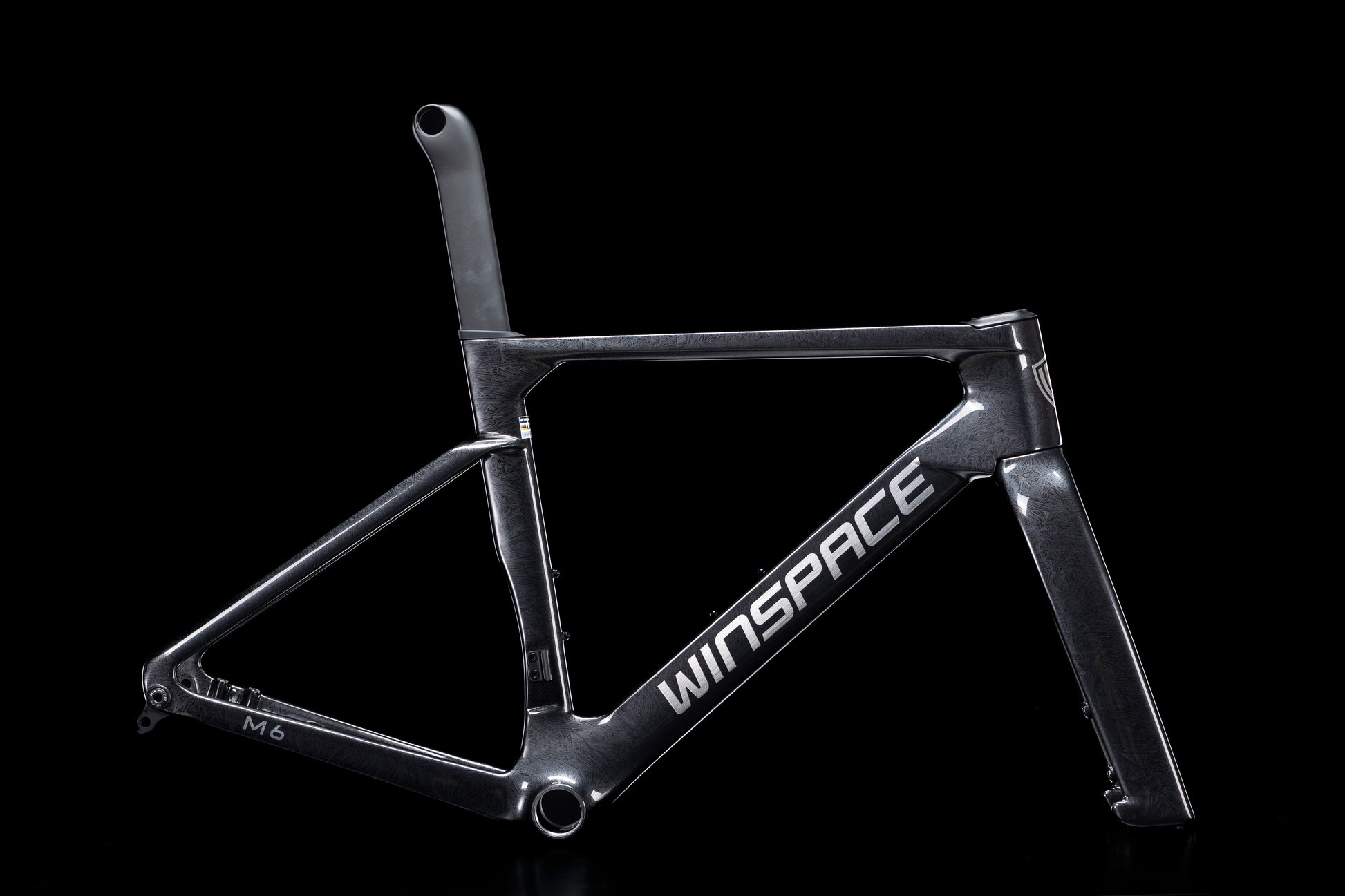

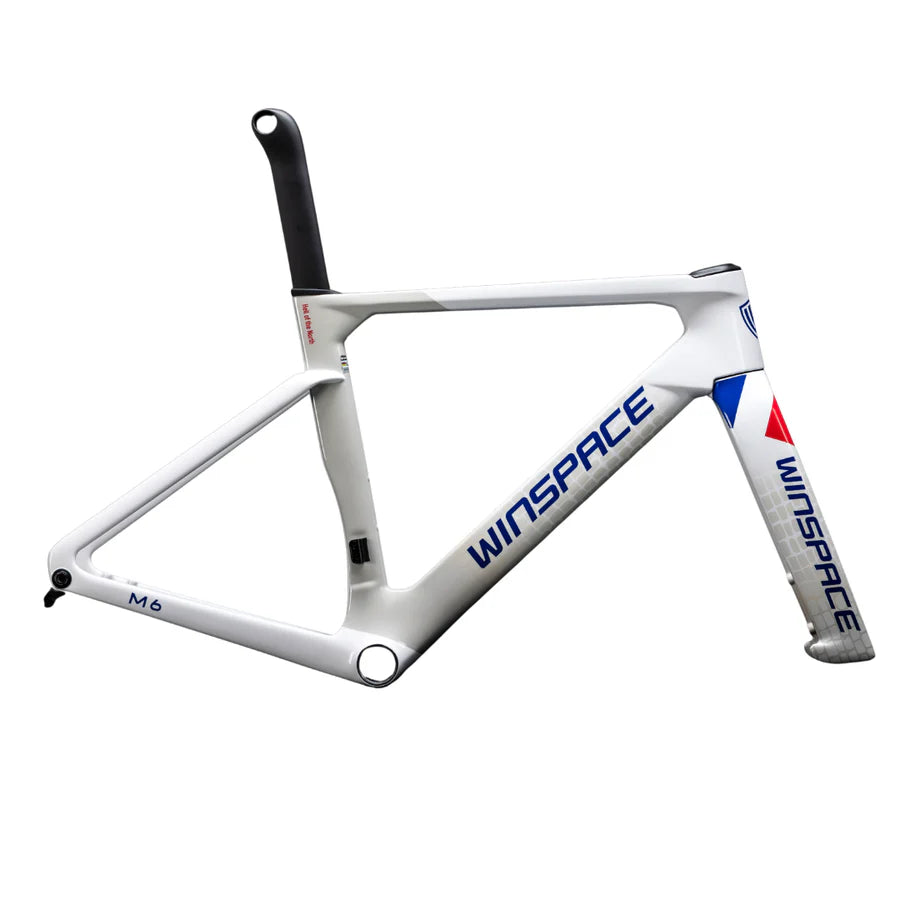

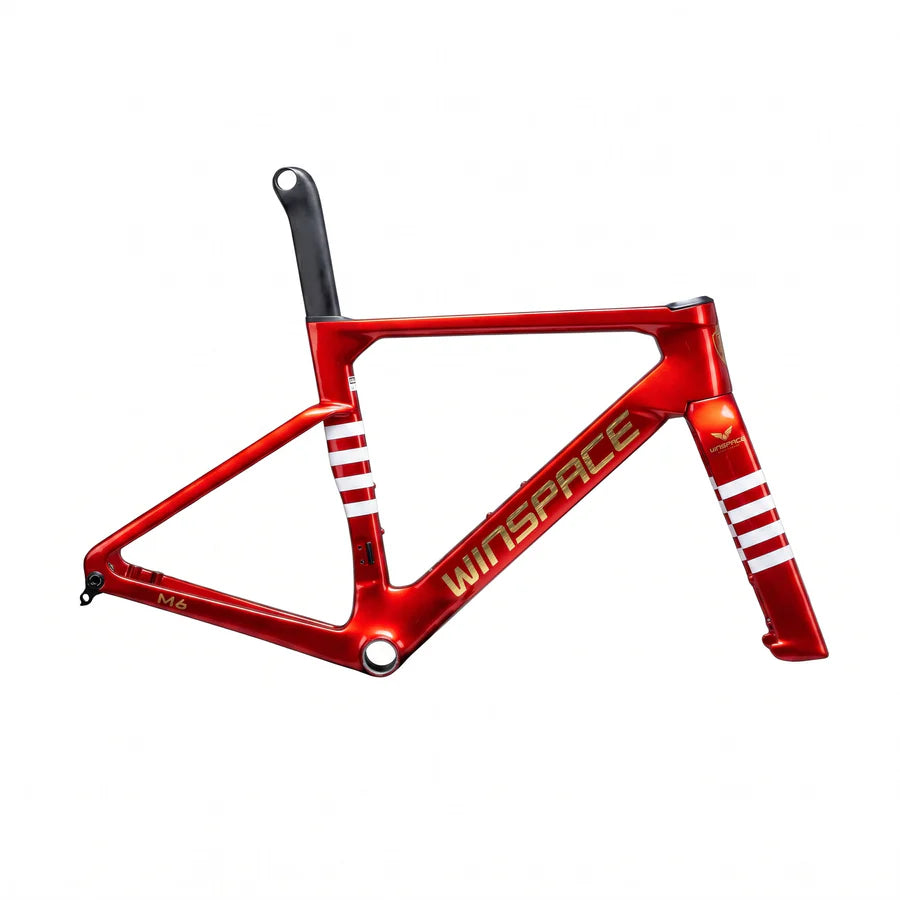

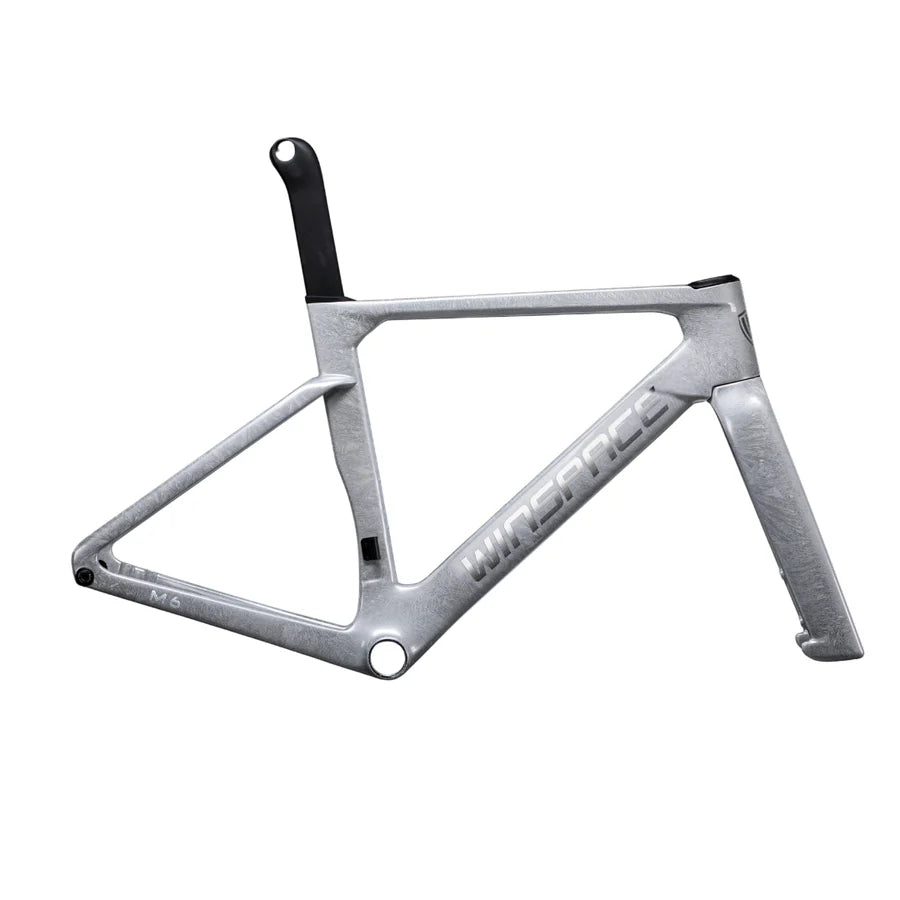

Advanced Carbon Construction

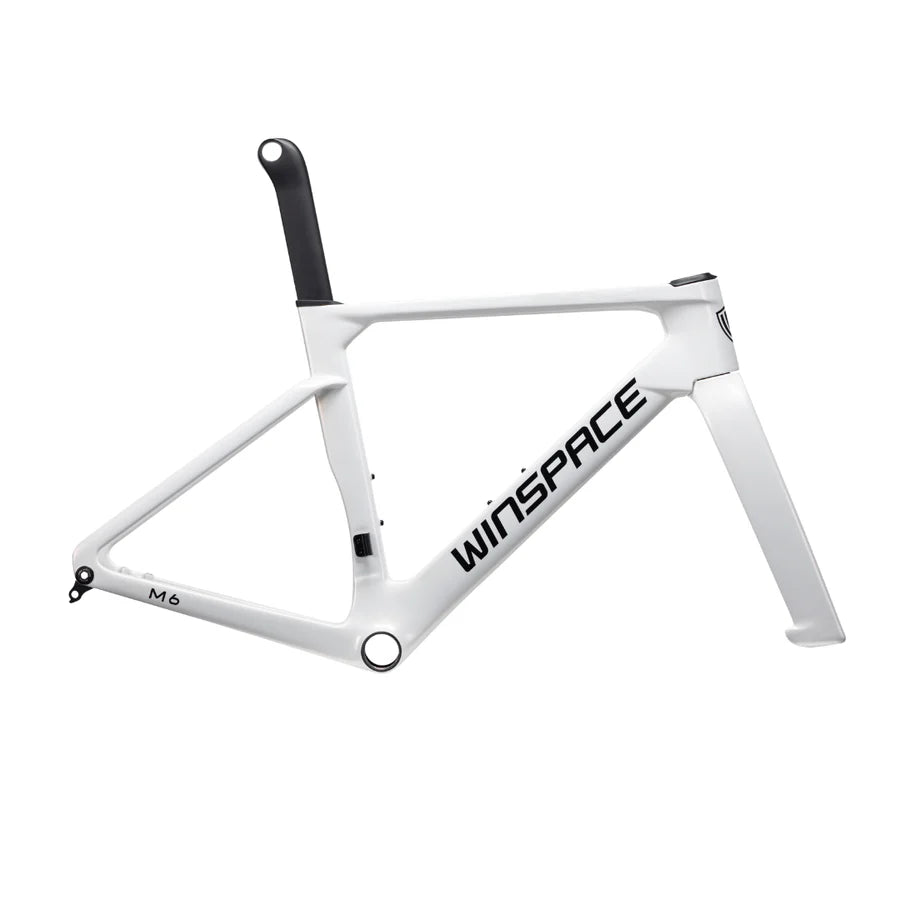

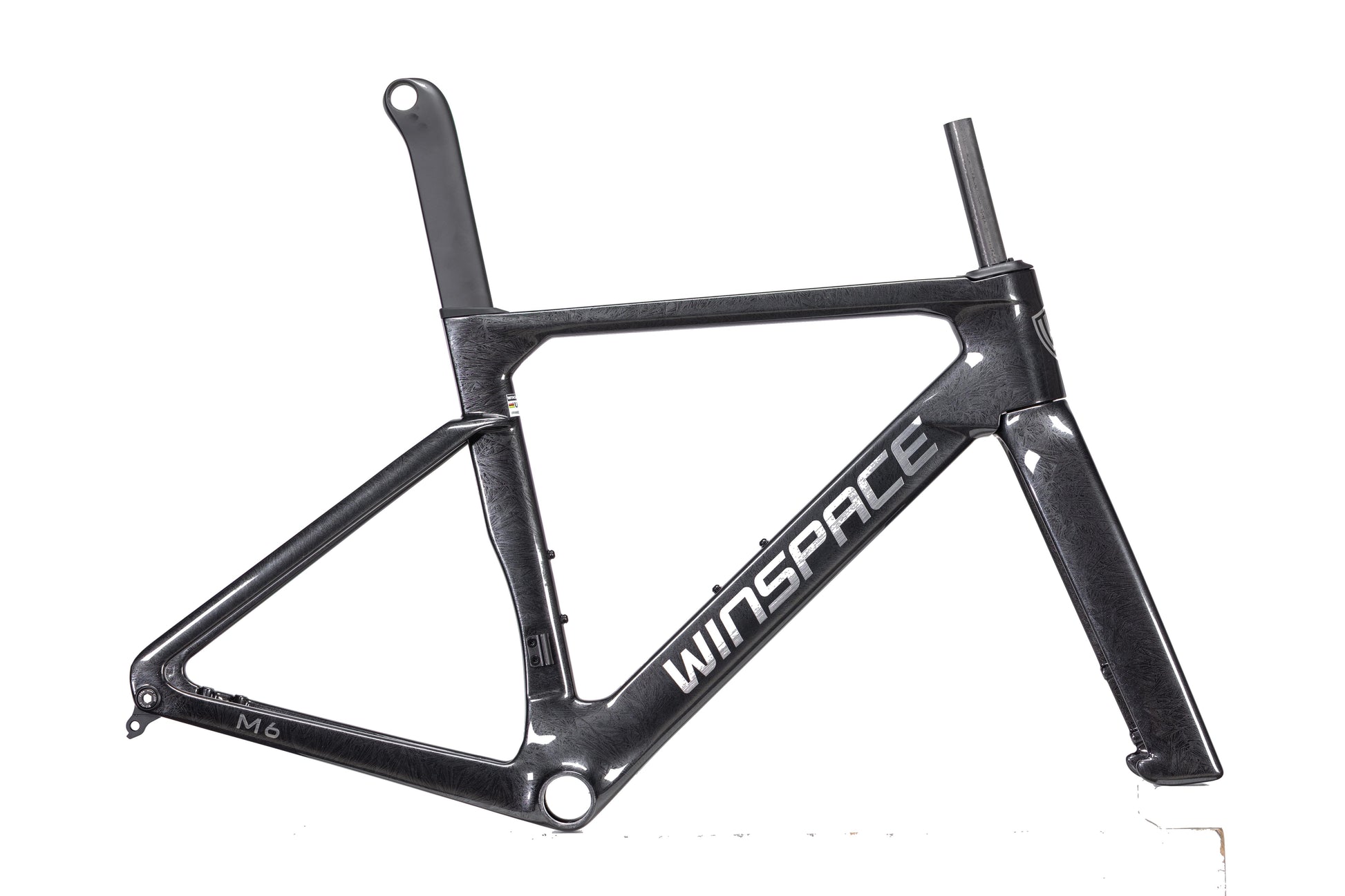

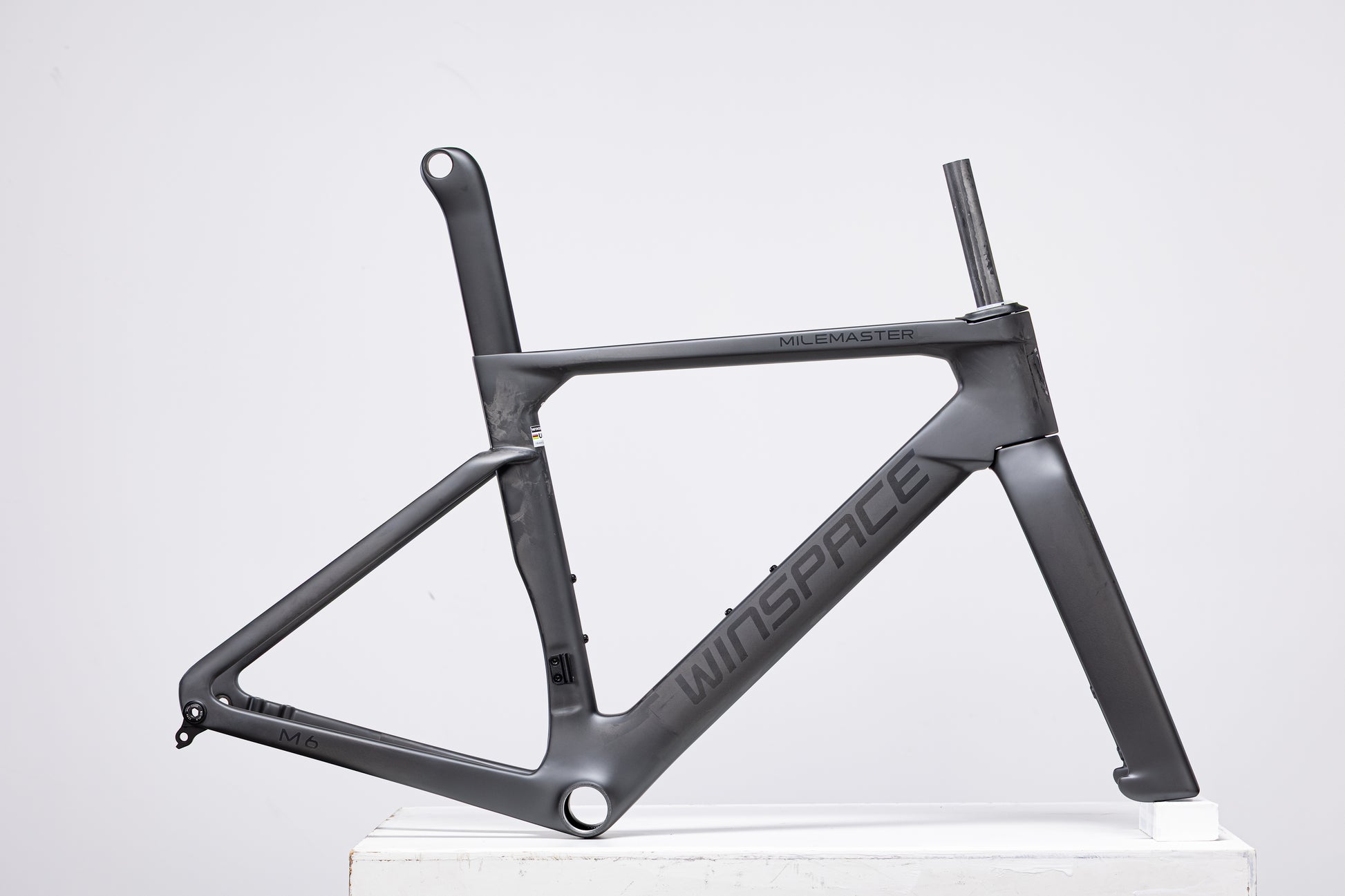

At the heart of the M6 is a precision-engineered carbon frame constructed from a blend of Toray T800, T700, M40 and ultra-high-modulus M60 fibers, strategically layered to balance stiffness, weight, and ride quality. This advanced carbon layup delivers excellent power transfer when sprinting or climbing, while maintaining compliance for long days in the saddle.

With a frame weight of approximately 900g (size M) and a lightweight carbon fork, the M6 offers impressive efficiency without sacrificing durability or handling confidence.

Built for Speed and Race Performance

Unlike many pure race bikes that prioritise stiffness alone, the M6 is designed to balance aerodynamics, comfort, and stability, allowing riders to maintain high speeds for longer. The refined geometry improves responsiveness and handling while ensuring confidence in fast corners, group rides, and long endurance efforts.

The frame also supports tyres up to 32mm, providing additional comfort, grip, and versatility across varying road conditions.

Complete Bike Build & Custom Options

  • SRAM Rival E1 AXS electronic shifting and world-class braking precision.
  • The Carbon Project carbon 3D printed saddle weighing only 200g.
  • Choose your bar and stem size.  The seamless Winspace Zero SL intergrated bar and stem can be customised to your size preferences for width (380mm, 400mm, 430mm) and length (85mm-135mm).
  • Choose your cassette and crank length to customise the bike to your size preferences.
  • Choose your preferred wheel, rim depth and tire (28mm or 30mm, black/tan wall).  Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or another wheel set in the Winspace range (contact us to confirm pricing).

Technical Specifications

  • Frame: M6 Toray T700+T800+M40+M60
  • Headset:1-1/2"/ 1-1/2" (FSA ACR system)
  • Wheel Axles: 12mm thru-axle (F114mm, R163mm).
  • Handlebar/Stem:  Winspace Zero SL Integrated Bar and Stem.
  • Seatpost: Winspace Aero seatpost
  • Saddle: TCP 3D printed carbon saddle
  • Drivetrain: SRAM Rival E1 AXS (46/33, 48/35, or 50/34 Crankset + 10-28, 10-30, 10-33, or 10-36 Cassette)
  • Front brake: SRAM Rival E1 AXS
  • Rear Brake: SRAM Rival E1 AXS
  • Shift Levers: SRAM Rival E1 AXS
  • Front Derailleur: SRAM Rival E1 AXS
  • Rear Derailleur: SRAM Rival E1 AXS
  • Rotors: SRAM Rival E1 AXS (140 or 160mm)
  • Crankset: SRAM Rival E1 AXS (46/33, 48/35 or 50/34) + (160, 165, 167.5, 170, 172.5 or 175mm)
  • Chain: SRAM Rival
  • Bottom Bracket: Wishbone Ceramic T47 Inboard
  • Tyres: Goodyear Eagle F1 (700x28c or 700x30c).
  • Bartape: C2 Black
  • Wheels: Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or another wheel set in the range (contact us for pricing).

Aerodynamic Performance

Every tube shape on the M6 was developed using CFD aerodynamic analysis, allowing engineers to refine airflow around the frame and minimise drag across a wide range of riding speeds.

Key aerodynamic improvements include:

  • Sharpened head tube profile to reduce frontal area
  • Ultra-wide aerodynamic fork architecture for improved airflow and stiffness

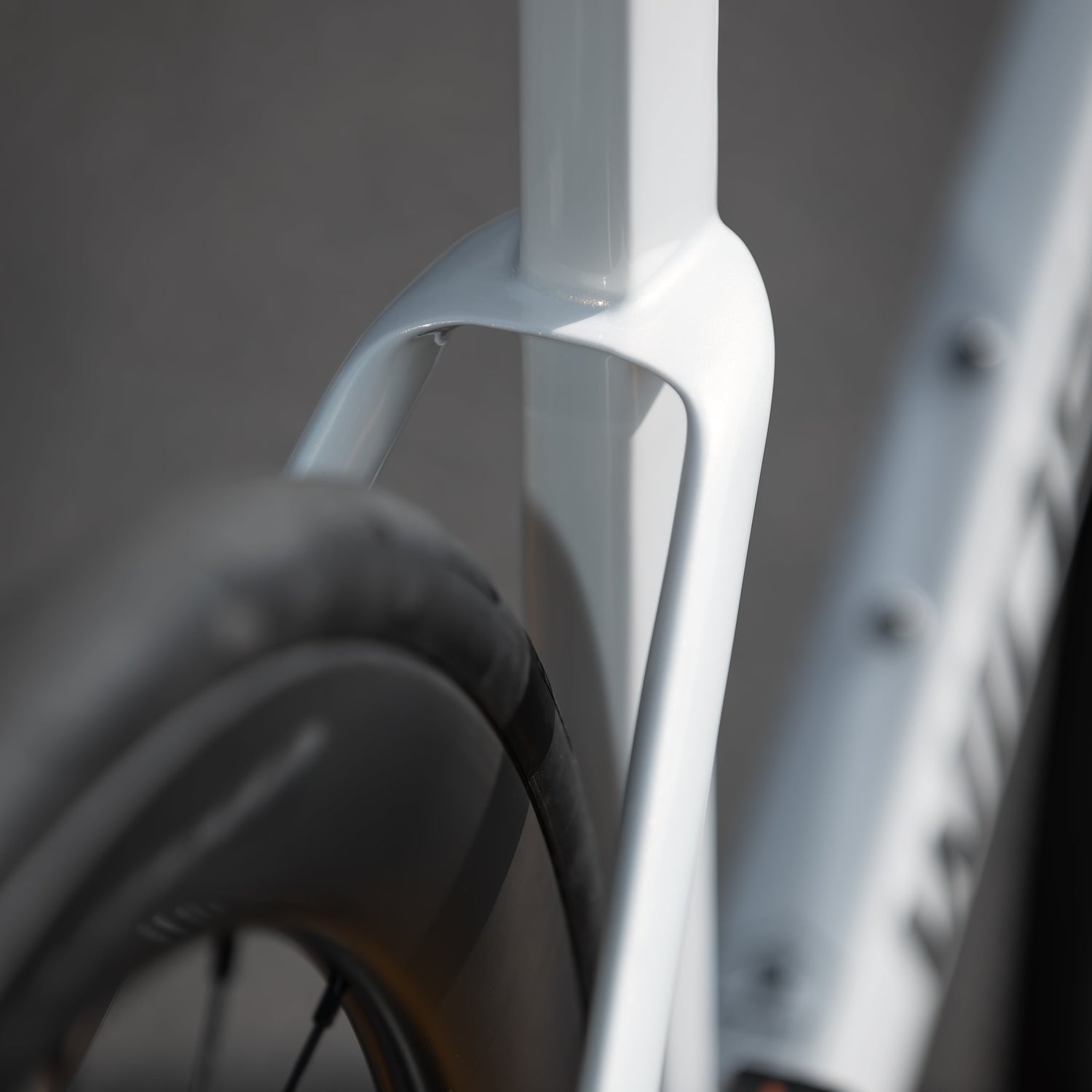

  • Patented dovetail rear wing fork design to smooth airflow across the frame

These aerodynamic refinements allow the M6 to save up to 8.9 watts compared to the previous C5 Aero platform, helping riders maintain higher speeds with less effort.

Race-Level Stiffness and Strength

The M6 was engineered to deliver exceptional structural performance under the intense forces generated during racing.

Testing and design targets include:

  • High bottom bracket stiffness for explosive power transfer
  • Reinforced head tube structure for precise steering control
  • Optimised fork stiffness for high-speed stability

The frame structure is designed to withstand load forces equivalent to two tonnes, highlighting the durability built into the M6 platform.

When riders accelerate, sprint, or attack climbs, the frame responds instantly — converting every watt directly into forward speed.

Modern Race Geometry

The M6 is designed with race-focused geometry to balance aggressive performance with stability.

Key geometry highlights include:

  • 410mm chainstay length for efficient power transfer and responsiveness
  • Optimised stiffness-to-weight ratio for improved acceleration and climbing efficiency
  • Integrated cockpit compatibility with Winspace Hyperbar system for aerodynamic control and clean cable routing

This geometry delivers a confident ride feel whether sprinting out of corners, descending at speed, or driving the pace in fast group rides.

X-ray Inspection

We use precise X-ray inspection to ensure
quality, with interlayer gaps smaller than
1x10mm for dependable durability

One-Piece Moulding

One-piece moulding offers added strength and a nice smooth finish, reflecting our focus on quality and design.
