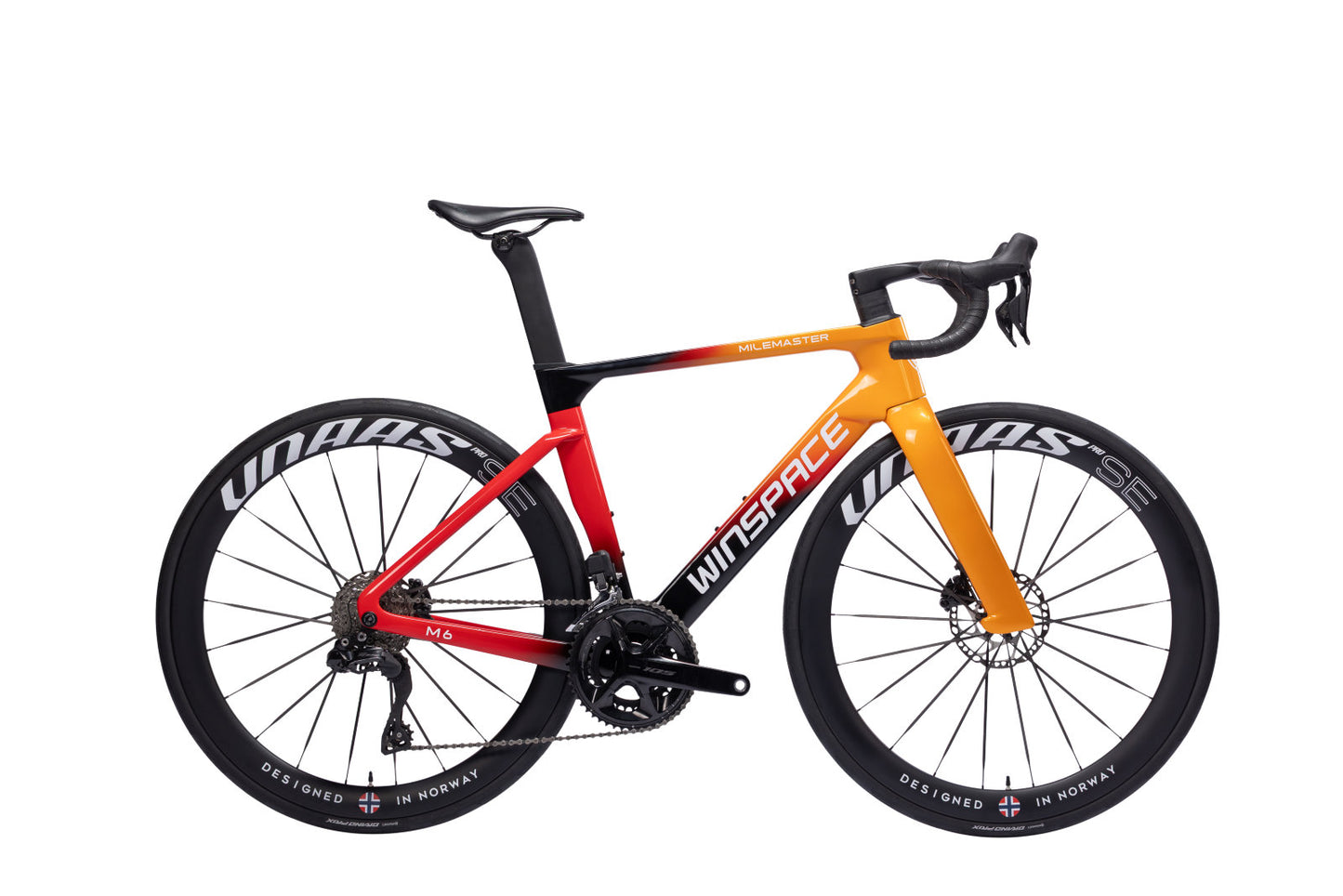

AERO RACING

M6

SRAM Force AXS

Build yours

Explore

SCROLL

4 fibre T700, T800, M40 and M60

12-speed Electronic shifting

32 mm Max tyre clearance

T47 Threaded bottom bracket

Get it right from the first ride.

Every bike is built to order.

Build your new bike to your exact specs. No more buying stock bikes and needing to make changes and adjustments.

01 · Size and colour

Six sizes, ten colours

Reach first geometry. Bars and stem are sized to you in the builder.

Size

XSSMLXLXXL

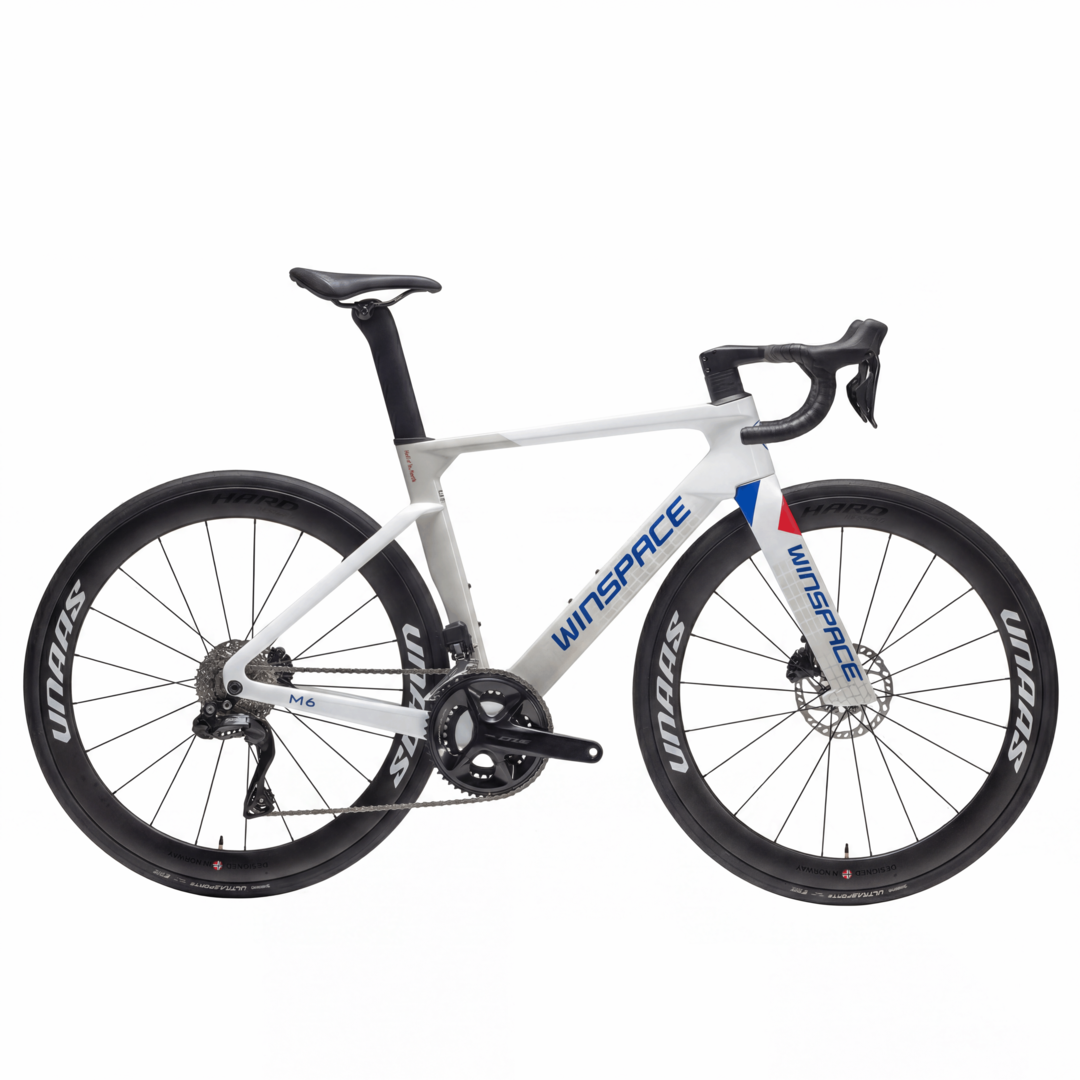

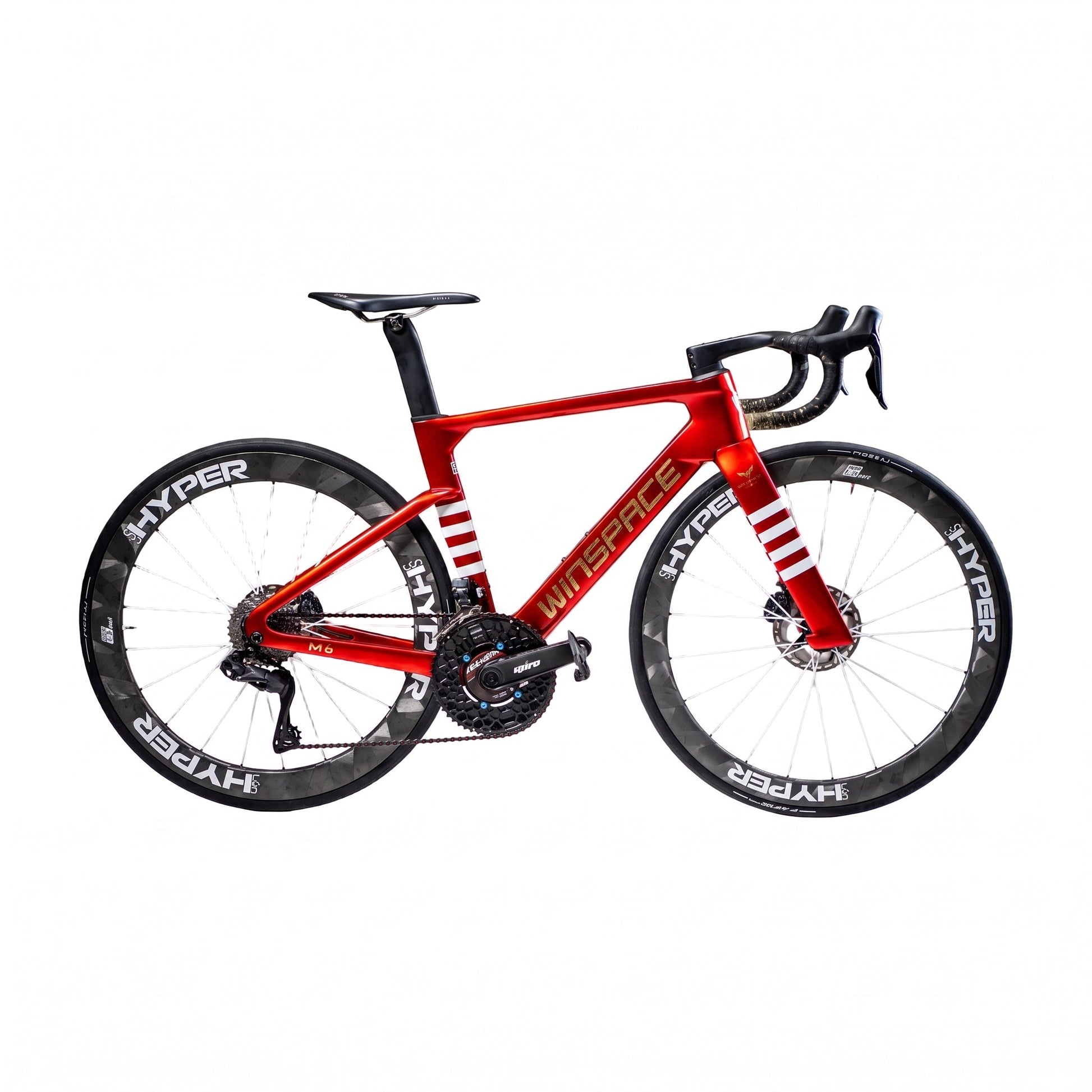

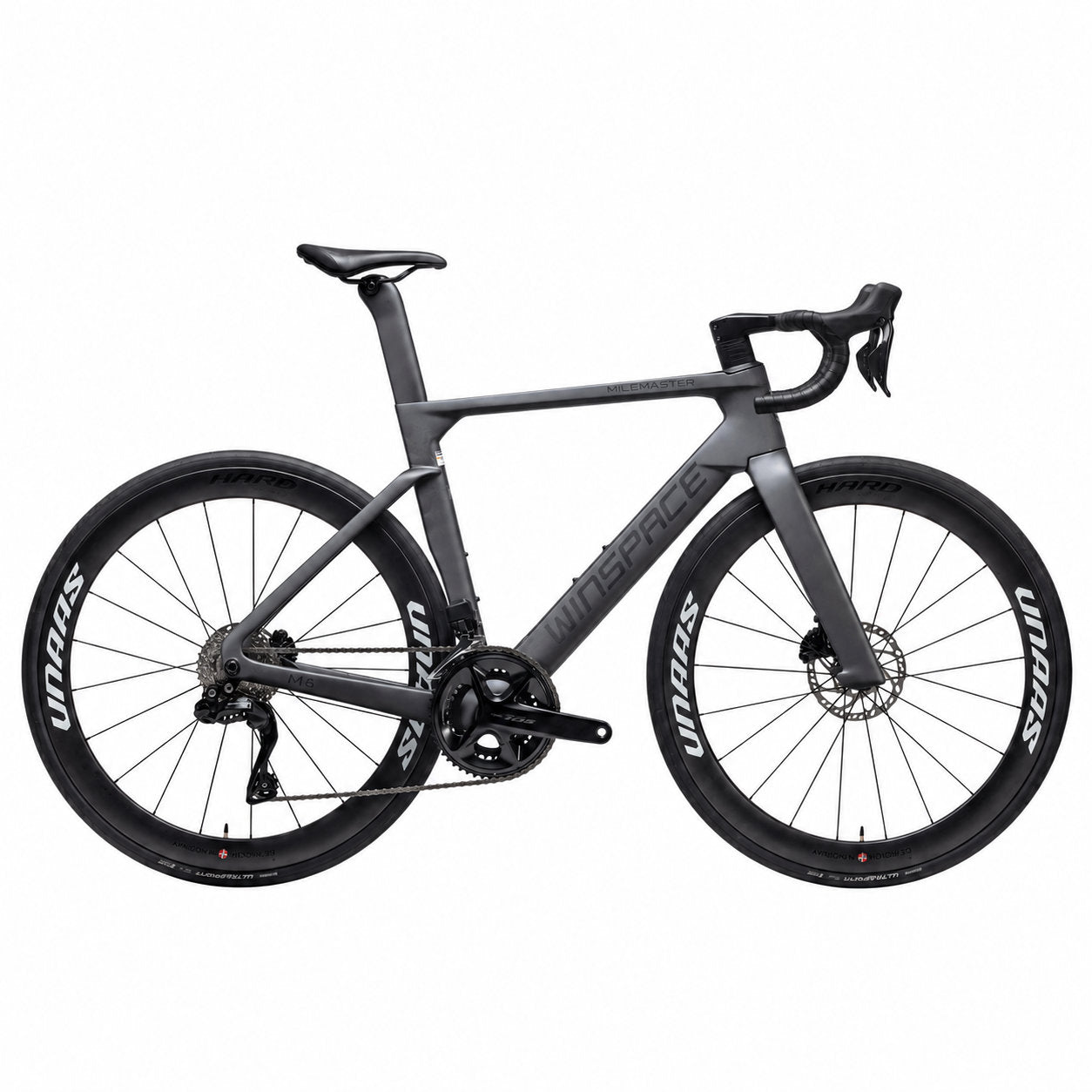

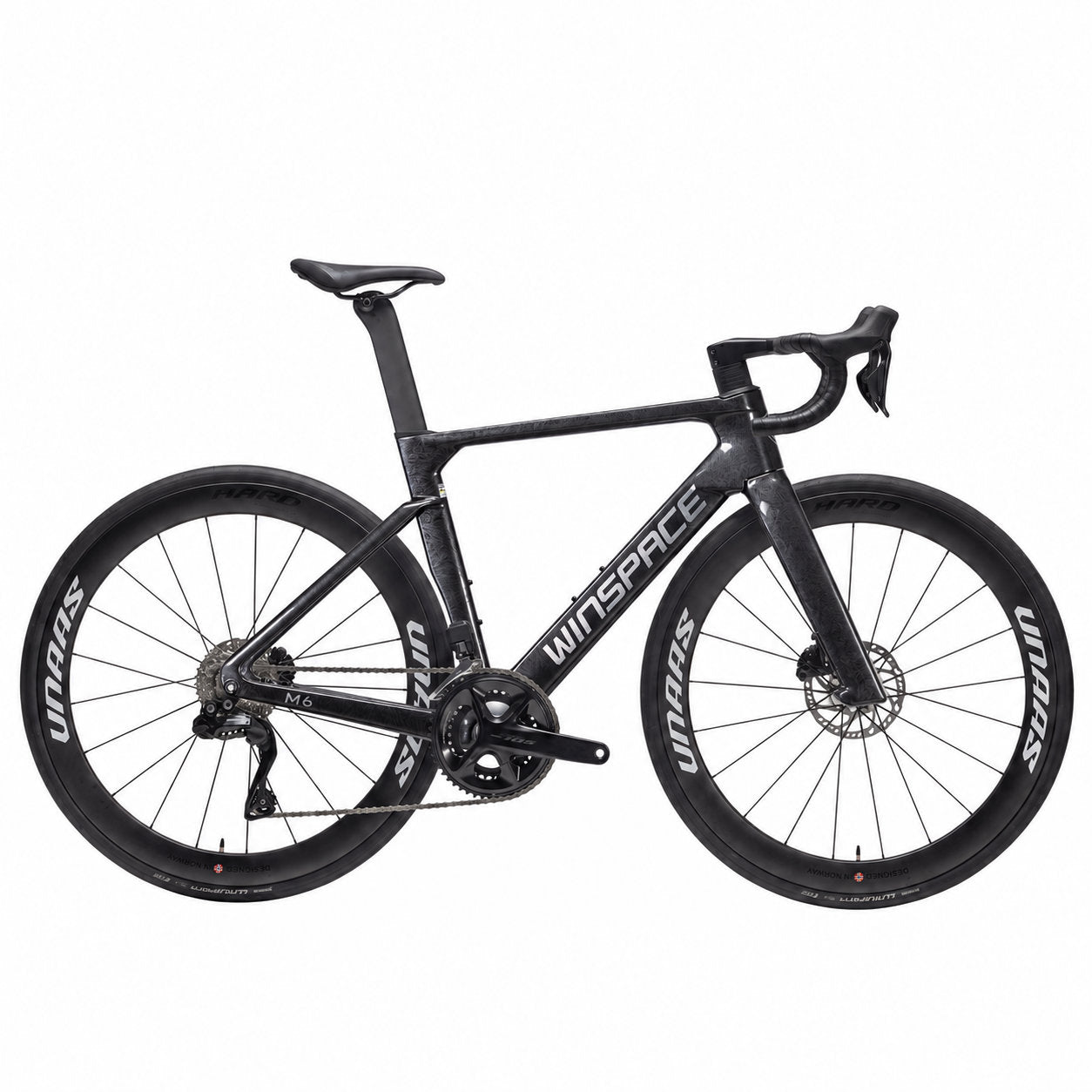

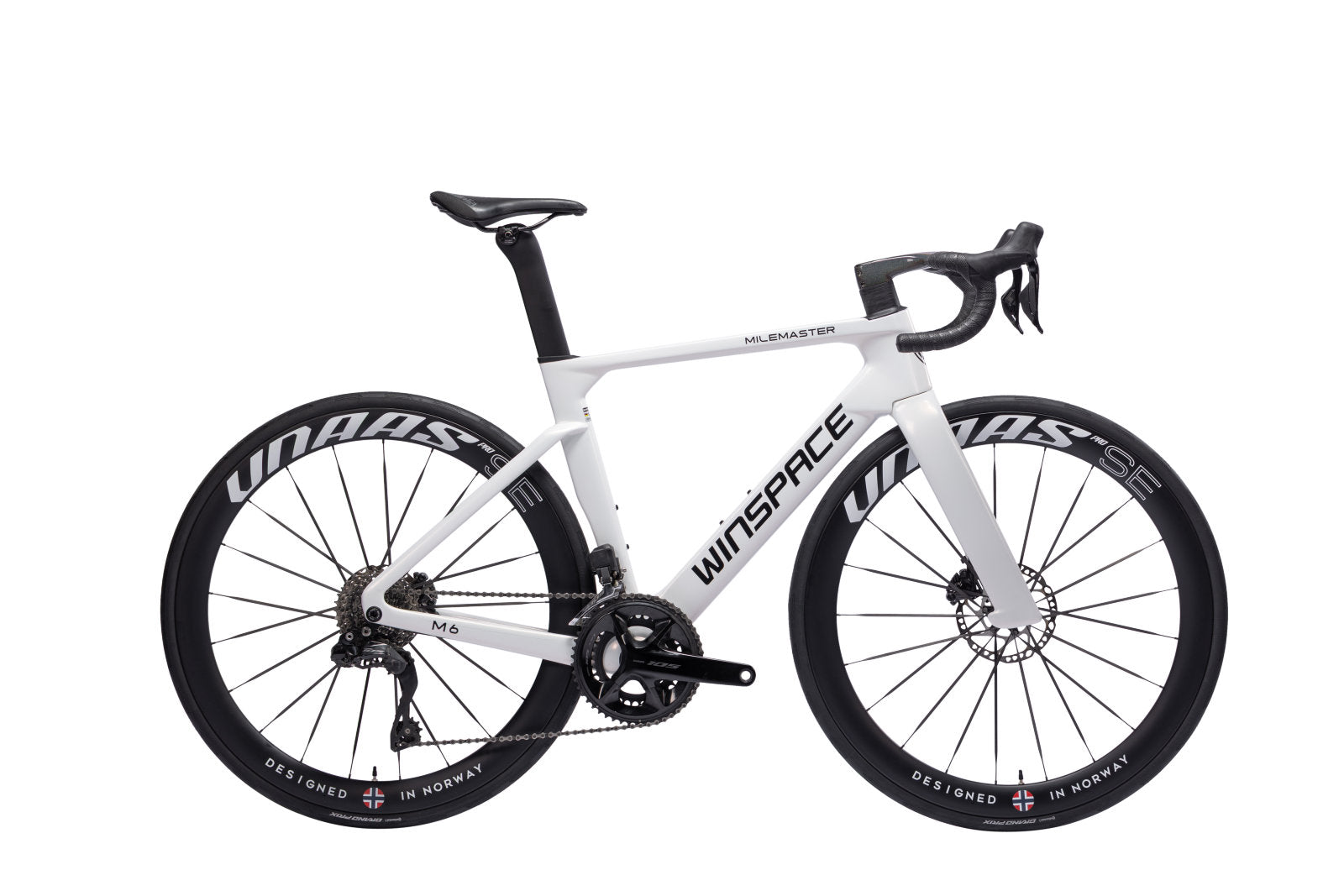

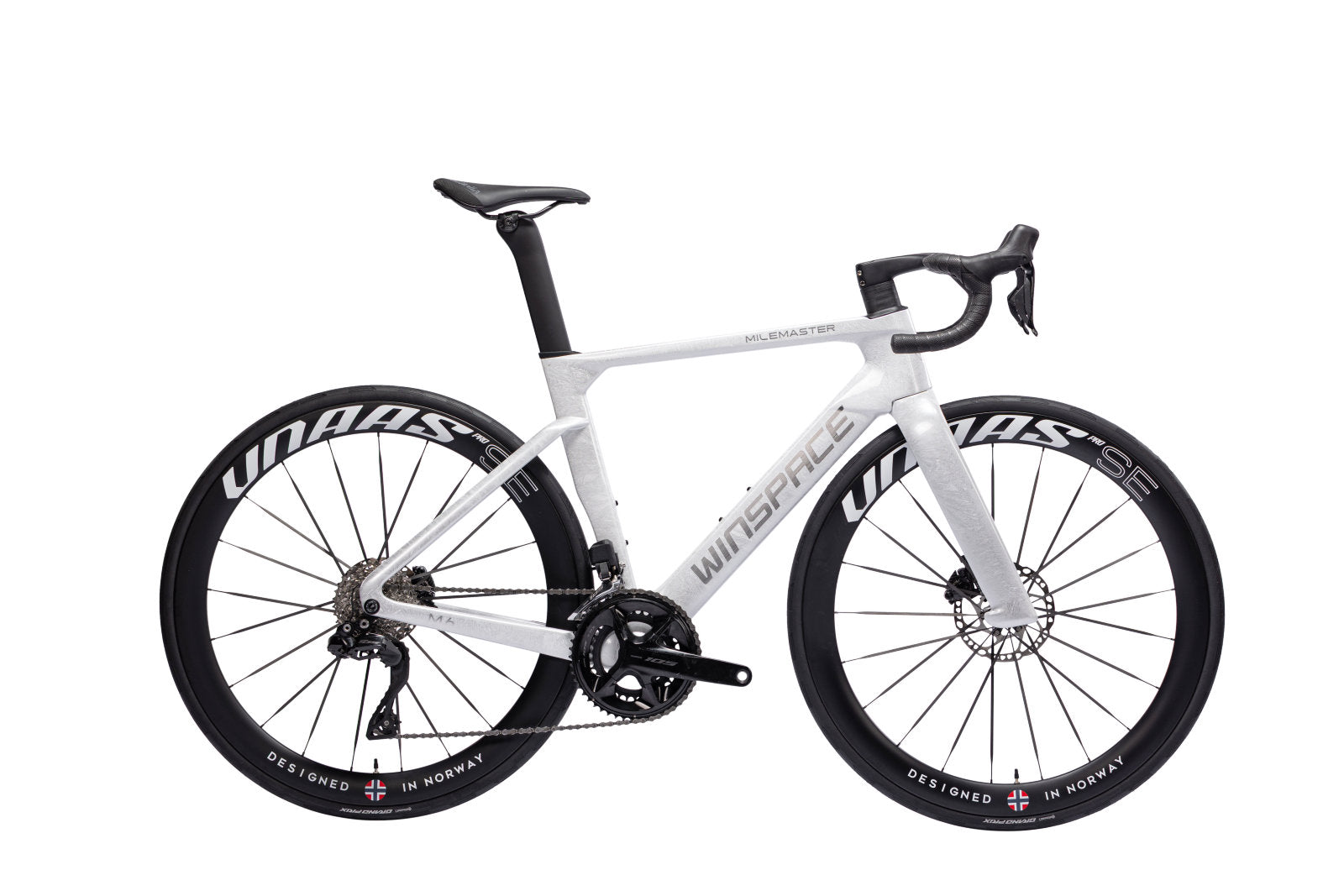

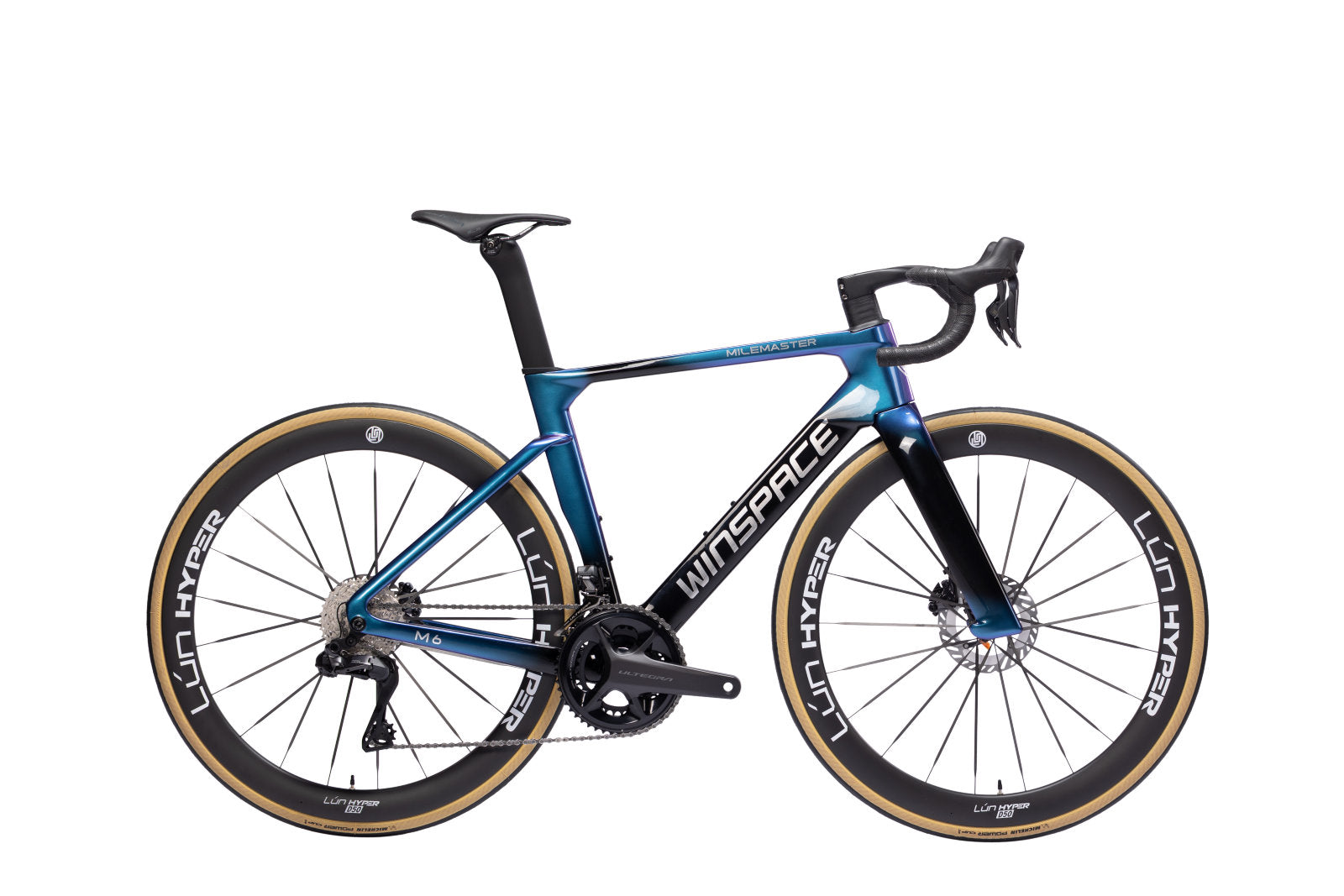

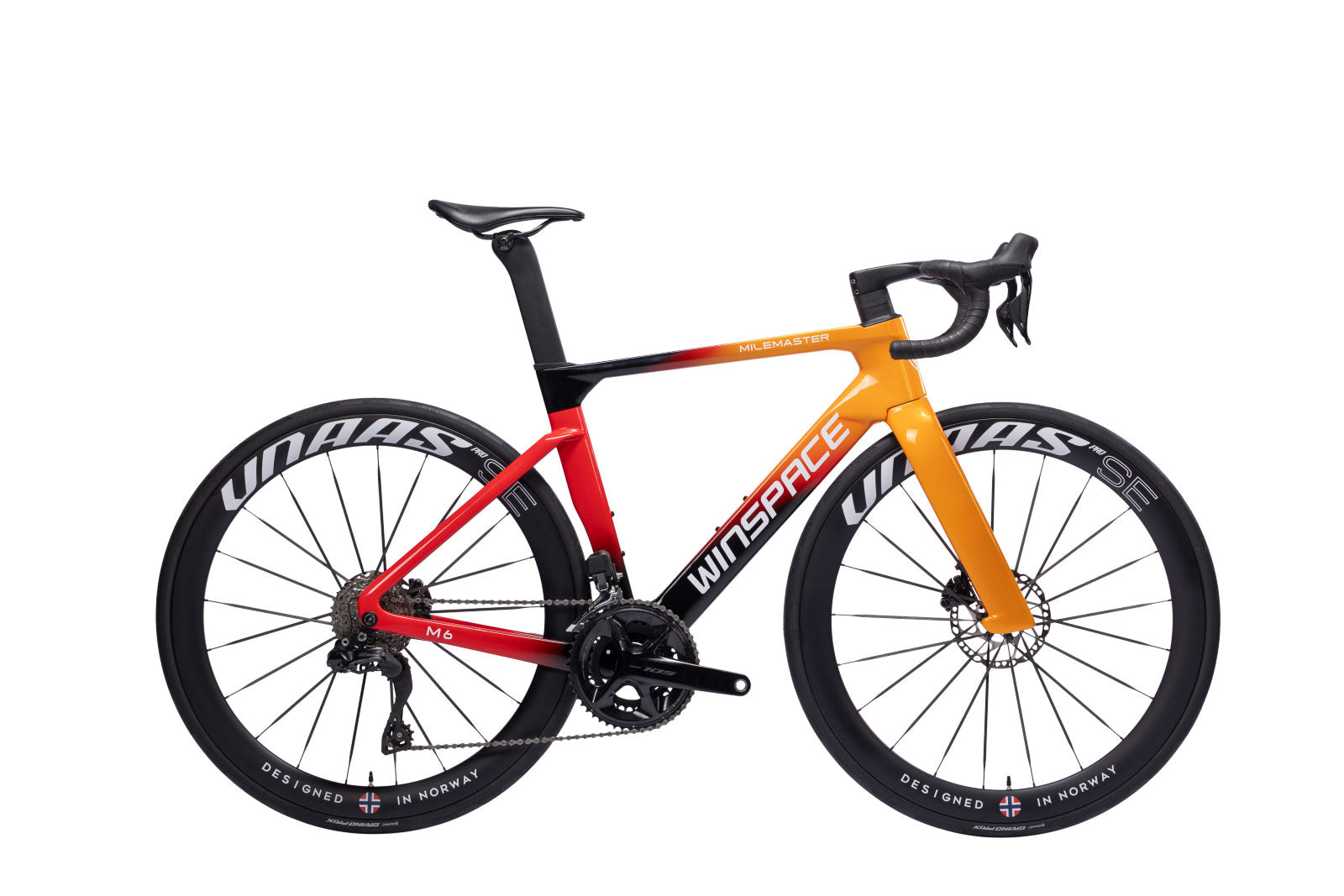

Colour

Get started in the bike builder to select your options.

Start building

02 · Wheels

Ten wheelsets

UNAAS Hard to Lún MEGA. Depth and finish are chosen in the builder.

UNAAS Hard entry carbon, 50mm

UNAAS Pro carbon spokes, 40/50mm

UNAAS Hard2 hardened, 50mm

UNAAS Pro2 second gen carbon spoke, 50mm+$100

Lún Hyper SE 23 value carbon, 45/67mm+$400

Lún Hyper 23 all-round, 33/45/67mm+$700

Lún Hyper 3 performance, 33/45/67mm+$1000

Lún Hyper 5 Disc aero, 40/50/60mm+$1200

Lún Hyper Light lightest, 46/58mm+$1200

Lún MEGA flagship, 45mm+$2000

Get started in the bike builder to select your options.

Start building

03 · Drivetrain

SRAM Force E1 eTap AXS

Electronic 12-speed, hydraulic disc.

Chainrings: 2x 46/33 to 50/37, or Aero 1x 44 to 50T
Cranks: 160 to 175mm
Cassette: 10-28 up to 10-46

Get started in the bike builder to select your options.

Start building

04 · Cockpit

Carbon bars and saddles

Bar width, stem length are your choice of 3D printed carbon saddle.

Hyper 2.0

Hyper Aero

Zero SL

Get started in the bike builder to select your options.

Start building

Aerodynamically Optimised

The M6 was developed using CFD aerodynamic analysis, allowing engineers to refine airflow around the frame and minimise drag. It features a slim head tube profile to reduce frontal area, ultra-wide aero fork and dovetail rear wing fork

Race-Level Stiffness & Structure

The frame structure is designed to withstand load forces equivalent to two tonnes, and to responds instantly to attacks and accelerations, converting every watt directly into forward speed. From the fork to the bottom bracket, it delivers exceptional structual performance.

Modern Race Geometry

The M6 is designed to balance aggressive performance with stability. The 410mm chainstay provides efficient power transfer and responsiveness, and the stiffness-to-weight ratio balances acceleration and climbing efficiency.

Every angle

Take a closer look

The detail

Specification and geometry

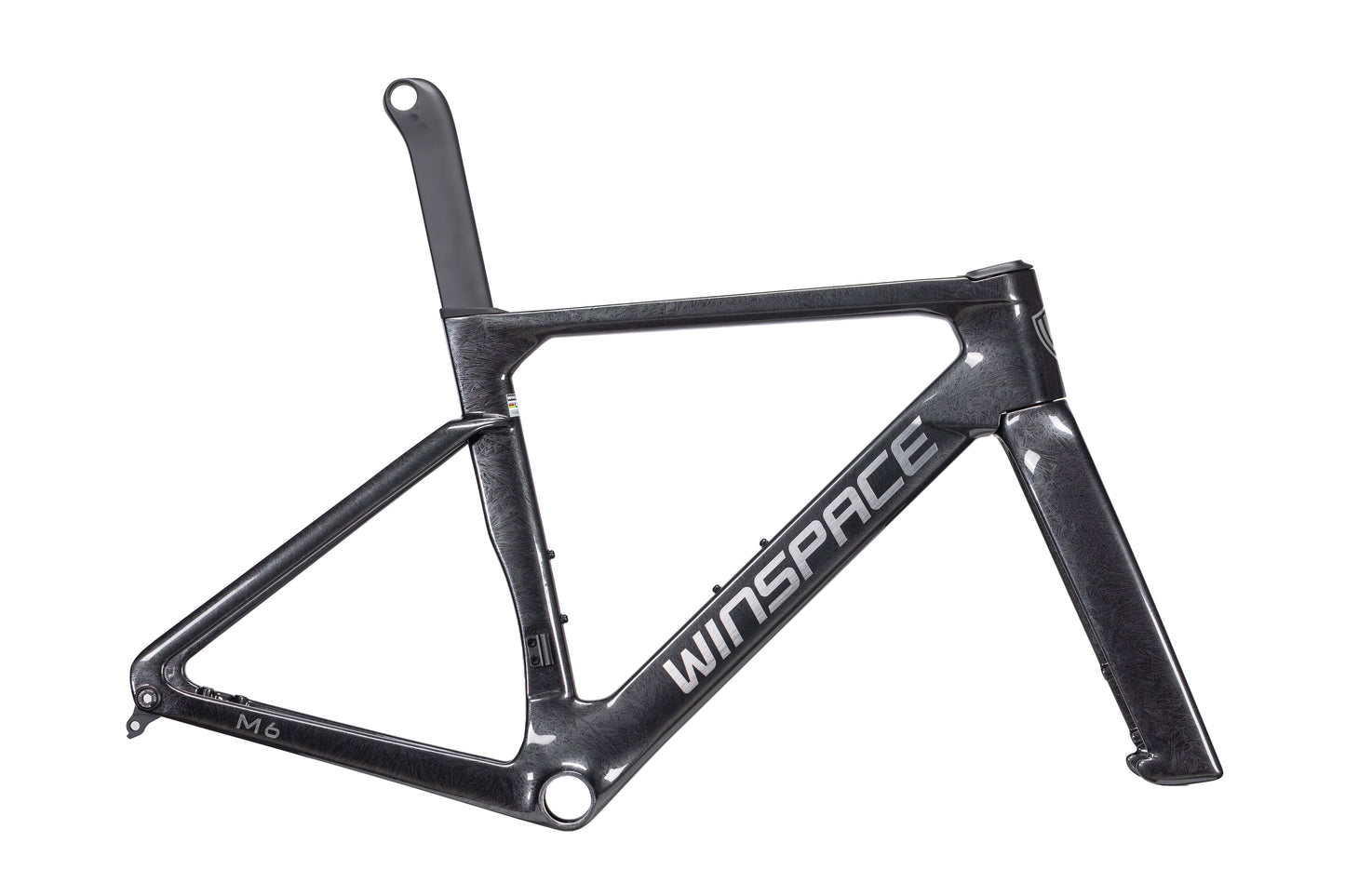

Frame: M6 Toray T700 + T800 + M40 + M60
Fork: Full carbon
Headset: 1-1/2 inch upper and lower, FSA ACR system
Groupset: SRAM Force E1 eTap AXS, 12-speed, hydraulic disc
Chainrings: 2x 46/33 · 48/35 · 50/37 or Aero 1x 44 · 46 · 48 · 50T
Cranks: 160 · 165 · 170 · 172.5 · 175mm
Cassette: 10-28 · 10-30 · 10-33 · 10-36 · 13-speed XPLR 10-46
Rotors: SRAM Paceline, 140 or 160mm
Cockpit: Winspace Hyper 2.0, Hyper or Zero SL integrated bar and stem, sized to you
Seatpost: Winspace carbon aero seatpost
Saddle: TCP Aero Light or Flow, 3D printed carbon
Wheels: Lún or UNAAS carbon, of your choice
Bar tape: C2 Black
Bottom bracket: Wishbone ceramic
Warranty: Frameset 3 years · wheels 2 years · bars 1 year

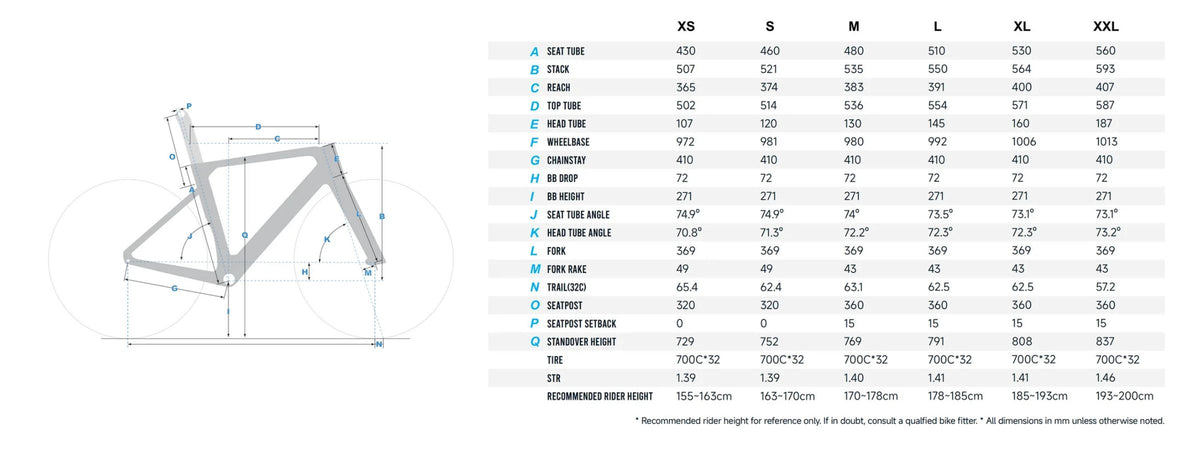

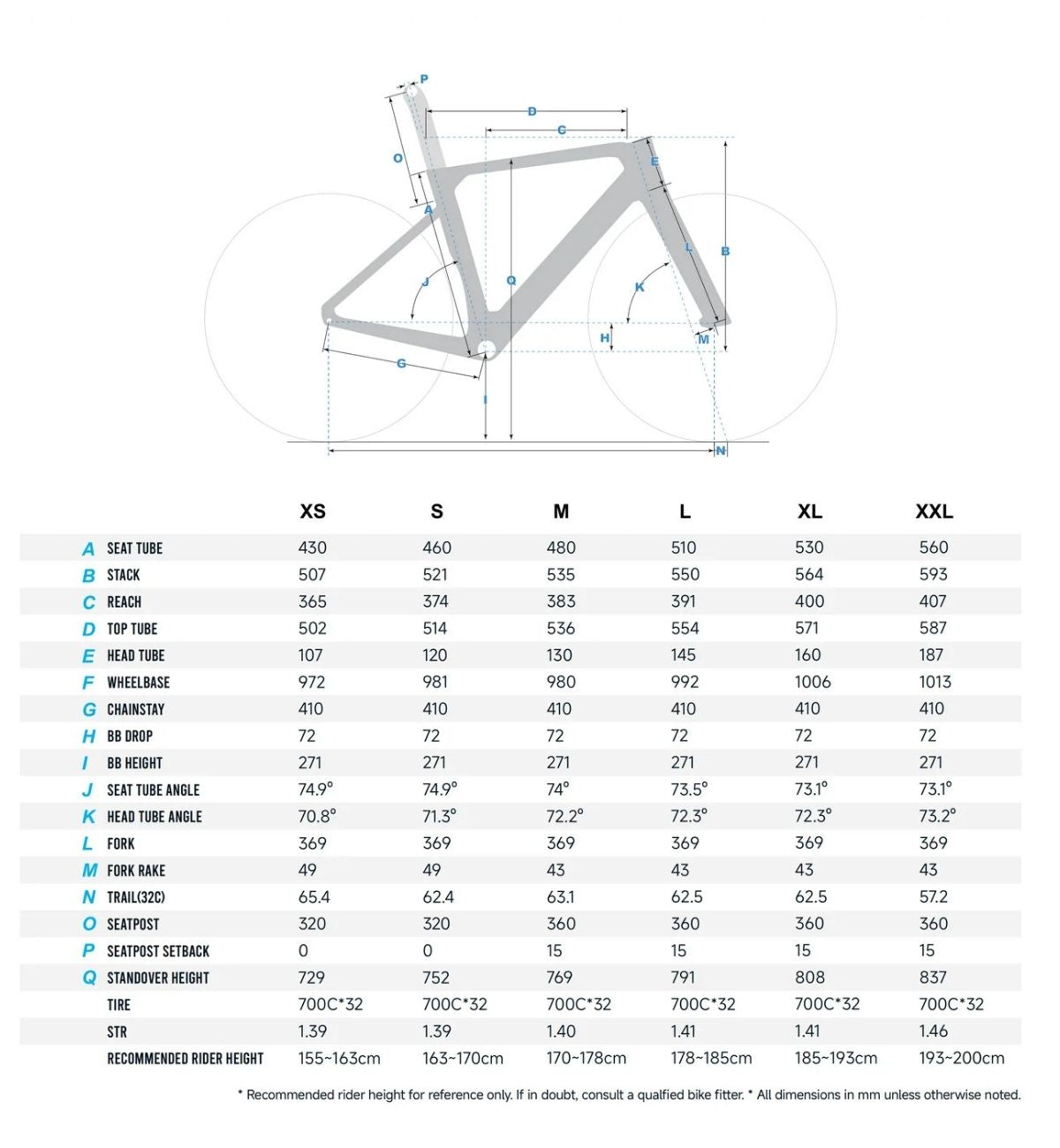

Size	Seat tube	Stack	Reach	Top tube	Rider height
XS	430	507	365	502	155 to 163
S	460	521	374	514	163 to 170
M	480	535	383	536	170 to 178
L	510	550	391	554	178 to 185
XL	530	564	400	571	185 to 193
XXL	560	593	407	587	193 to 200

If you are unsure of your measurement, we recommend getting a bike fit to get the most out of your Winspace.

Open the full size chart

Download Product Catalogue

Try before you buy

Deduct up to 7 days of rental from your new Winspace by boooking a demo ride with pur partner, BikeRental.cc.

Book a rental →

Built to order in Australia

Assembled and quality checked at our Ultimo HQ, delivered to your door or ready for collection. Or, one of our local partners can build it for you closer to home.

Local support

Servicing, parts and advice across Australia. No matter how long you've had your bike for, we're here to help.

M6 · SRAM Force AXS

Your colour. Your fit. Your wheels.

Around ten minutes in the builder, and every choice is priced as you make it.
