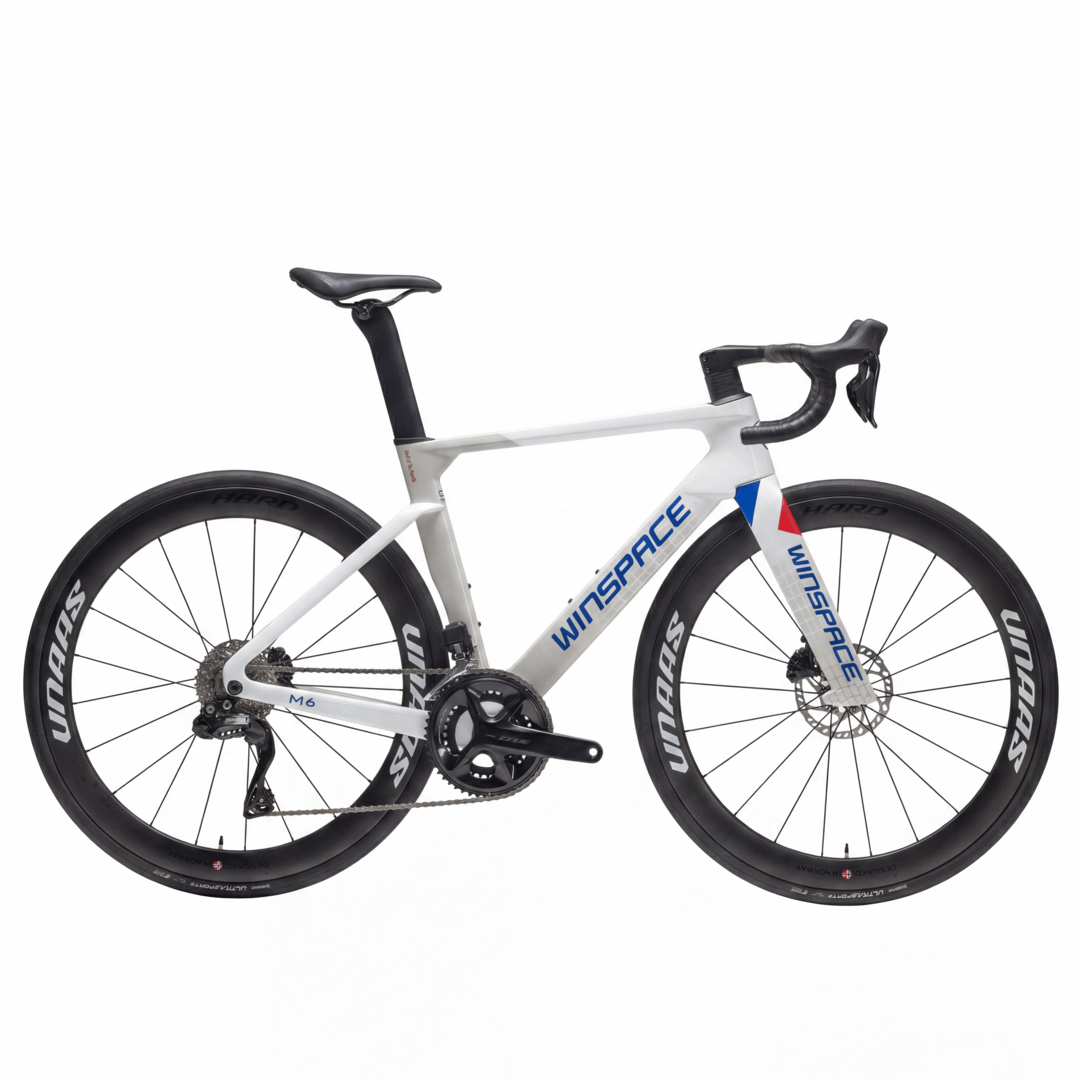

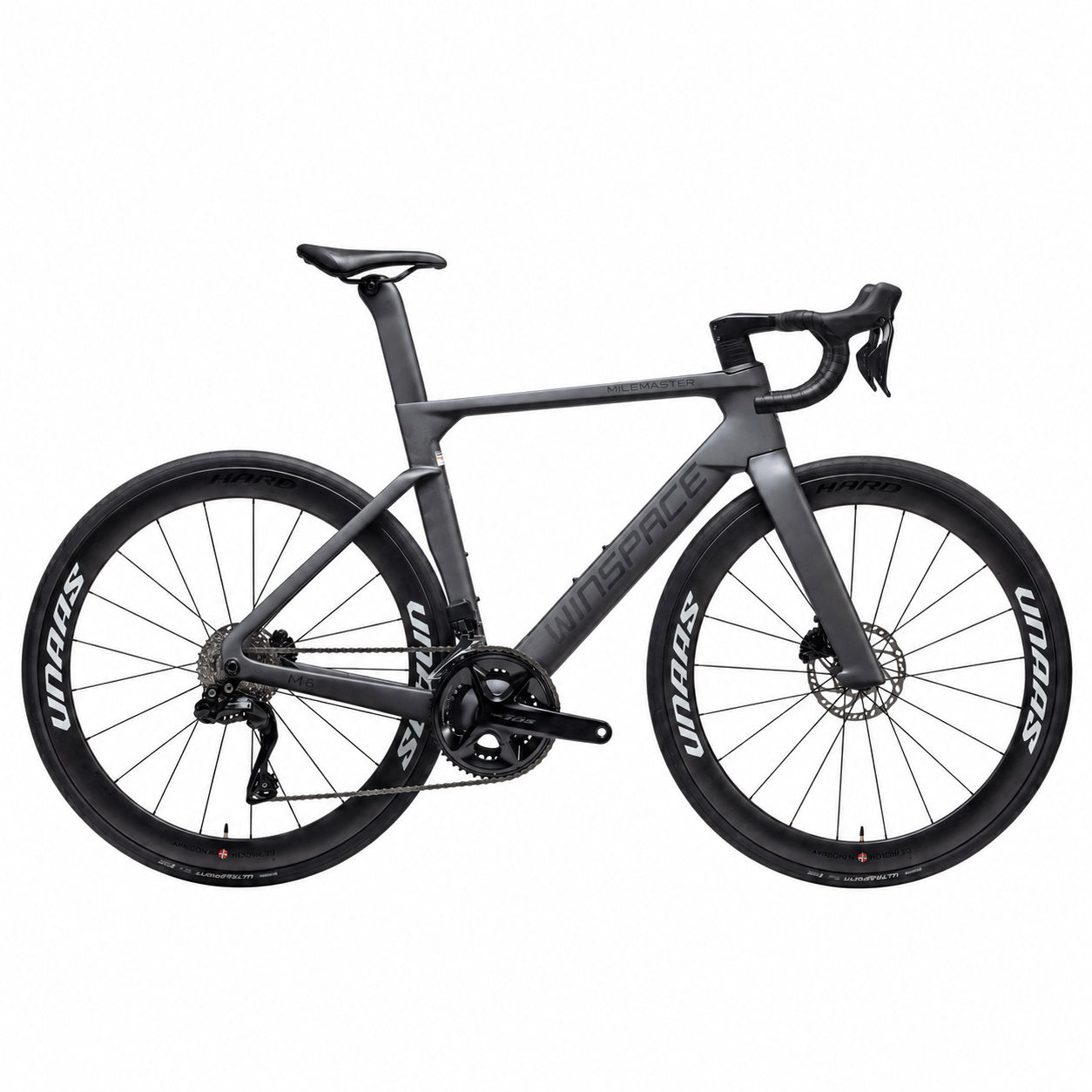

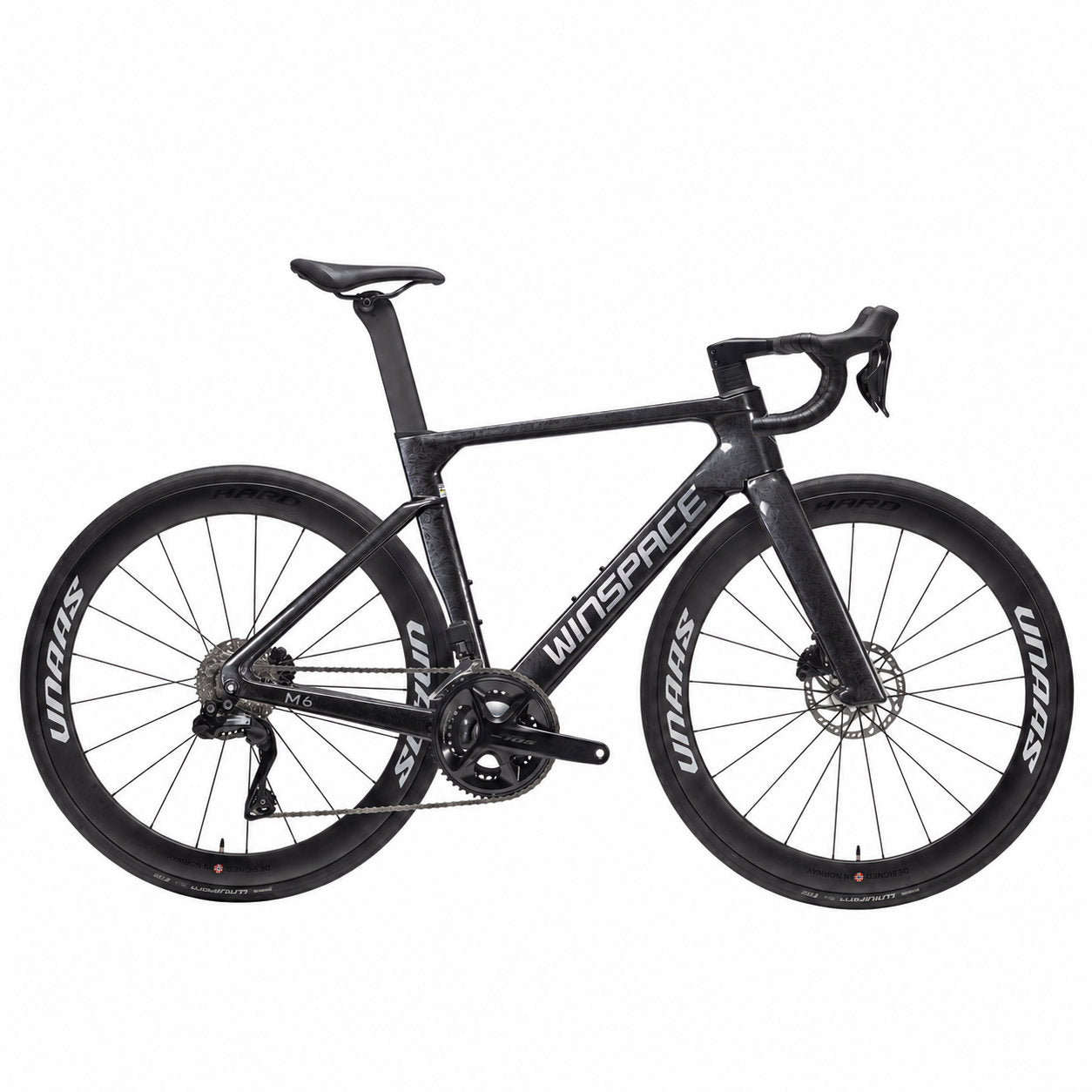

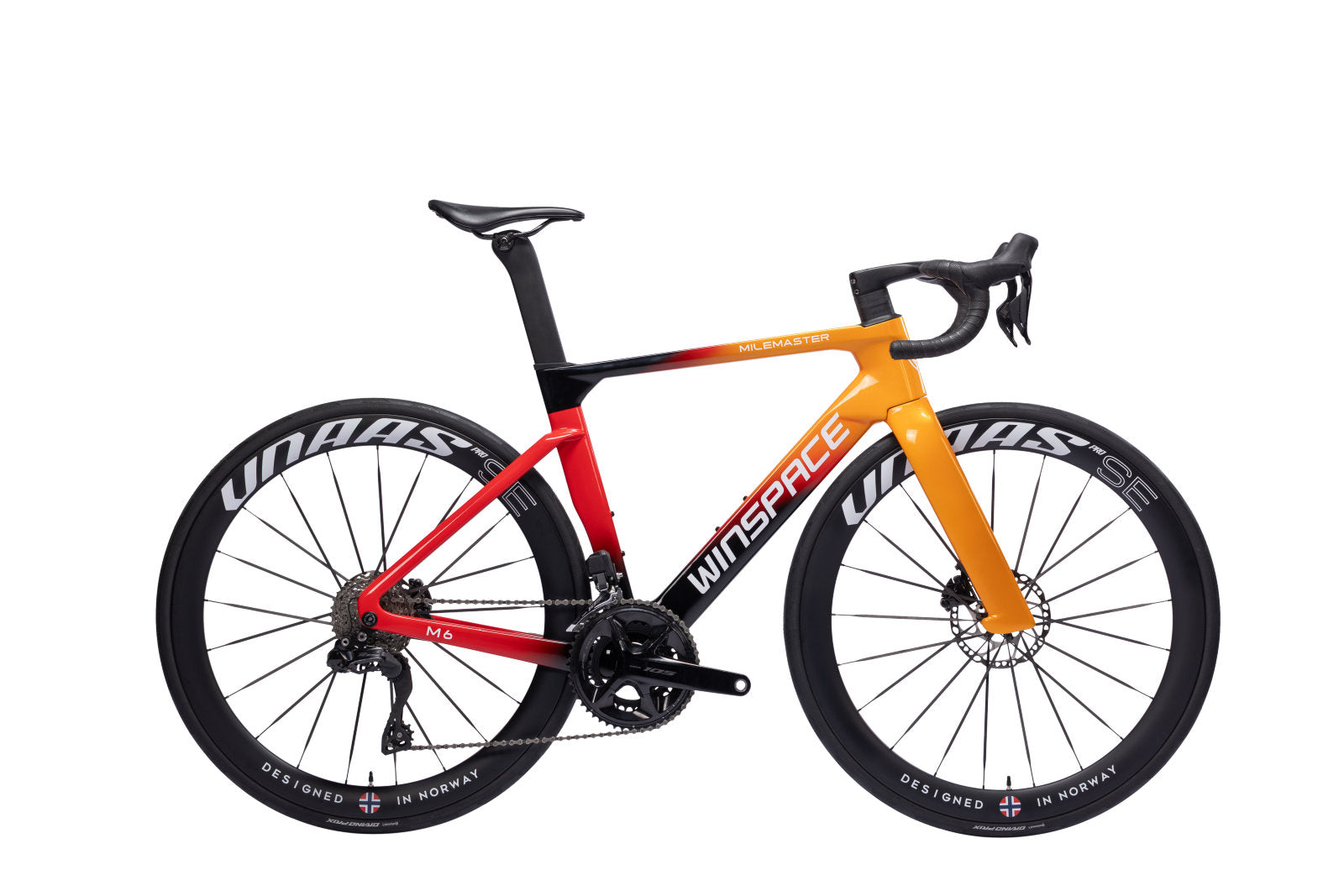

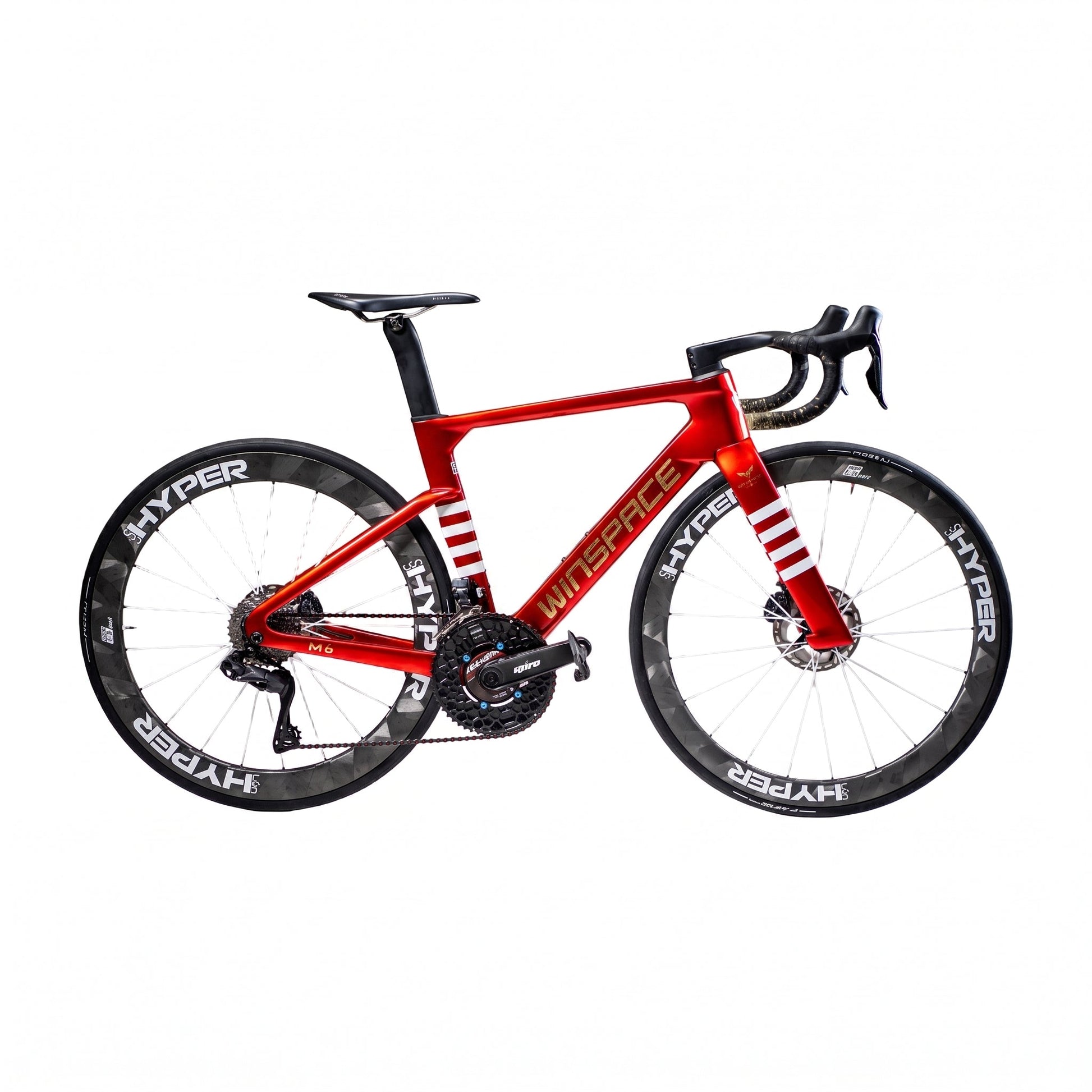

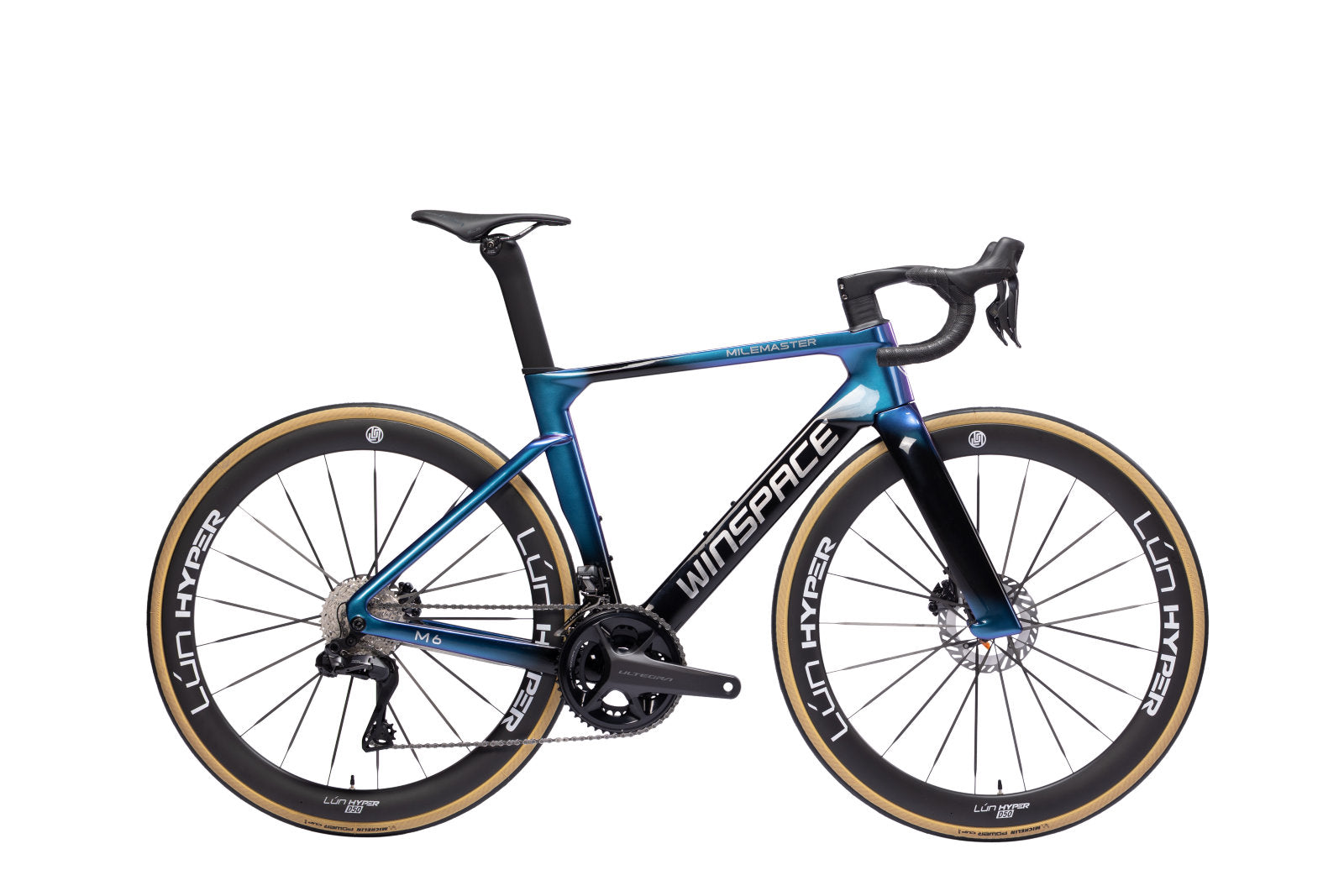

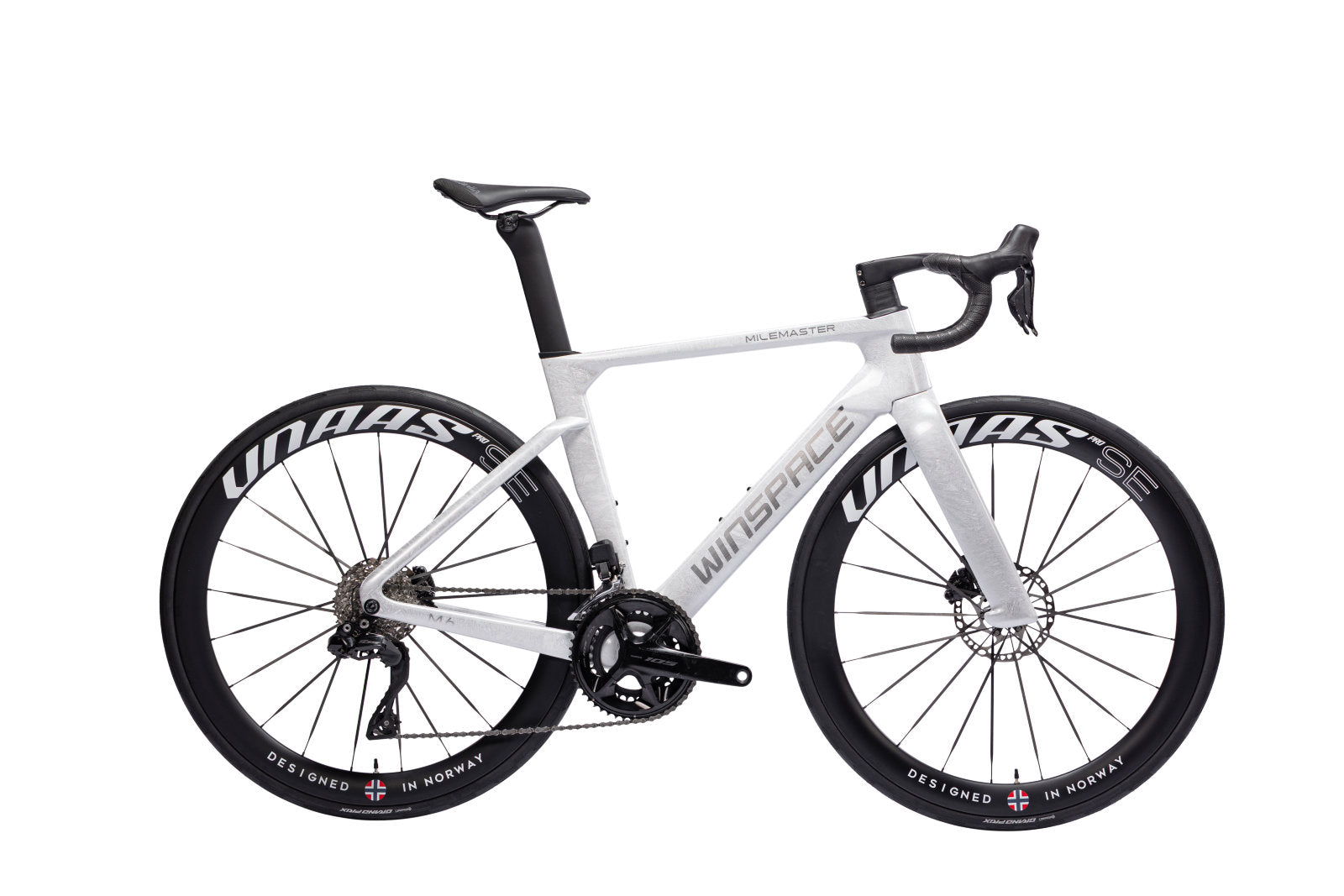

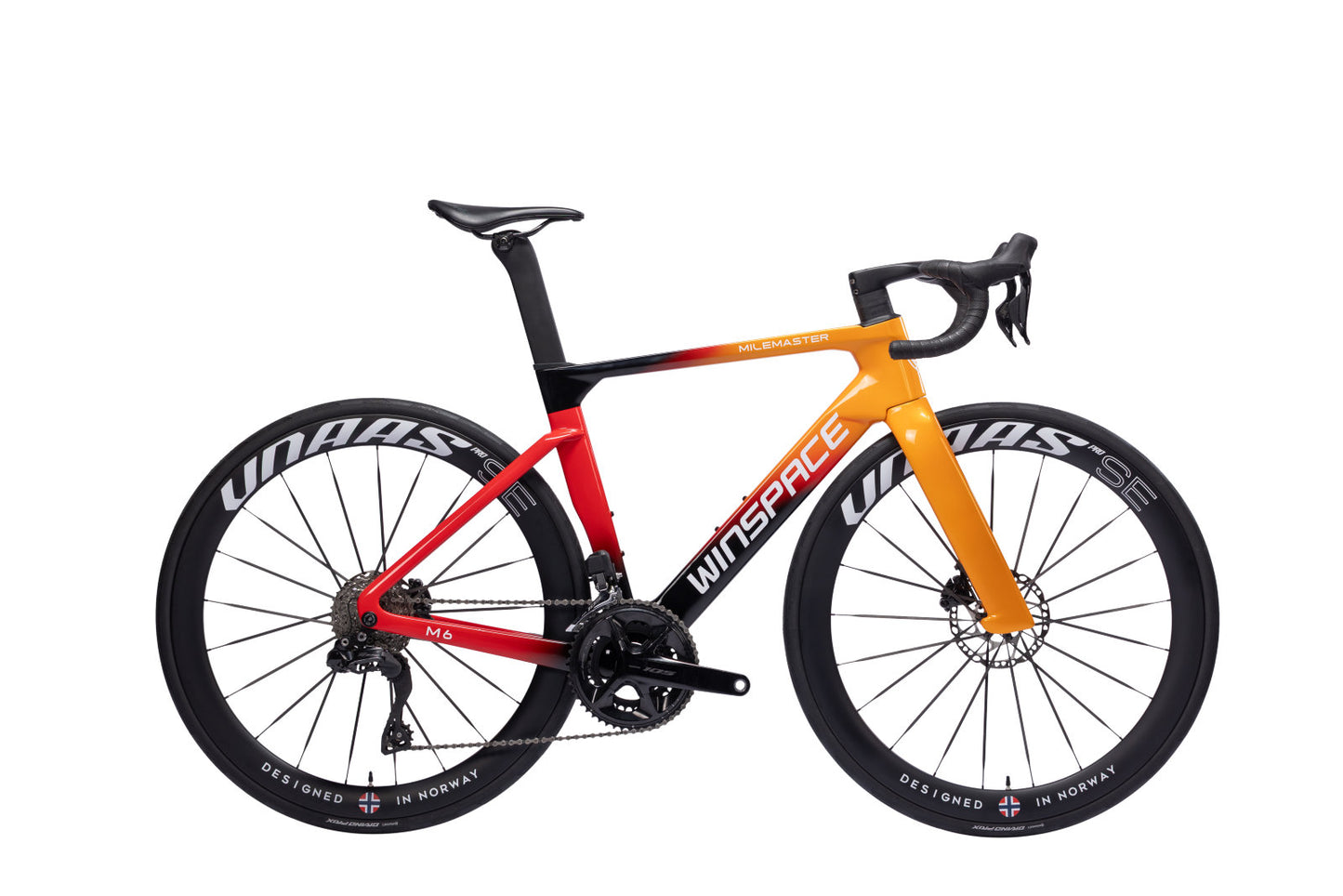

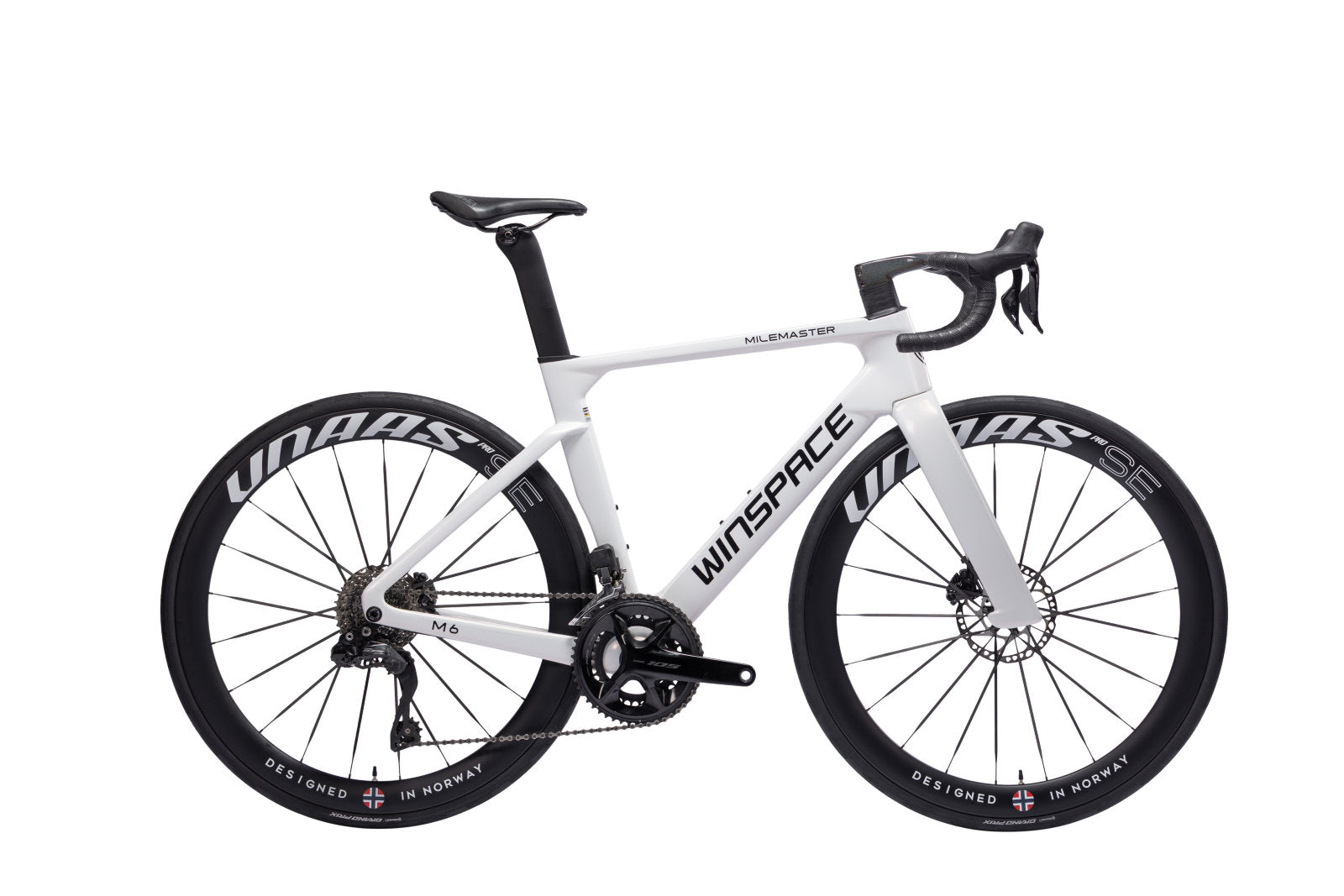

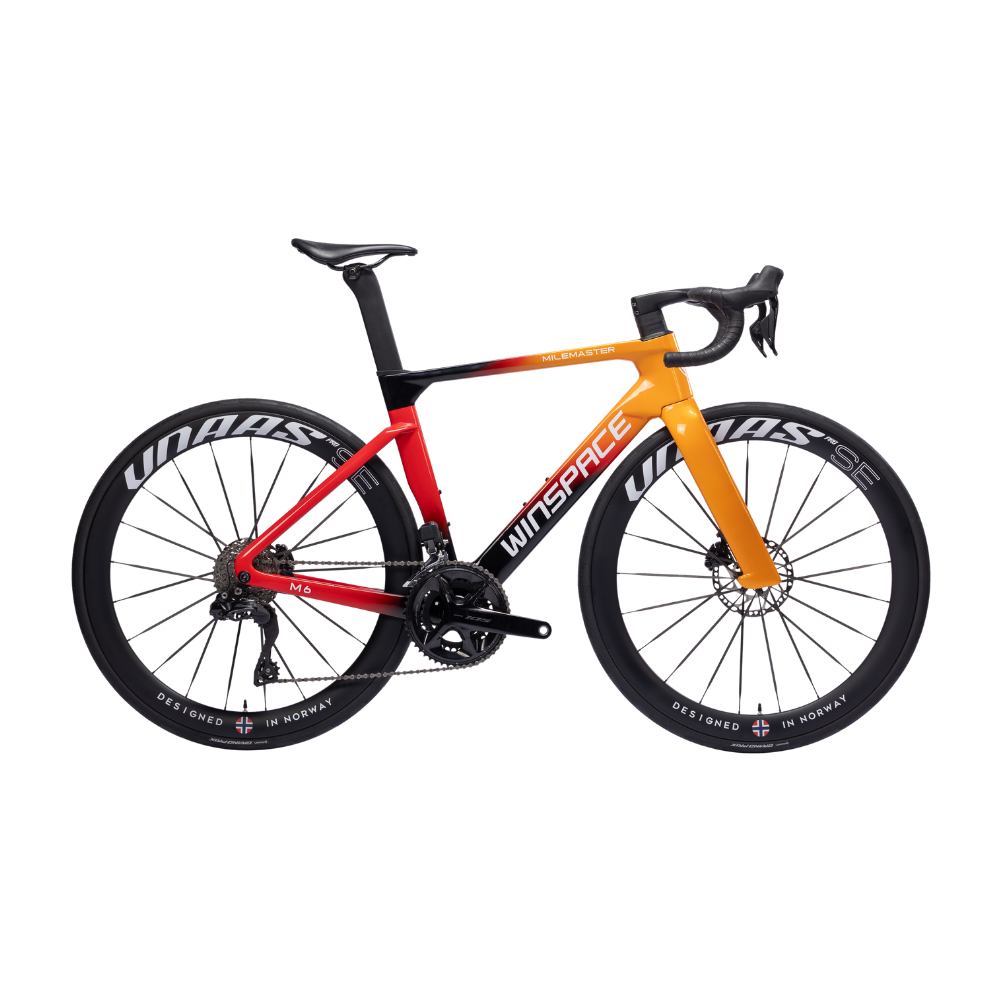

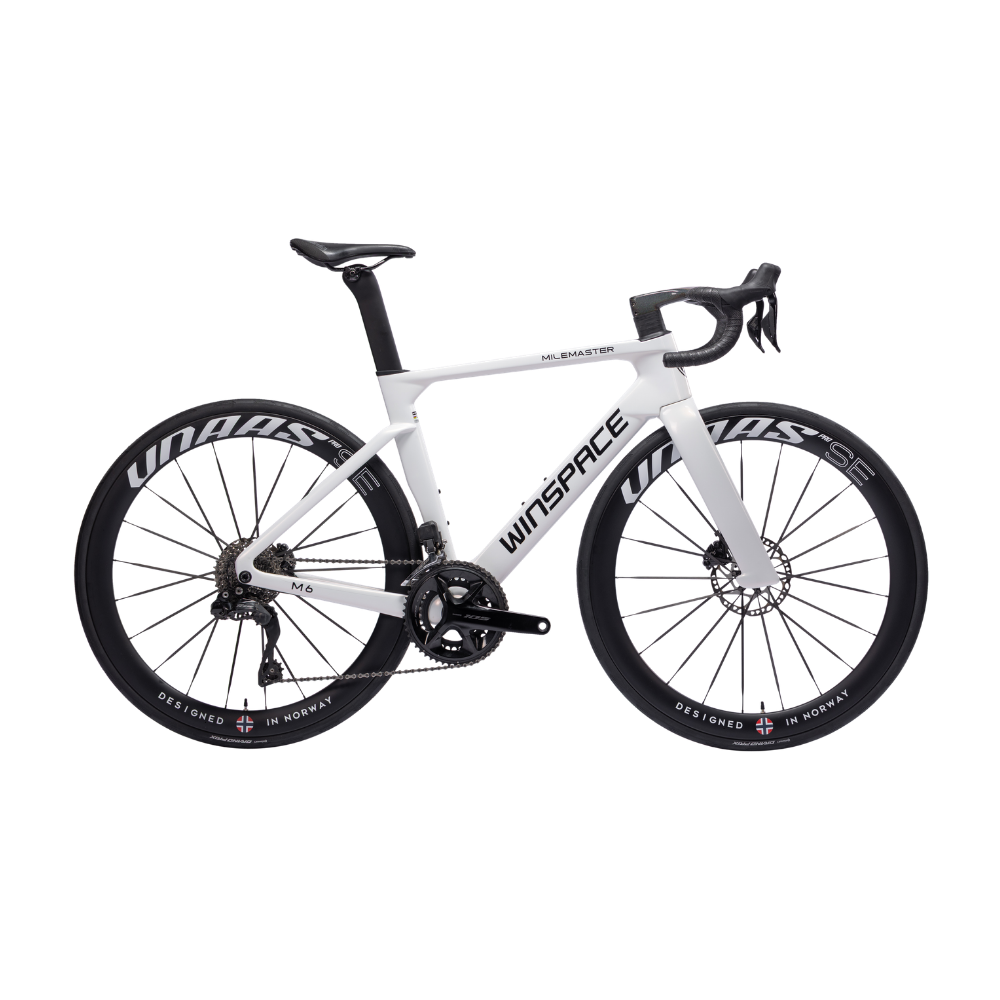

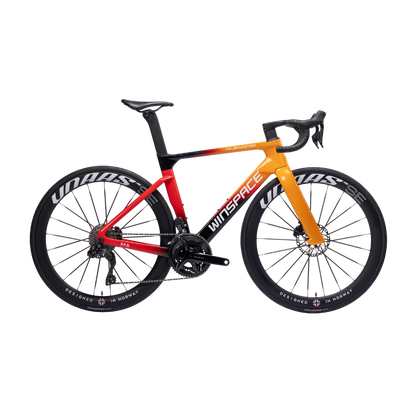

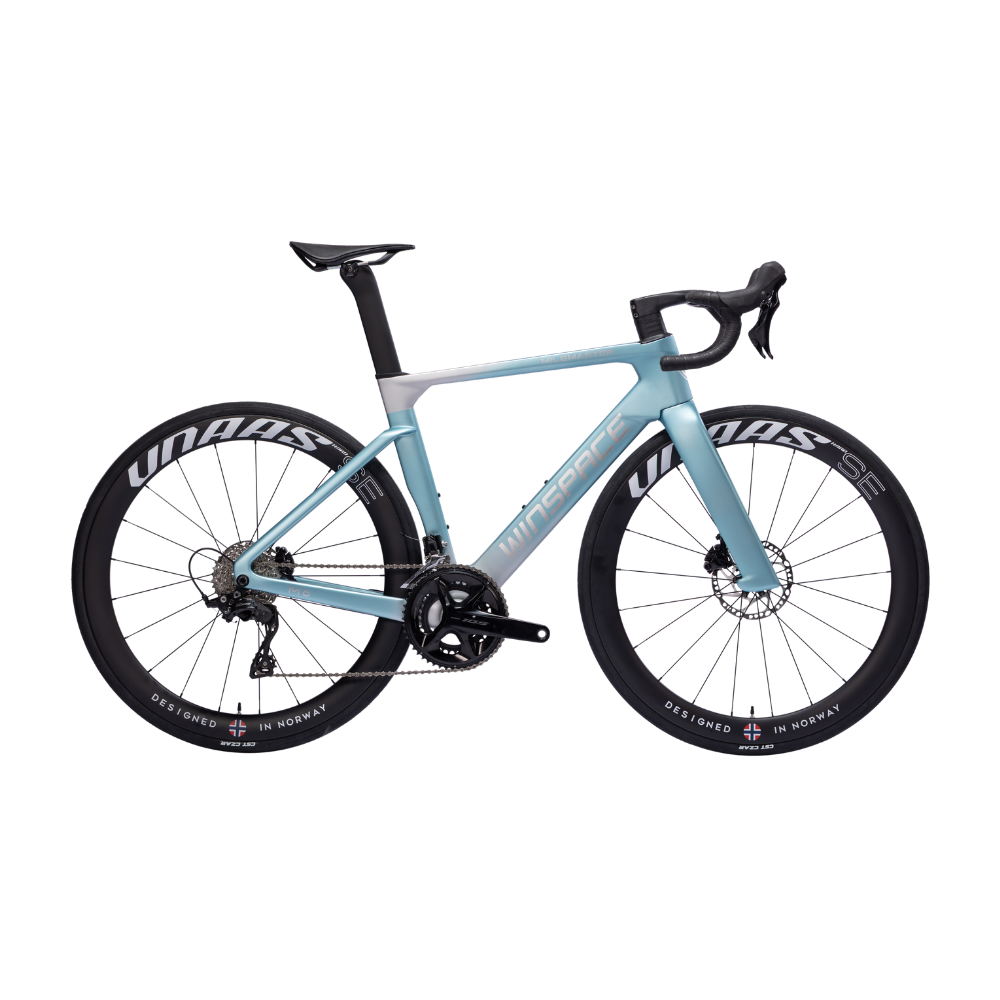

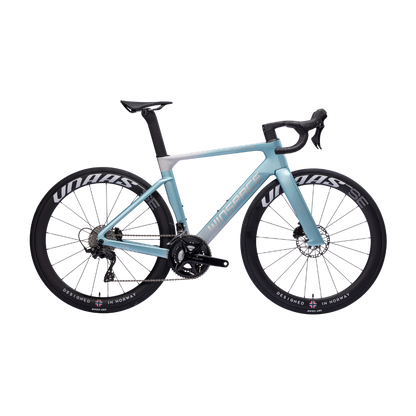

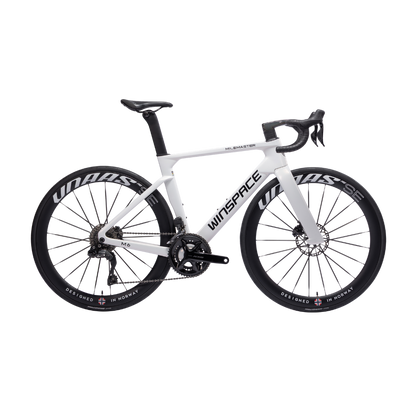

Winspace M6 Dura-Ace Di2 — Build Your Dream Bike

Designed around modern aerodynamic principles, the M6 features a sculpted frame profile, optimized fork design, and fully integrated cable routing to minimize drag and maximize speed. The result is a bike that slices through the wind while maintaining exceptional control and stability at high speeds.

Advanced Carbon Construction

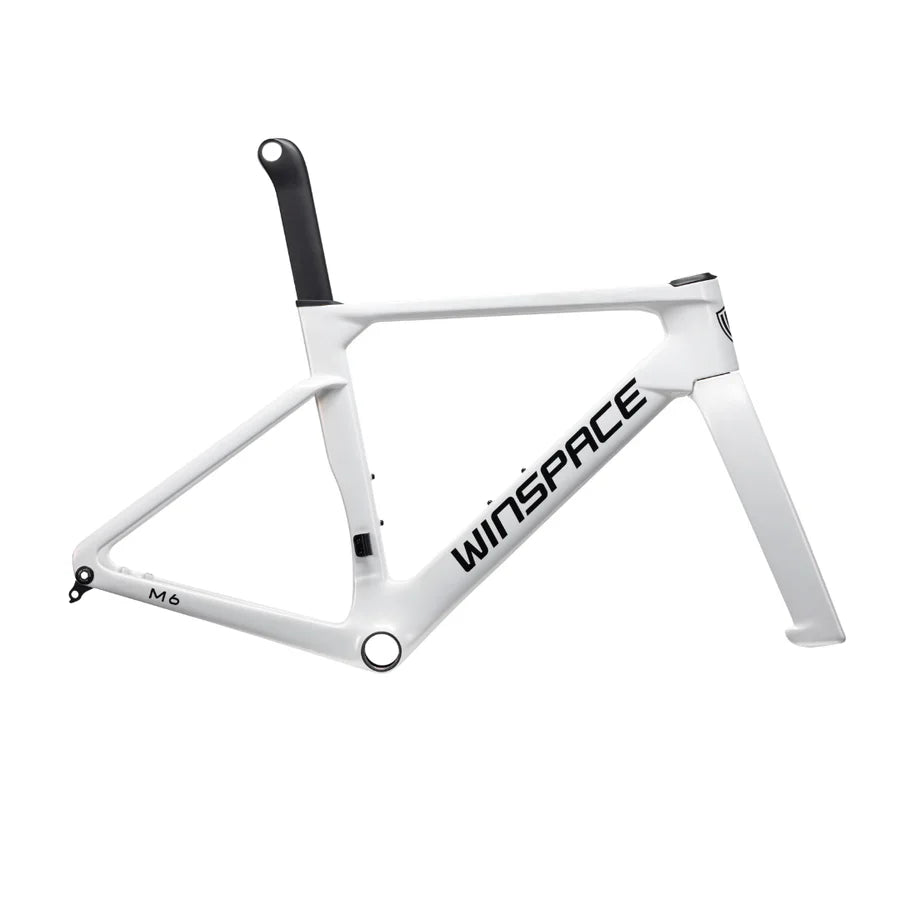

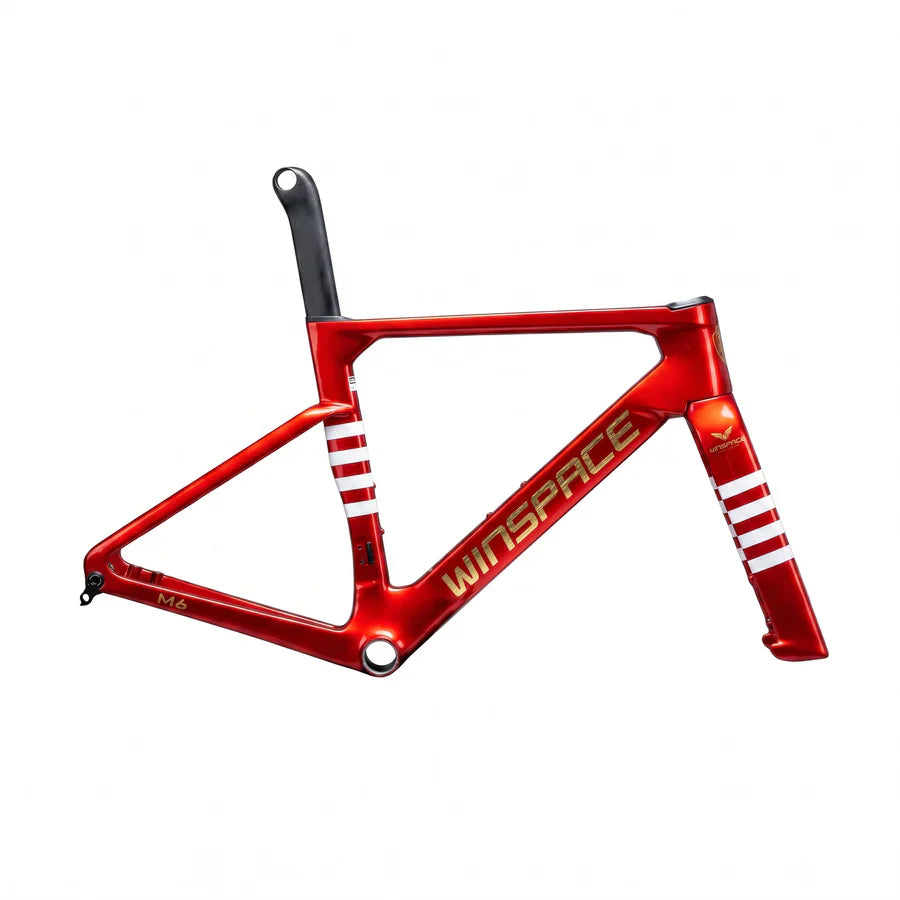

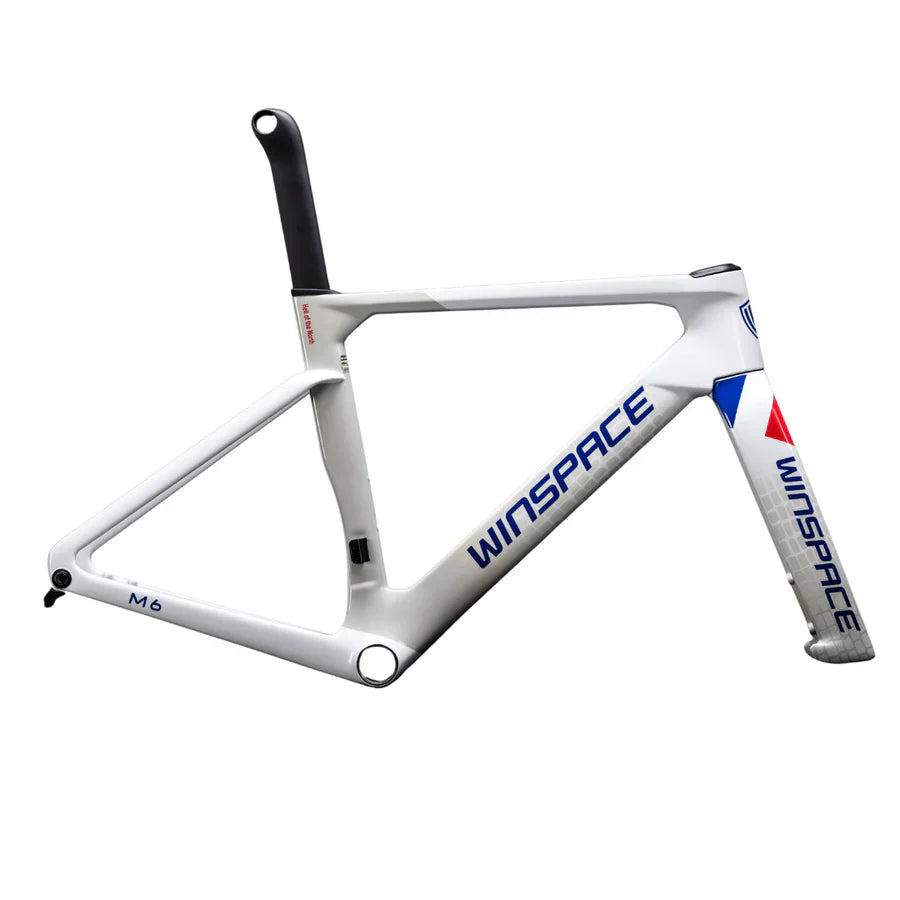

At the heart of the M6 is a precision-engineered carbon frame constructed from a blend of Toray T800, T700, M40 and ultra-high-modulus M60 fibers, strategically layered to balance stiffness, weight, and ride quality. This advanced carbon layup delivers excellent power transfer when sprinting or climbing, while maintaining compliance for long days in the saddle.

With a frame weight of approximately 900g (size M) and a lightweight carbon fork, the M6 offers impressive efficiency without sacrificing durability or handling confidence.

Built for Speed and Race Performance

Unlike many pure race bikes that prioritise stiffness alone, the M6 is designed to balance aerodynamics, comfort, and stability, allowing riders to maintain high speeds for longer. The refined geometry improves responsiveness and handling while ensuring confidence in fast corners, group rides, and long endurance efforts.

The frame also supports tyres up to 32mm, providing additional comfort, grip, and versatility across varying road conditions.

Custom Build Options

• Shimano Dura-Ace Di2 groupset, with lightning-fast, electronic shifting and world-class braking precision.
• The Carbon Project carbon  saddle weighing only 200g.
• Choose your bar and stem size.  The Hyper Handlebar can be customised to your size preferences for width (380mm, 400mm, 420mm) and length (85mm-125mm).
• Choose your cassette and crank length to customise the bike to your size preferences (162.5 - 175mm)
• Choose your preferred wheel, rim depth and tire (28mm or 30mm, black/tan wall).  Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or another wheel set in the Winspace range (contact us to confirm pricing).

Technical Specifications

• Frame: M6 Toray T700+T800+M40+M60
• Headset:1-1/2"/ 1-1/2" (FSA ACR system)
• Wheel Axles: 12mm thru-axle (F114mm, R163mm).
• Handlebar/Stem:  Winspace Zero SL Integrated Bar and Stem.
• Seatpost: Winspace Aero seatpost
• Saddle: TCP 3D printed carbon saddle
• Drivetrain: Shimano Dura-Ace Di2, 12-speed (52/36T Crankset, 11-30T or 11-34T Cassette).
• Front brake: Shimano Dura-Ace Di2
• Rear Brake: Shimano Dura-Ace Di2
• Shift Levers: Shimano Dura-Ace Di2
• Front Derailleur: Shimano Dura-Ace Di2
• Rear Derailleur: Shimano Dura-Ace Di2
• Rotors: Shimano Dura-Ace (140 or 160mm)
• Crankset: Shimano Dura-Ace (165, 170, 172.5 or 175mm), 52/36
• Chain: Shimano Dura-Ace
• Bottom Bracket: Wishbone Ceramic T47 Inboard
• Tyres: Goodyear Eagle F1 (700x28c or 700x30c).
• Bartape: C2 Black
• Wheels: Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or another wheel set in the range (contact us for pricing).
