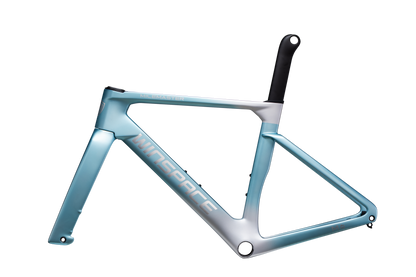

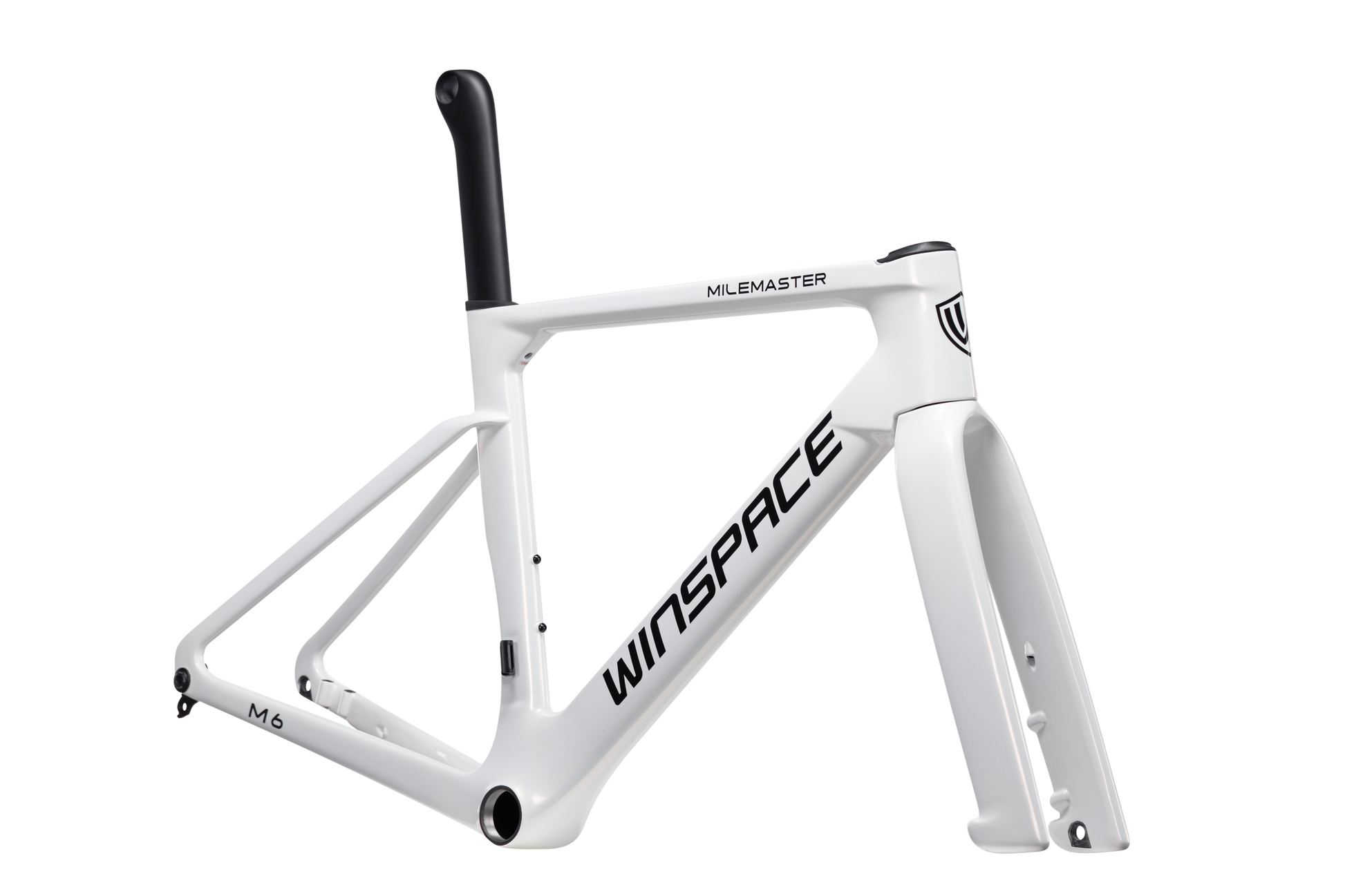

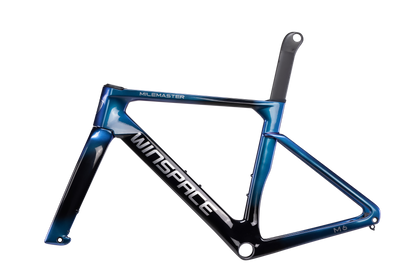

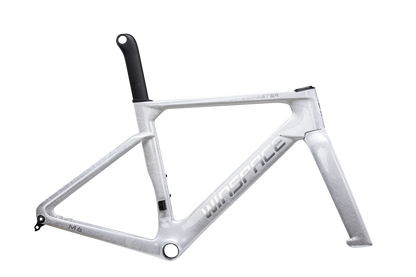

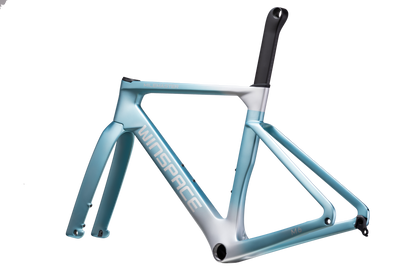

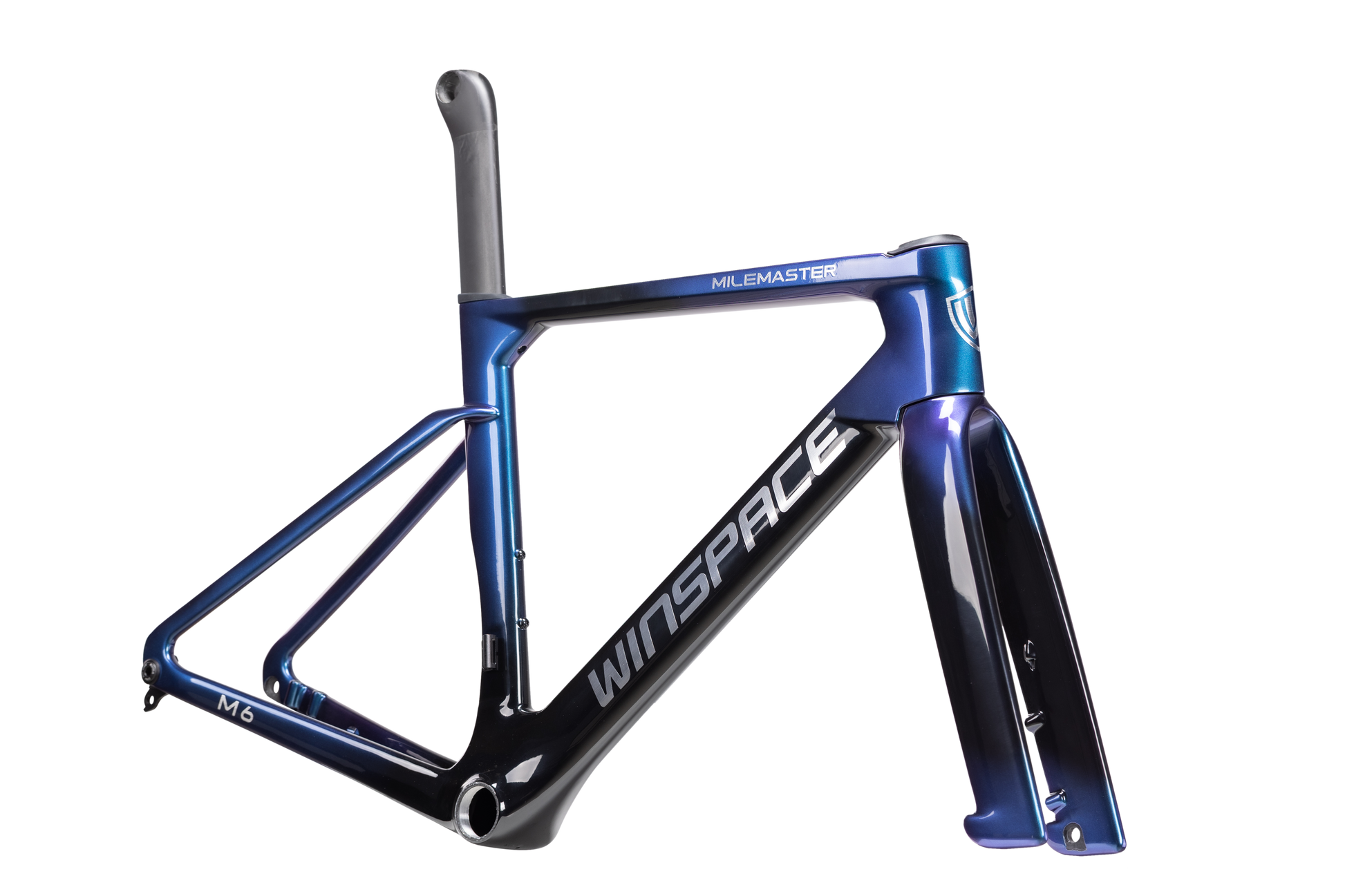

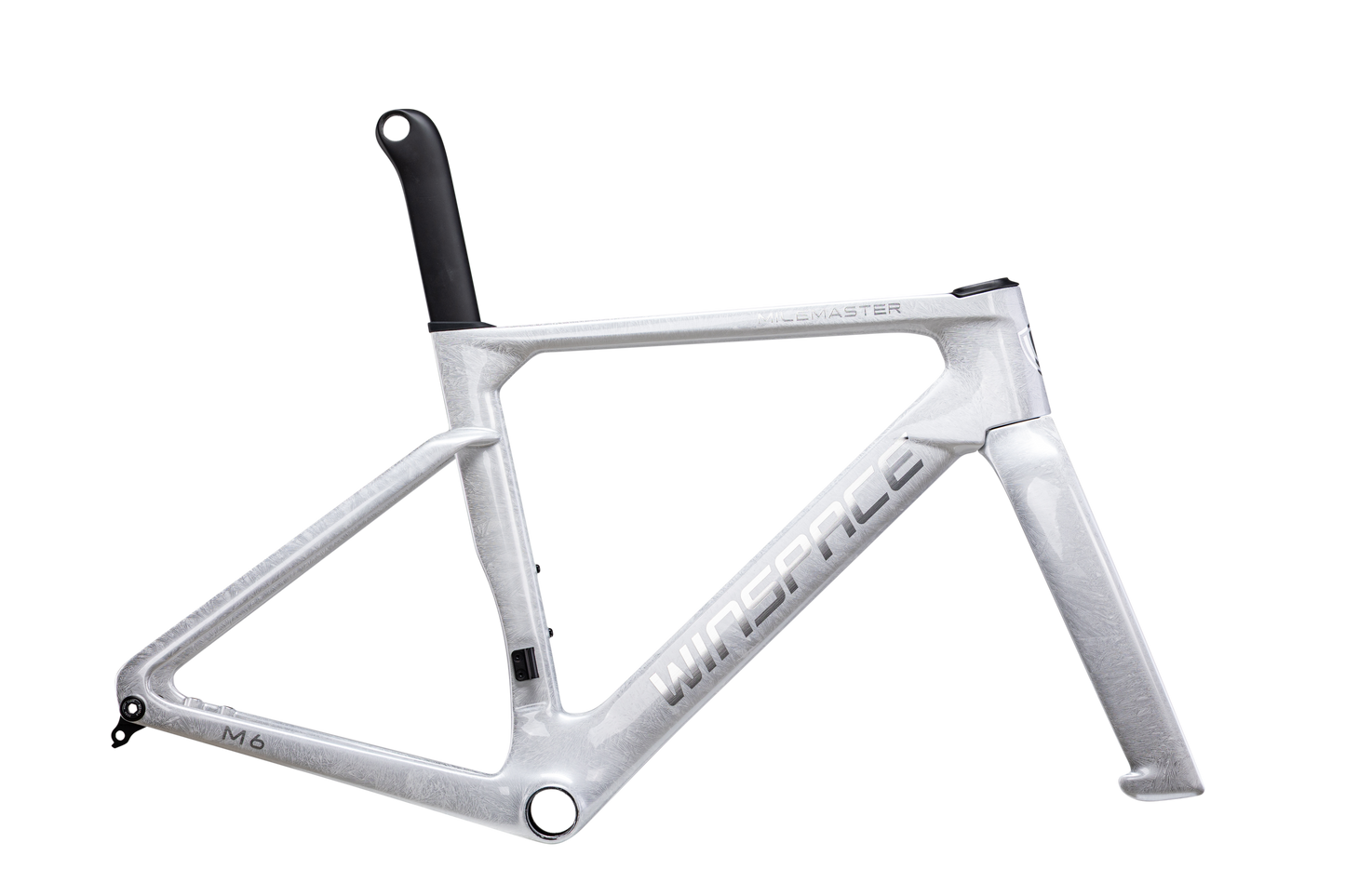

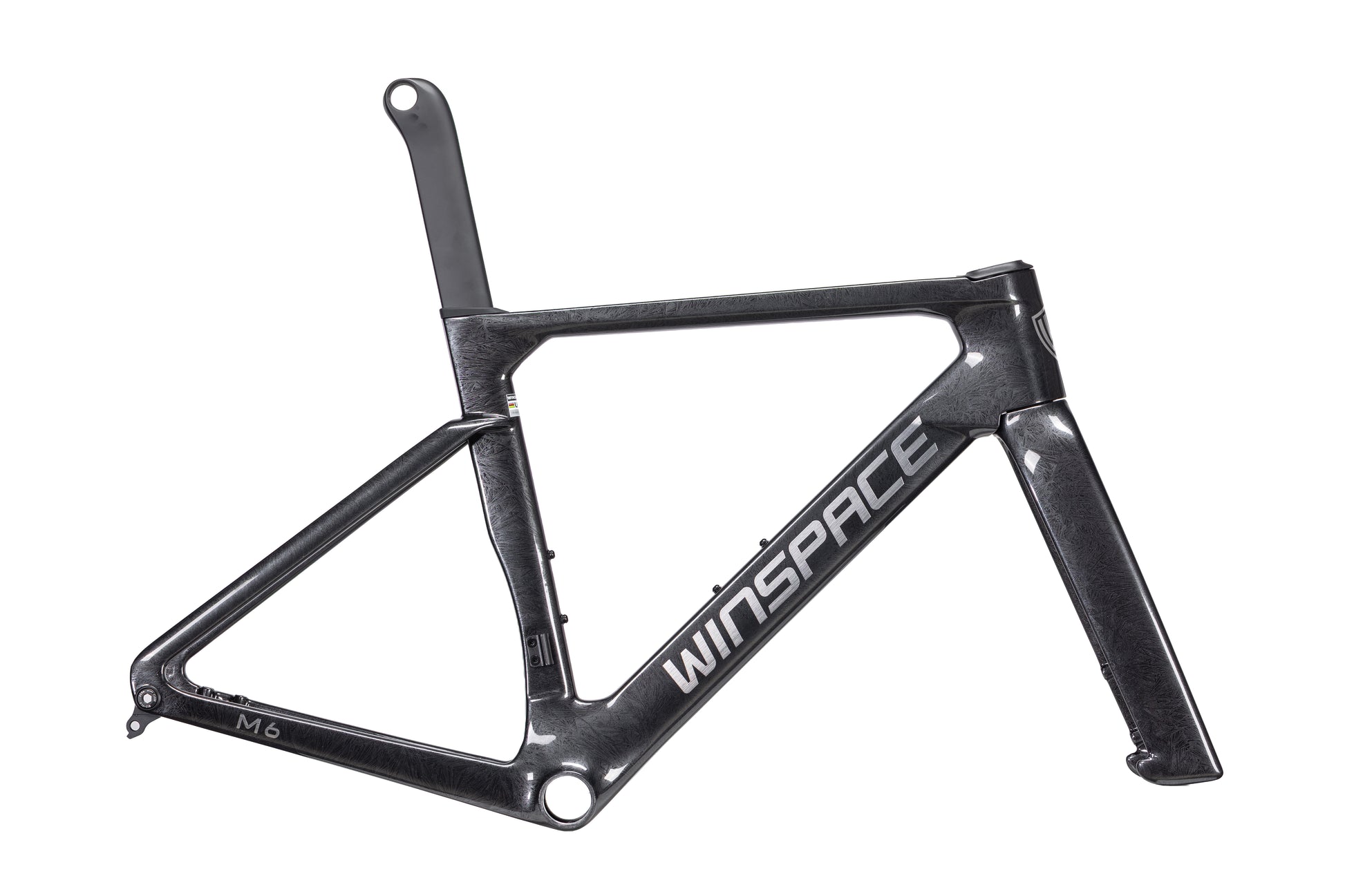

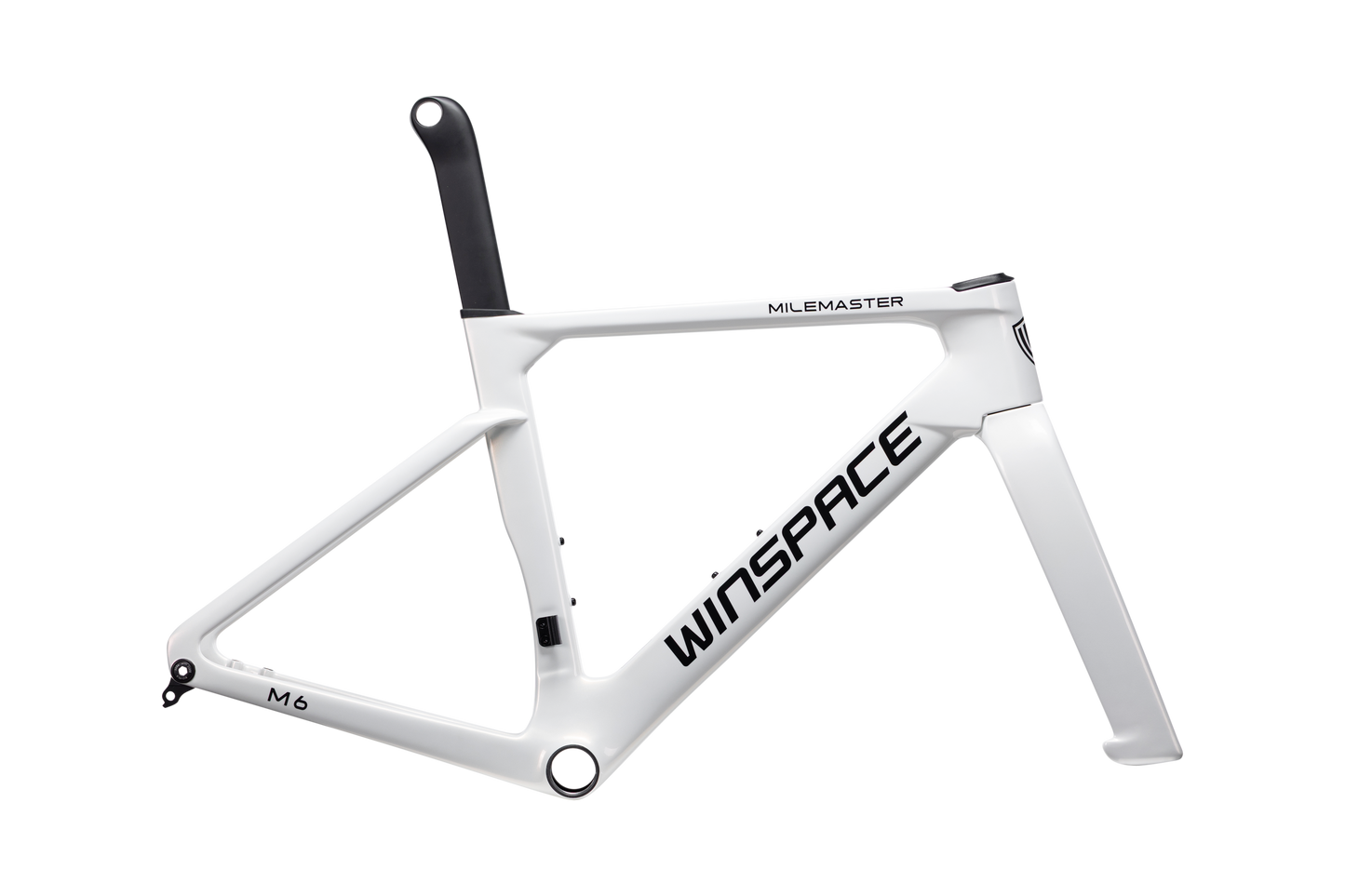

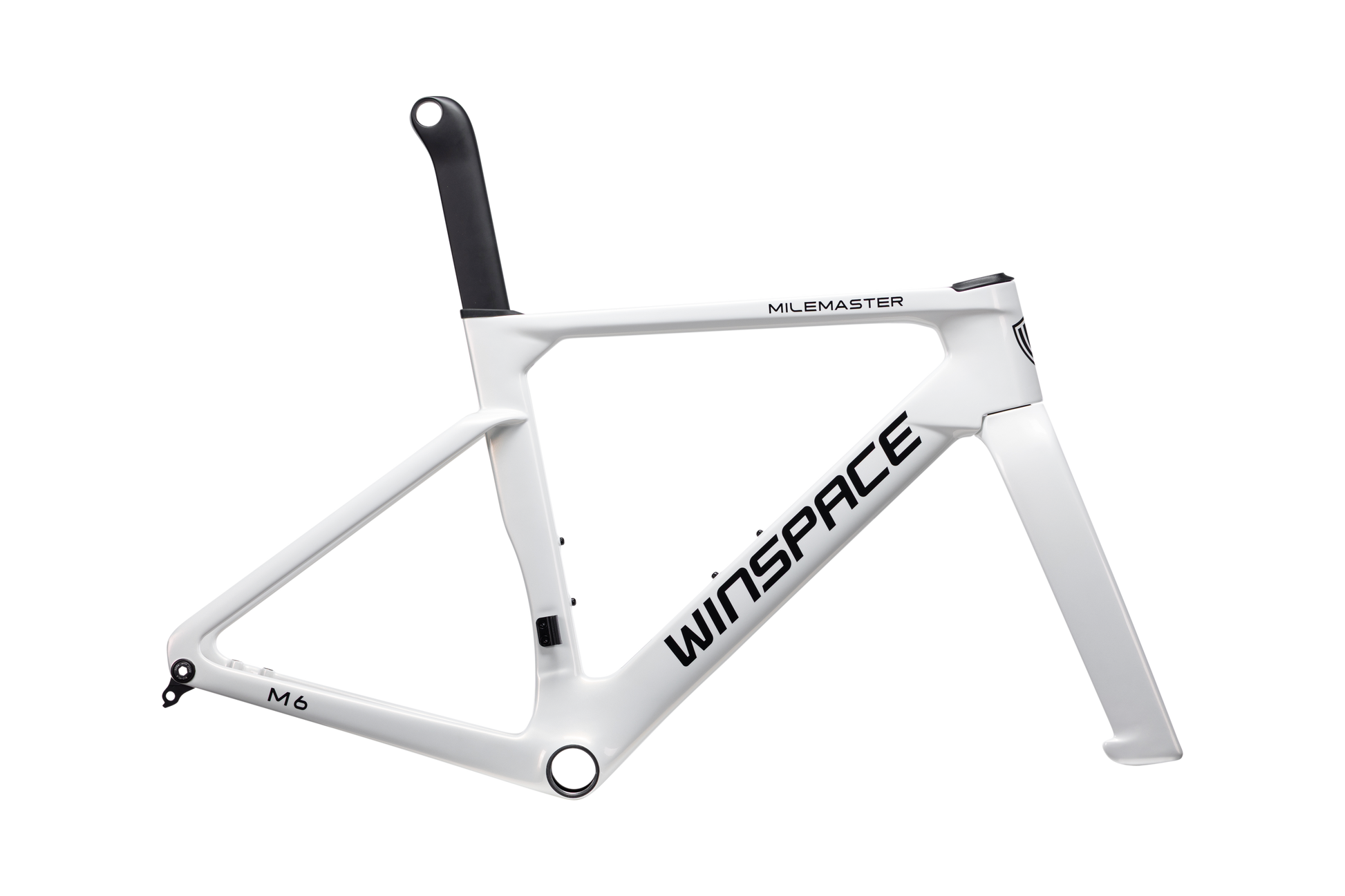

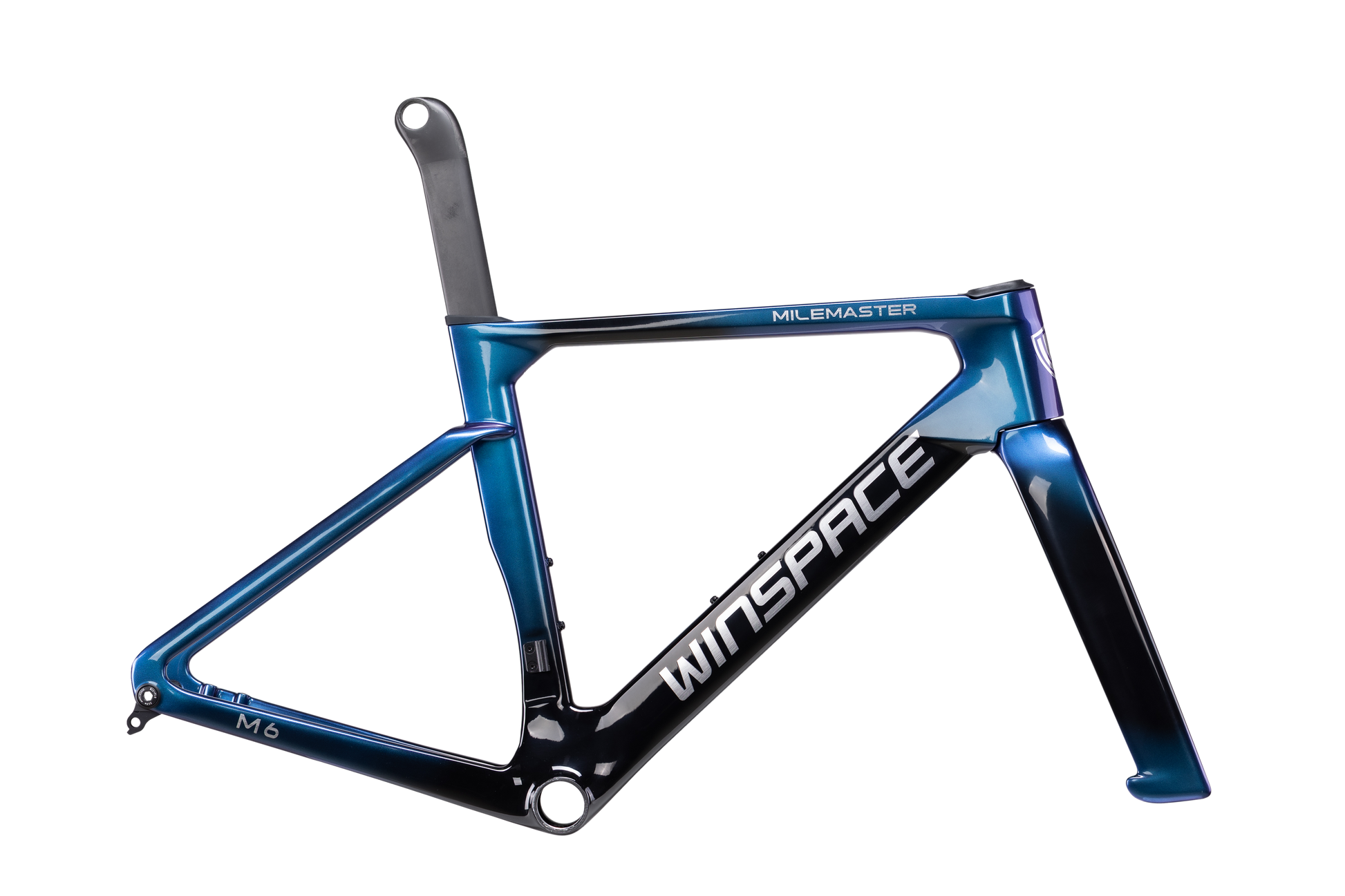

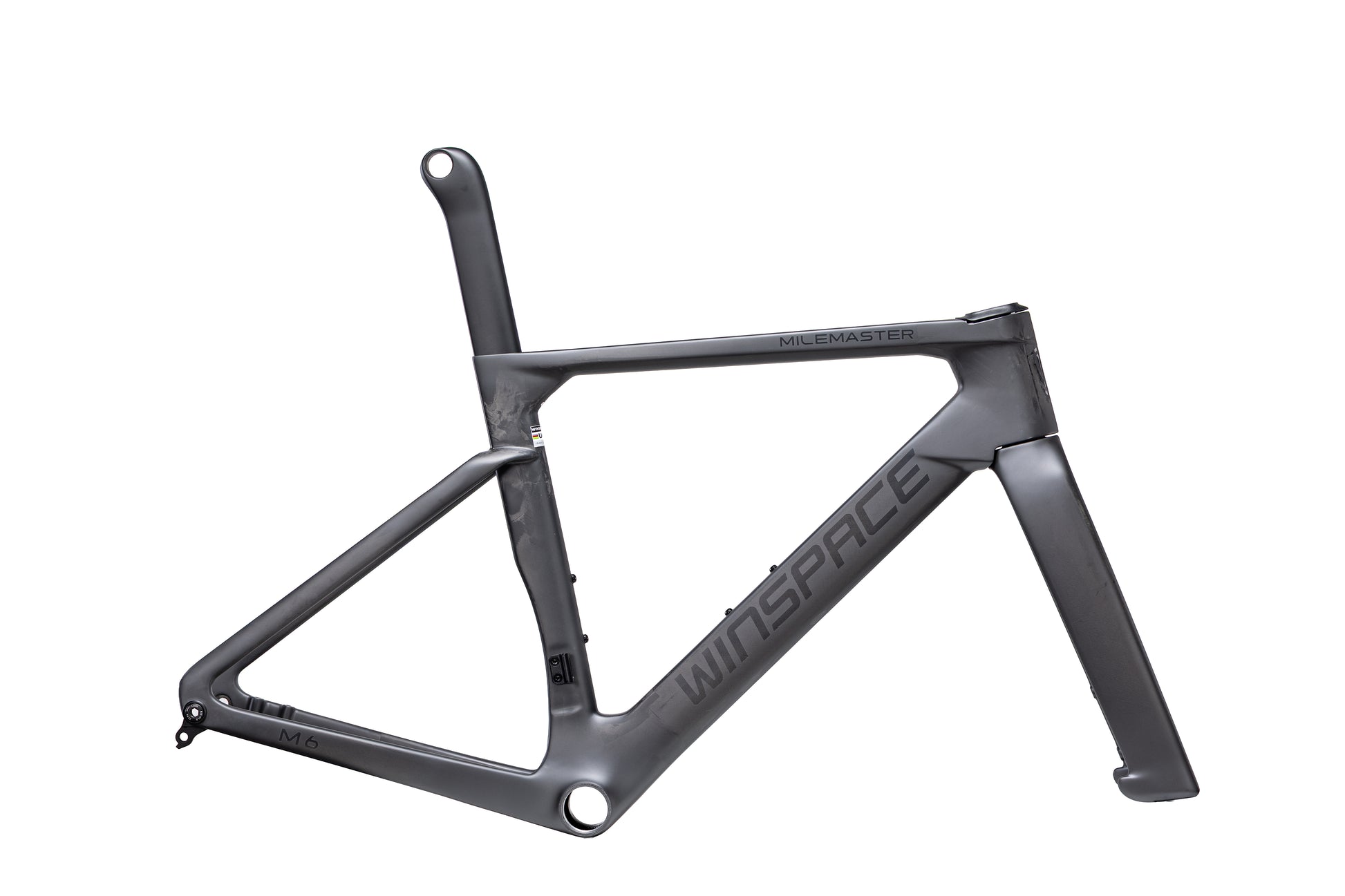

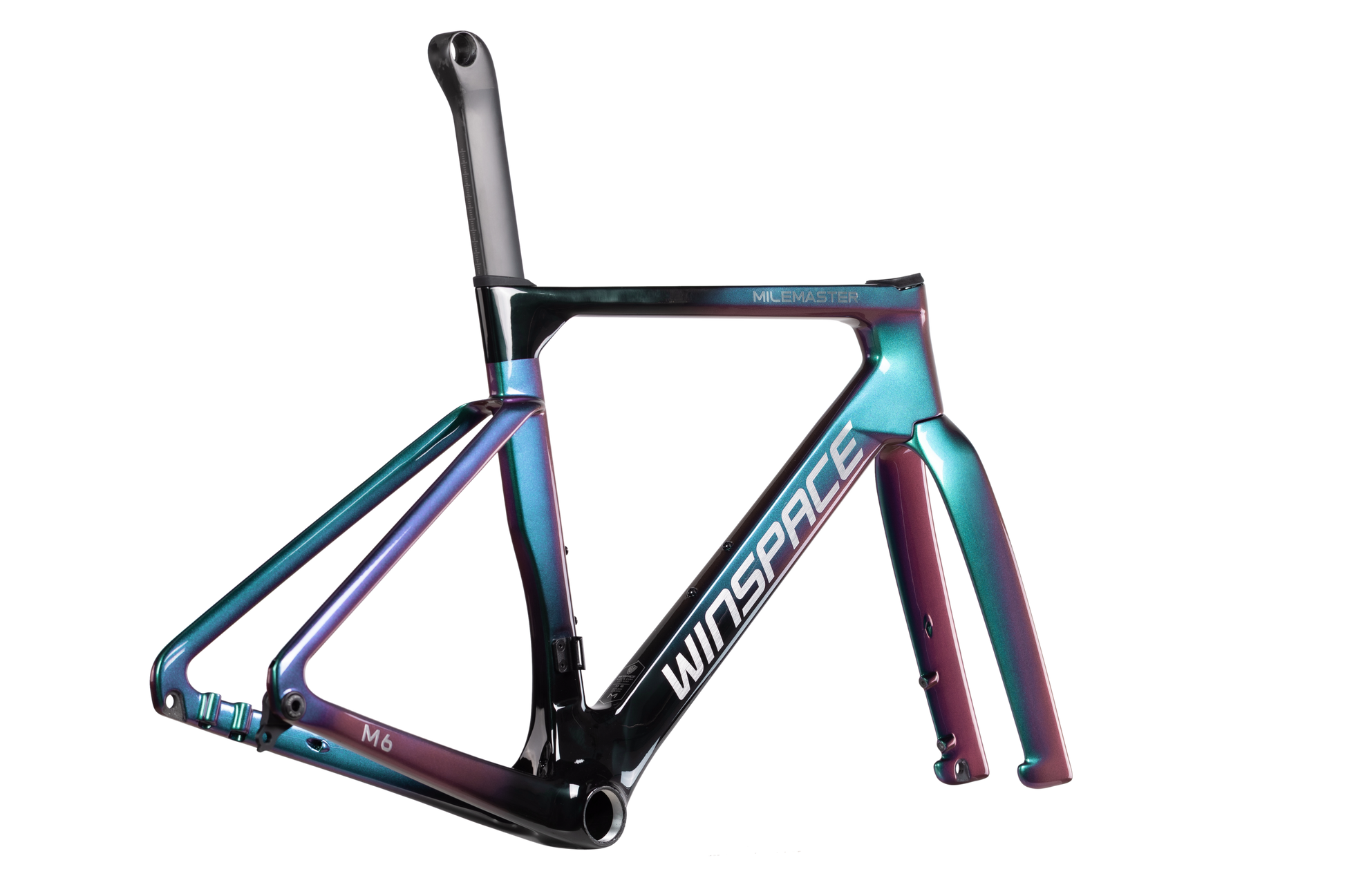

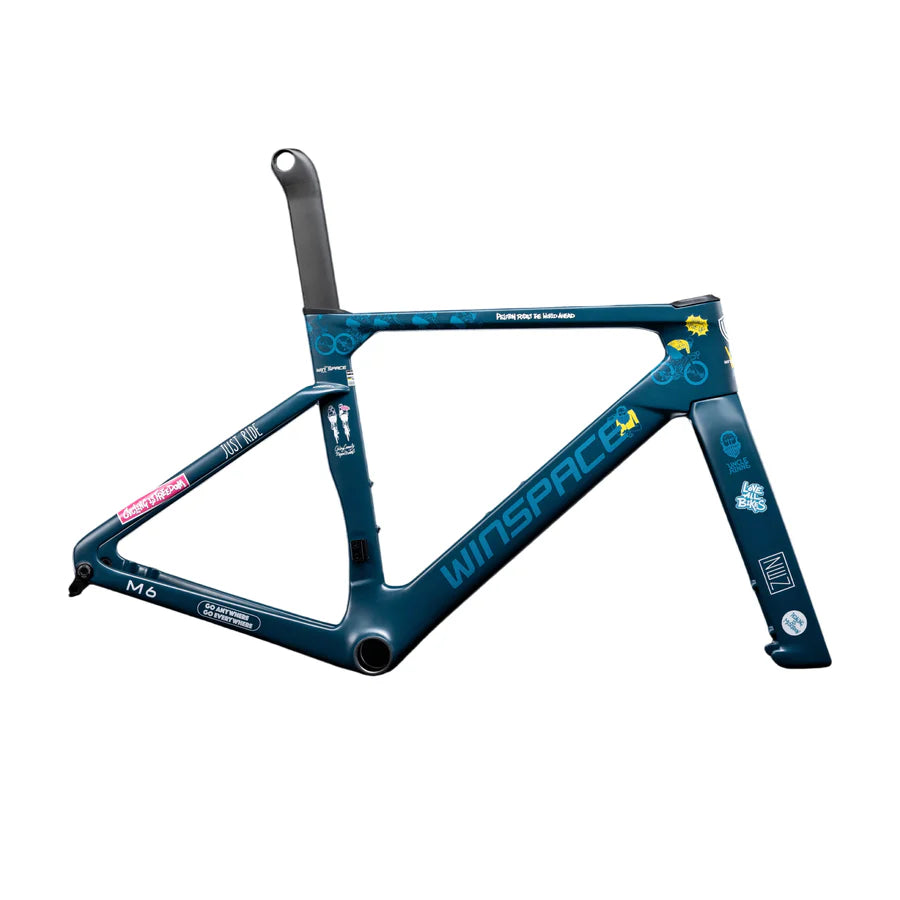

FRAMESET

M6

Frameset

Build yours

Explore

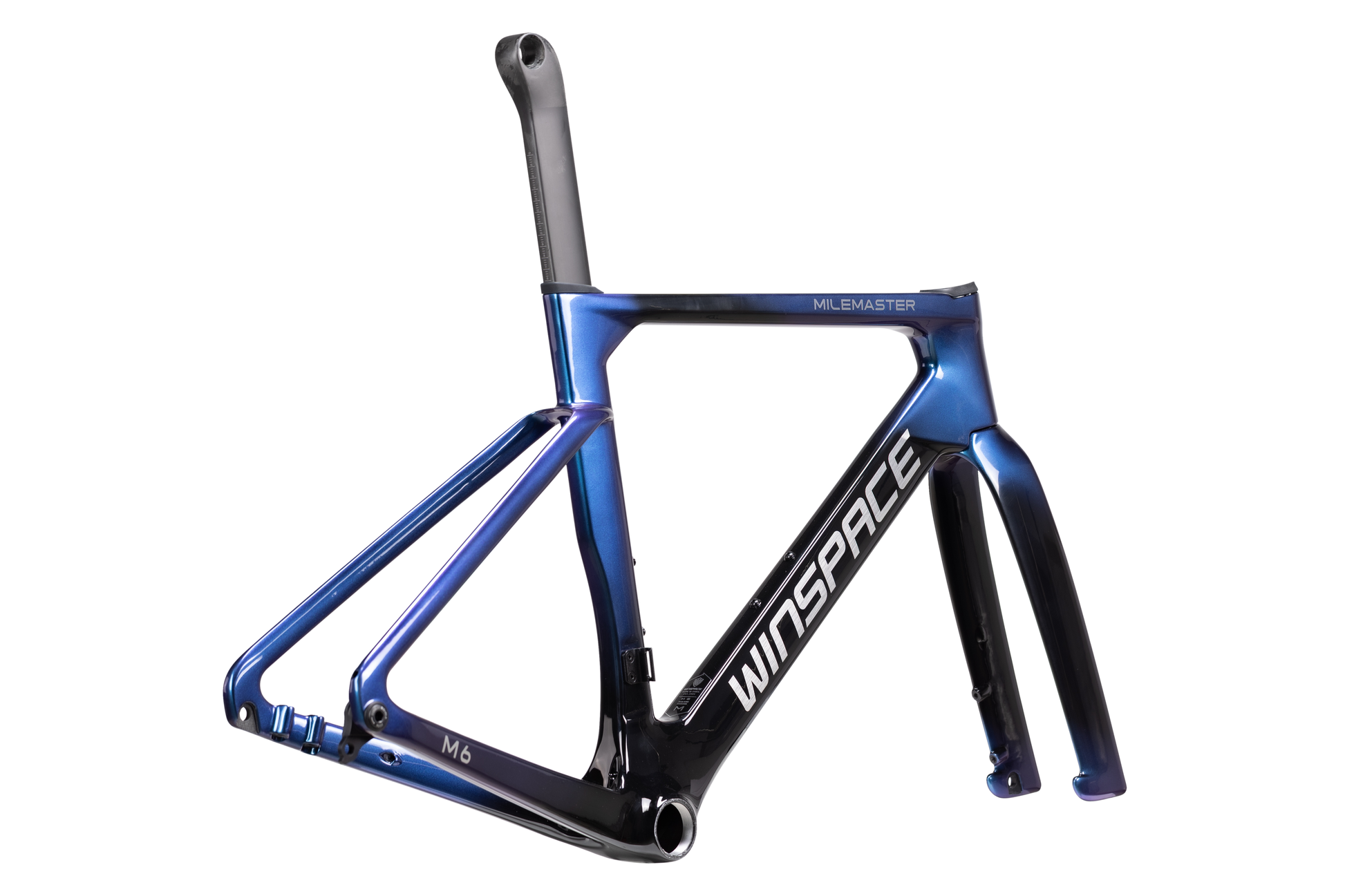

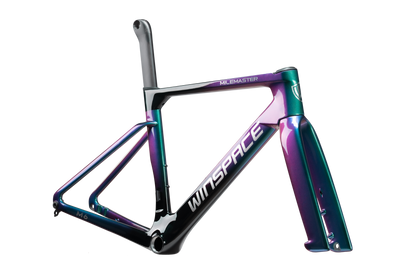

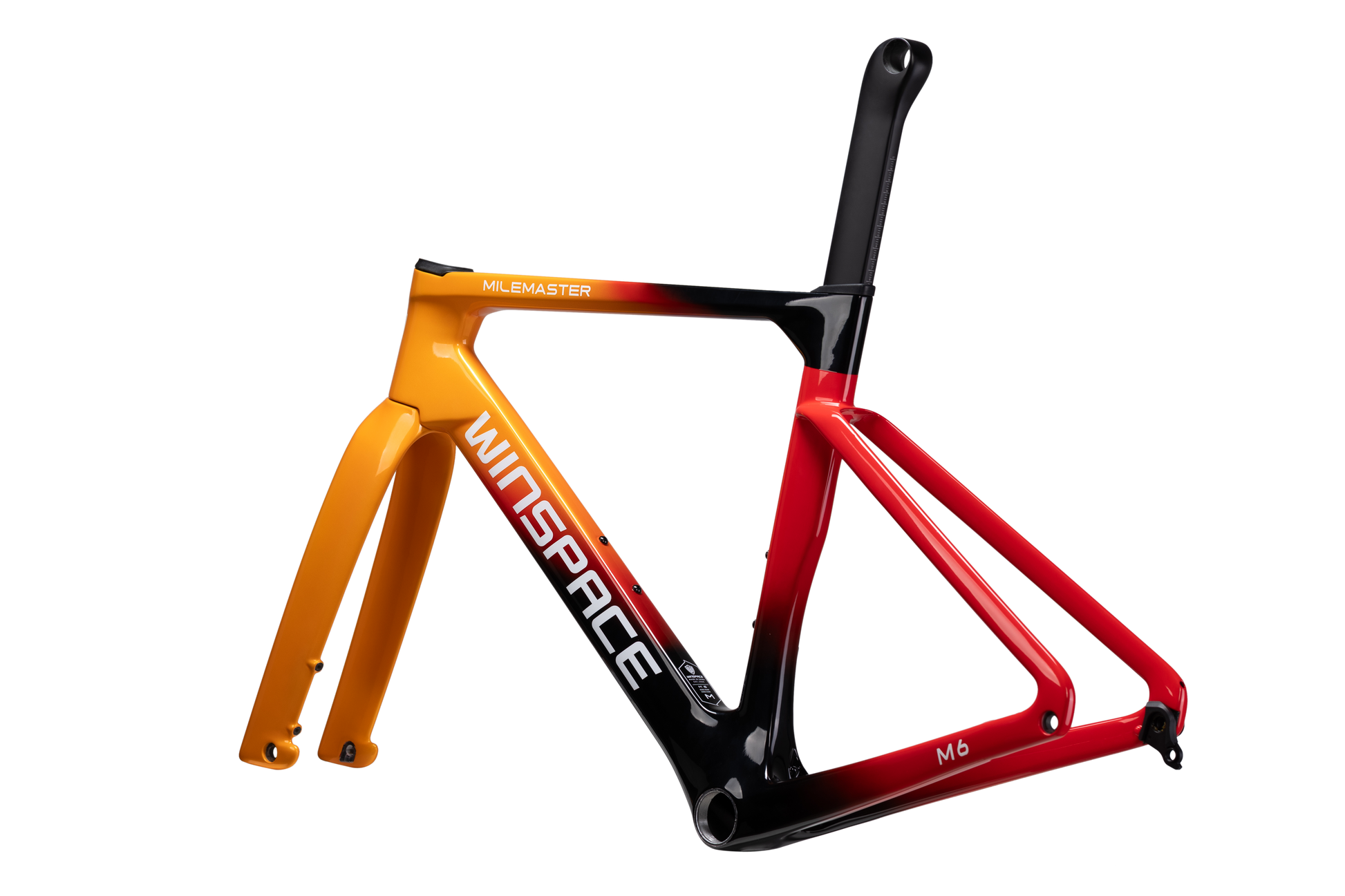

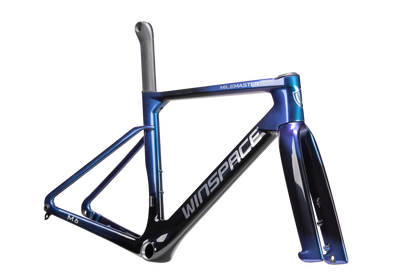

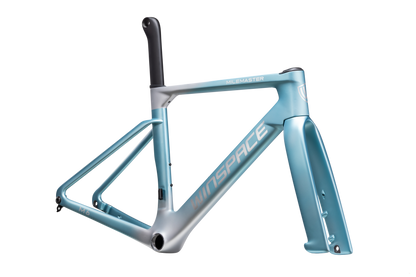

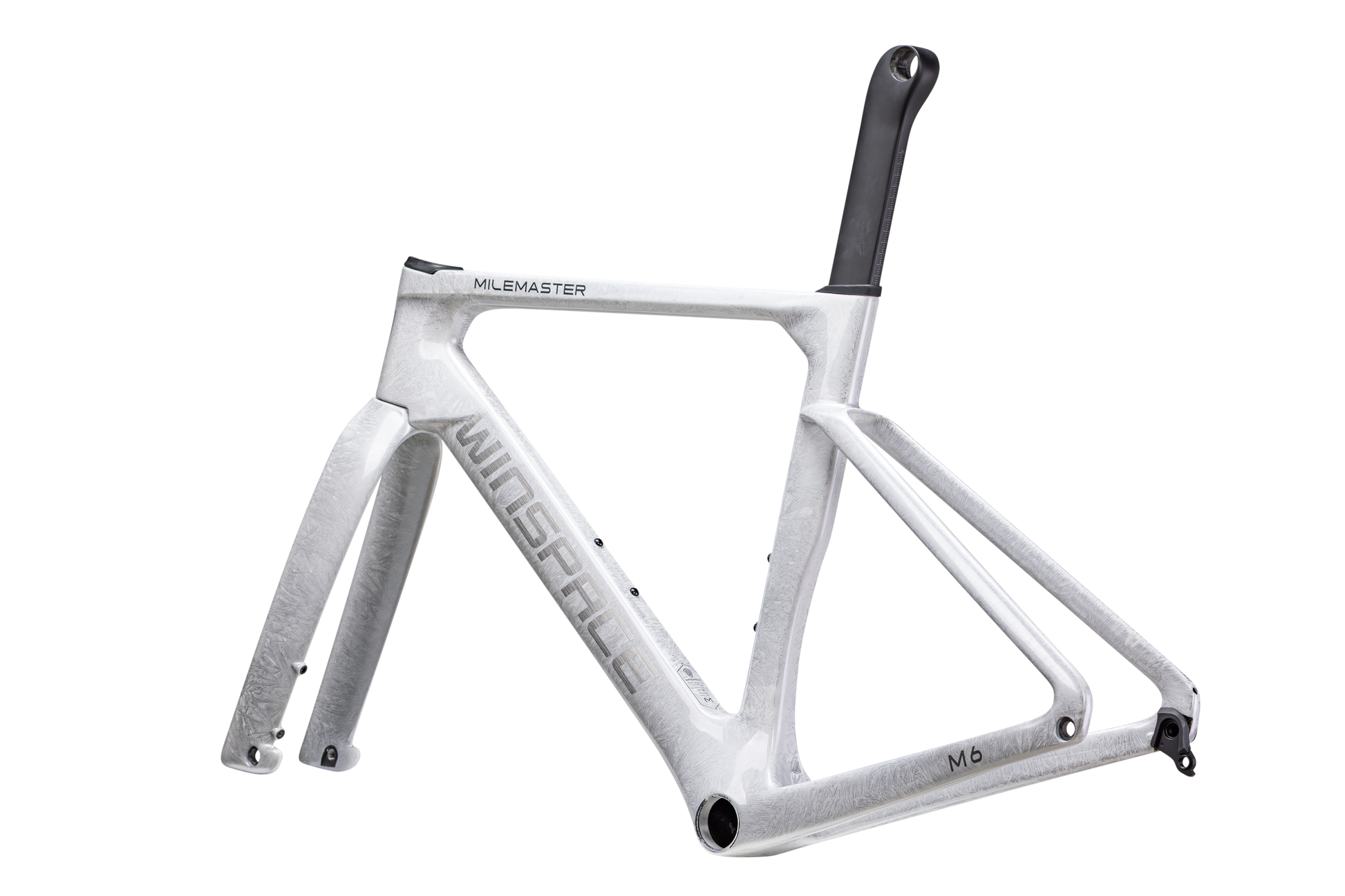

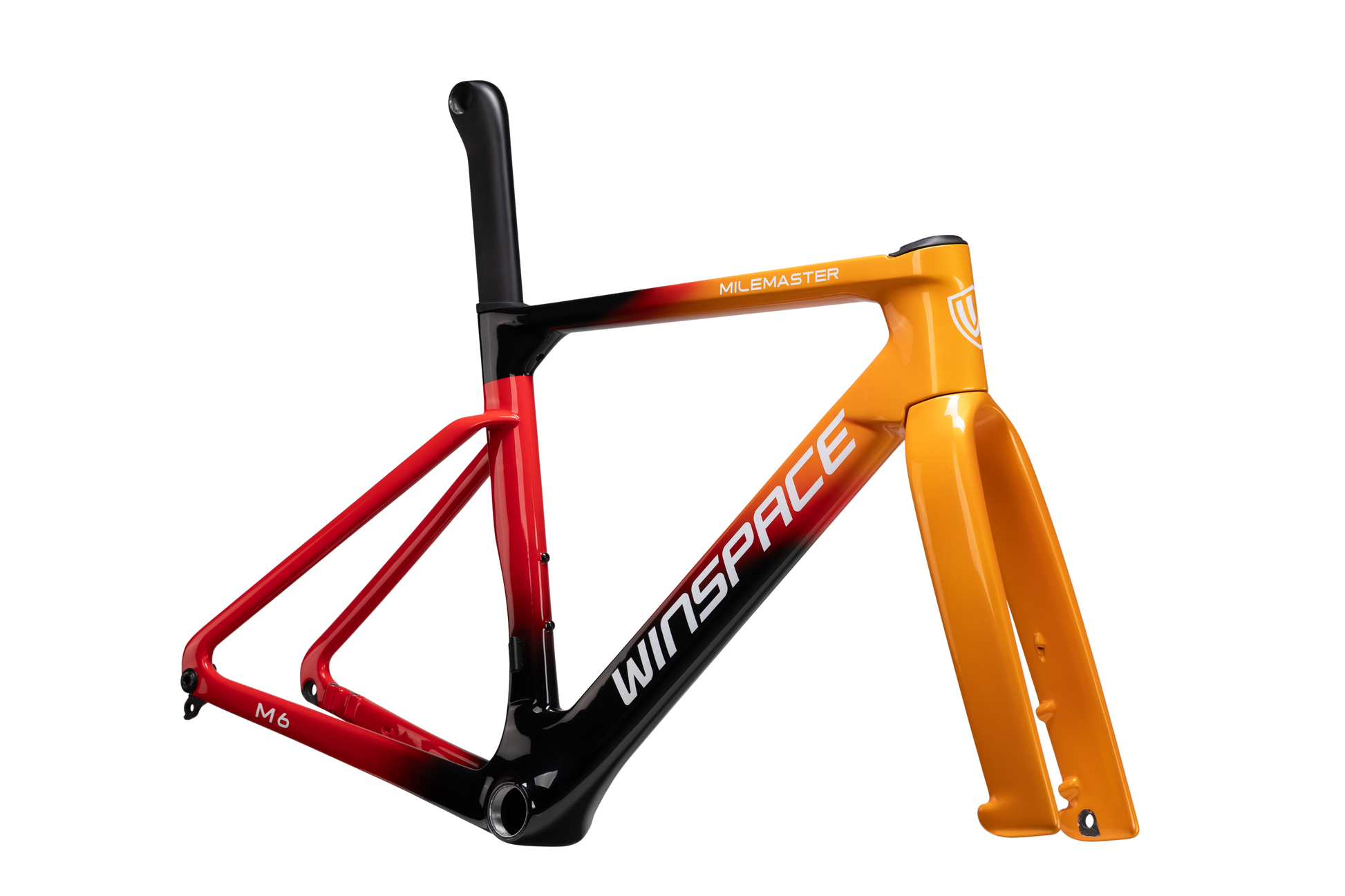

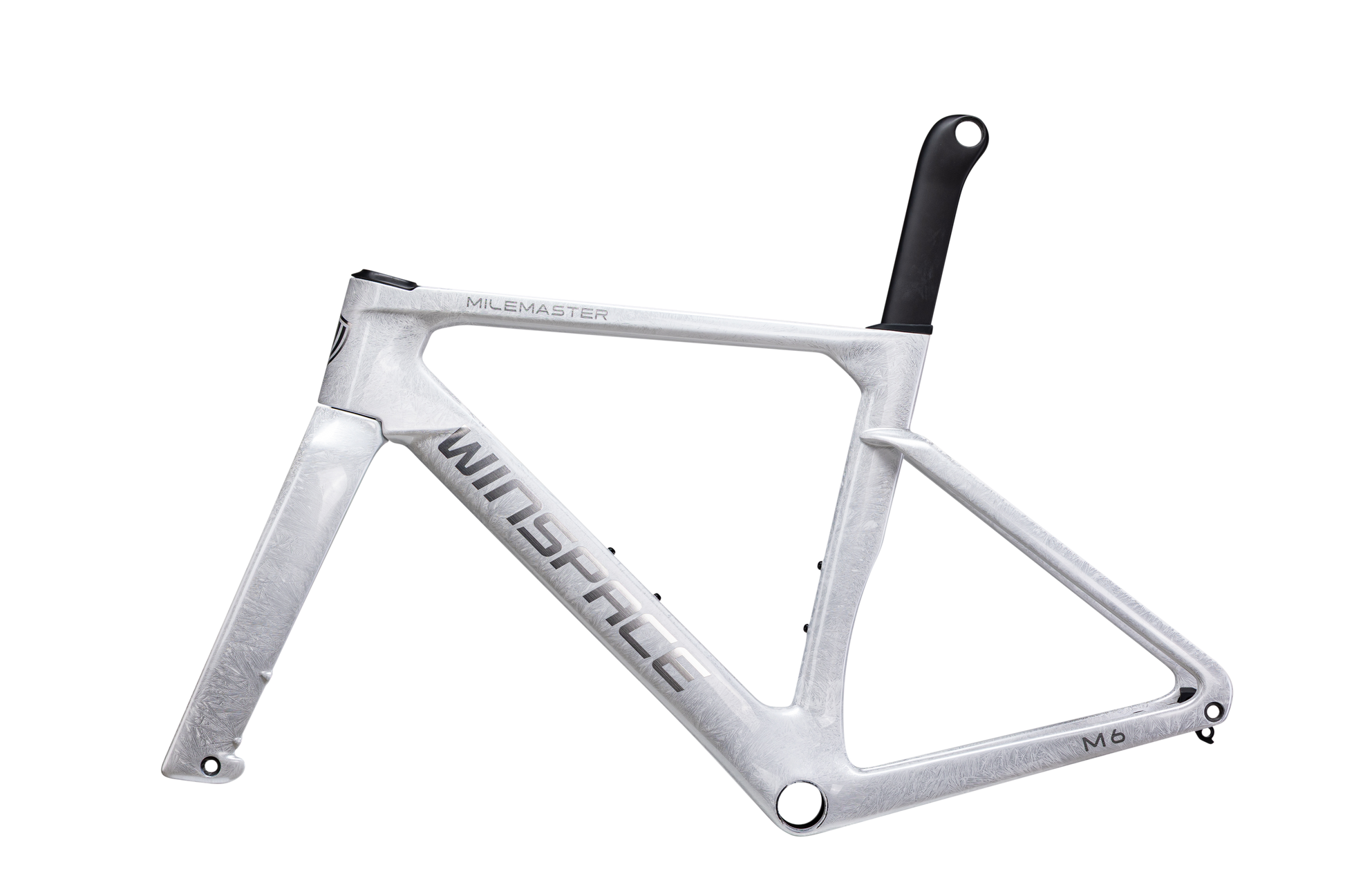

What's included

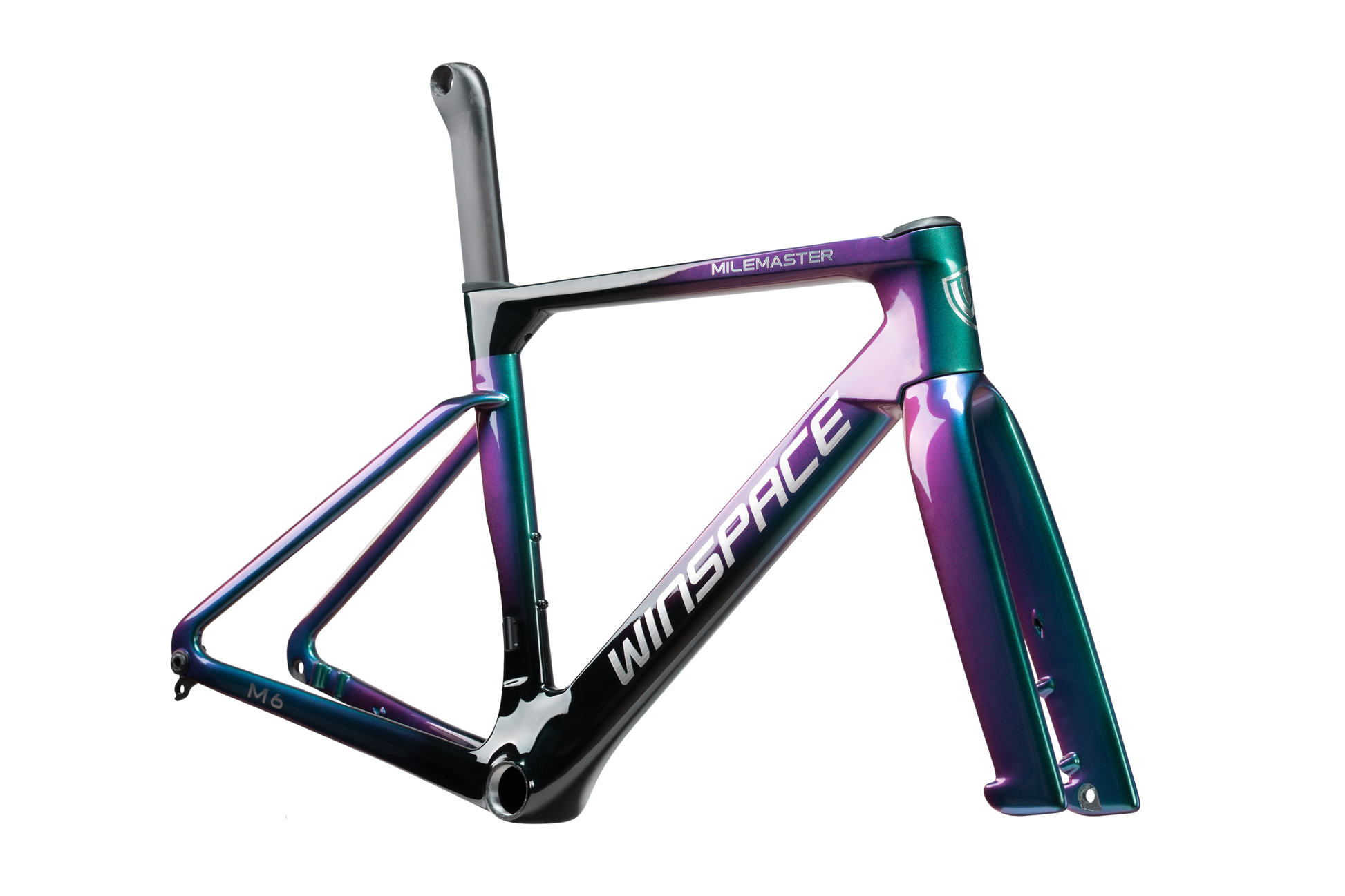

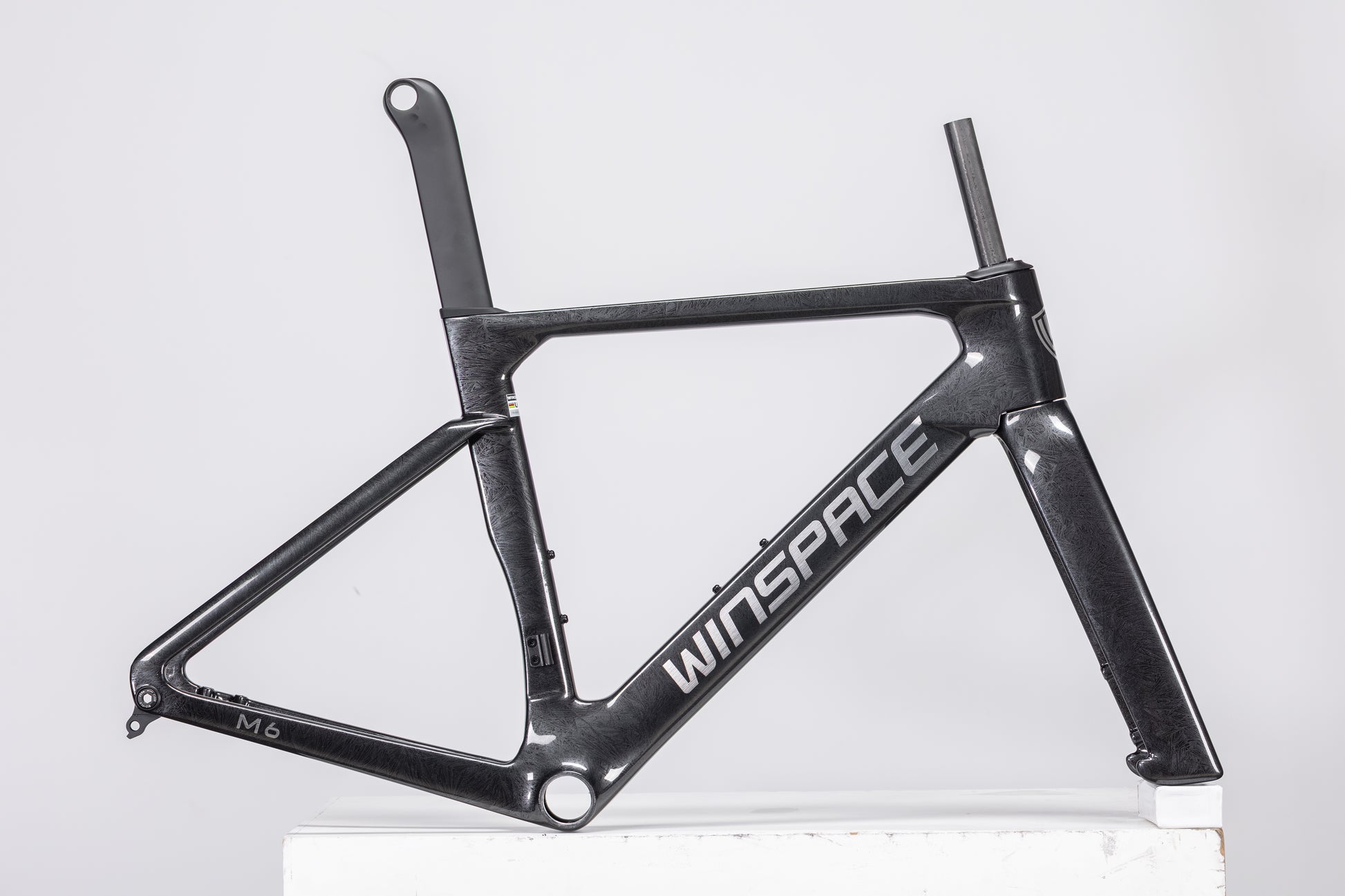

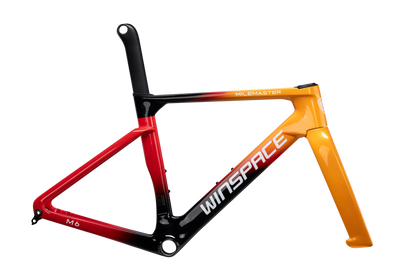

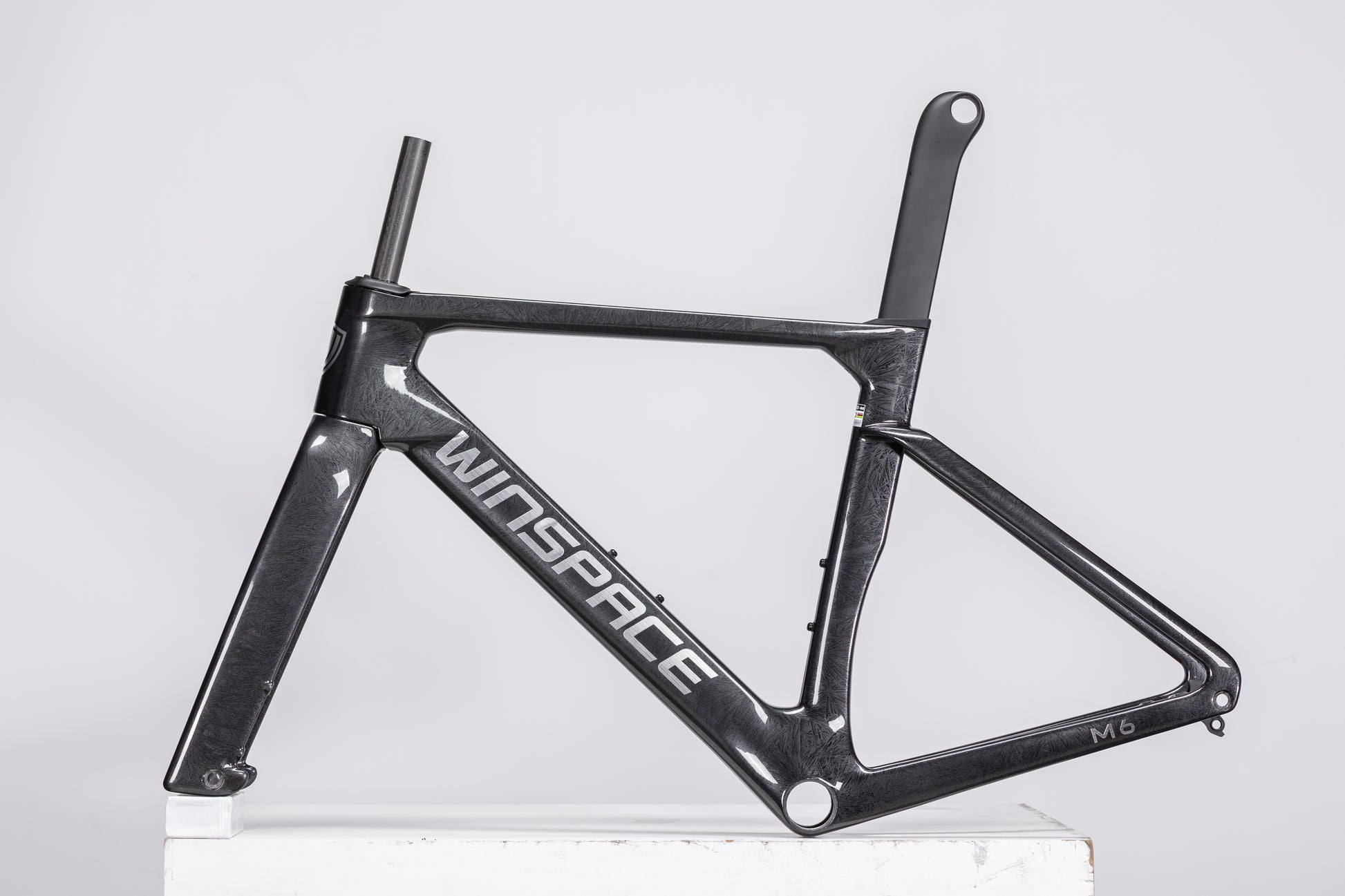

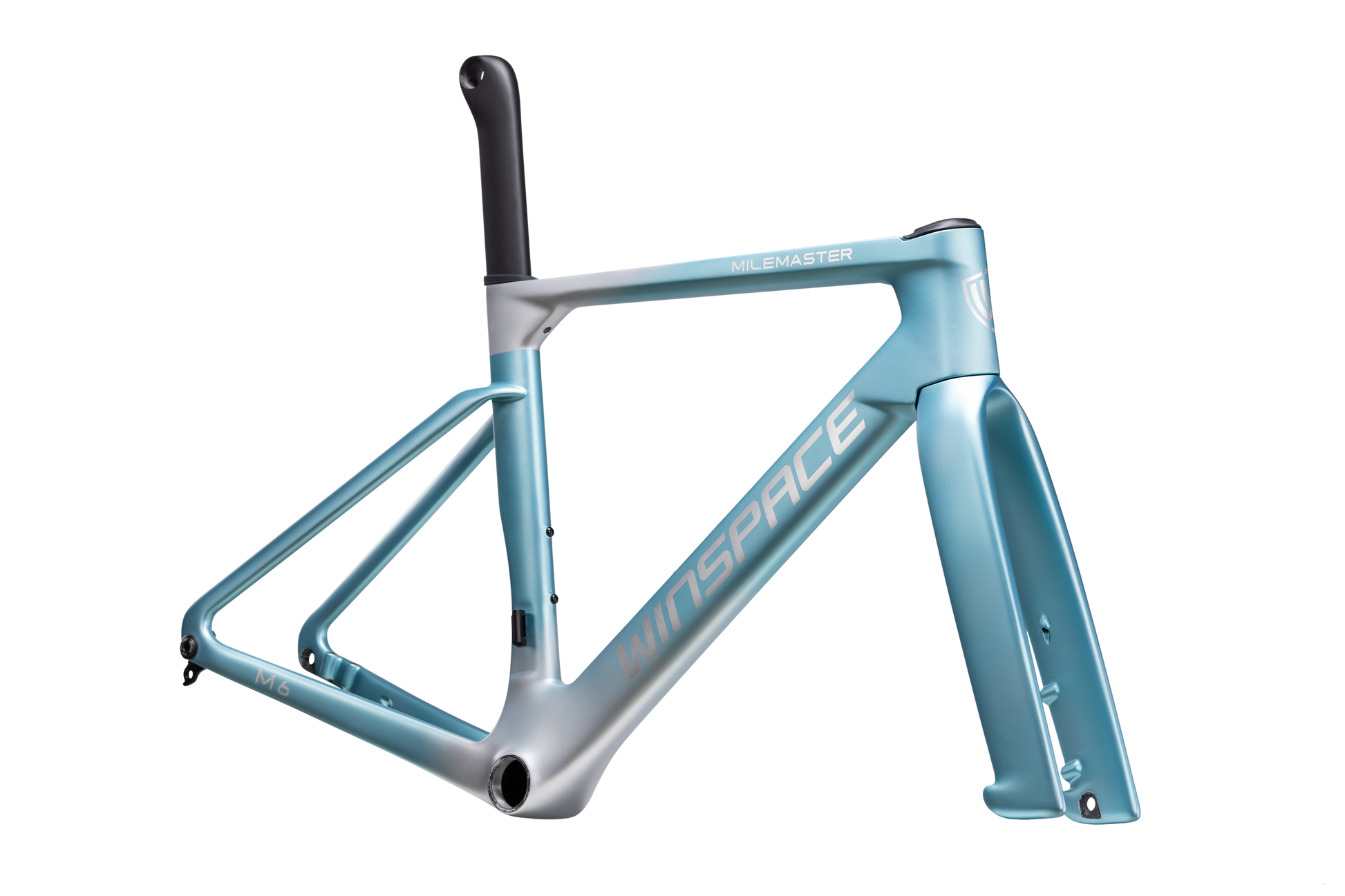

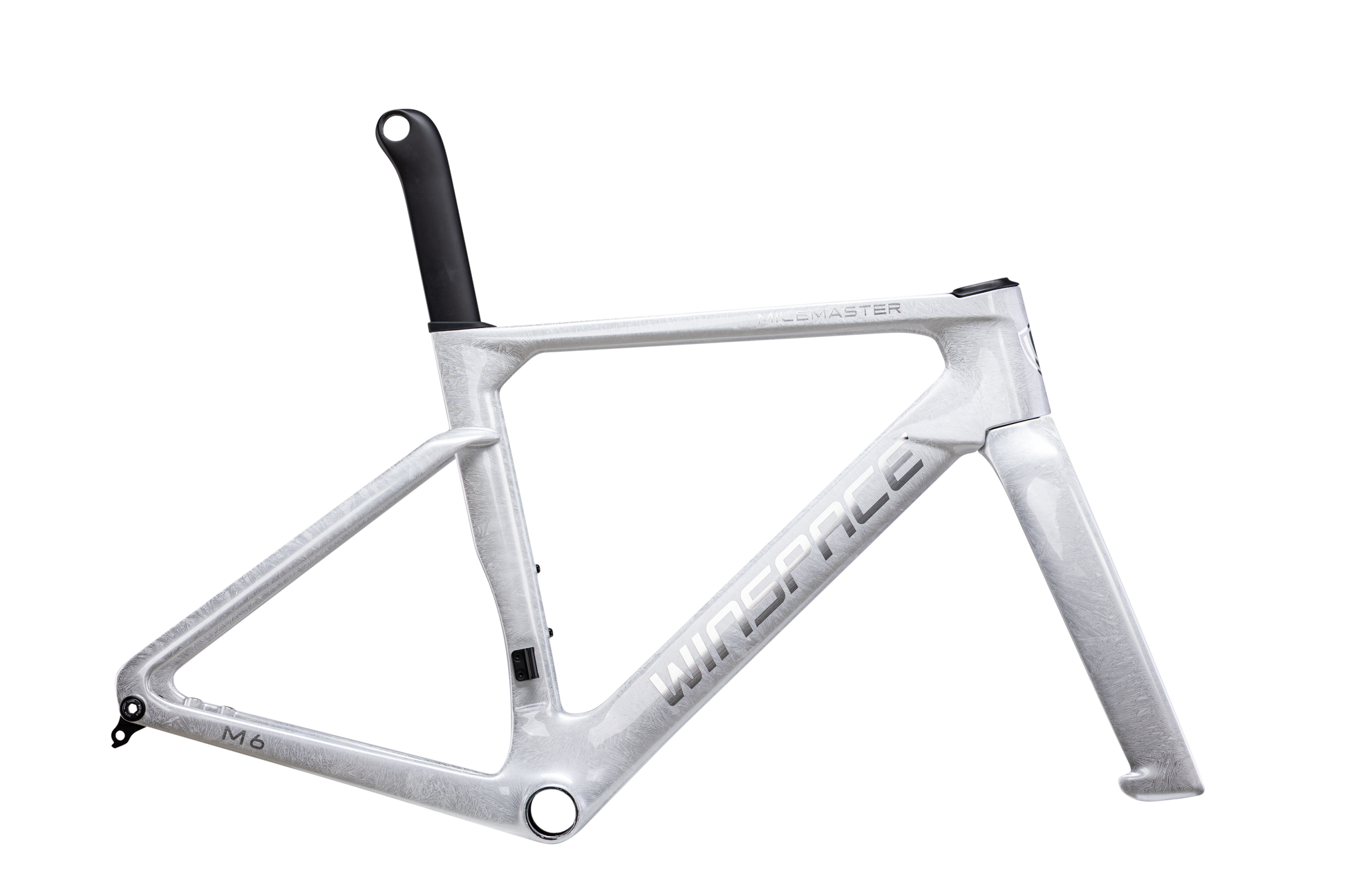

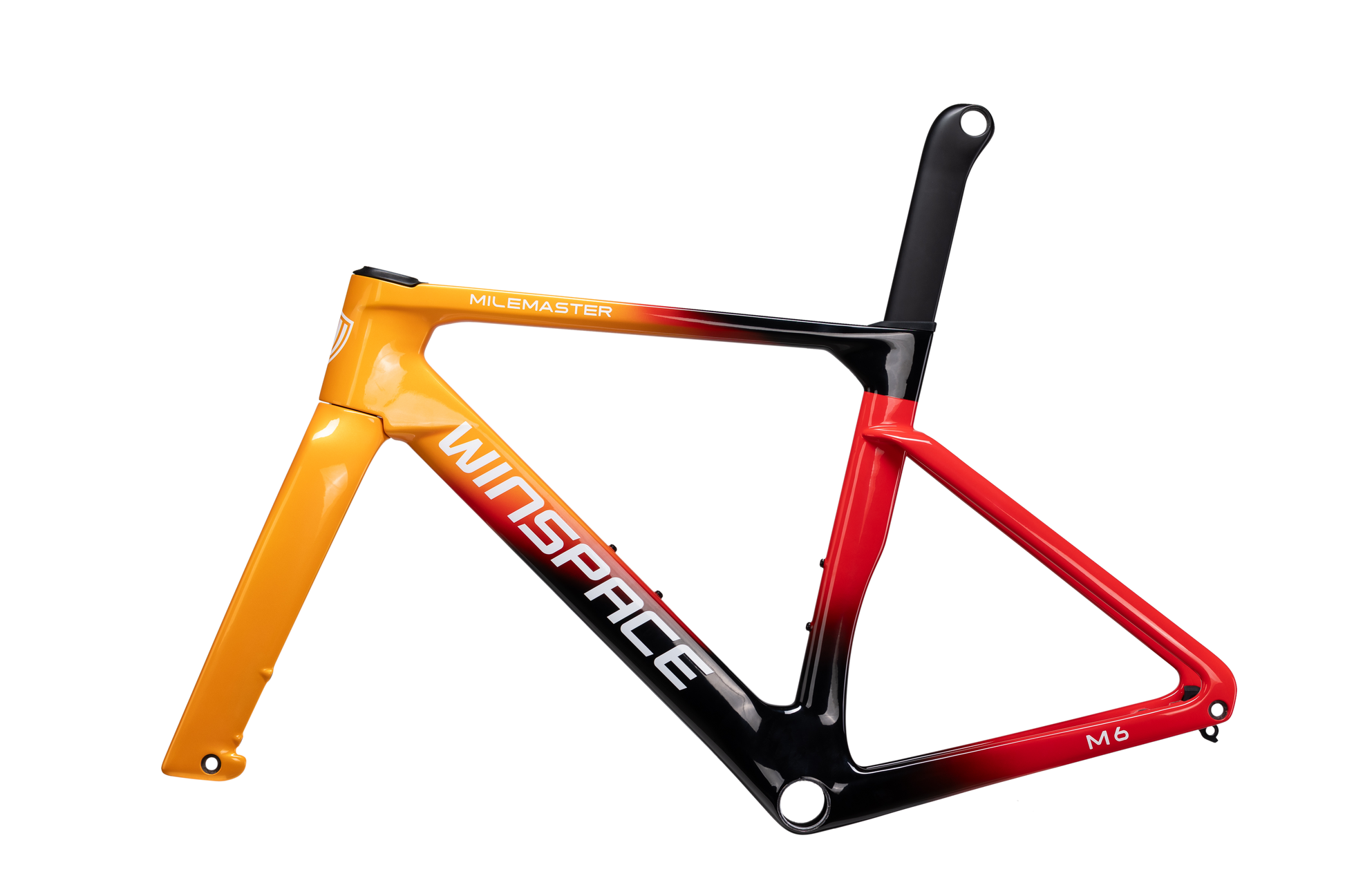

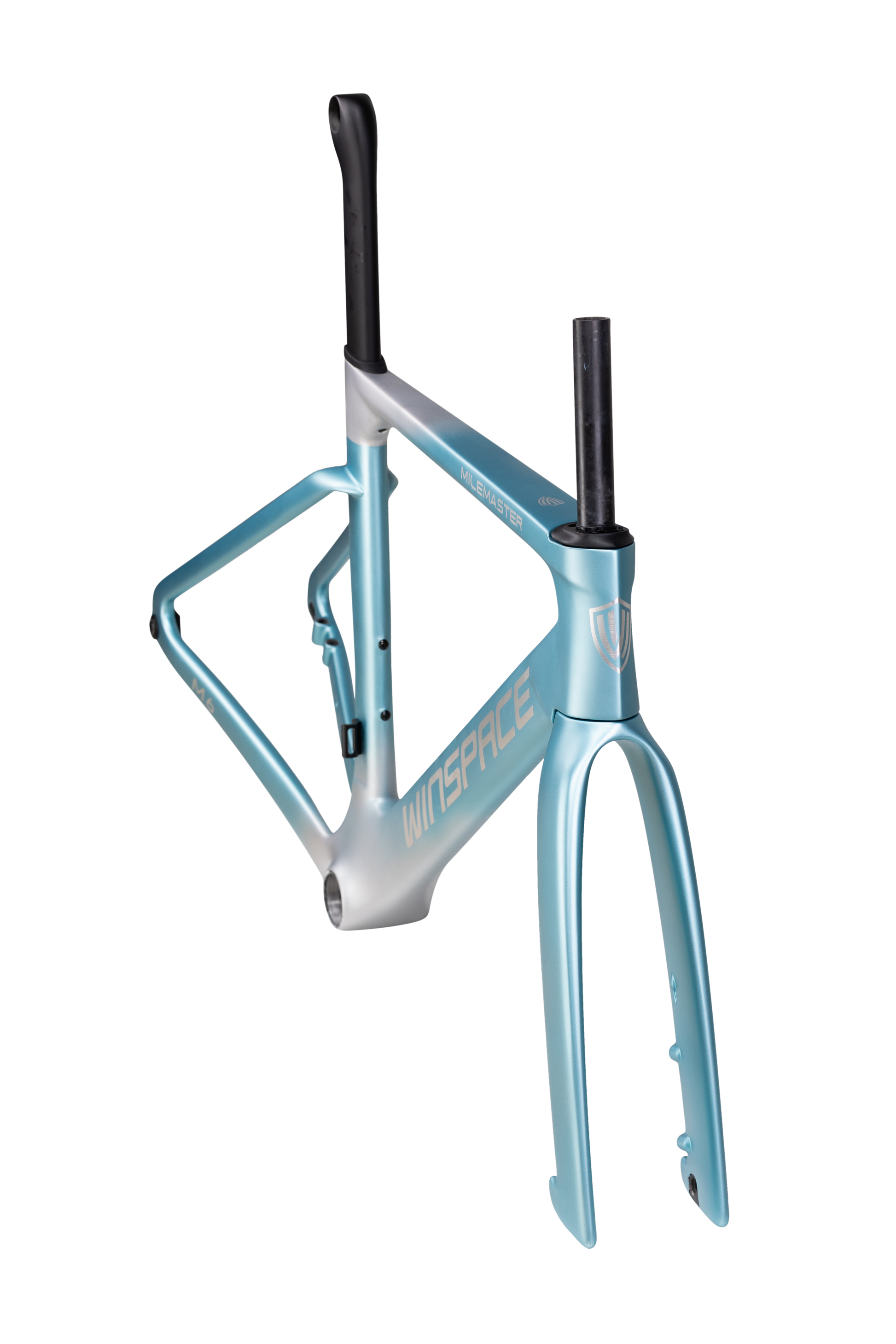

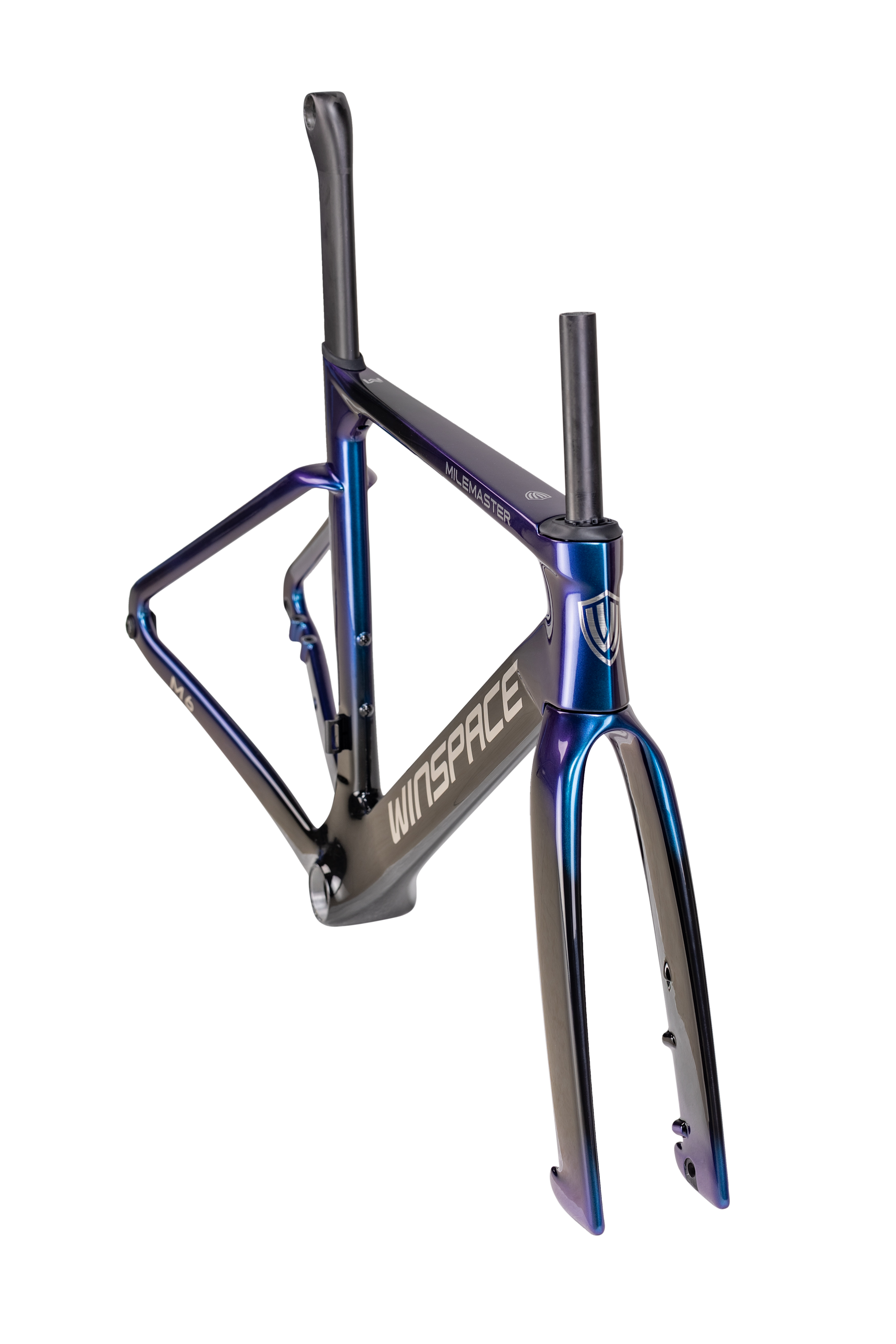

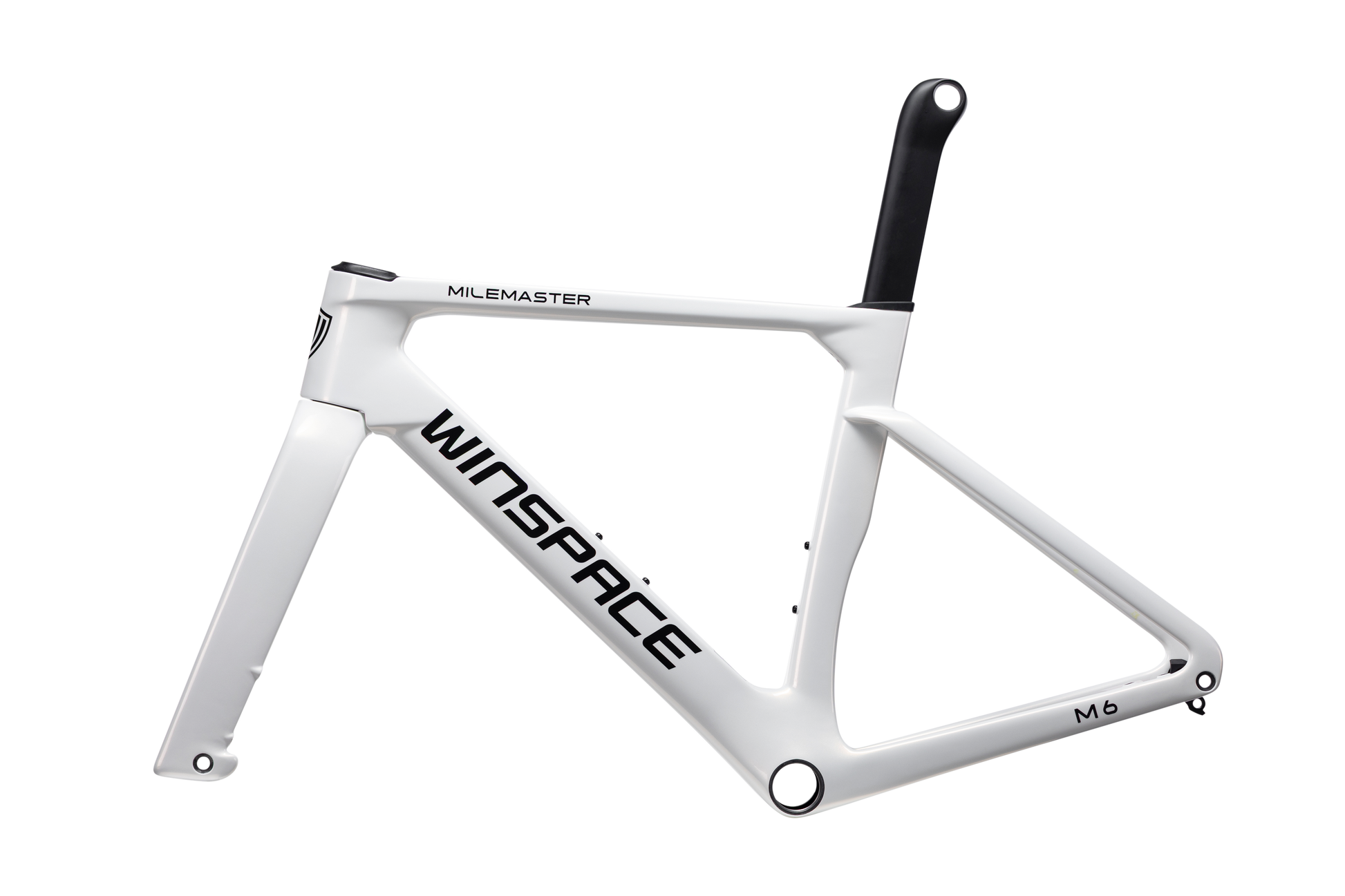

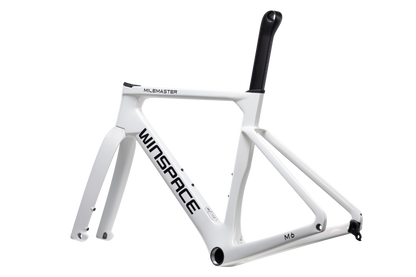

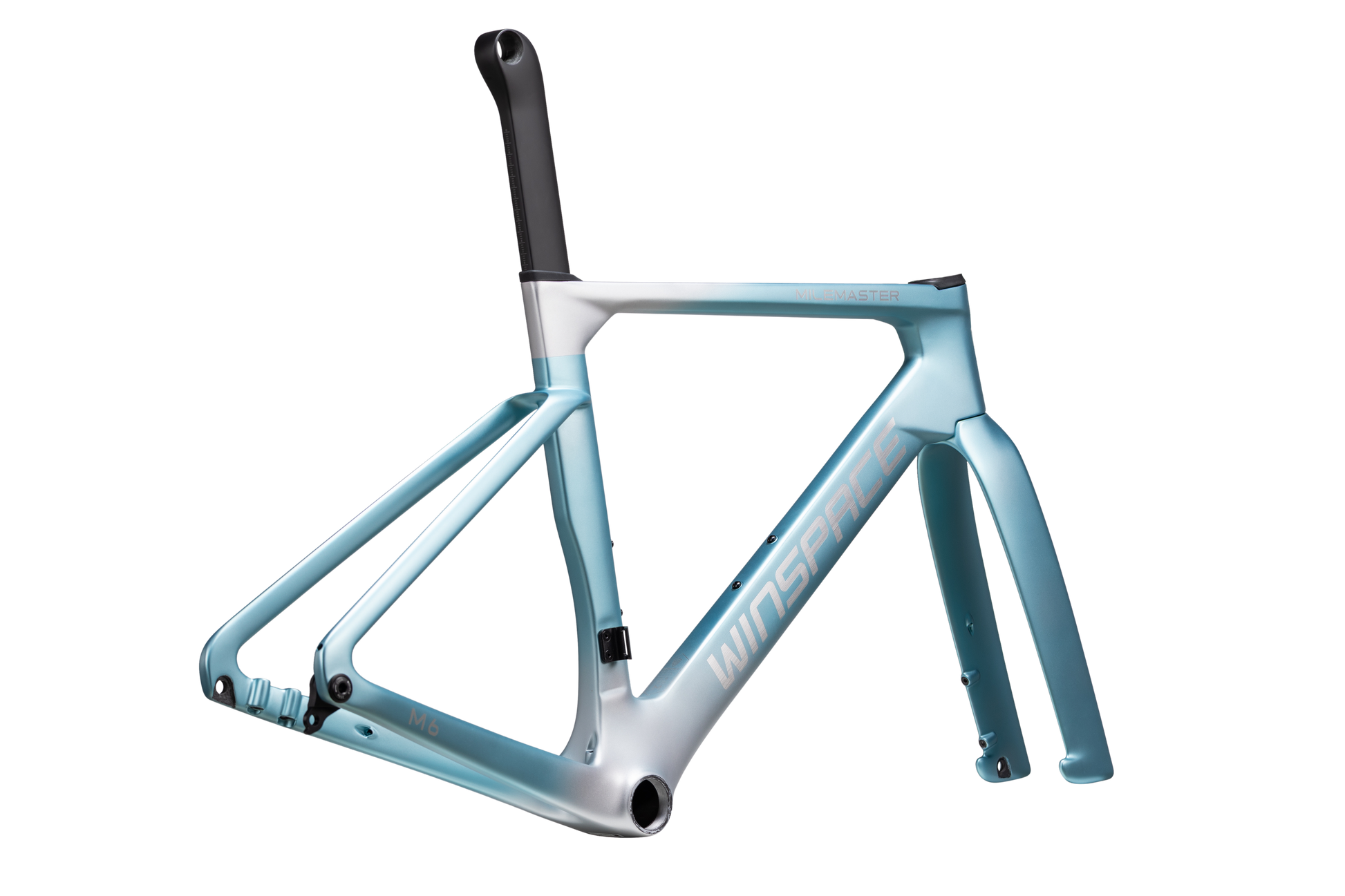

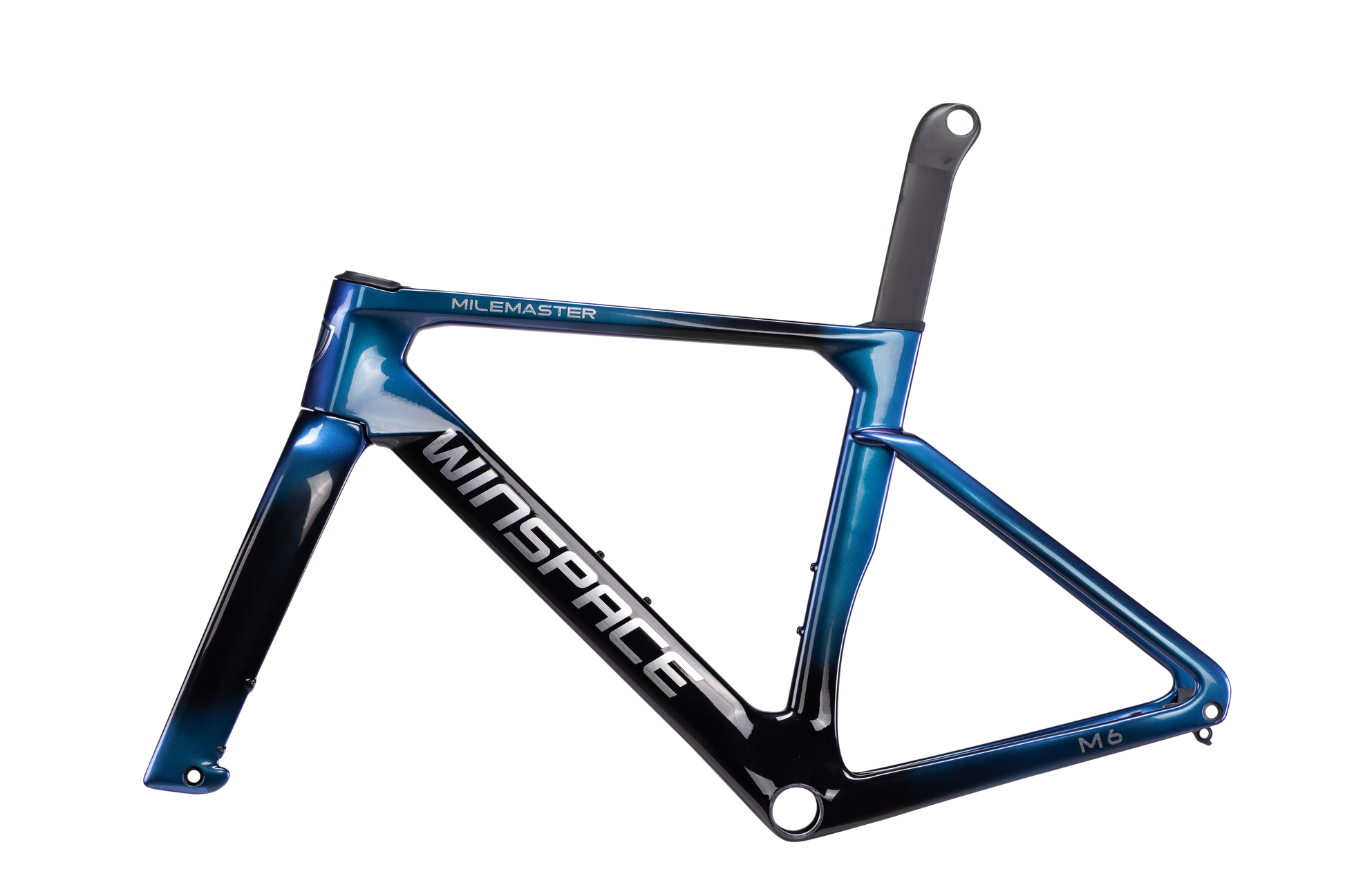

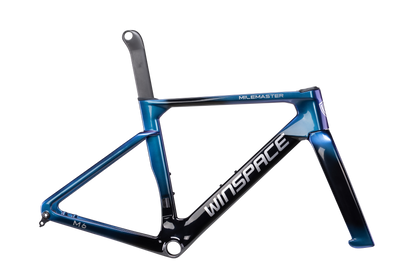

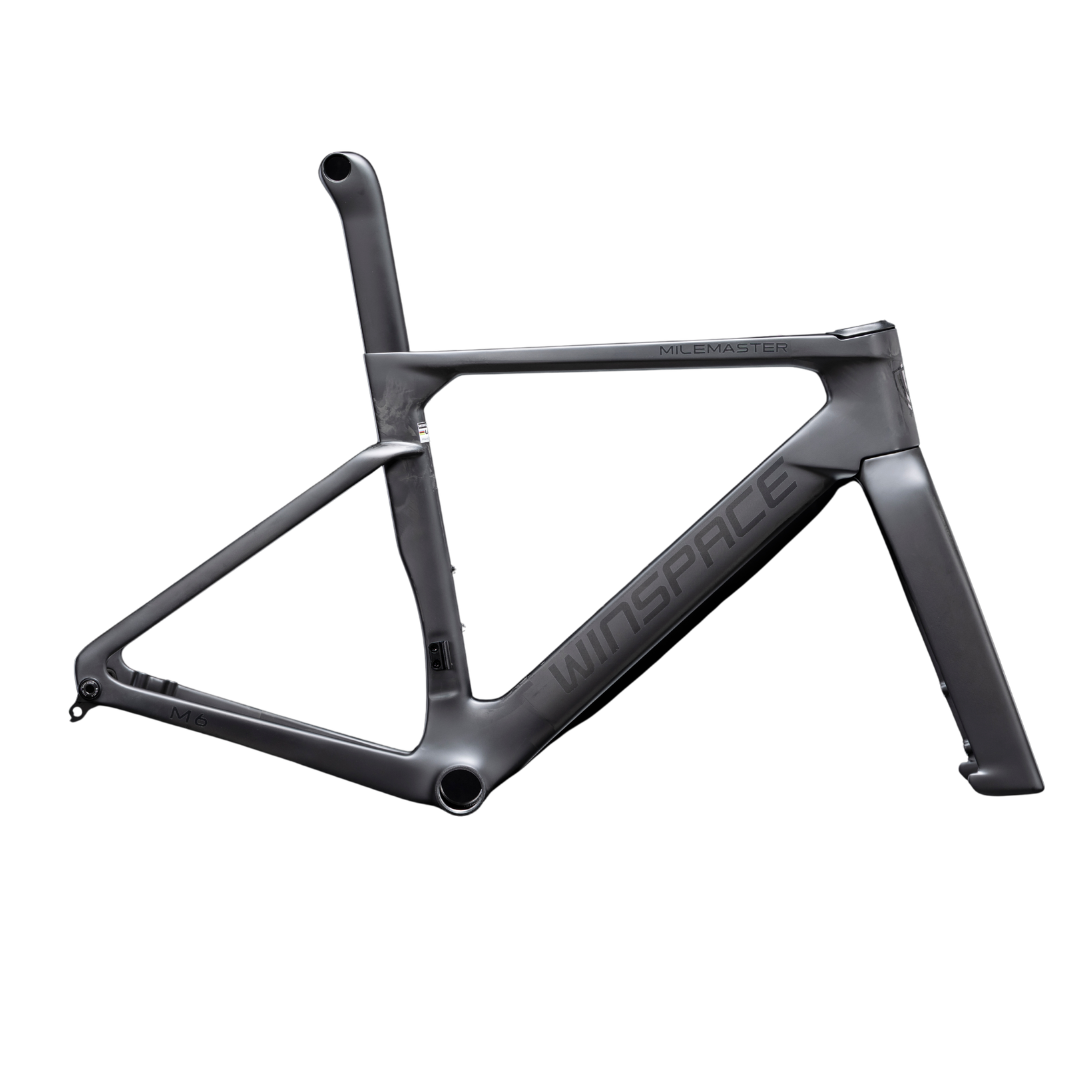

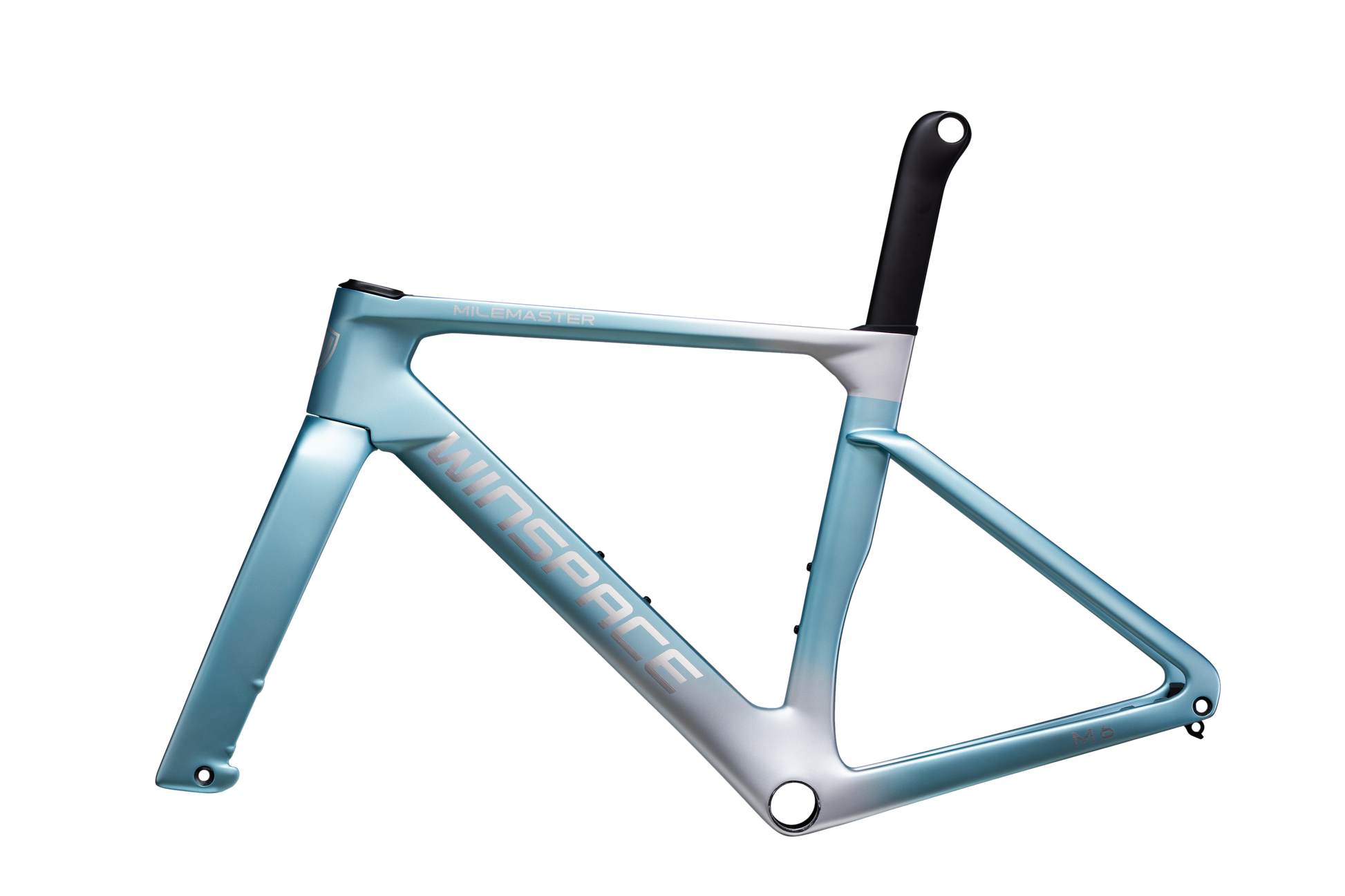

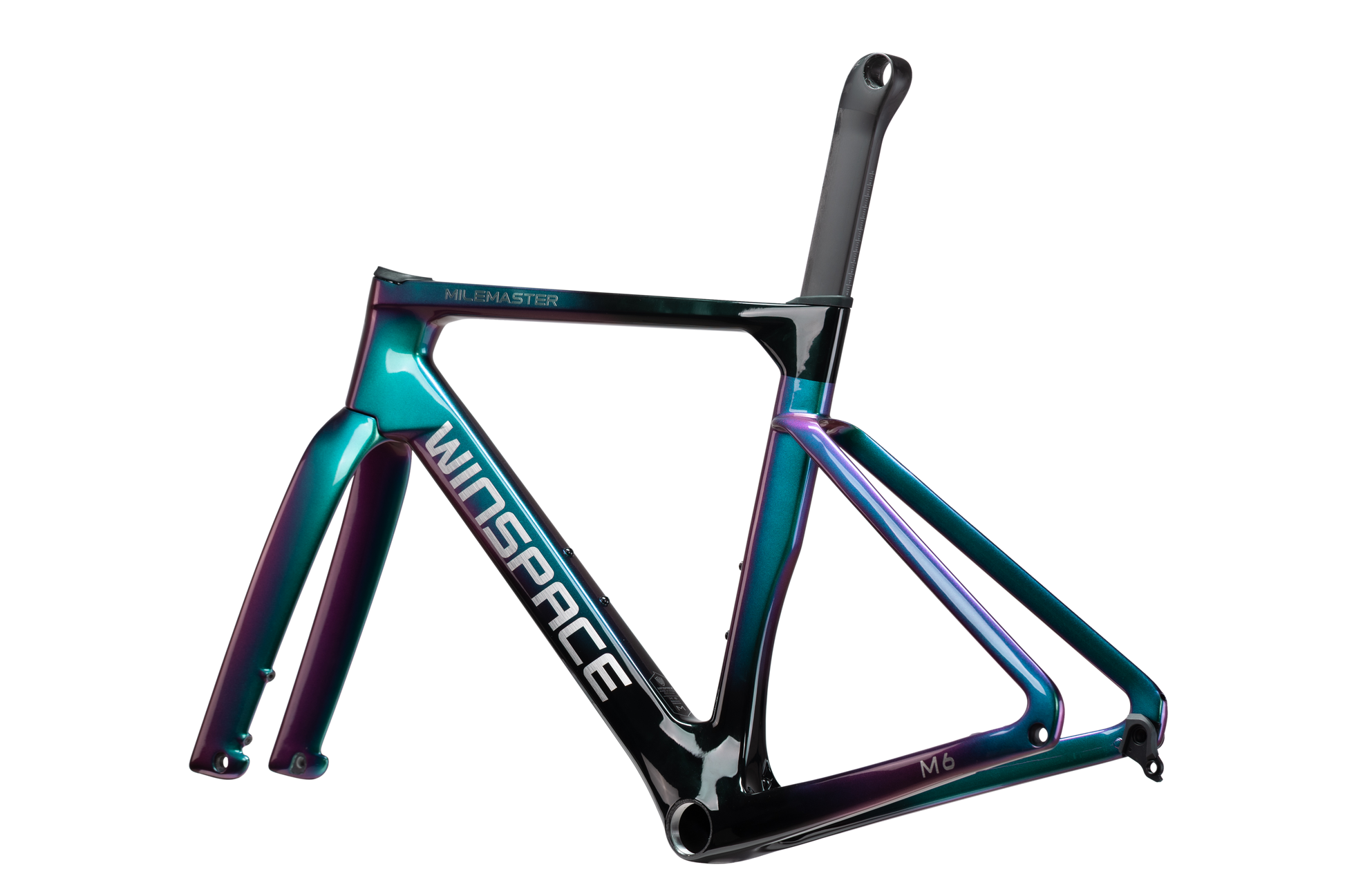

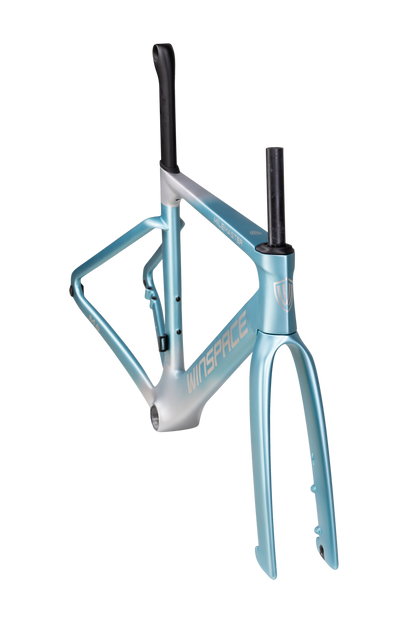

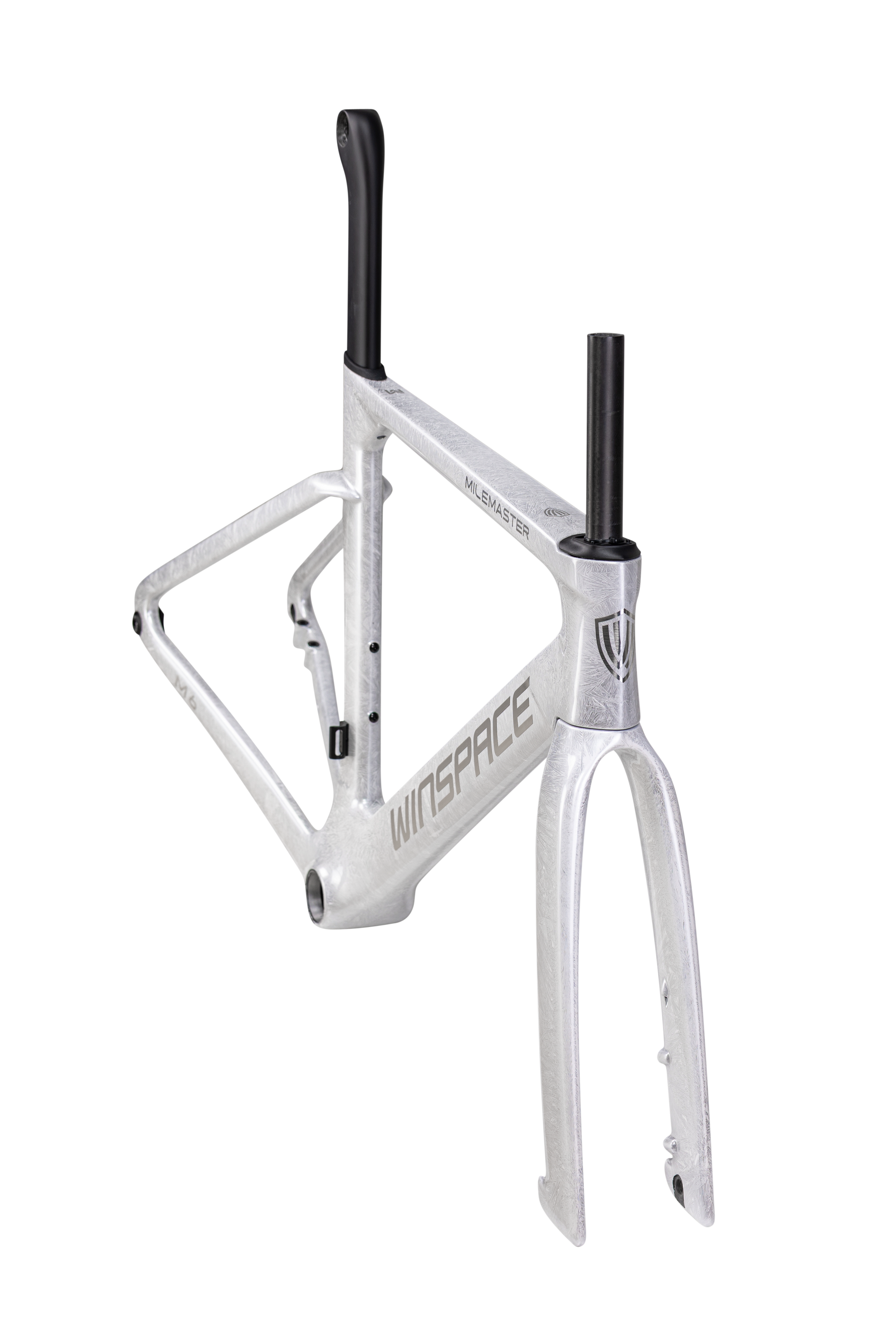

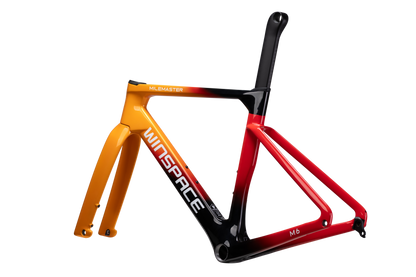

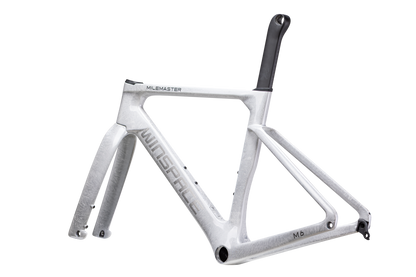

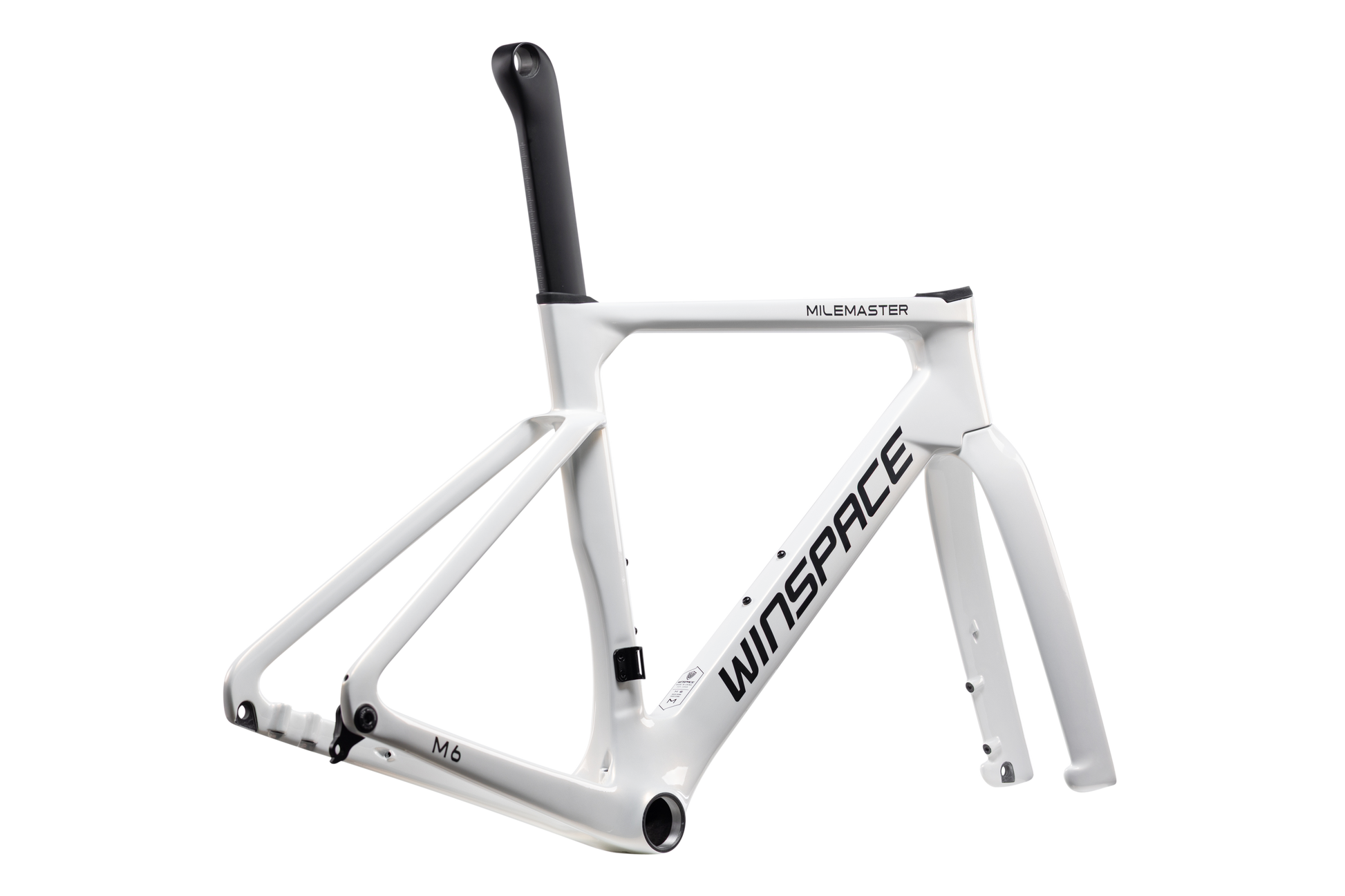

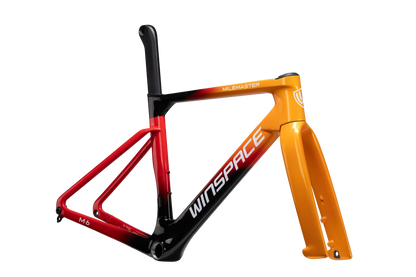

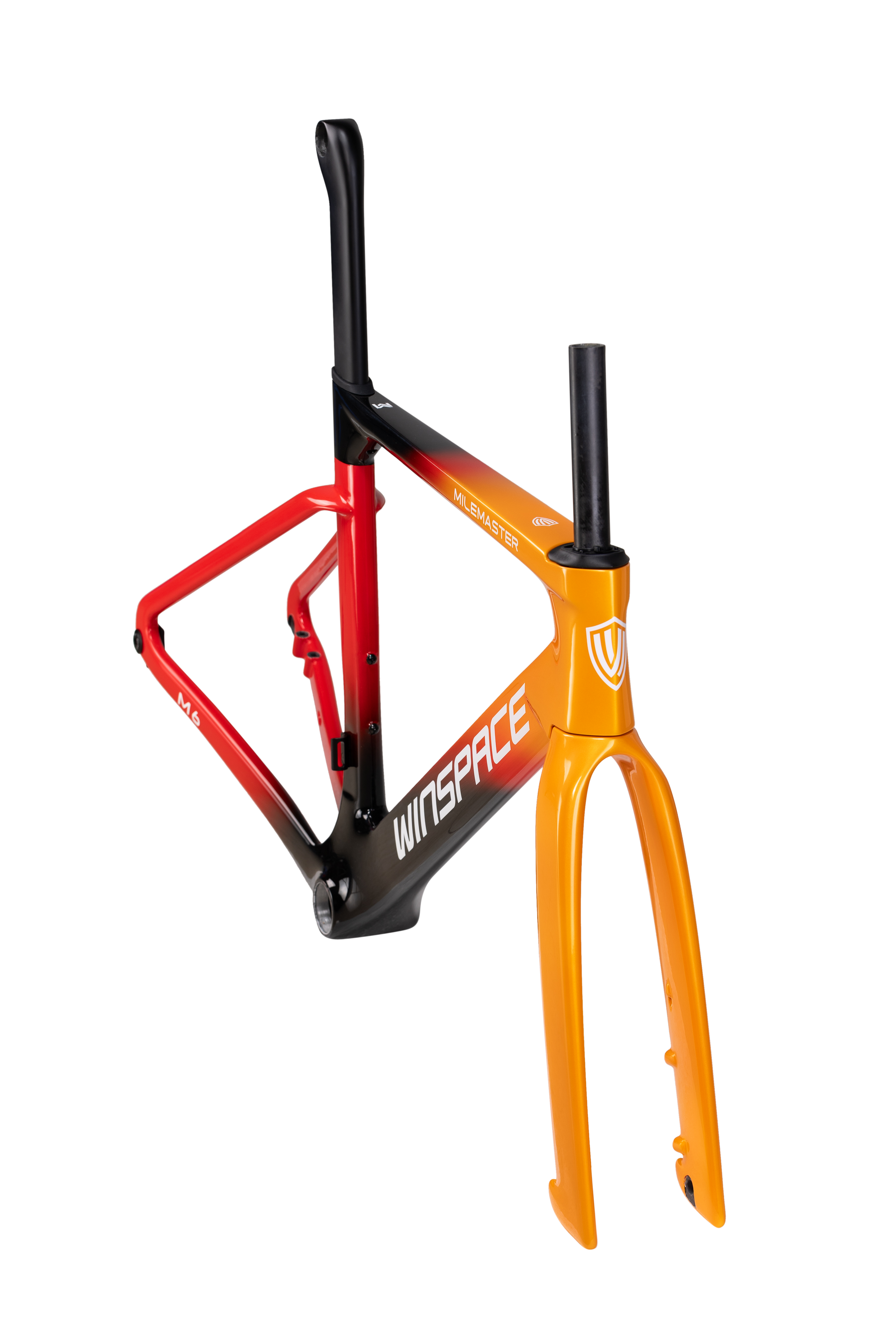

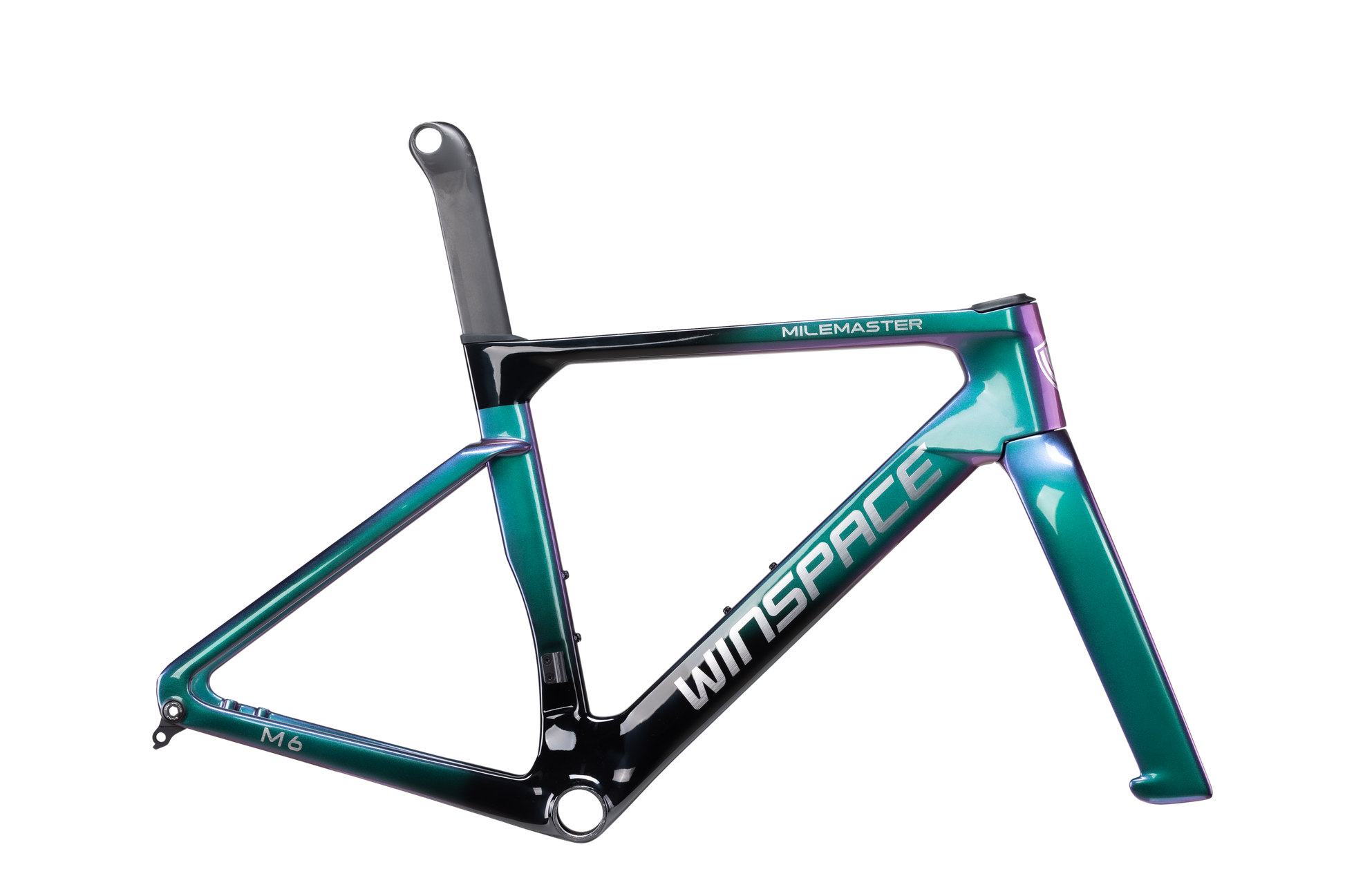

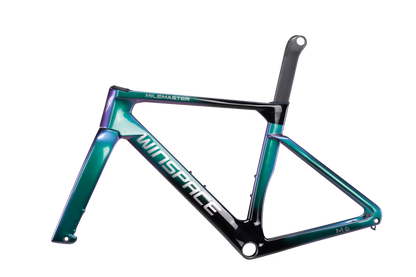

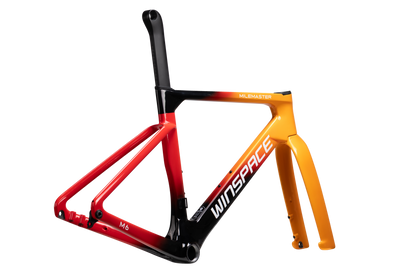

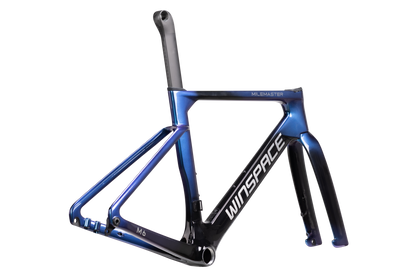

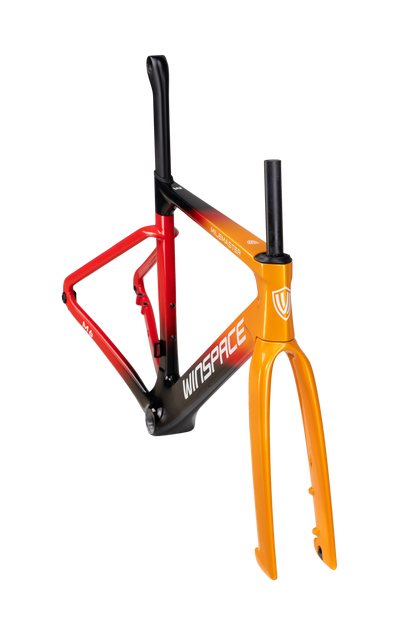

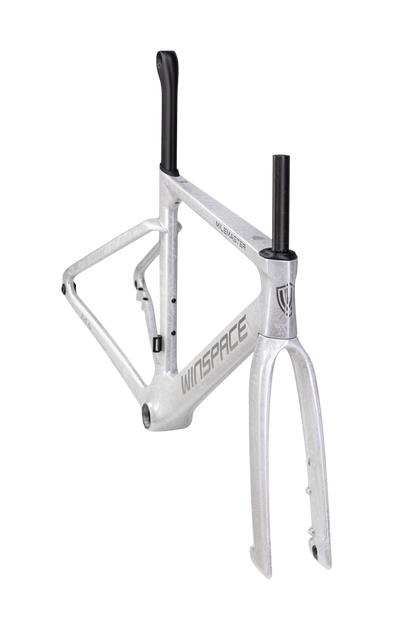

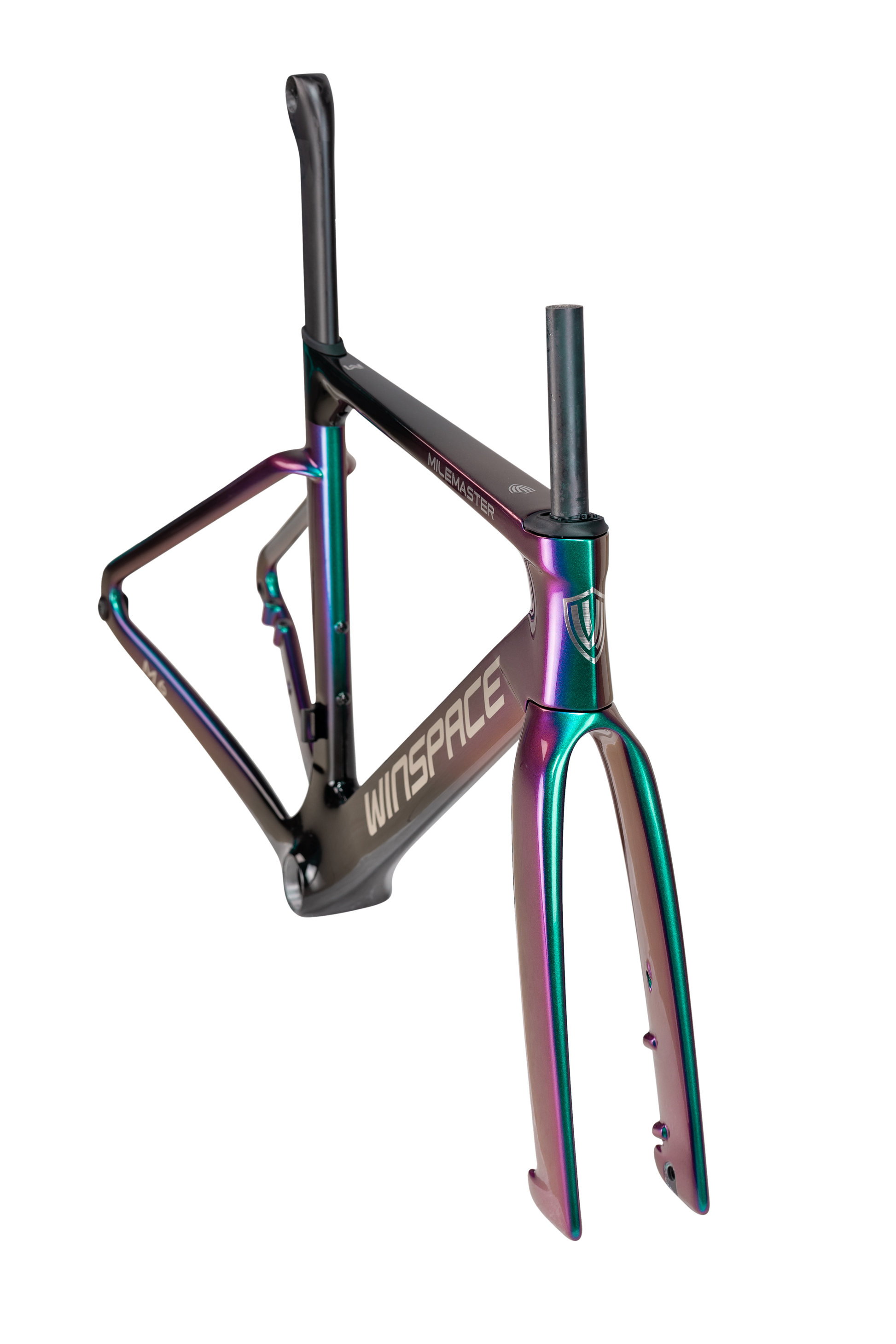

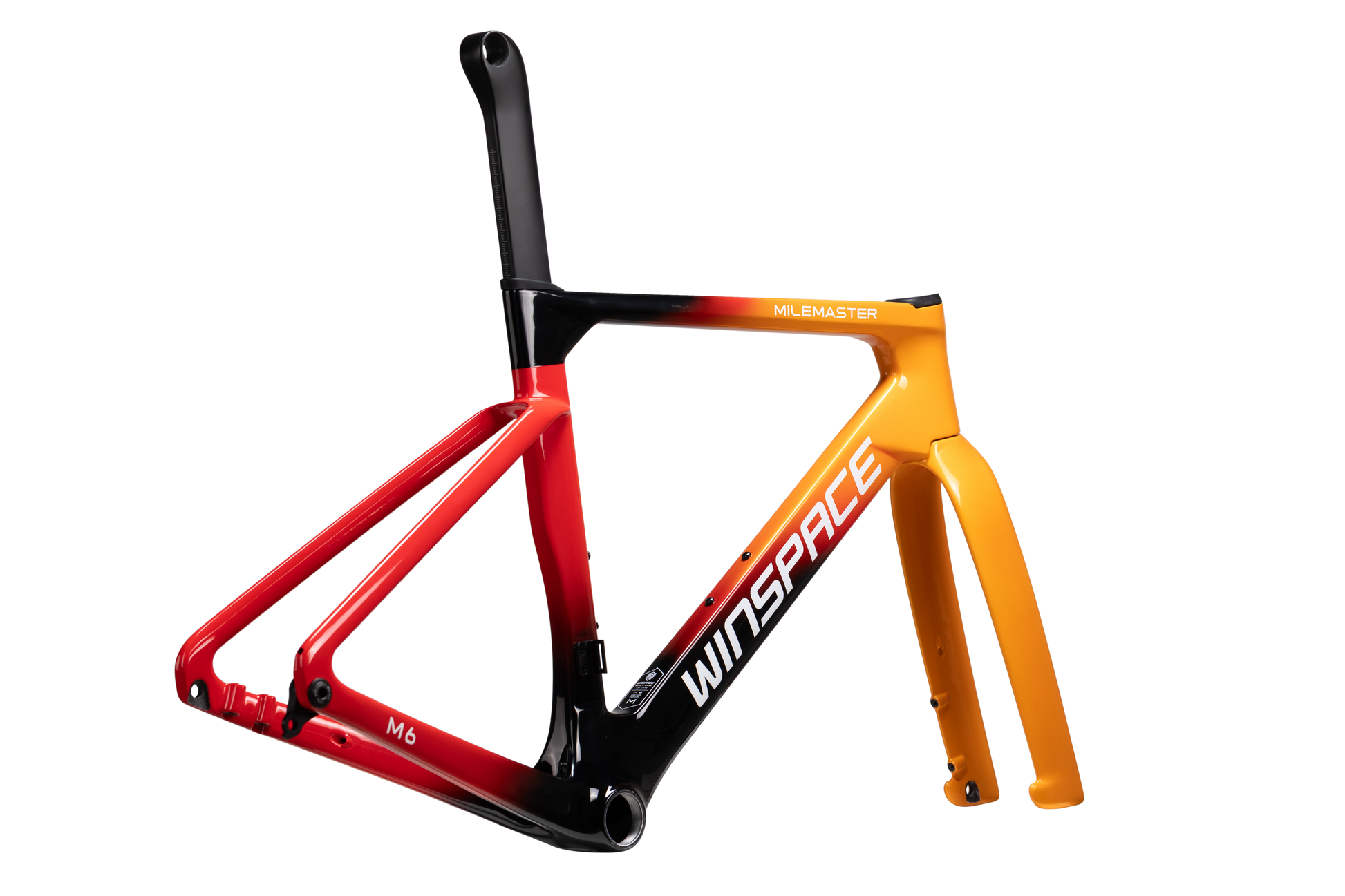

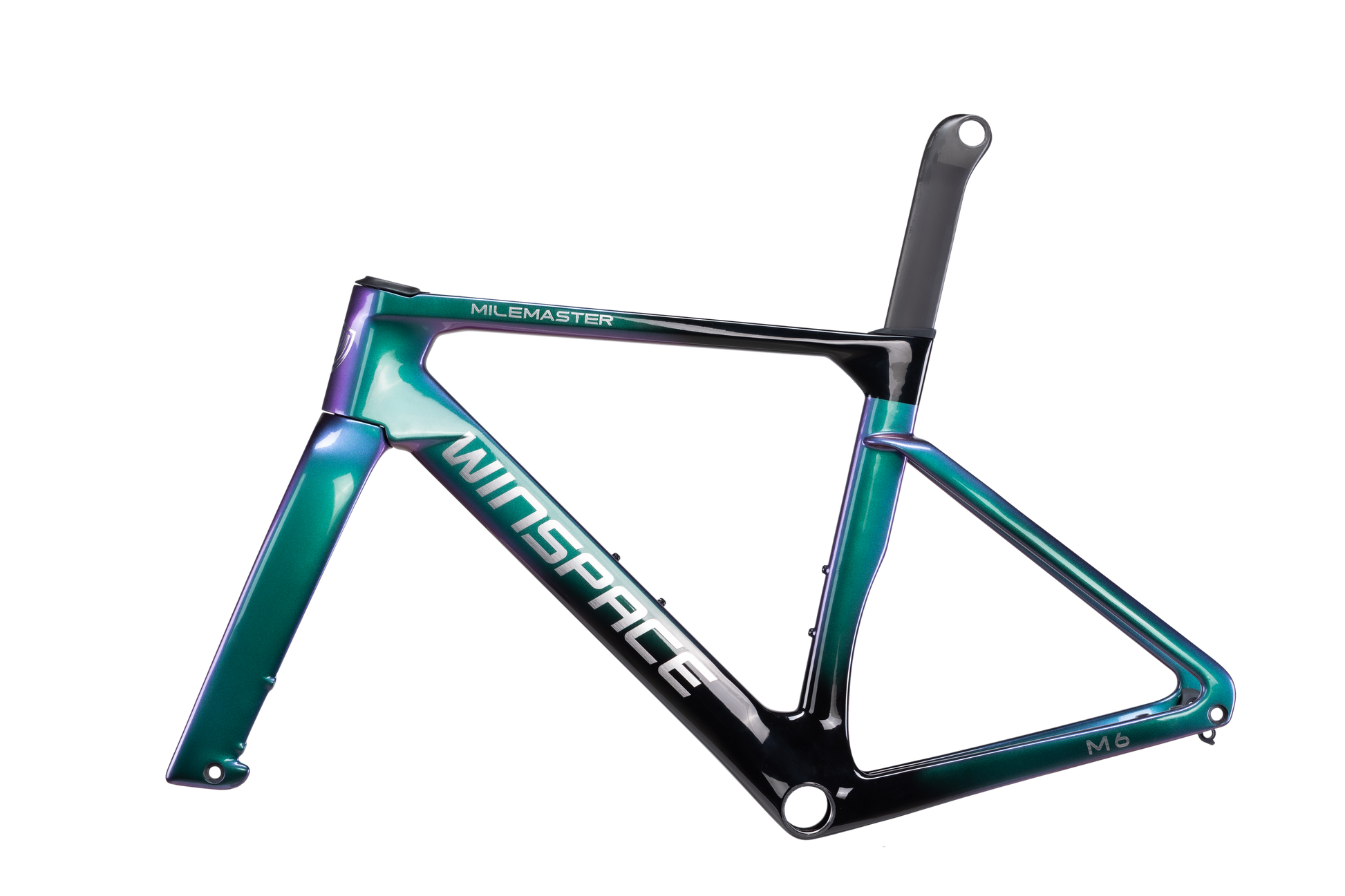

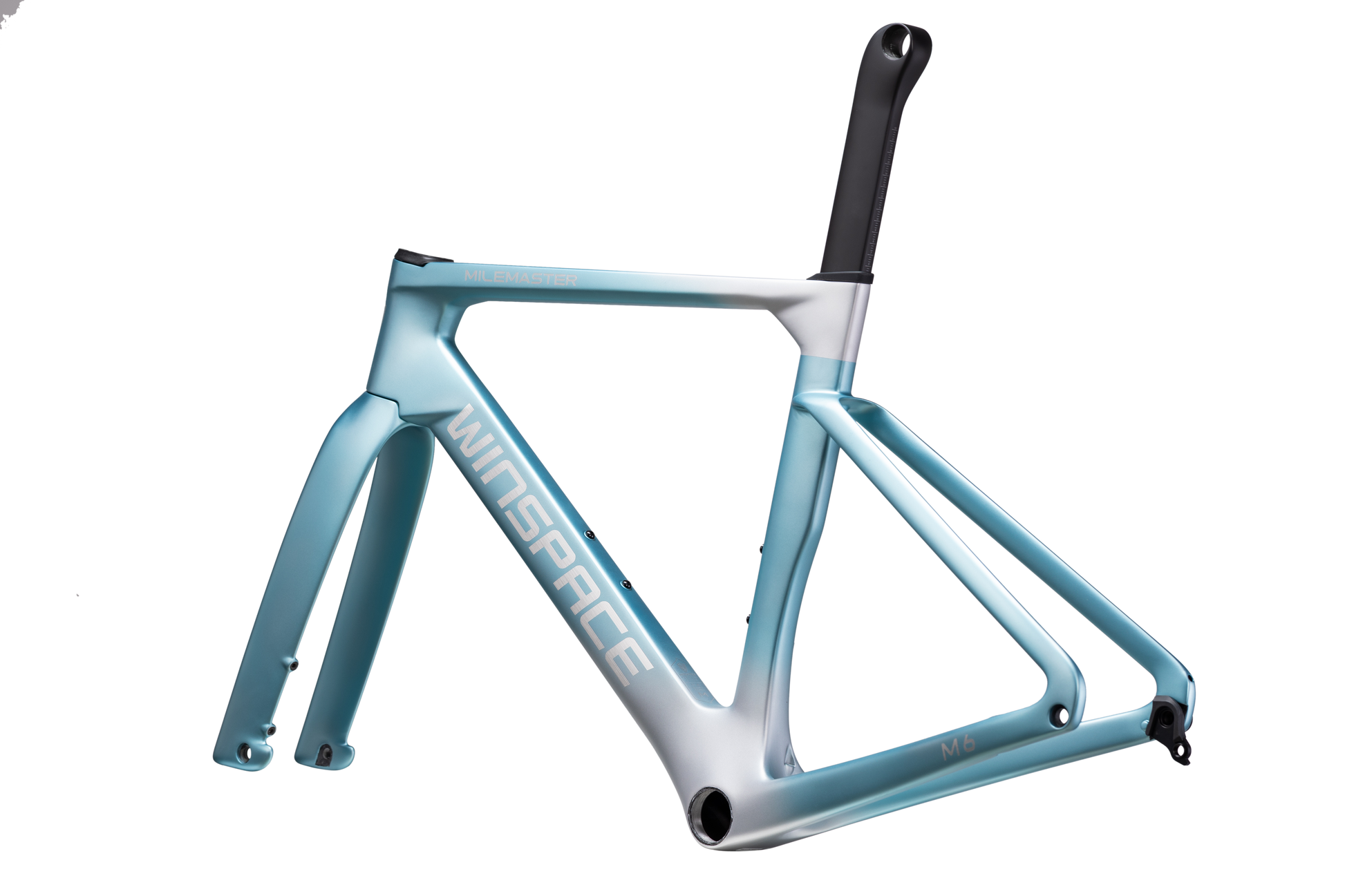

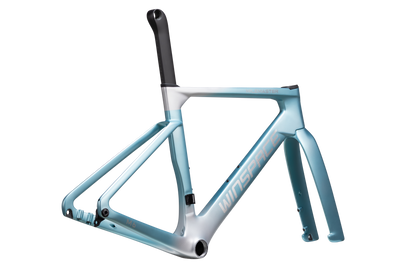

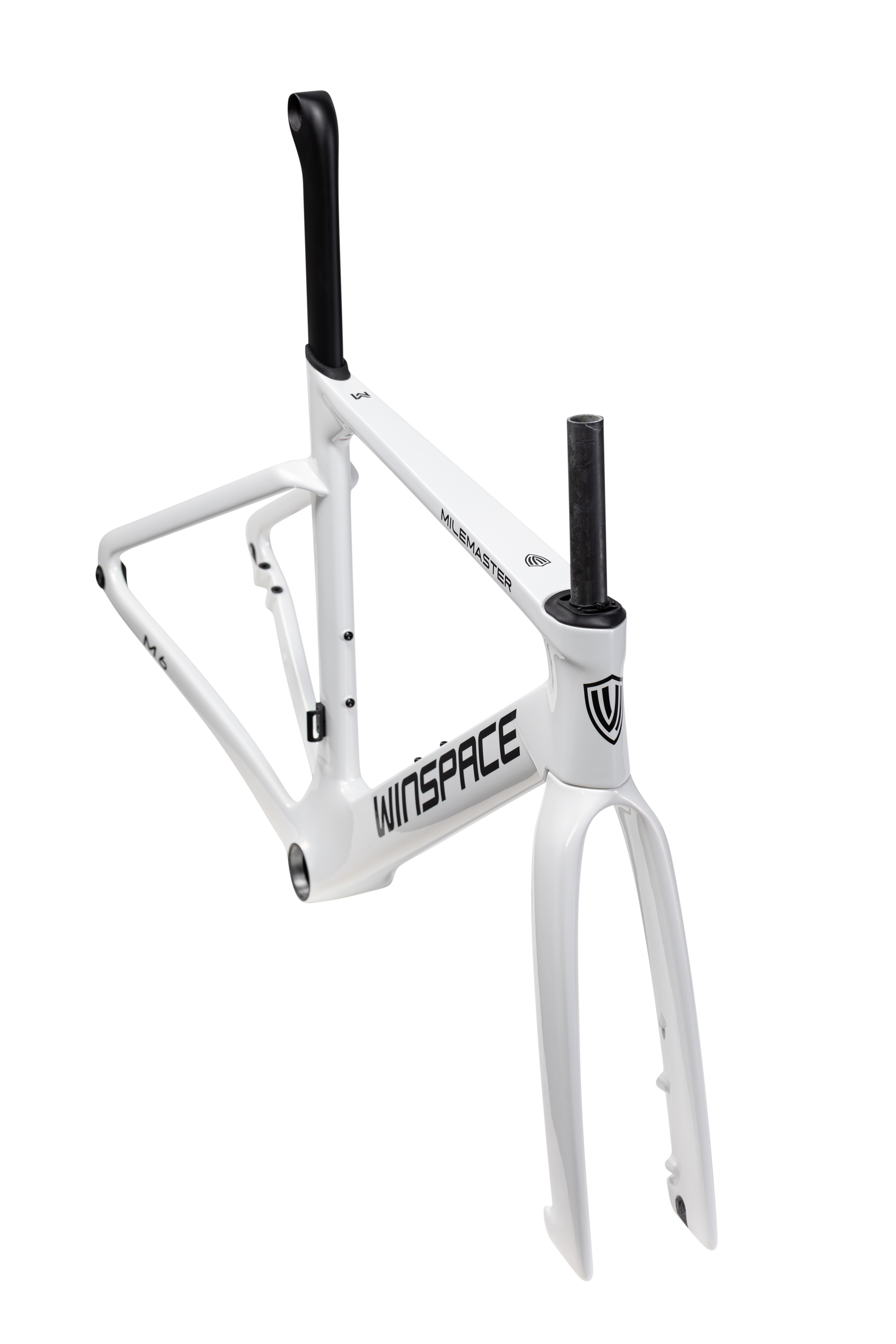

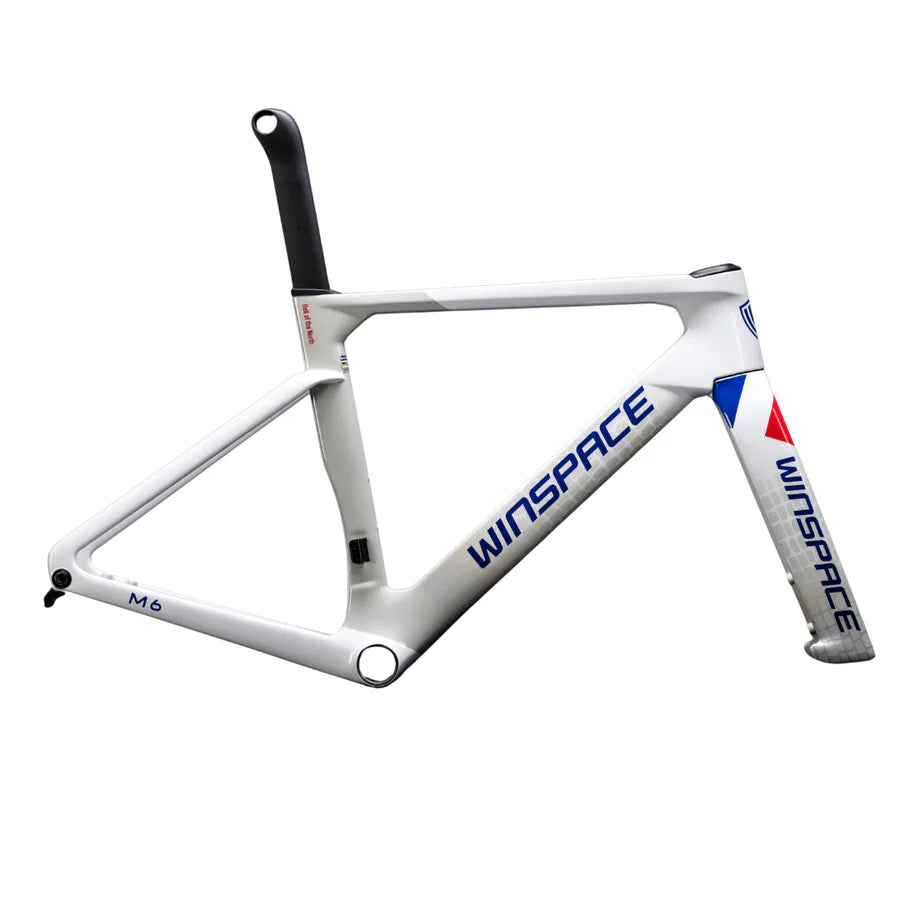

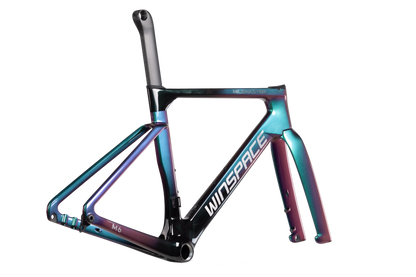

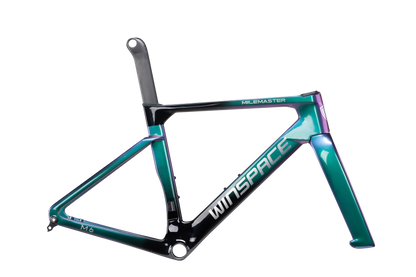

Frame, fork, headset, seatpost

Supplied together and matched, so the build starts the moment it arrives.

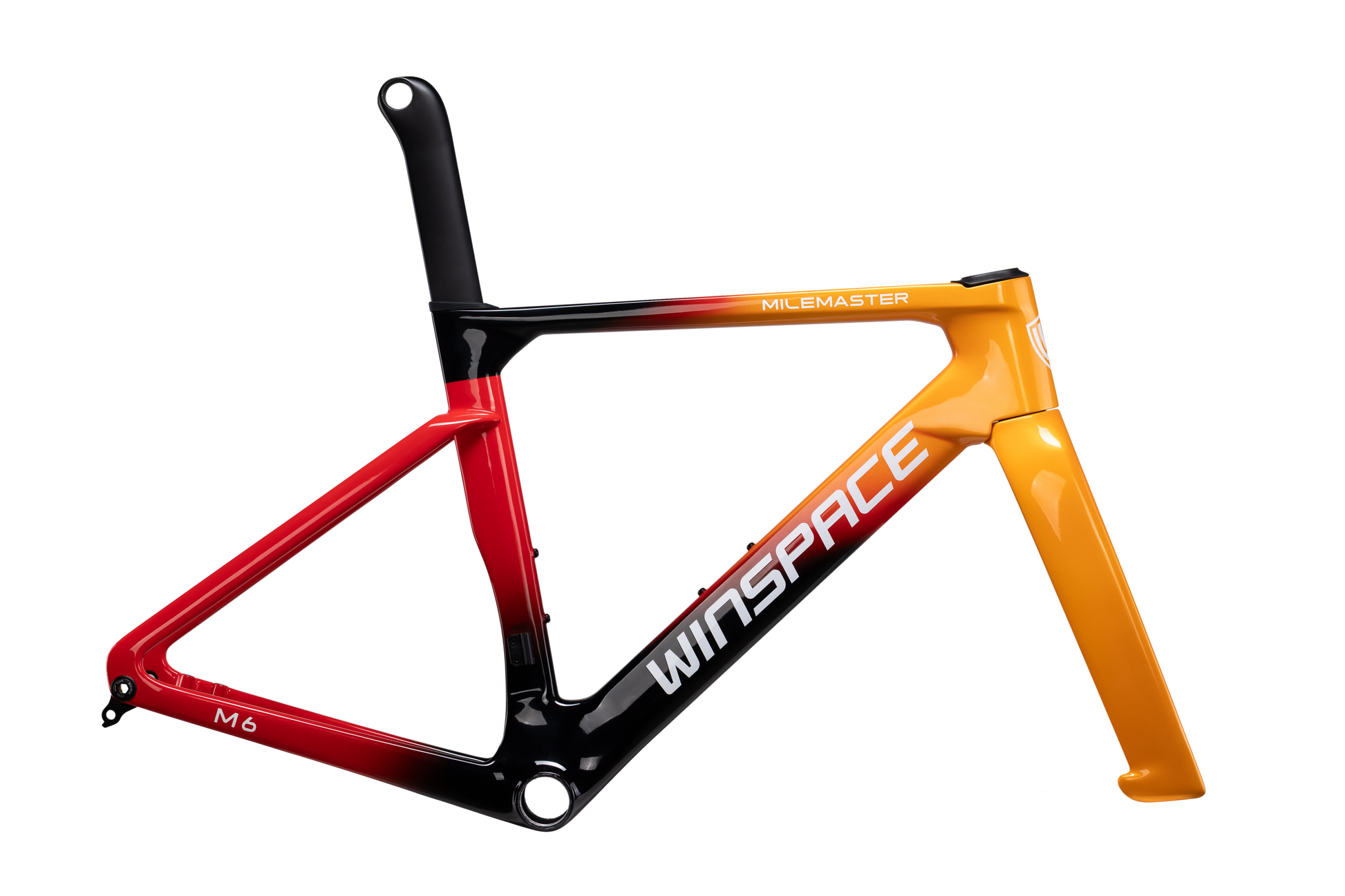

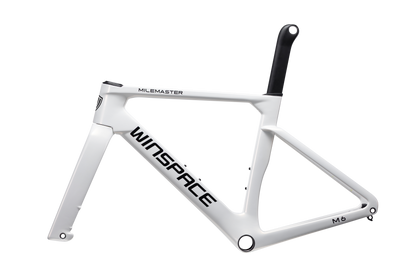

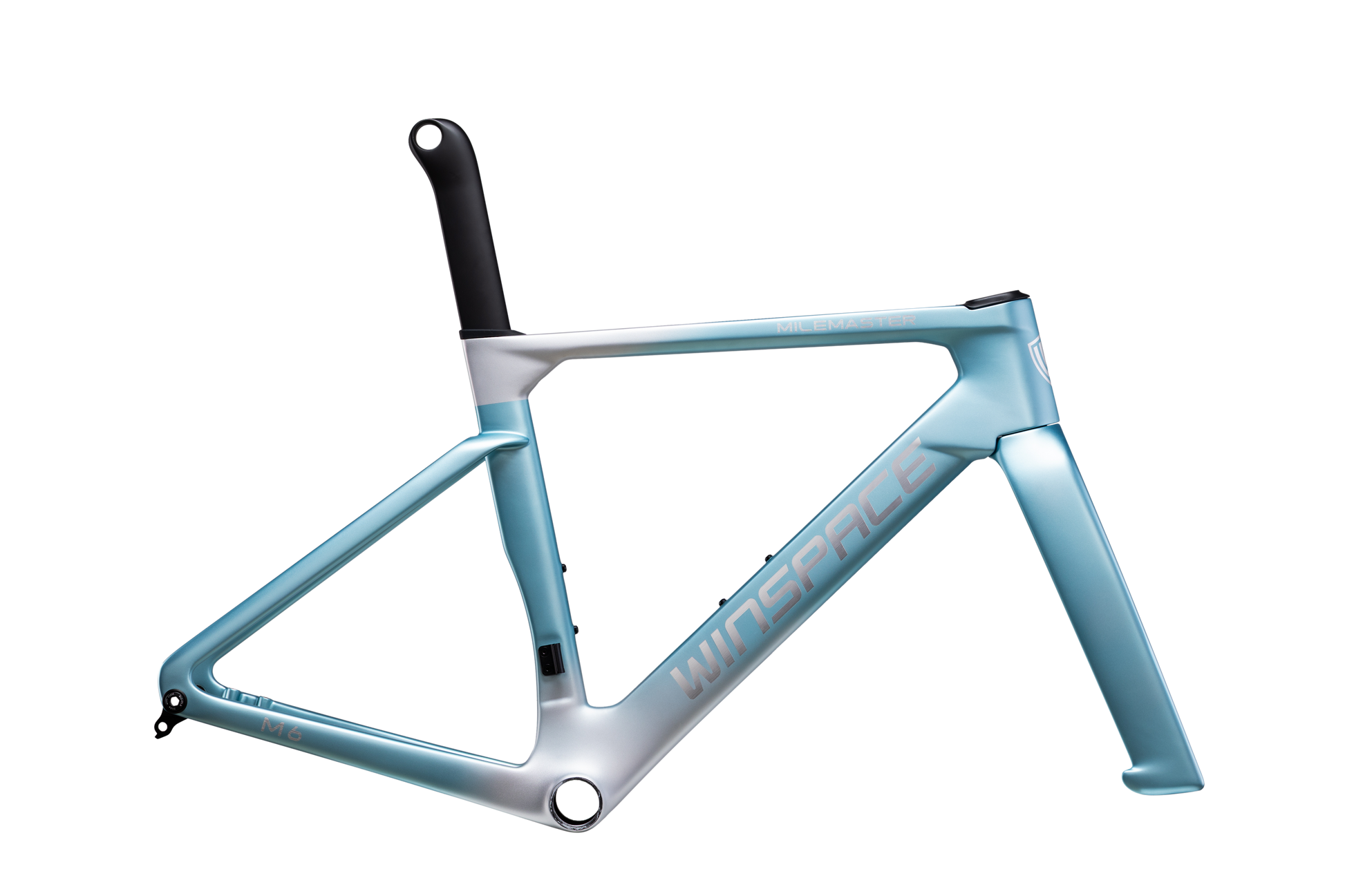

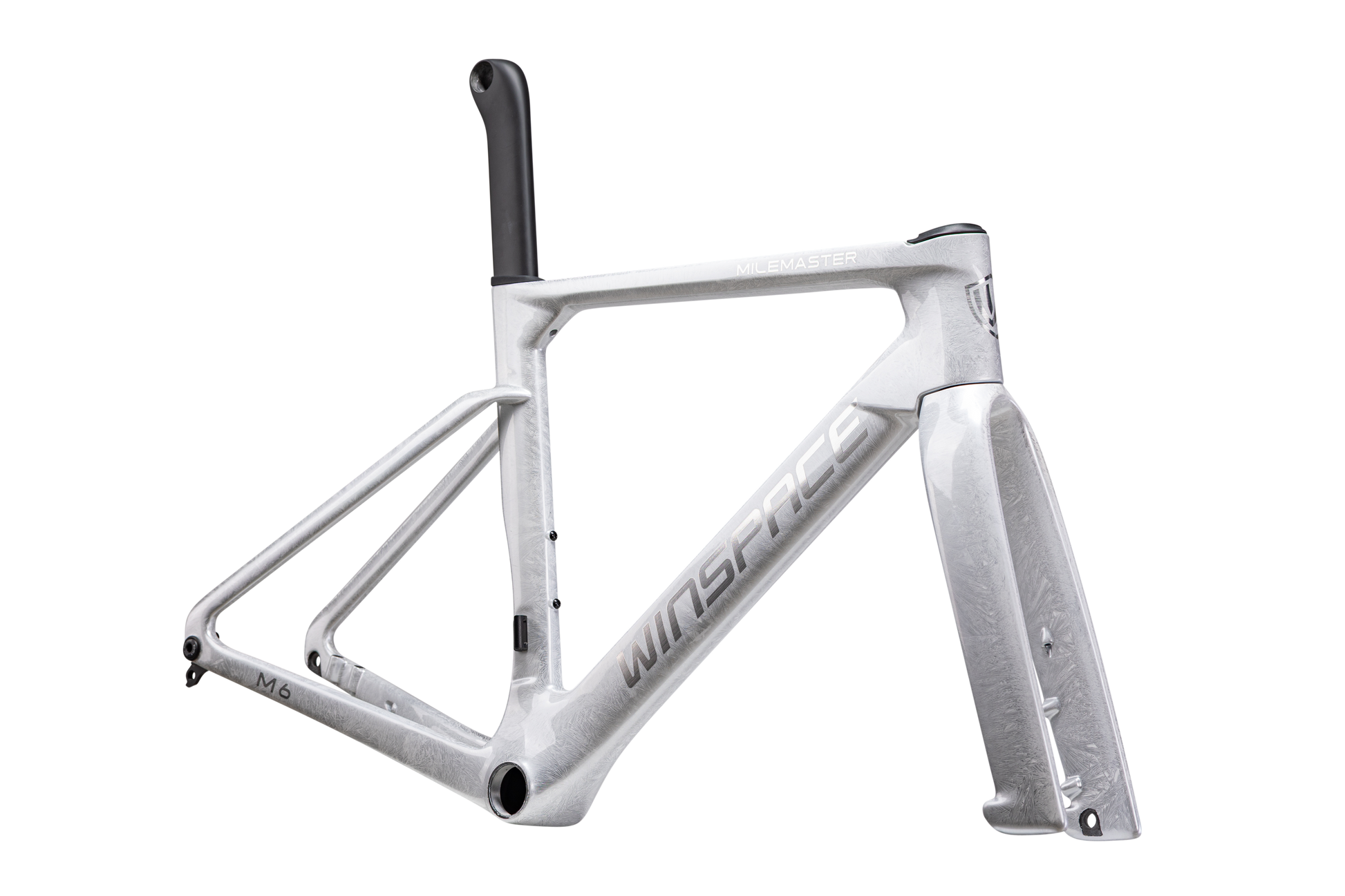

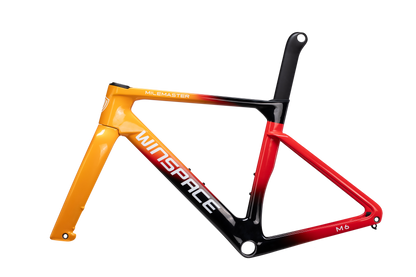

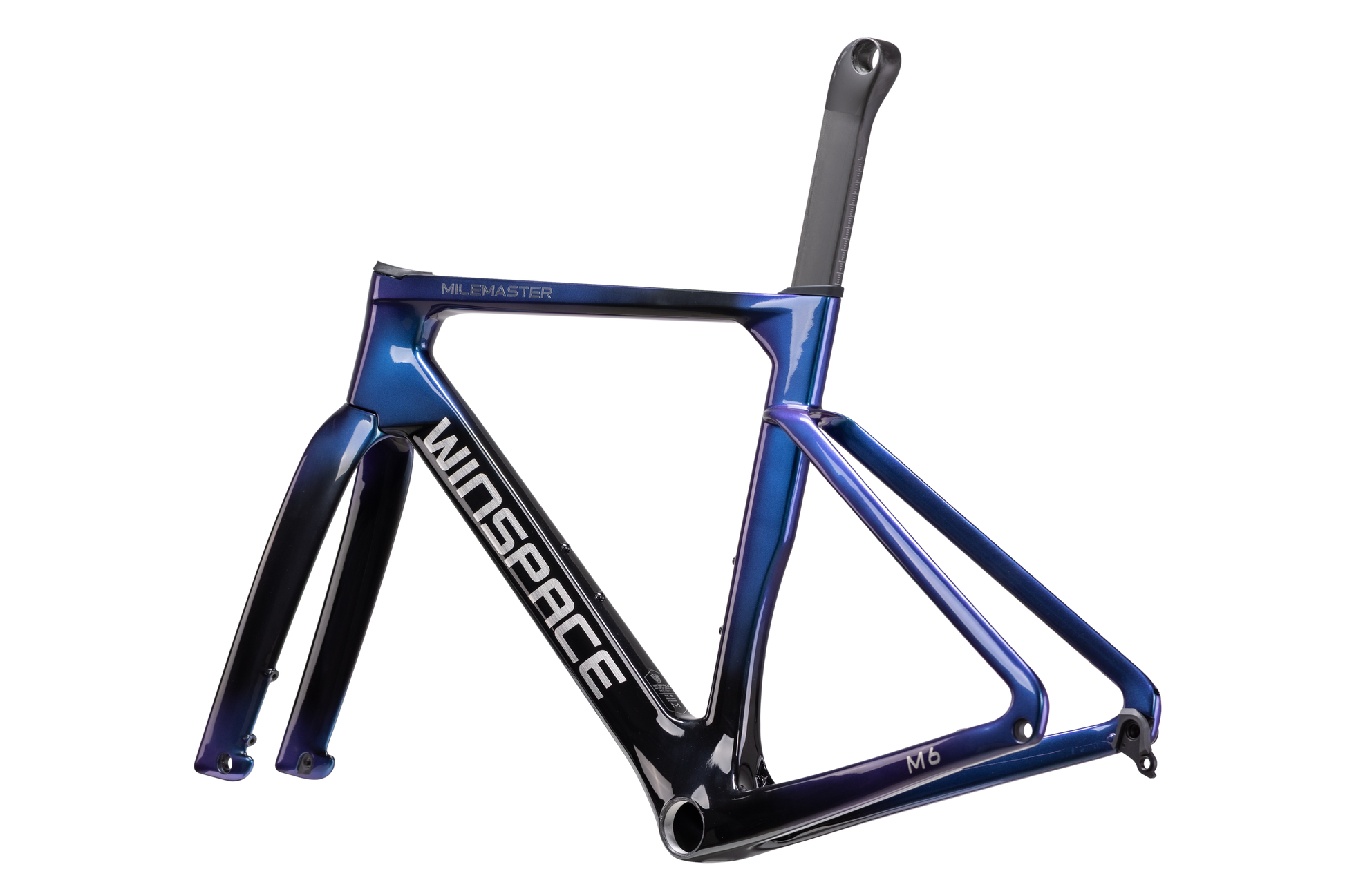

Frame M6 Toray T700 + T800 + M40 + M60

Fork Full carbon

Headset 1-1/2 inch upper and lower, FSA ACR system

Seatpost Winspace carbon aero seatpost

Thru axle Front hub 100×12mm, rear hub 142×12mm

Tyre clearance 32mm

Aerodynamically Optimised

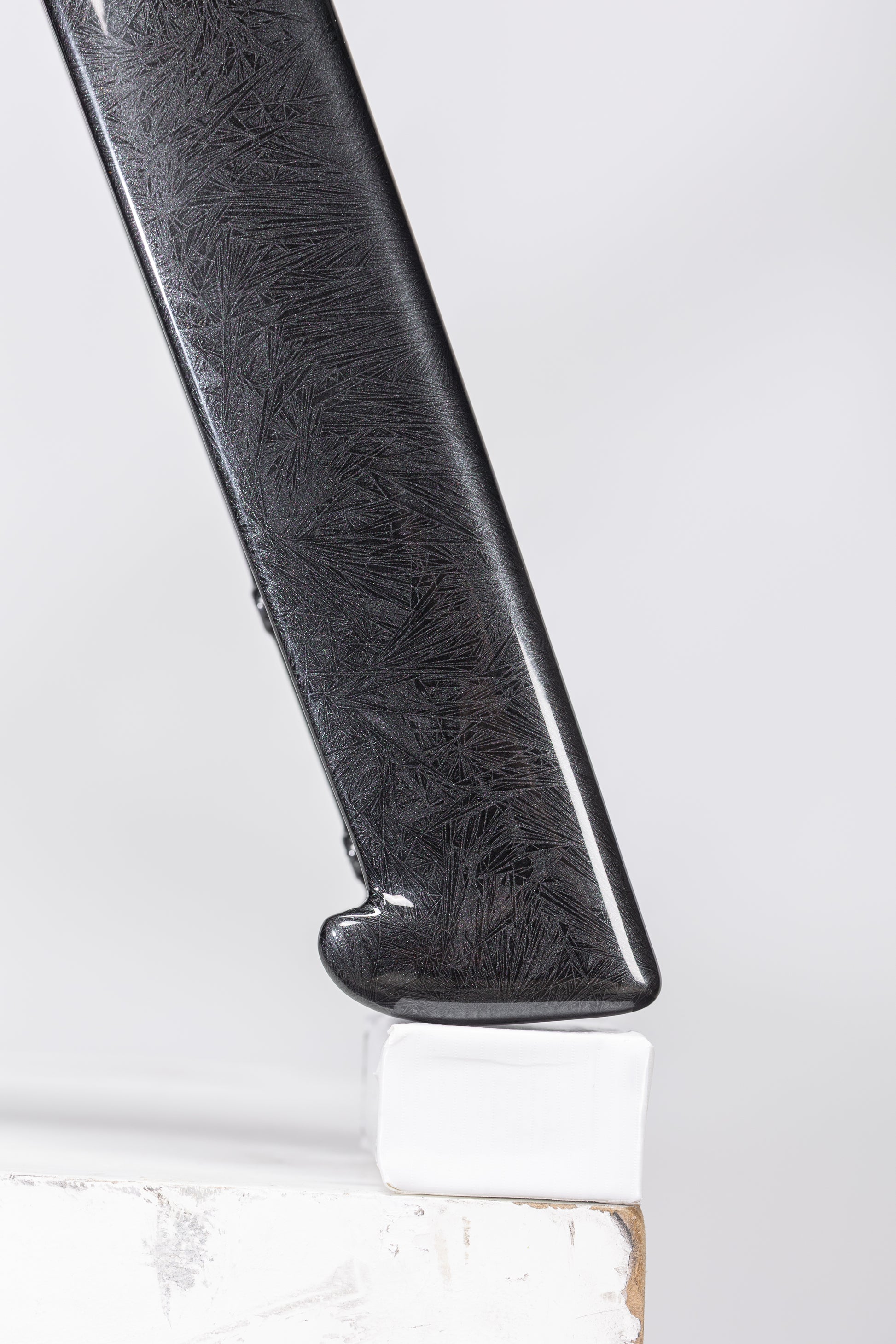

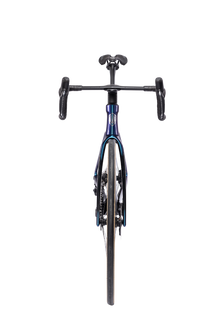

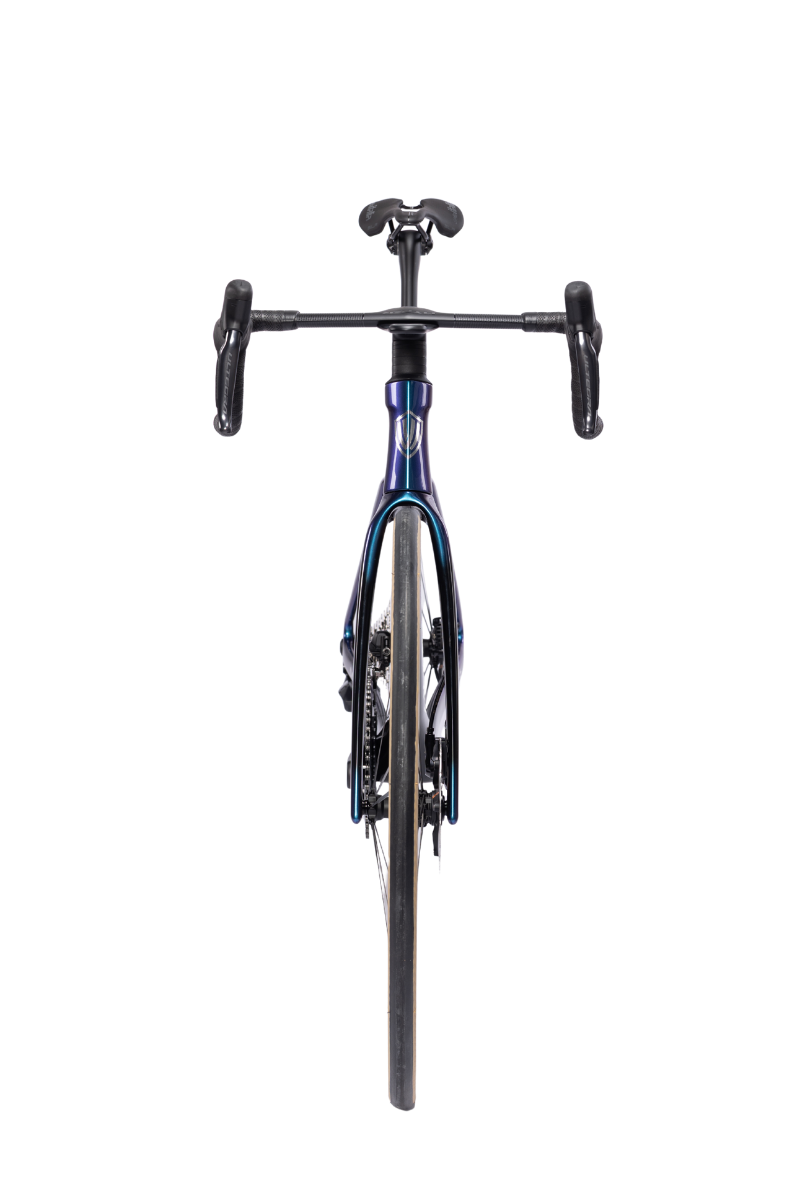

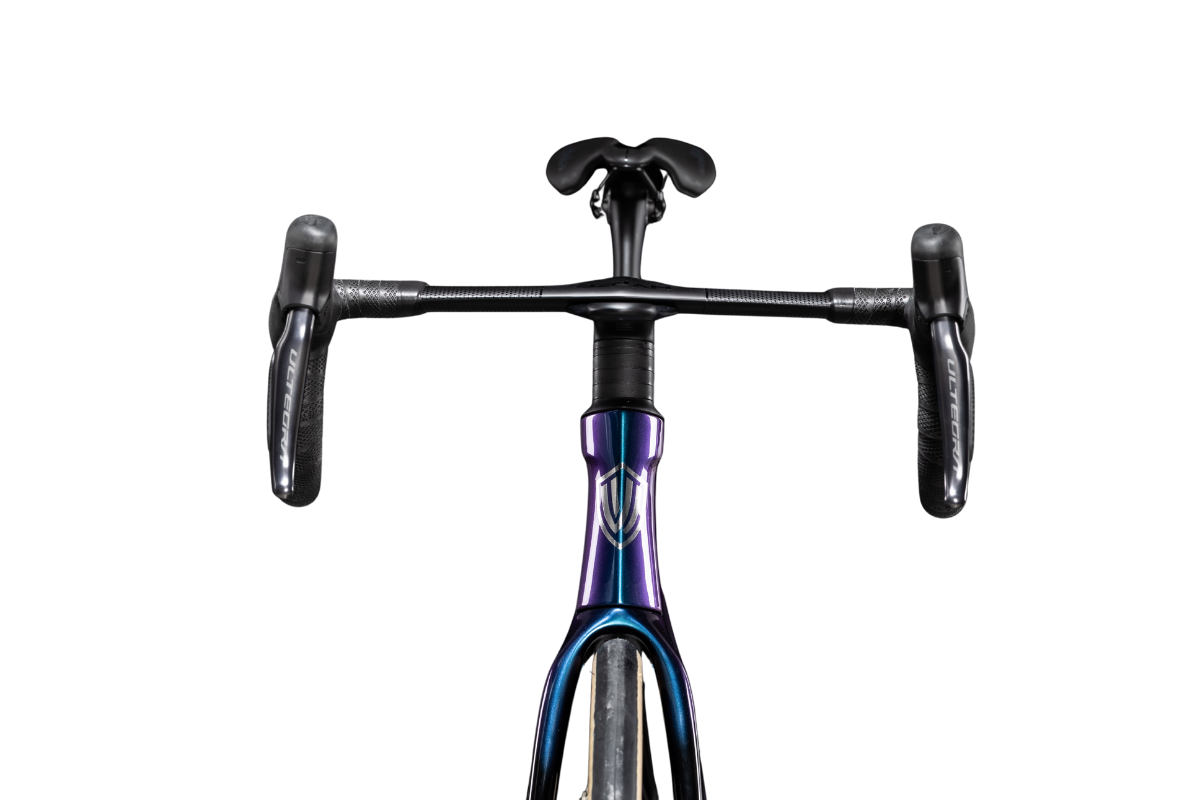

The M6 was developed using CFD aerodynamic analysis, allowing engineers to refine airflow around the frame and minimise drag. It features a slim head tube profile to reduce frontal area, ultra-wide aero fork and dovetail rear wing fork

Race-Level Stiffness & Structure

The frame structure is designed to withstand load forces equivalent to two tonnes, and to responds instantly to attacks and accelerations, converting every watt directly into forward speed. From the fork to the bottom bracket, it delivers exceptional structual performance.

Modern Race Geometry

The M6 is designed to balance aggressive performance with stability. The 410mm chainstay provides efficient power transfer and responsiveness, and the stiffness-to-weight ratio balances acceleration and climbing efficiency.

The numbers

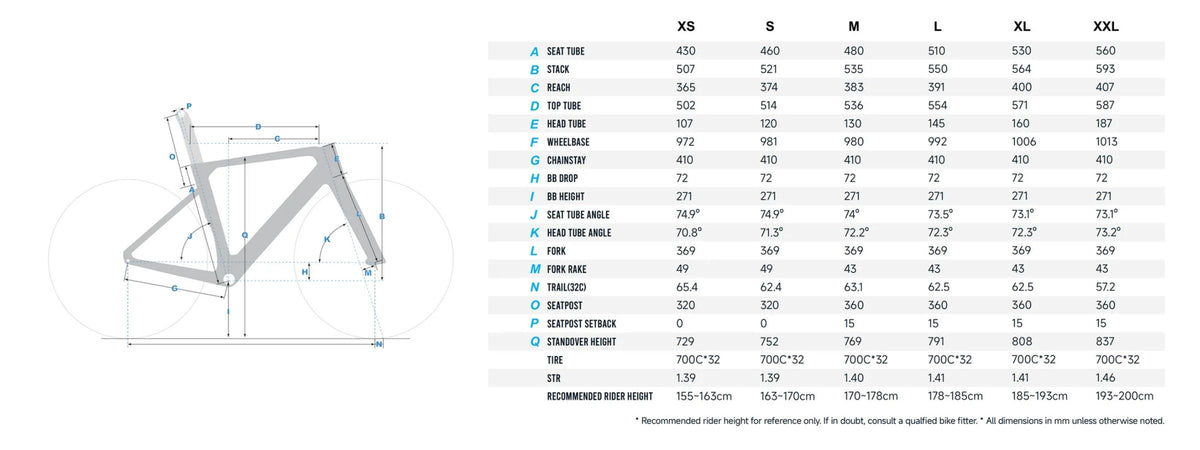

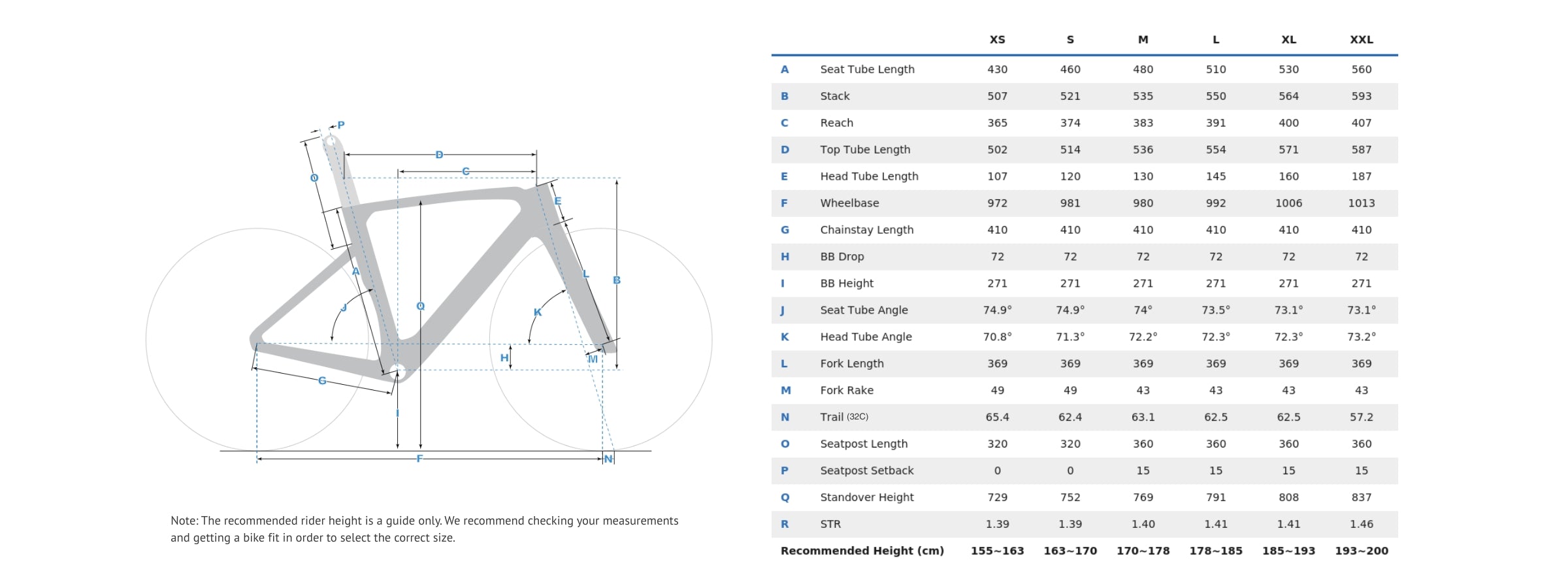

Geometry

Size	Seat tube	Stack	Reach	Top tube	Rider height
XS	430	507	365	502	155 to 163
S	460	521	374	514	163 to 170
M	480	535	383	536	170 to 178
L	510	550	391	554	178 to 185
XL	530	564	400	571	185 to 193
XXL	560	593	407	587	193 to 200

If you are unsure of your measurement, we recommend getting a bike fit to get the most out of your Winspace.

3 years frameset warranty

Open the full size chart Download Product Catalogue

Try before you buy

Deduct up to 7 days of rental from your new Winspace.

Built in Australia

Assembled and quality checked before it reaches you.

Local support

Servicing, parts and advice across Australia, for the life of the frame.
