FRAMESET

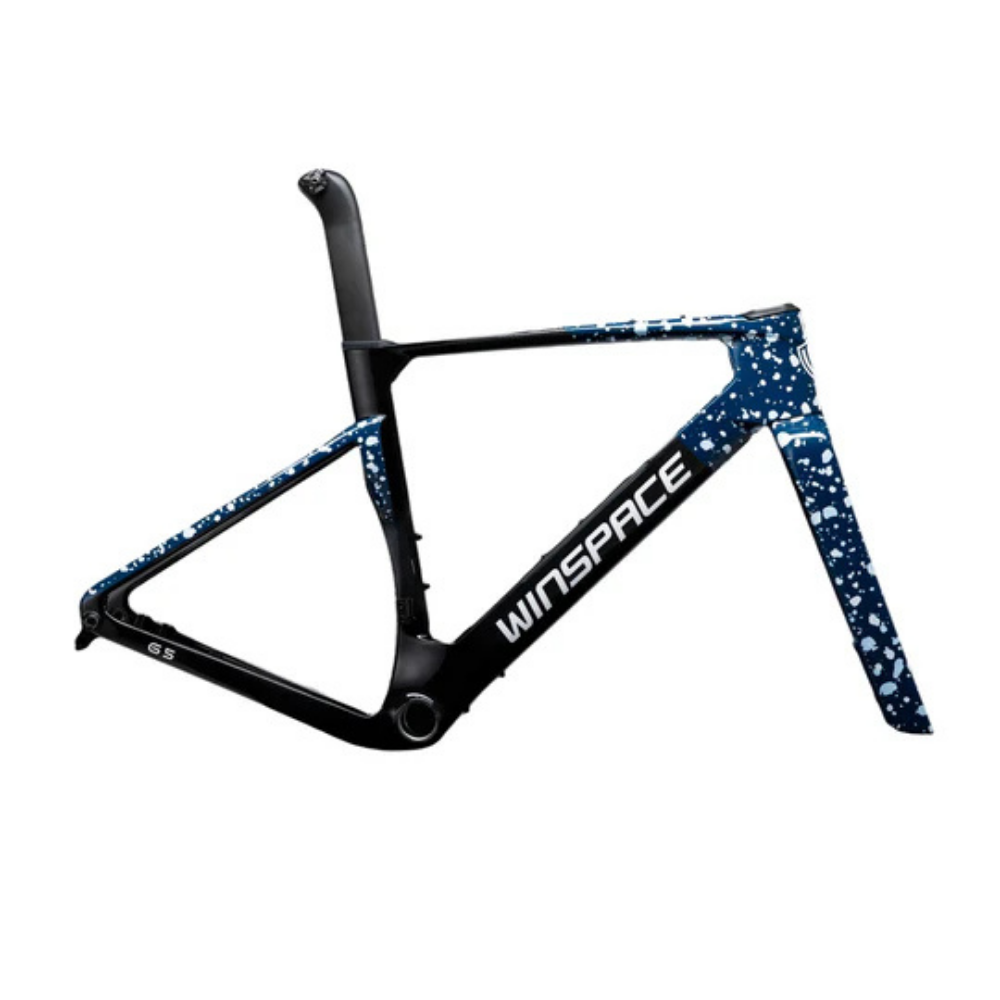

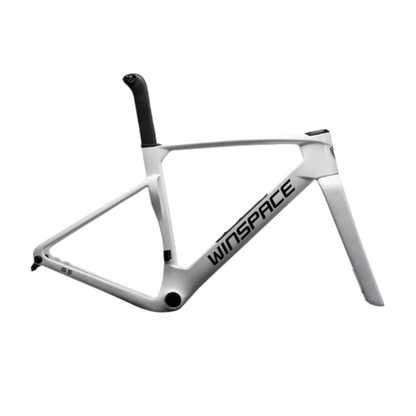

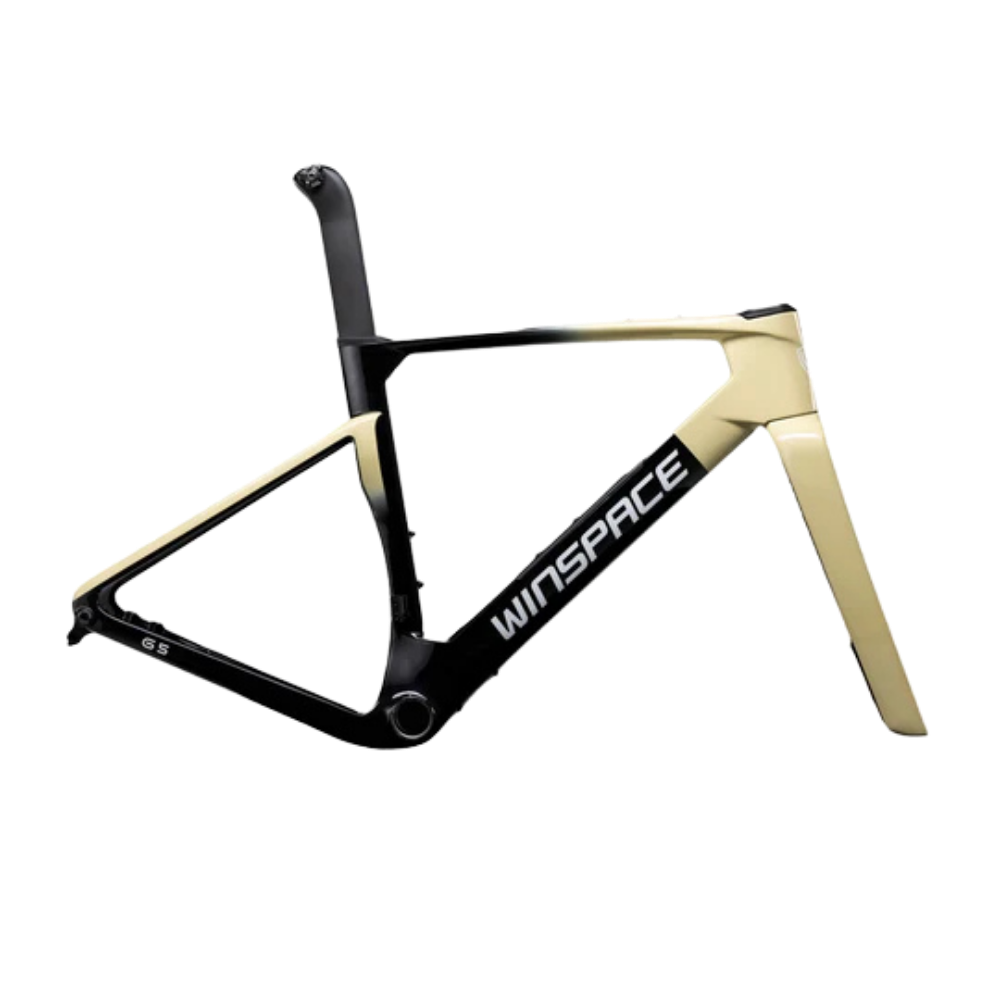

G5

Frameset

Build yours

Explore

What's included

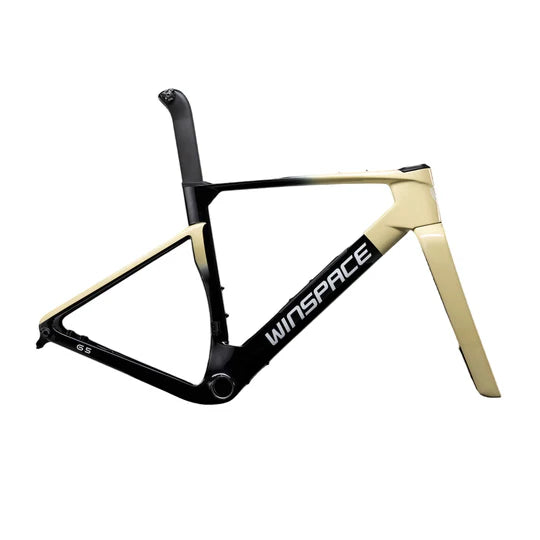

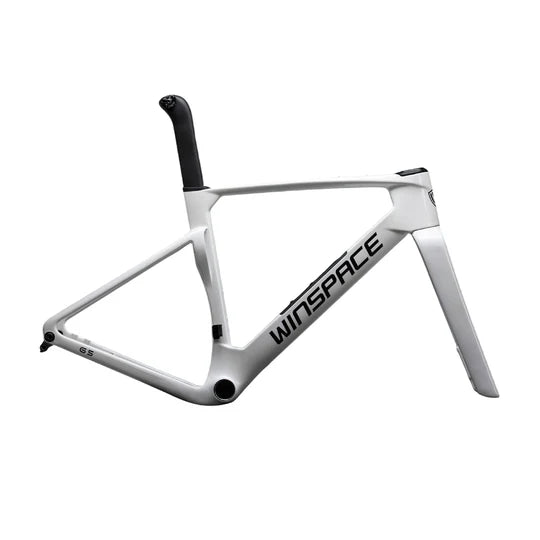

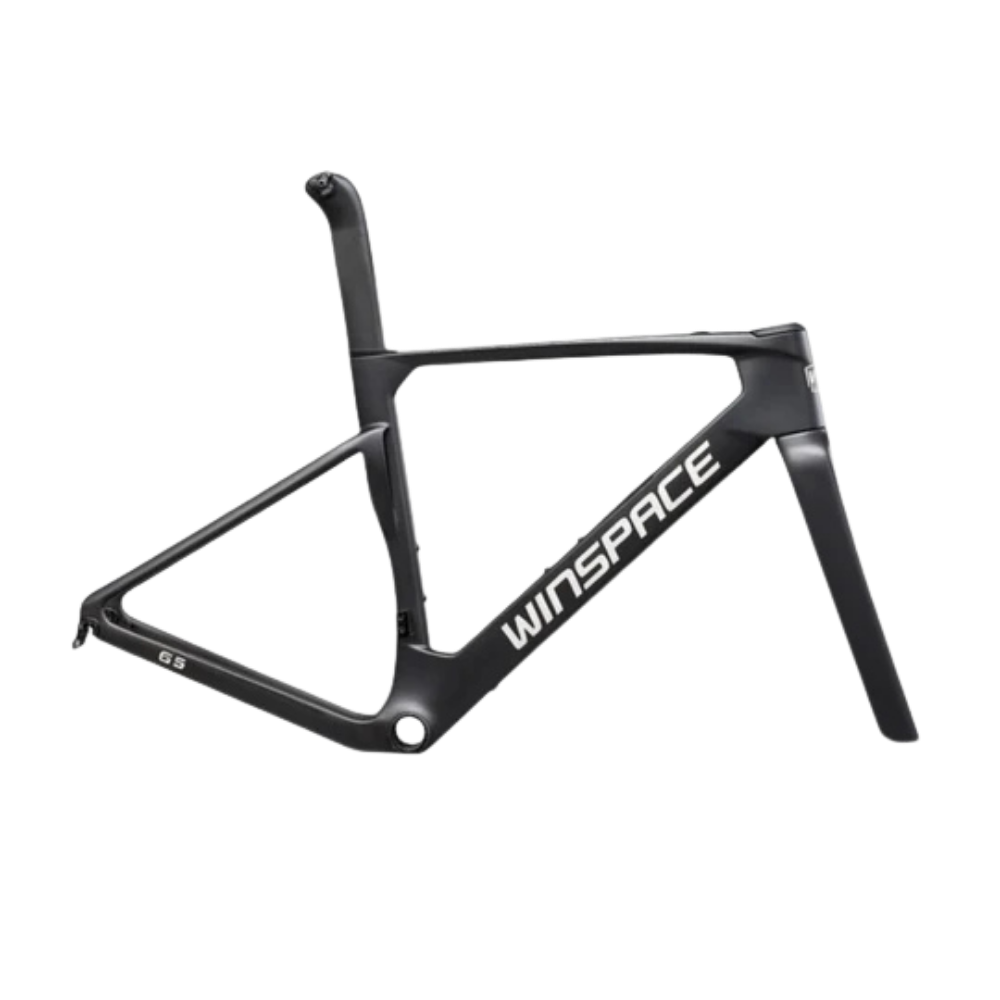

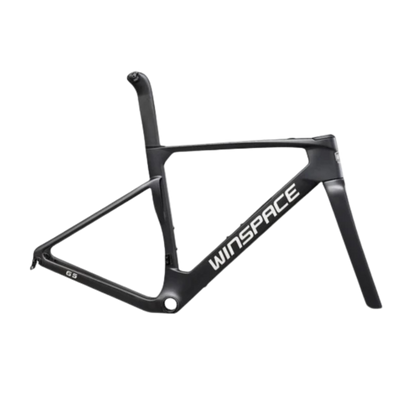

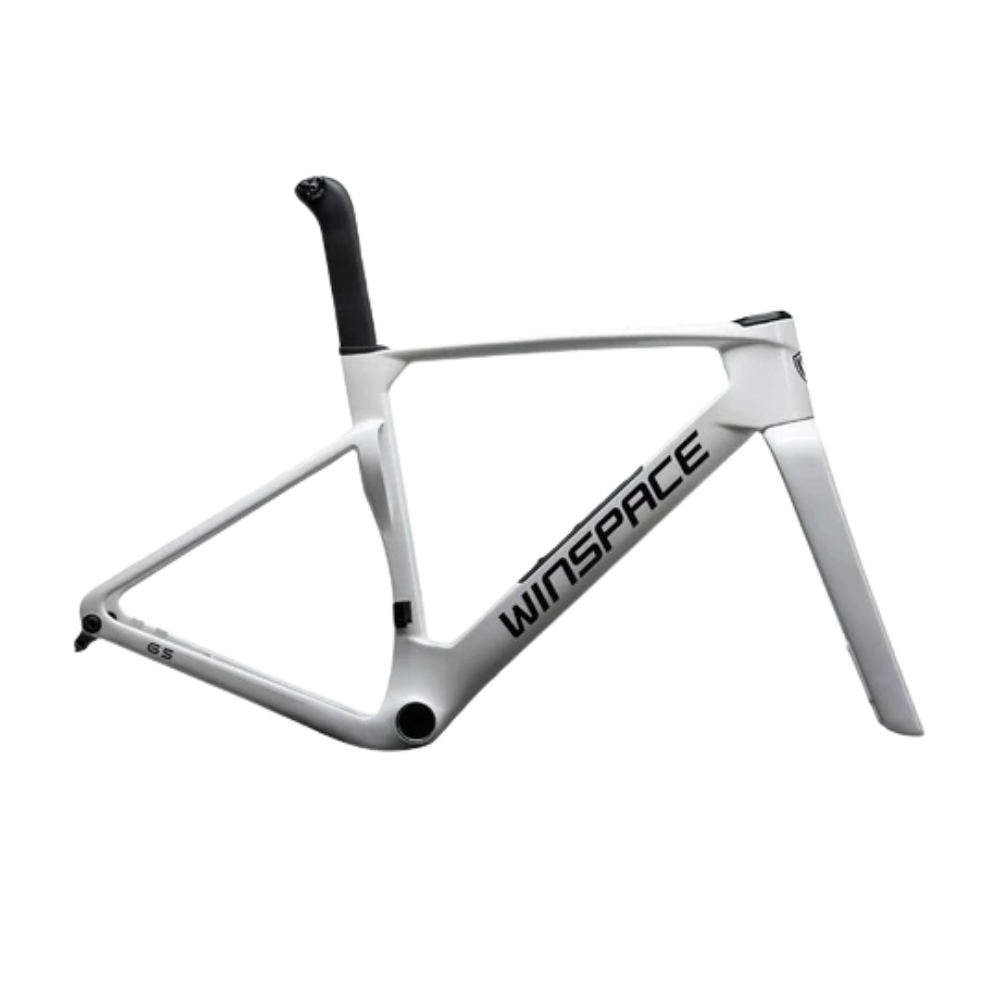

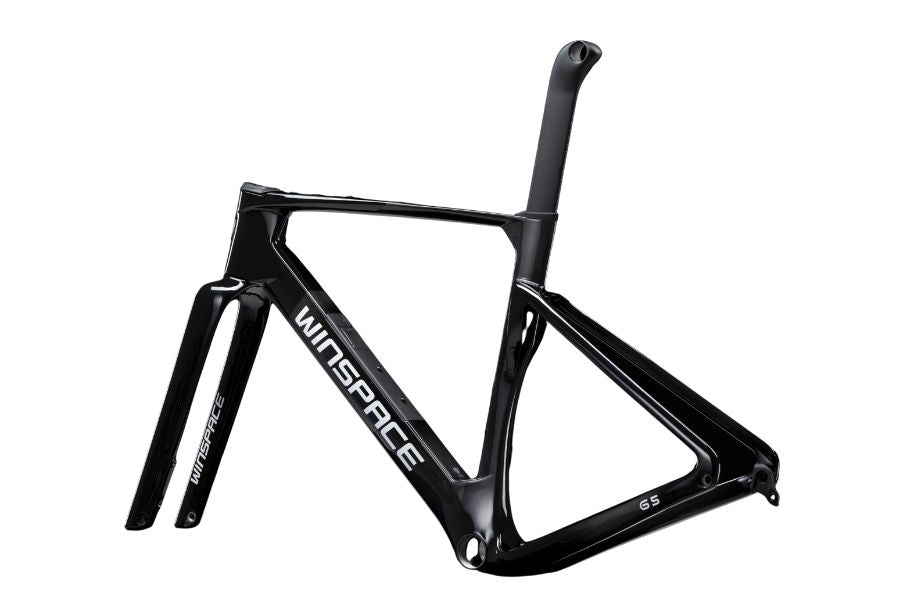

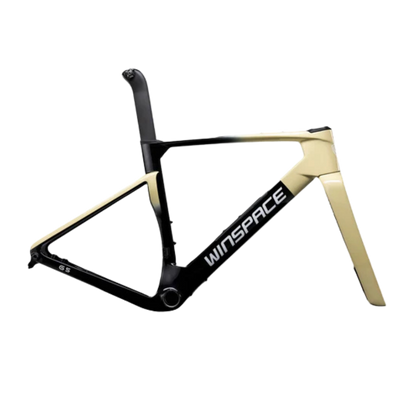

Frame, fork, headset, seatpost

Supplied together and matched, so the build starts the moment it arrives.

Frame G5 Toray T700 + T800 carbon blend

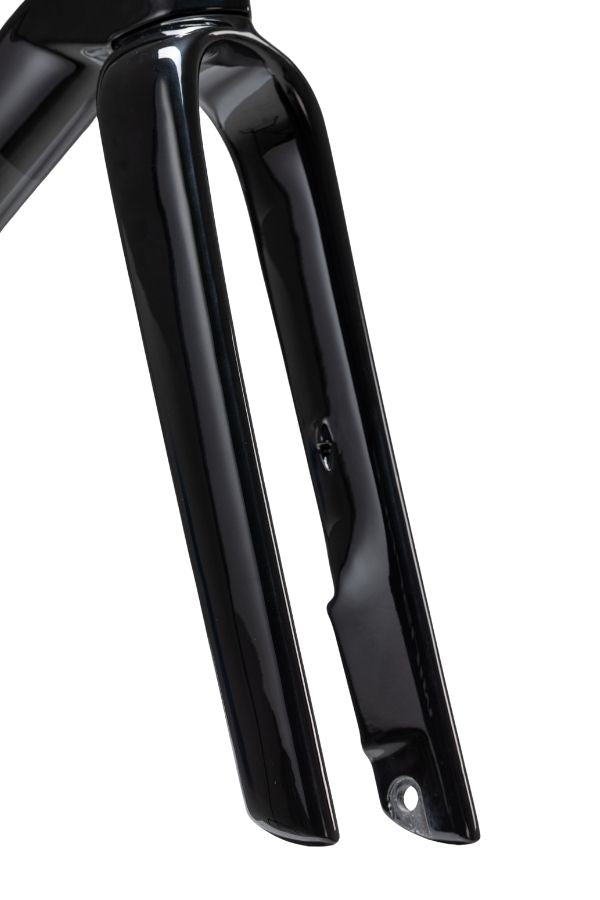

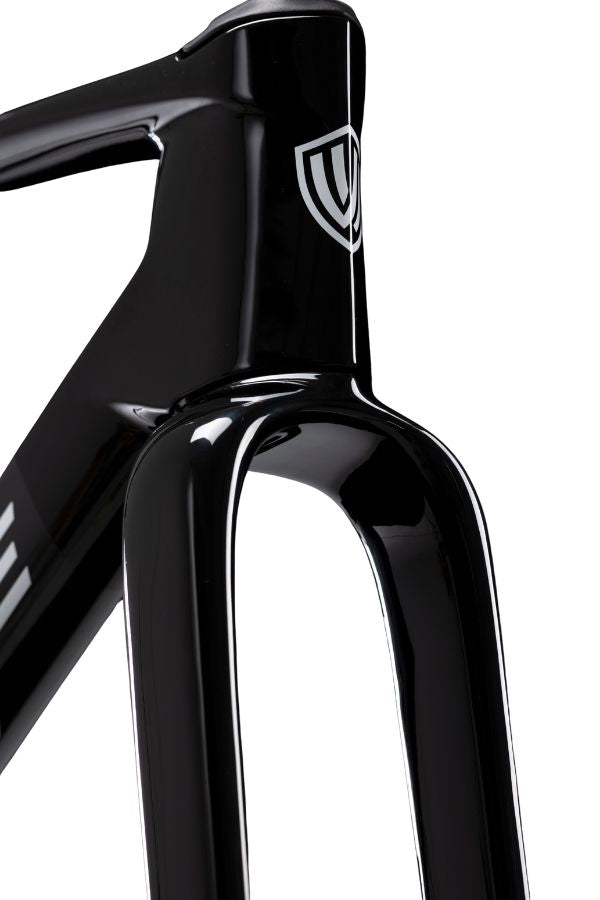

Fork Full carbon

Headset 1-1/2 inch upper and lower, FSA ACR system

Seatpost Winspace carbon aero seatpost

Thru axle Front hub 100×12mm, rear hub 142×12mm

Tyre clearance 57mm front, 52mm rear

Advanced Aerodynamics

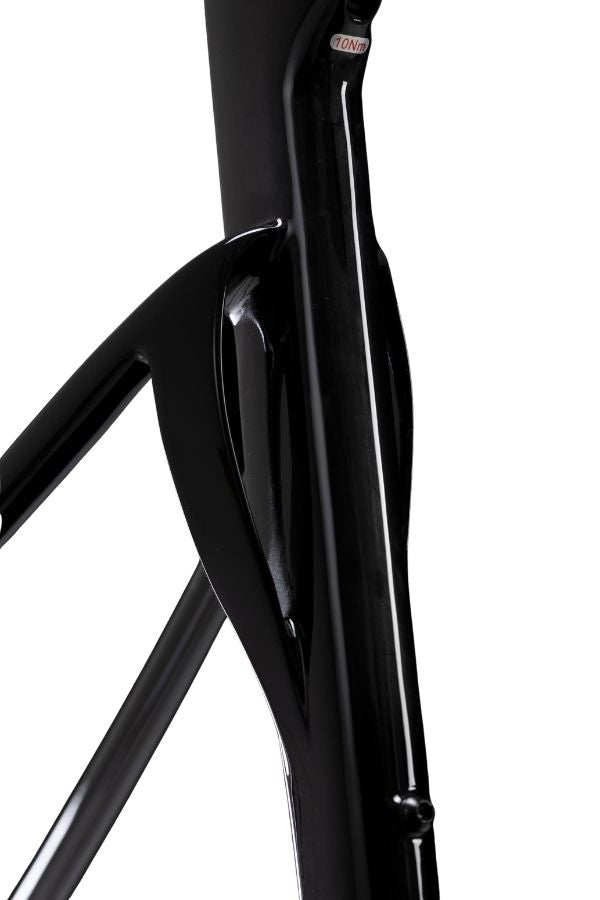

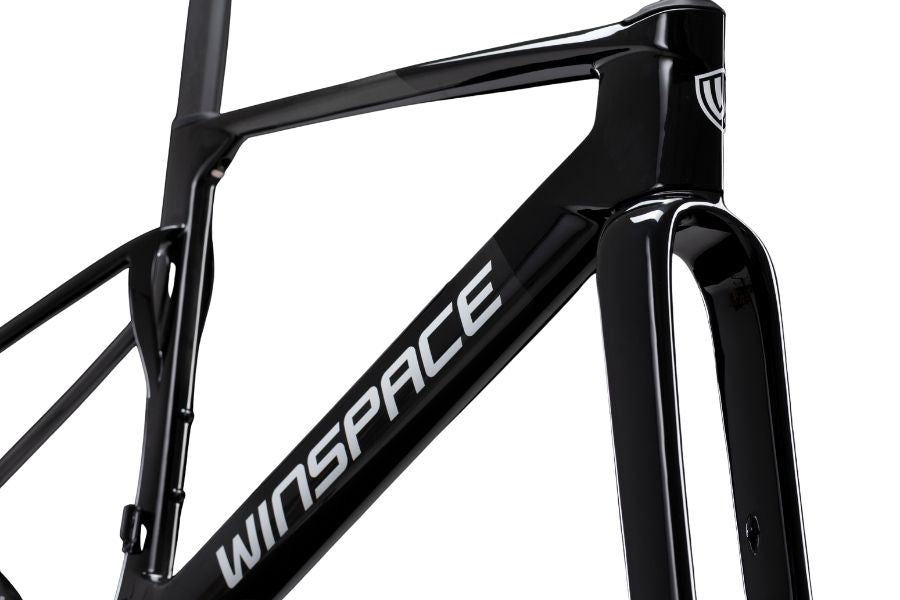

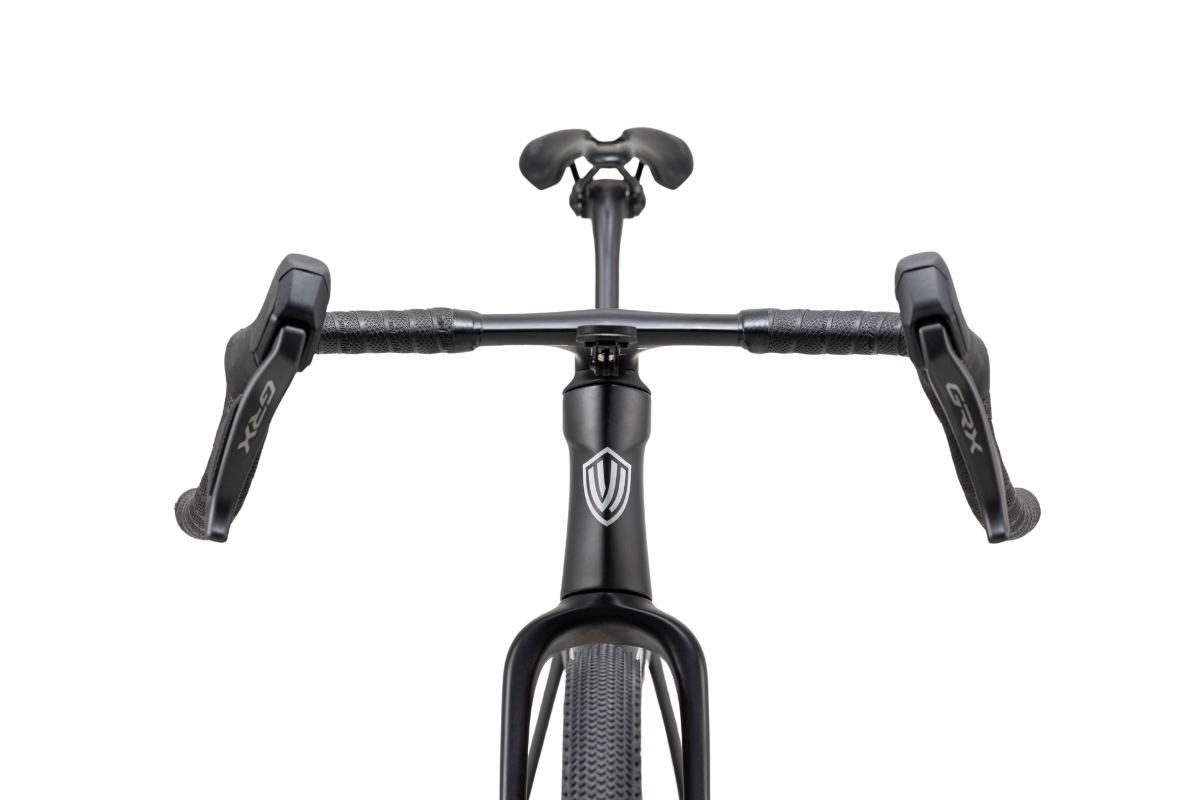

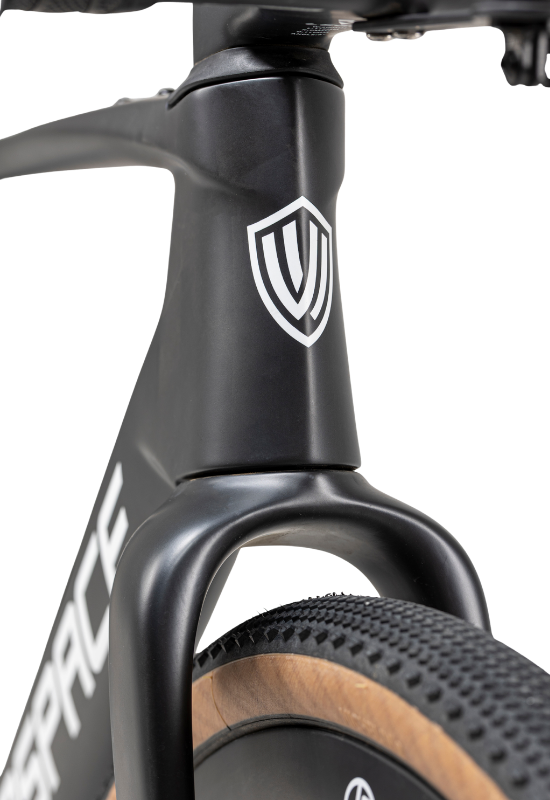

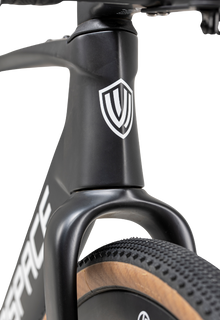

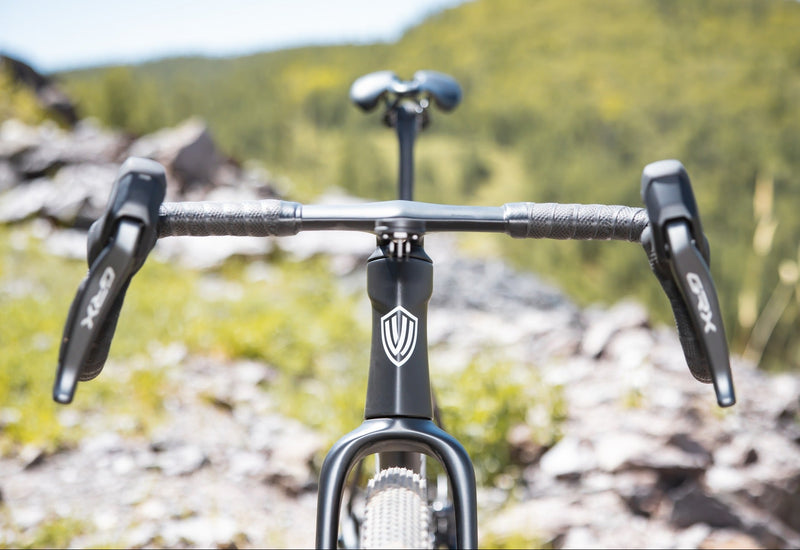

Patented D-Type aero system with integrated fairing and seat stay tailfin, ultra-thin head tube profile, and full ACR internal cable routing minimise drag across all angles.

Exceptional Tyre Clearance

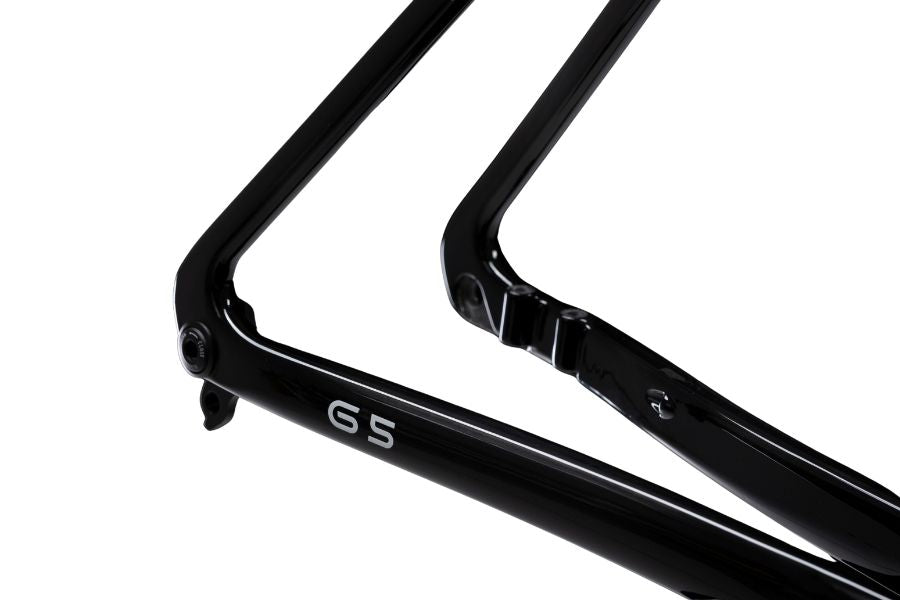

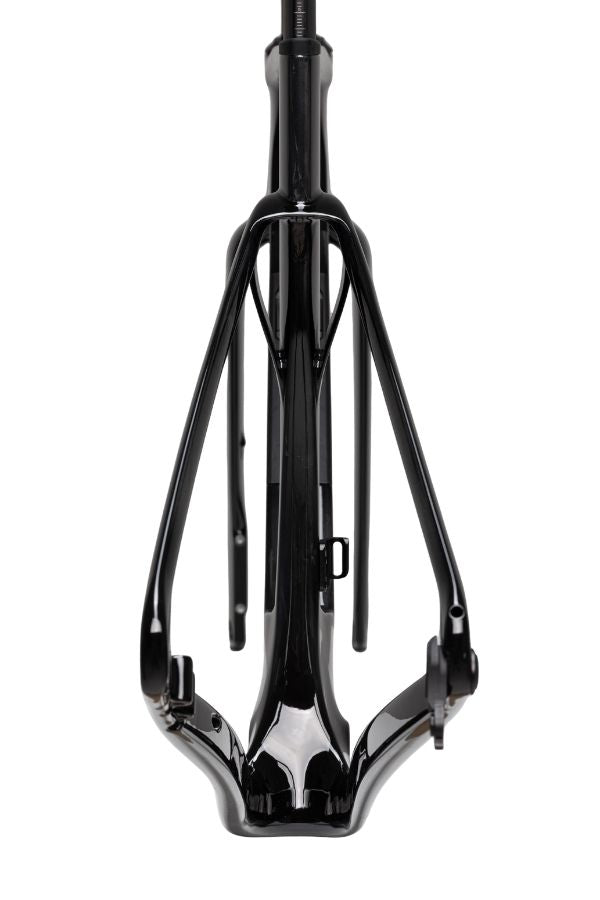

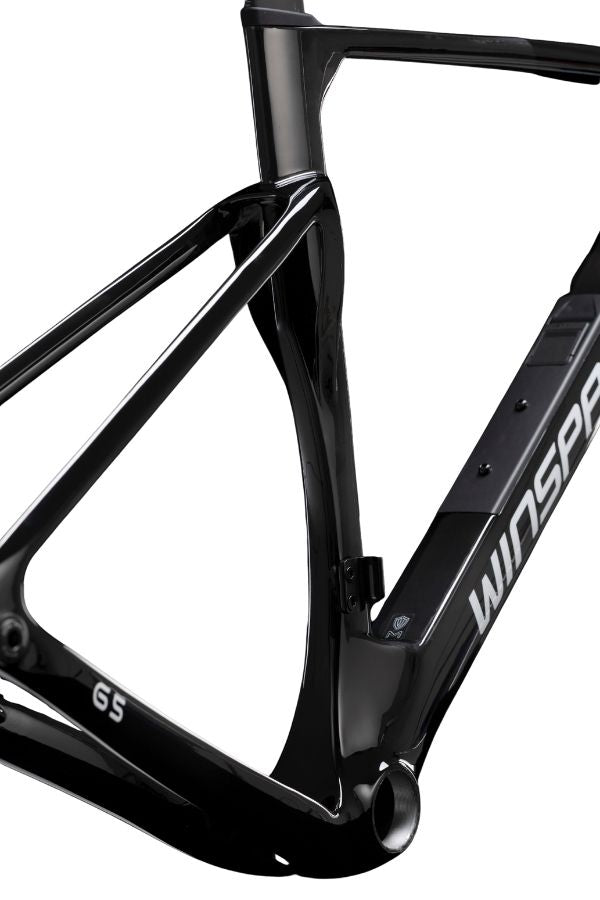

Accommodates up to 57mm front / 52mm rear tires, with dropped seatstays for enhanced compliance and comfort on rough terrain.

Race & Adventure Ready

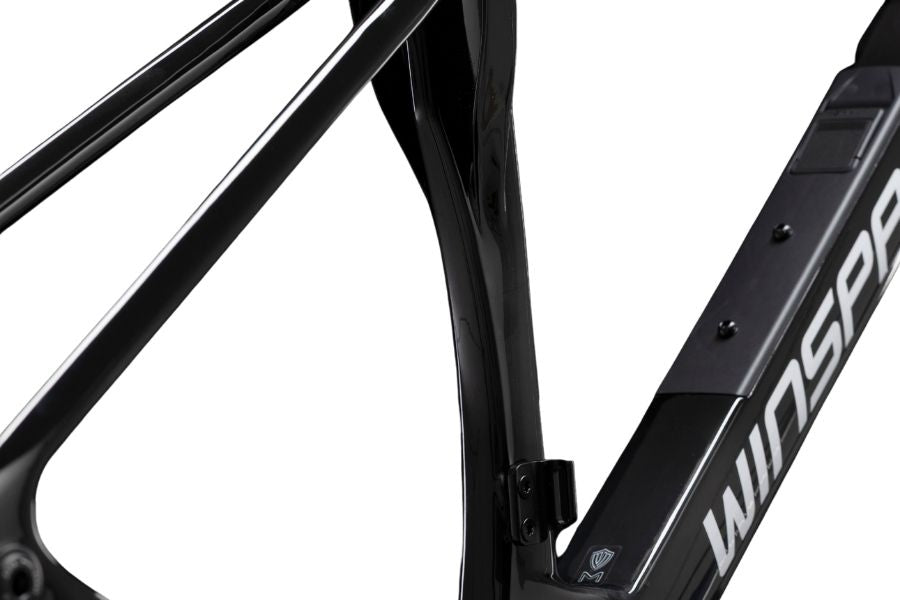

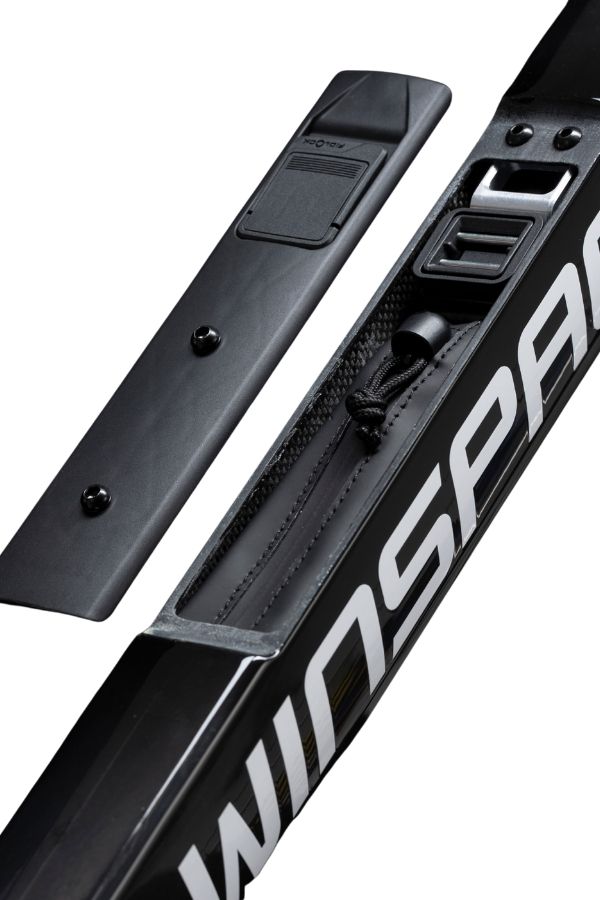

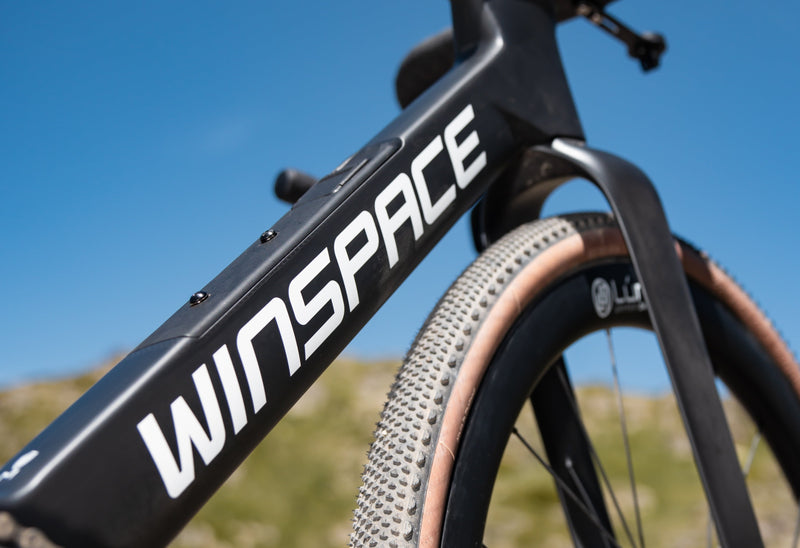

Universal Derailleur Hanger (UDH), T47 threaded bottom bracket, patented closed thru-axle fork, and integrated FIDLOCK magnetic storage box deliver reliability and convenience for racing and adventure.

The numbers

Geometry

Size	Seat tube	Stack	Reach	Top tube	Rider height
XS	440	531	367	524	155 to 163
S	460	544	375	536	163 to 171
M	480	561	383	549	171 to 179
L	510	578	391	562	179 to 186
XL	540	598	399	576	186 to 193
XXL	570	619	407	590	193 to 200

3 years frameset warranty

Open the full size chart Download Product Catalogue

Try before you buy

Deduct up to 7 days of rental from your new Winspace.

Built in Australia

Assembled and quality checked before it reaches you.

Local support

Servicing, parts and advice across Australia, for the life of the frame.

G5 · Frameset inc GST, before options
