FRAMESET

G3

Frameset

Build yours

Explore

What's included

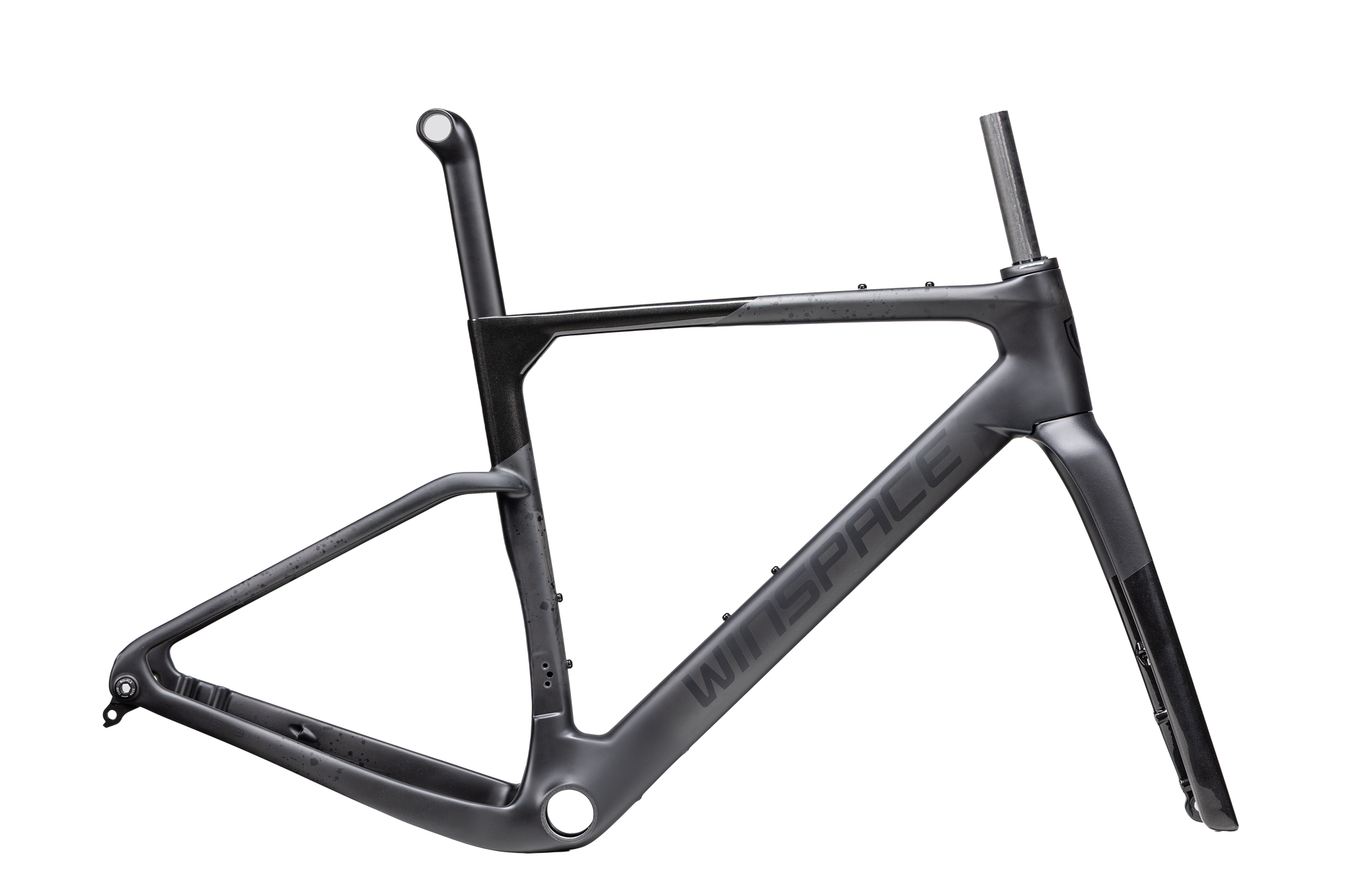

Frame, fork, headset, seatpost

Supplied together and matched, so the build starts the moment it arrives.

Frame G3 full carbon, Toray T700 + T800 + M40

Fork Full carbon

Headset 1-1/2 inch upper and lower, FSA ACR system

Seatpost Winspace carbon aero seatpost

Thru axle Front hub 100×12mm, rear hub 142×12mm

Tyre clearance 50mm

A Master Of All Terrain

Lightweight and aero-inspired, the G3 was built for both speed and endurance. It combines stiffness for efficient power transfer with compliance for comfort on rough terrain, ensuring confident handling across mixed surfaces.

50mm Tyre Clearance

With clearance for up to 50mm tyres, it gives riders the freedom to tackle more demanding gravel routes while maintaining agility and performance.

Built To Withstand

With enclosed thru-axles for added stiffness and cleaner aesthetics, a UDH hanger for crash protection, and integrated carbon disc brake mounts, the G3 is built to keep riders moving no matter the conditions.

Ready To Race & Explore

Fast where it counts, comfortable where it matters. The G3 pairs aerodynamic shaping and fully internal cable routing with a T47 threaded bottom bracket and dropped chainstays - the kind of details that hold up on race day and multi-day bikepacking adventures.

The numbers

Geometry

Size	Seat tube	Stack	Reach	Top tube	Rider height
XS	440	539	363	523	155 to 163
S	460	551	370	533	163 to 171
M	480	568	377	545	171 to 179
L	510	582	388	560	179 to 186
XL	540	601	399	577	186 to 193

3 years frameset warranty

Open the full size chart Download Product Catalogue

Try before you buy

Deduct up to 7 days of rental from your new Winspace.

Built in Australia

Assembled and quality checked before it reaches you.

Local support

Servicing, parts and advice across Australia, for the life of the frame.
