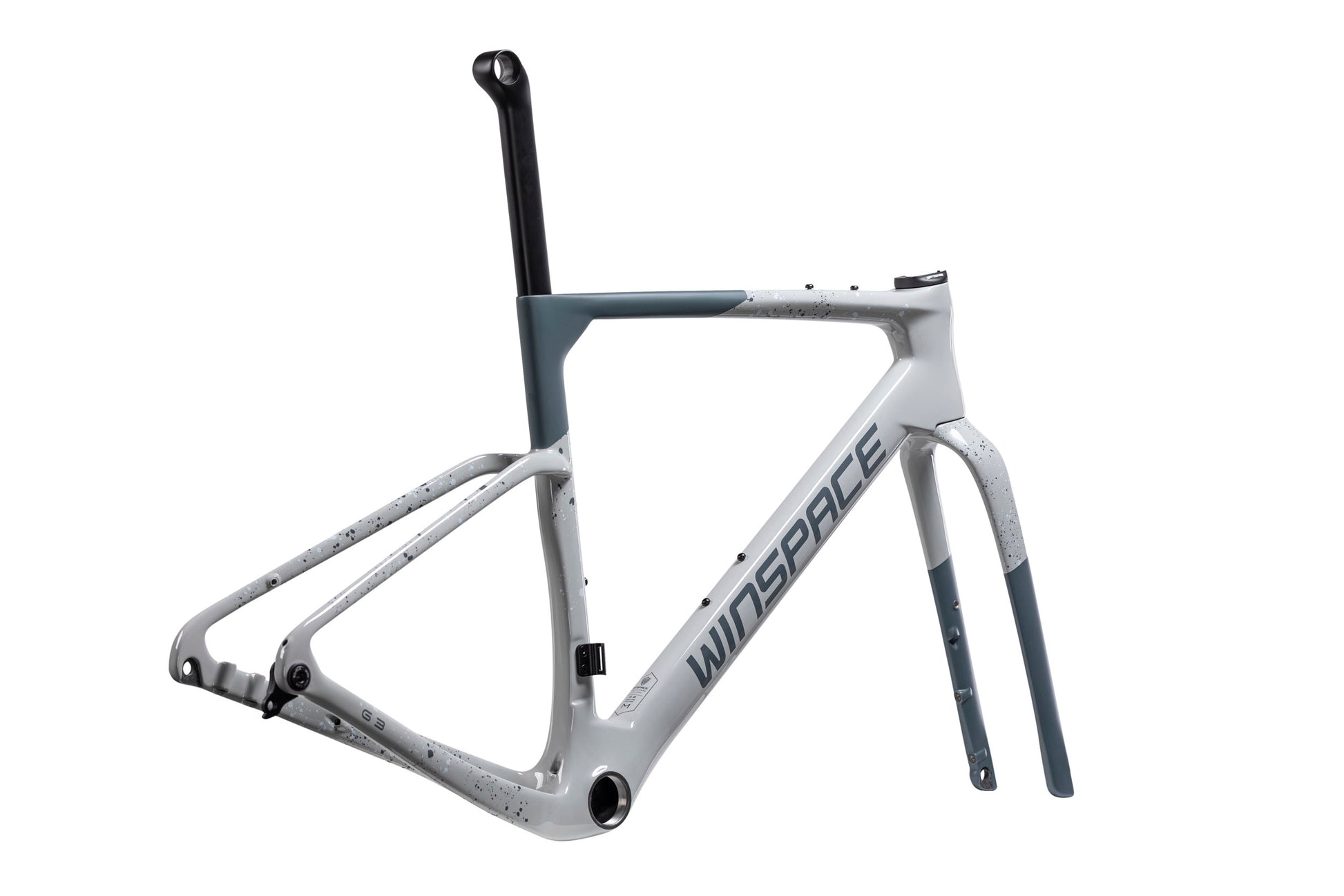

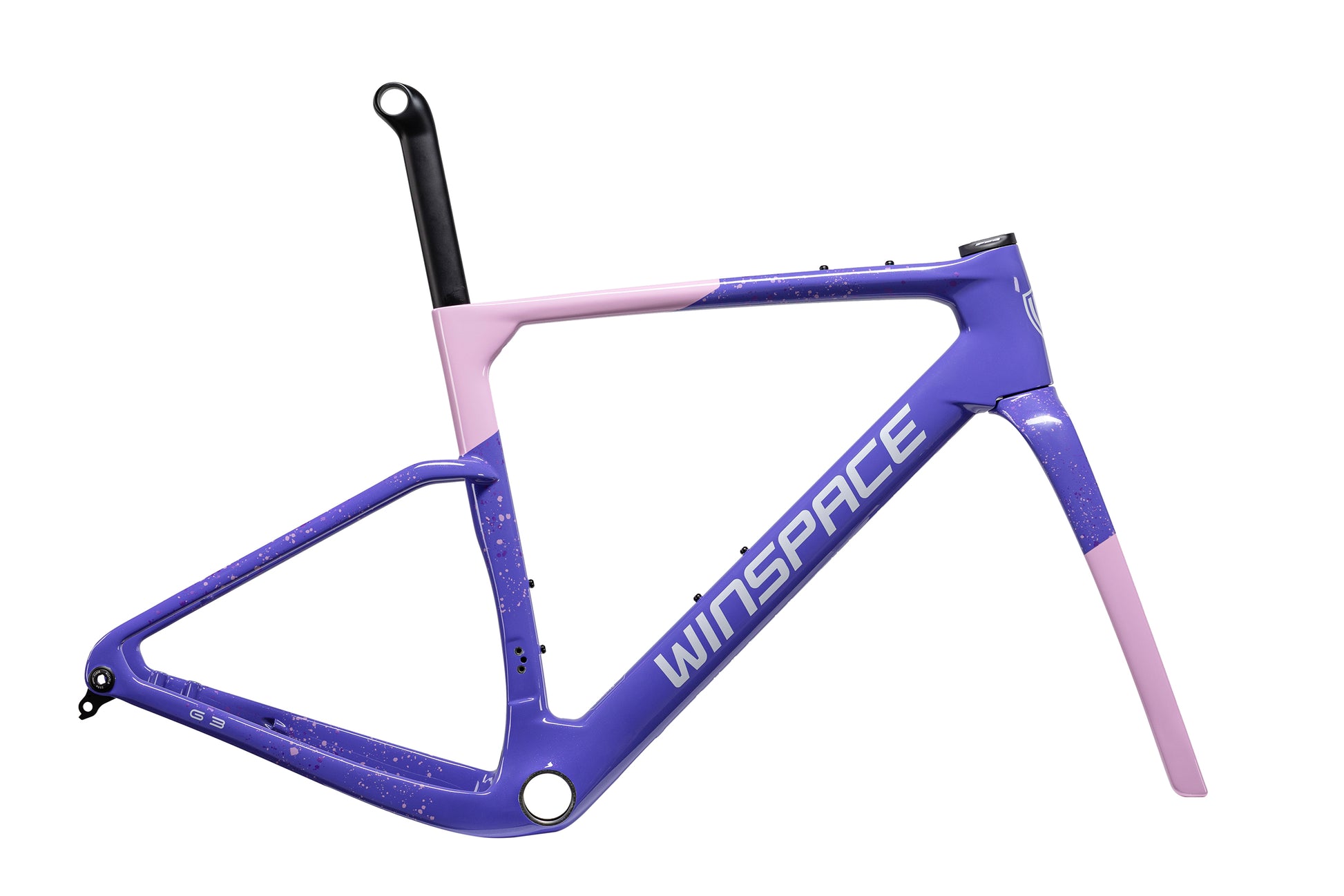

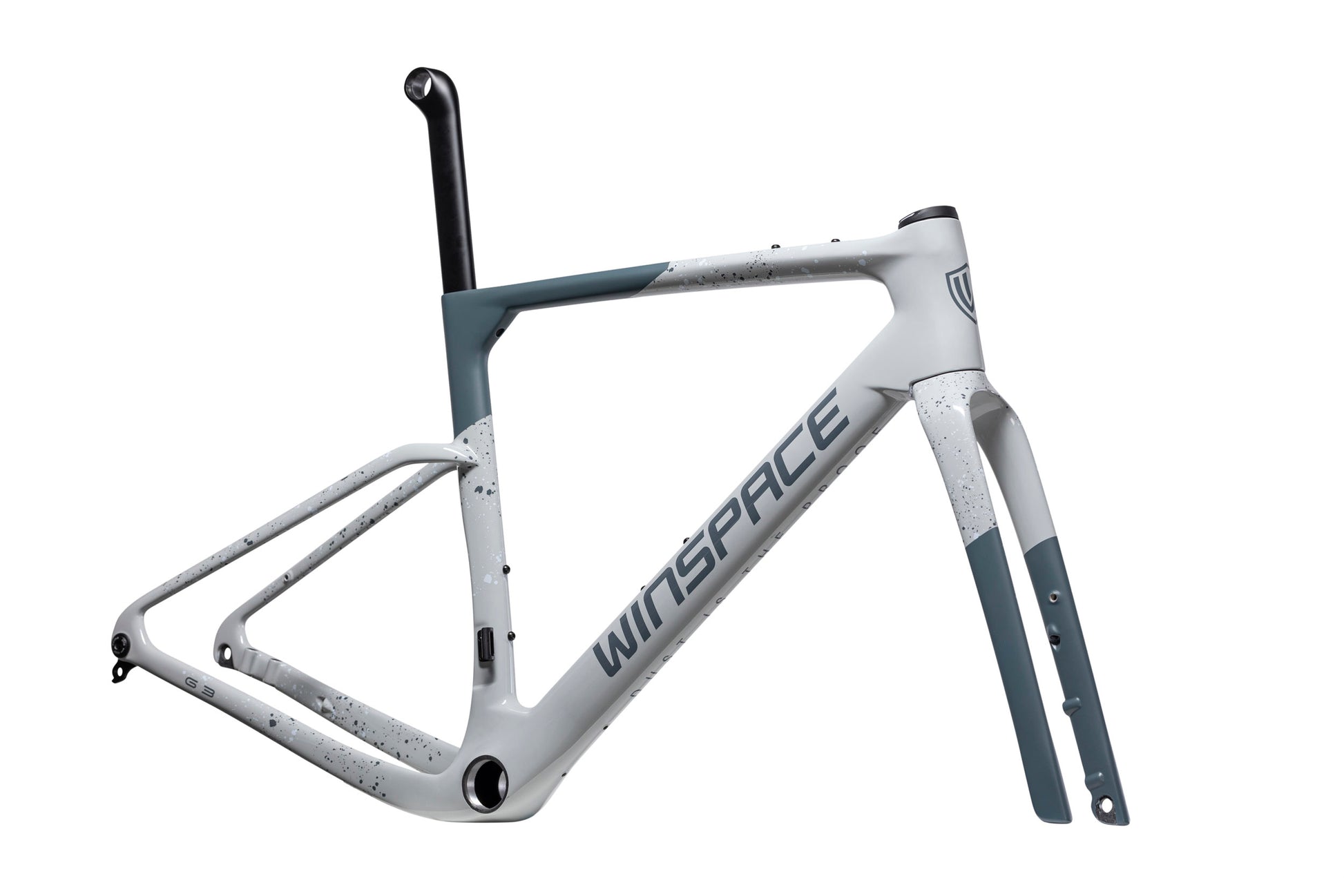

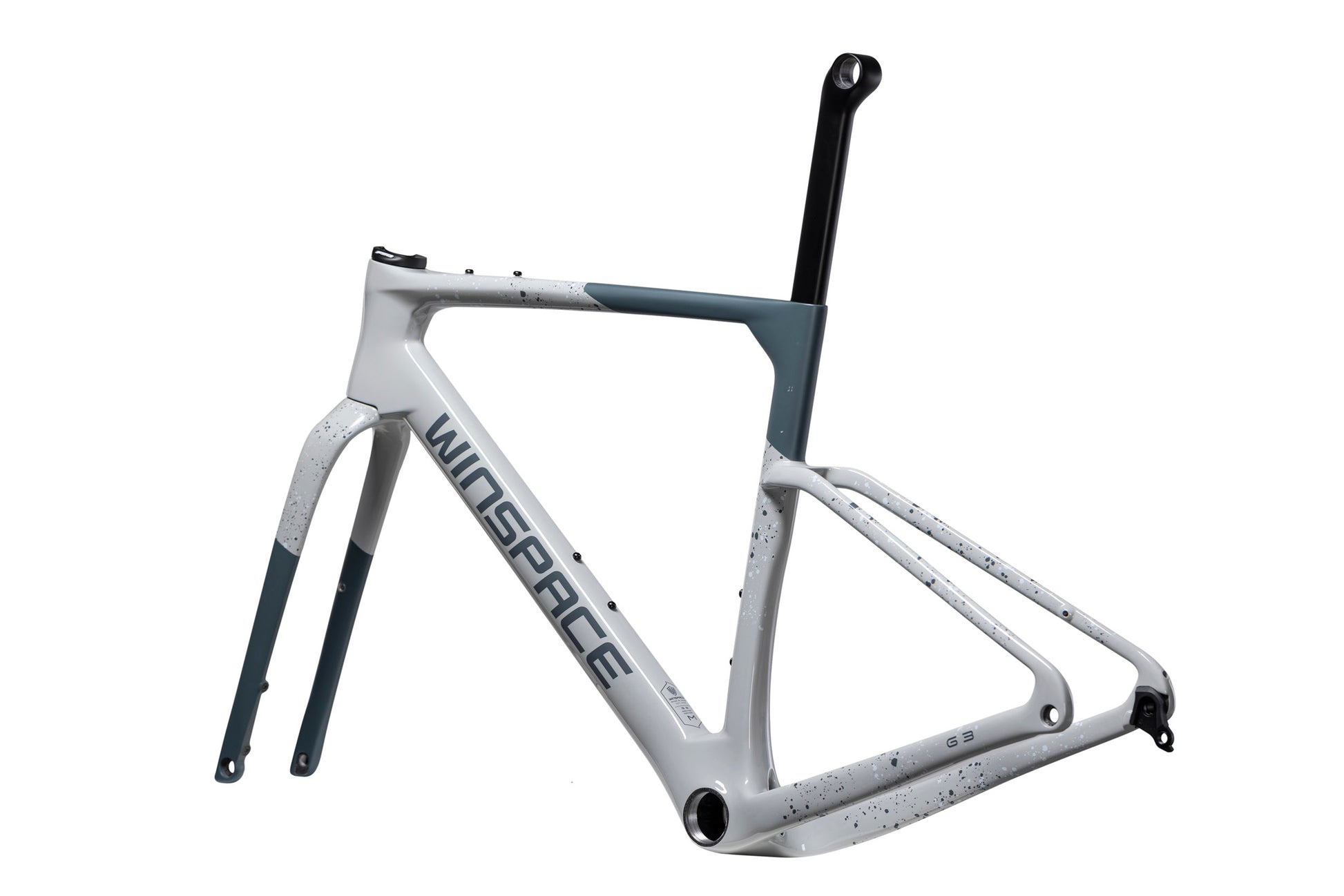

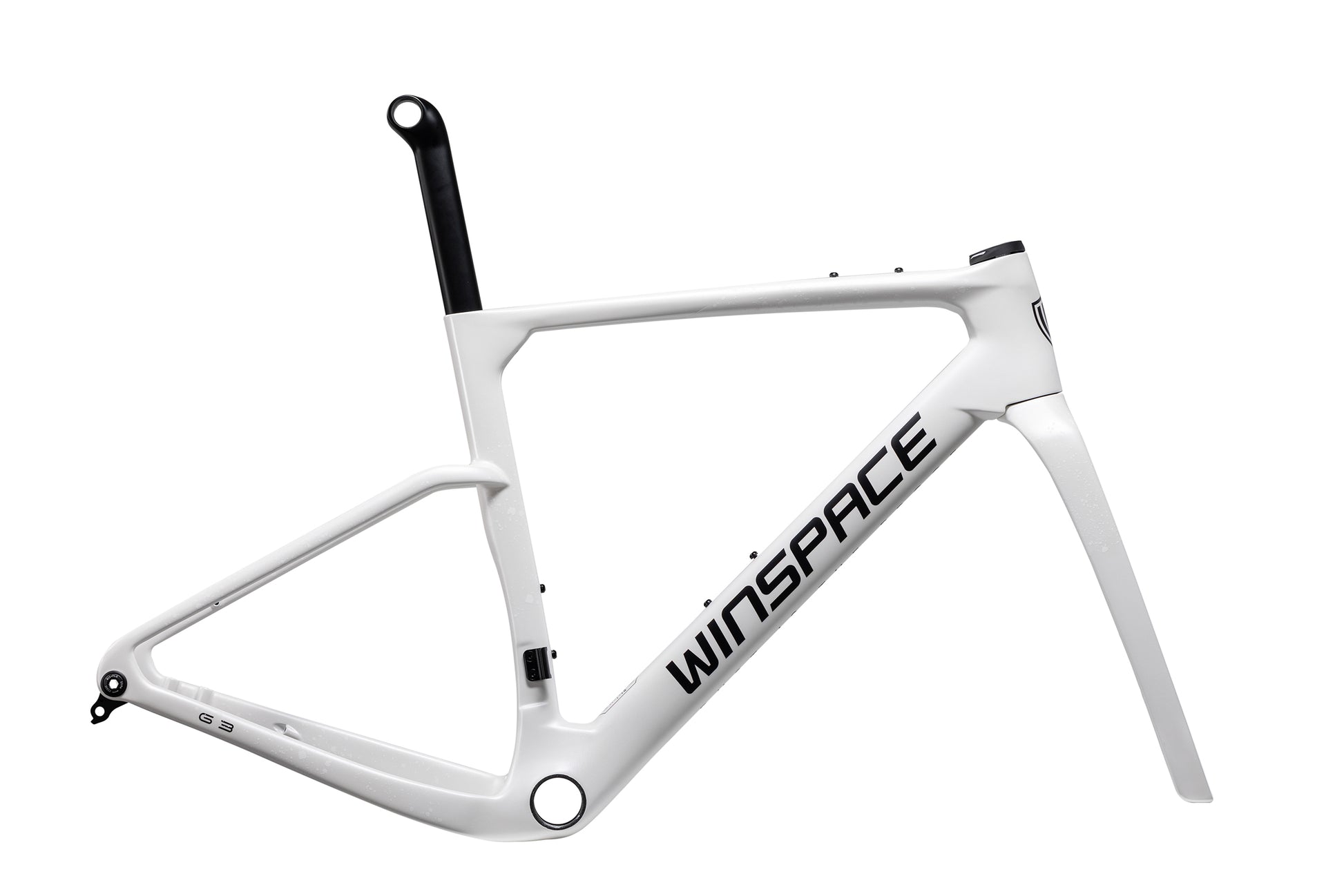

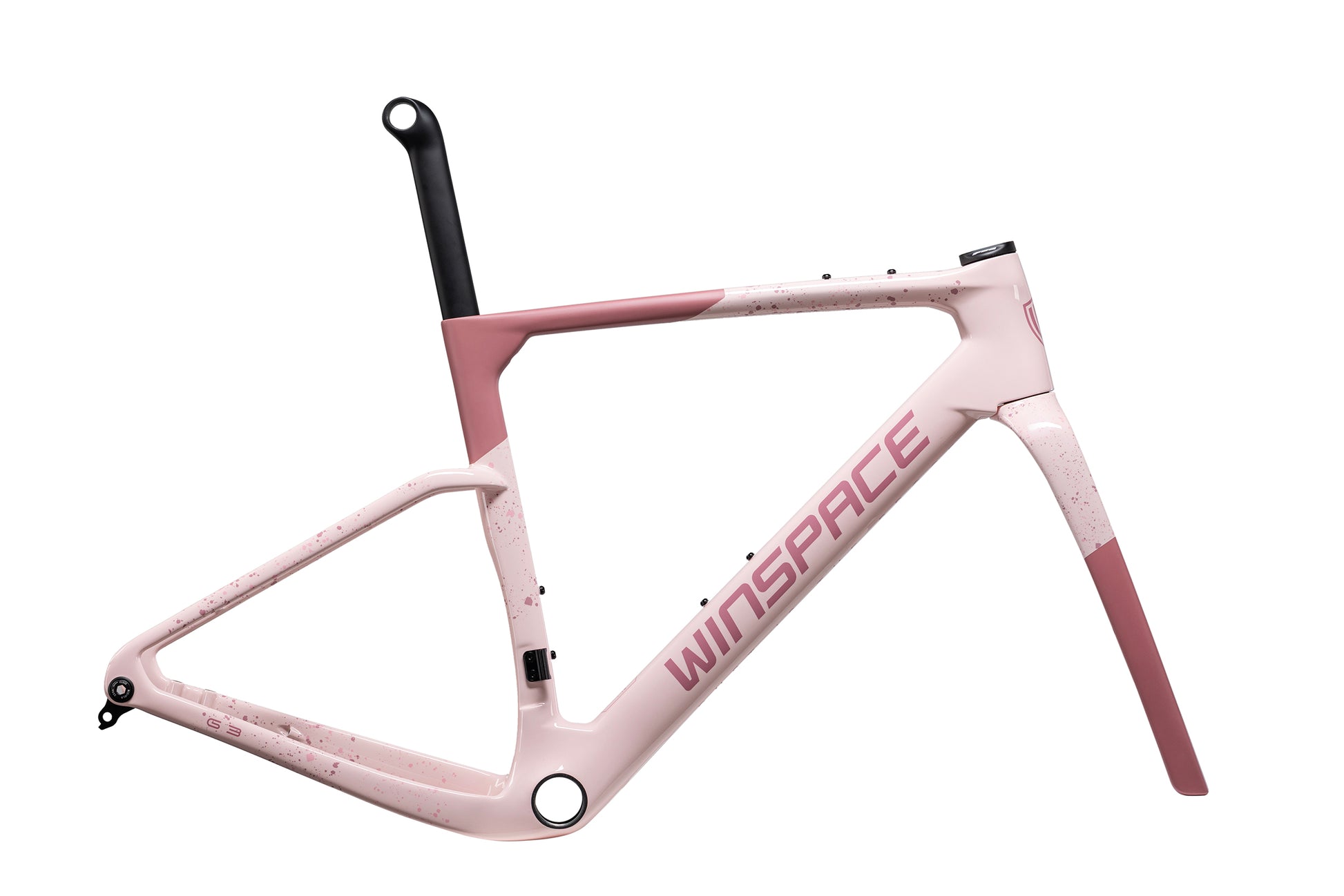

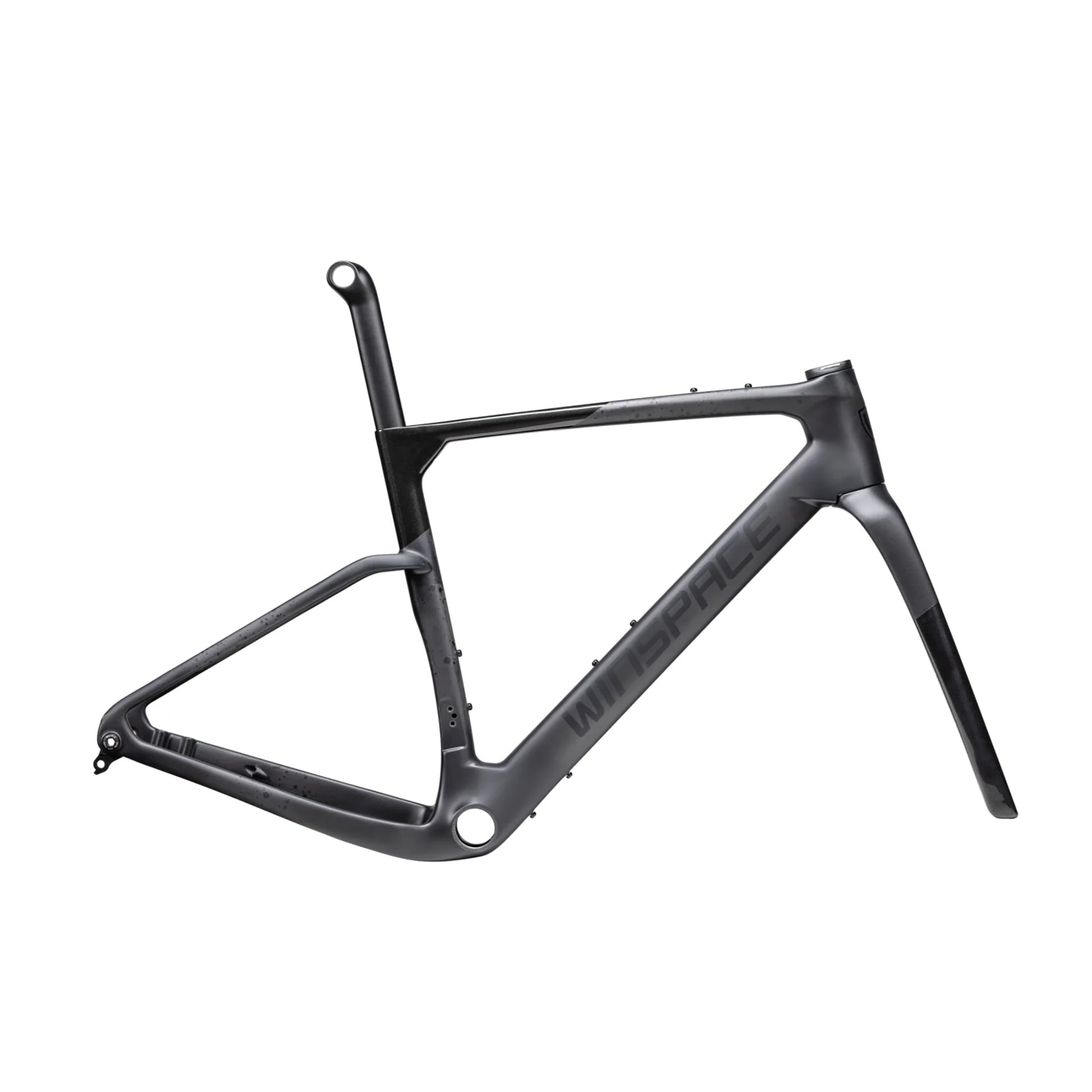

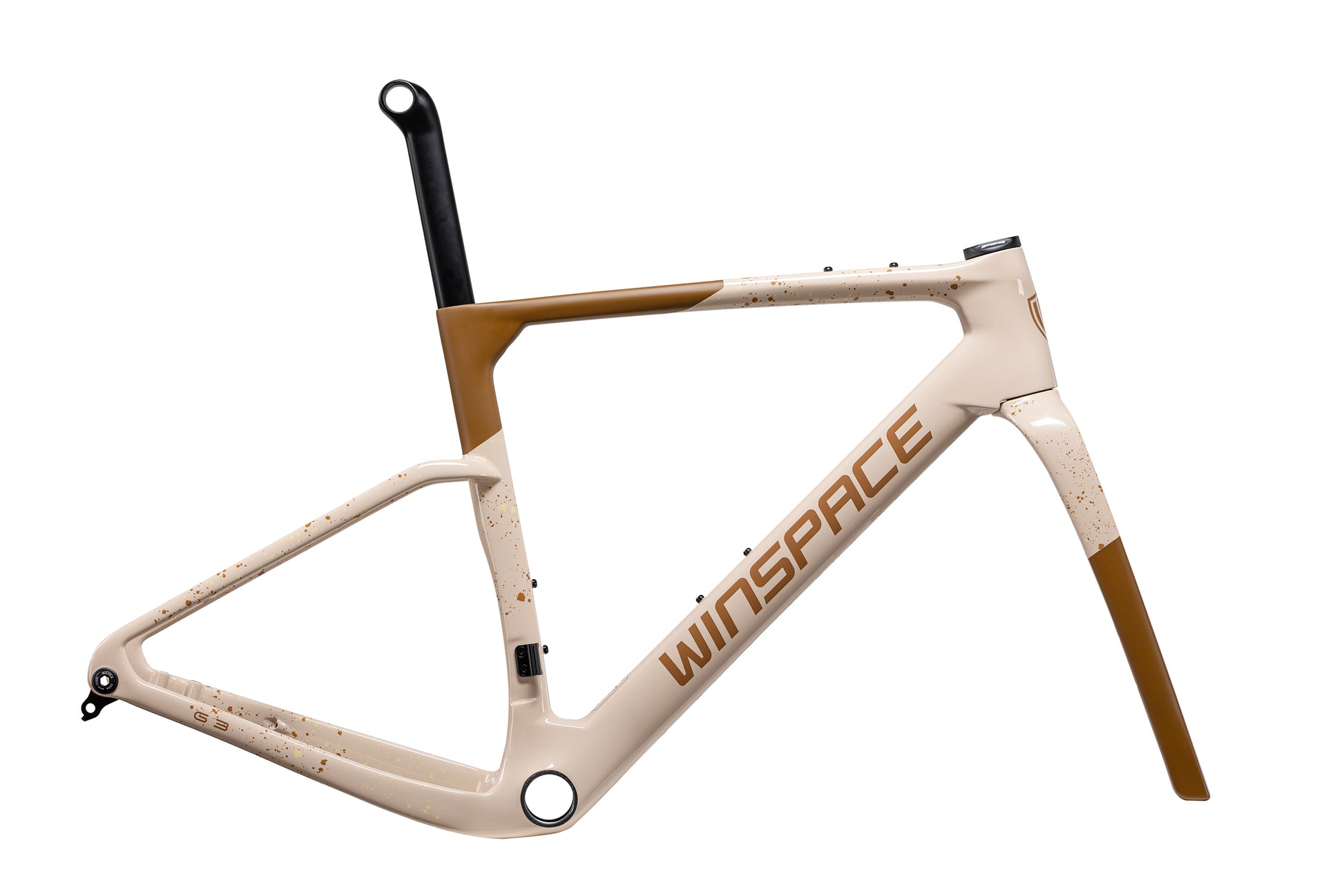

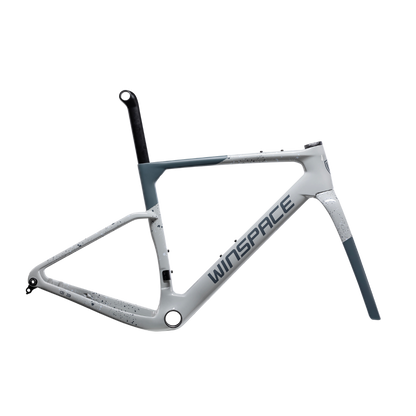

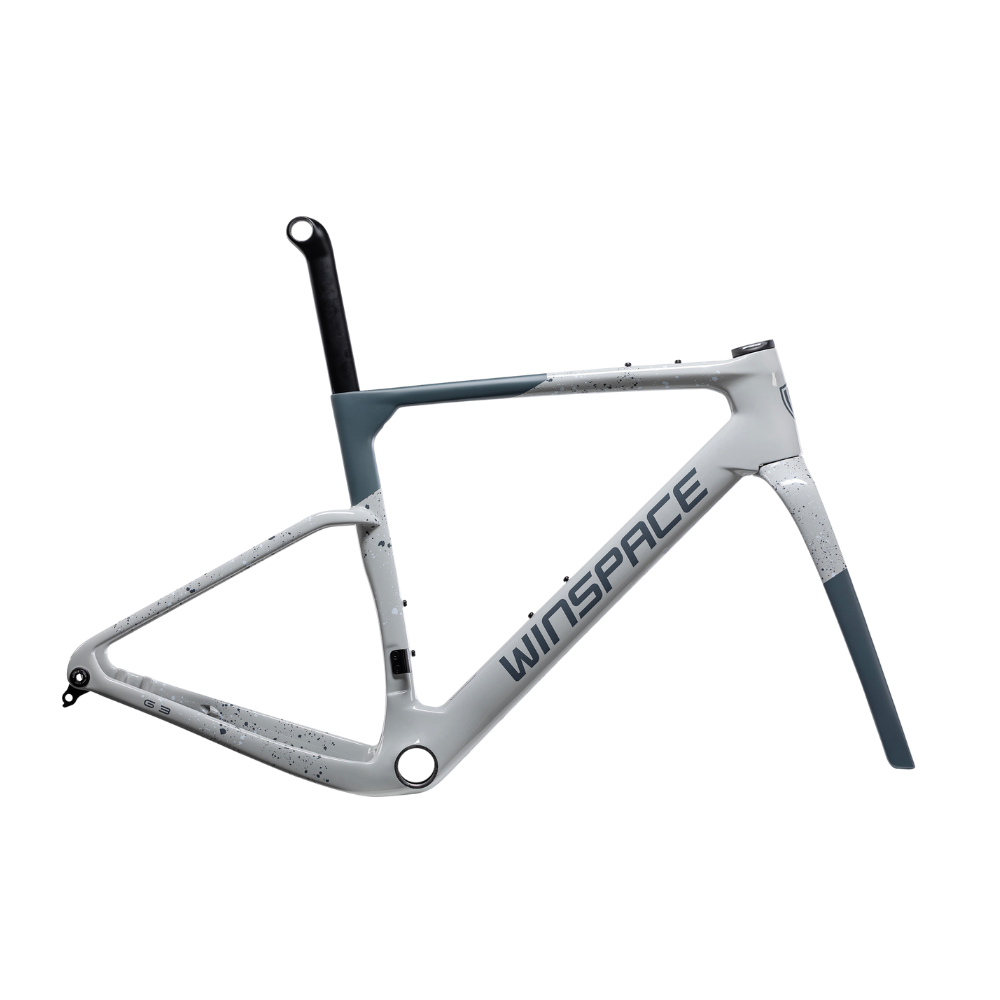

Winspace G3 Gravel Frameset

Winspace G3 Gravel Frameset

$2,299.00 AUD
$2,499.00 AUD $2,299.00 AUD
Sale Sold out
Shipping calculated at checkout.
Discipline: Gravel
Max tyre width: 50mm

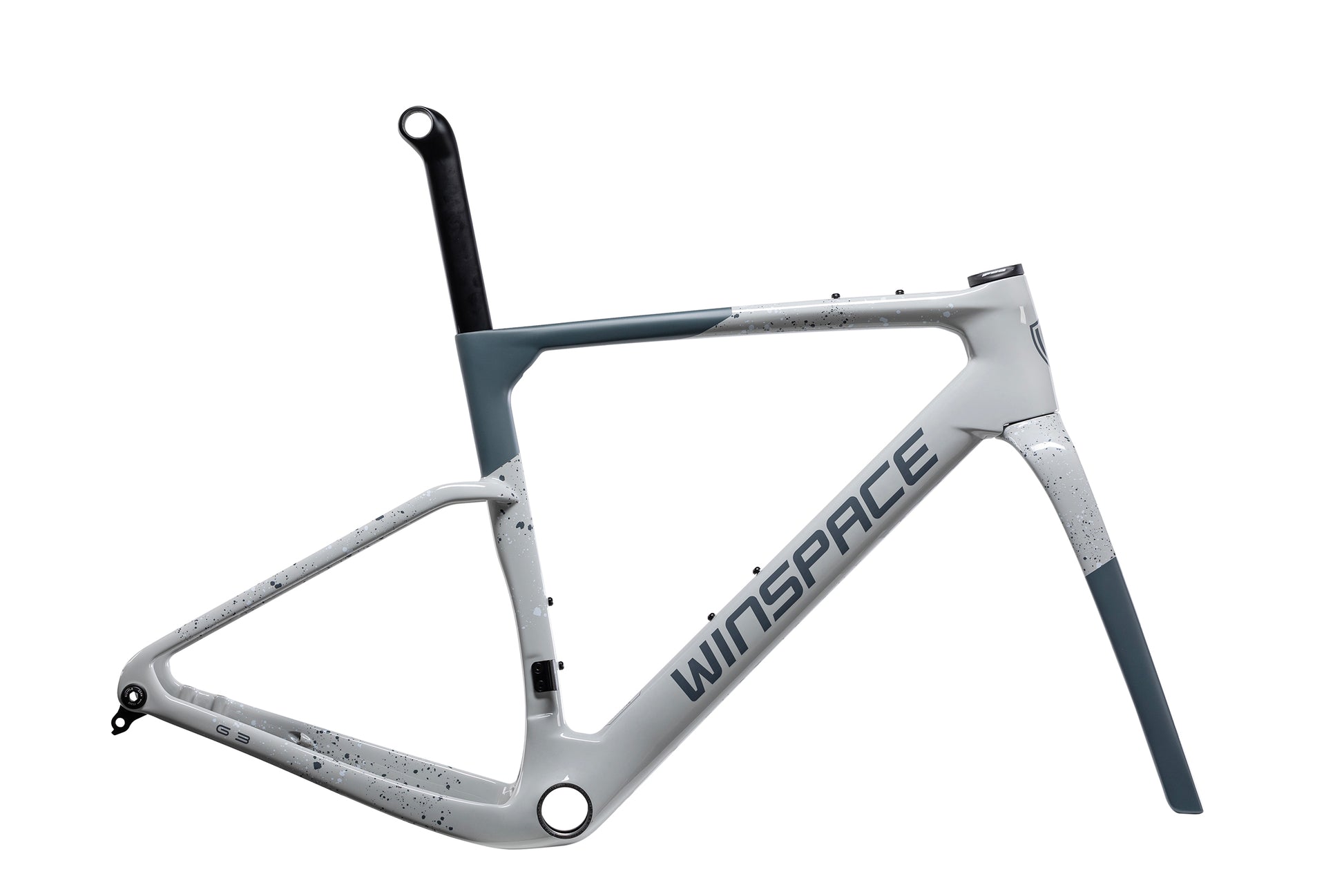

Color: Lunar Grey
Configure

Product Downloads

View full details

Description

The G3 Gravel Bike is a lightweight, aero-inspired gravel frame built for both speed and endurance.

It combines stiffness for efficient power transfer with compliance for comfort on rough terrain, ensuring confident handling across mixed surfaces.

With clearance for up to 50mm tires, it gives riders the freedom to tackle more demanding gravel routes while maintaining agility and performance.

Specifications

Sizes: XS/S/M/L/XL (440/460/480/510/540)

Carbon Fiber Grade: T700 + T800 + M40

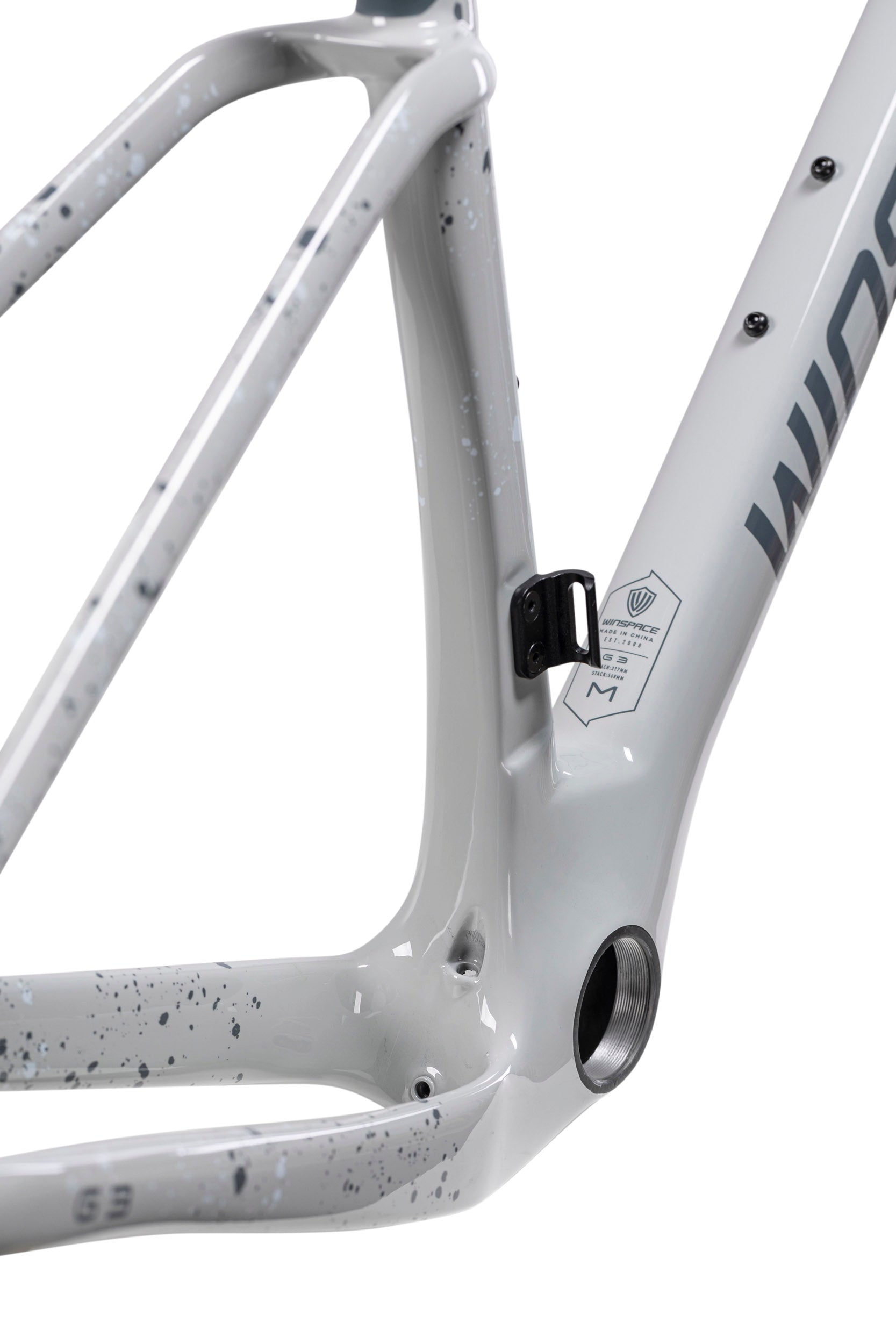

Bottom Bracket (BB): T47-68

Seatpost: Aero

Brake Type: Flat Mount Disc Brake

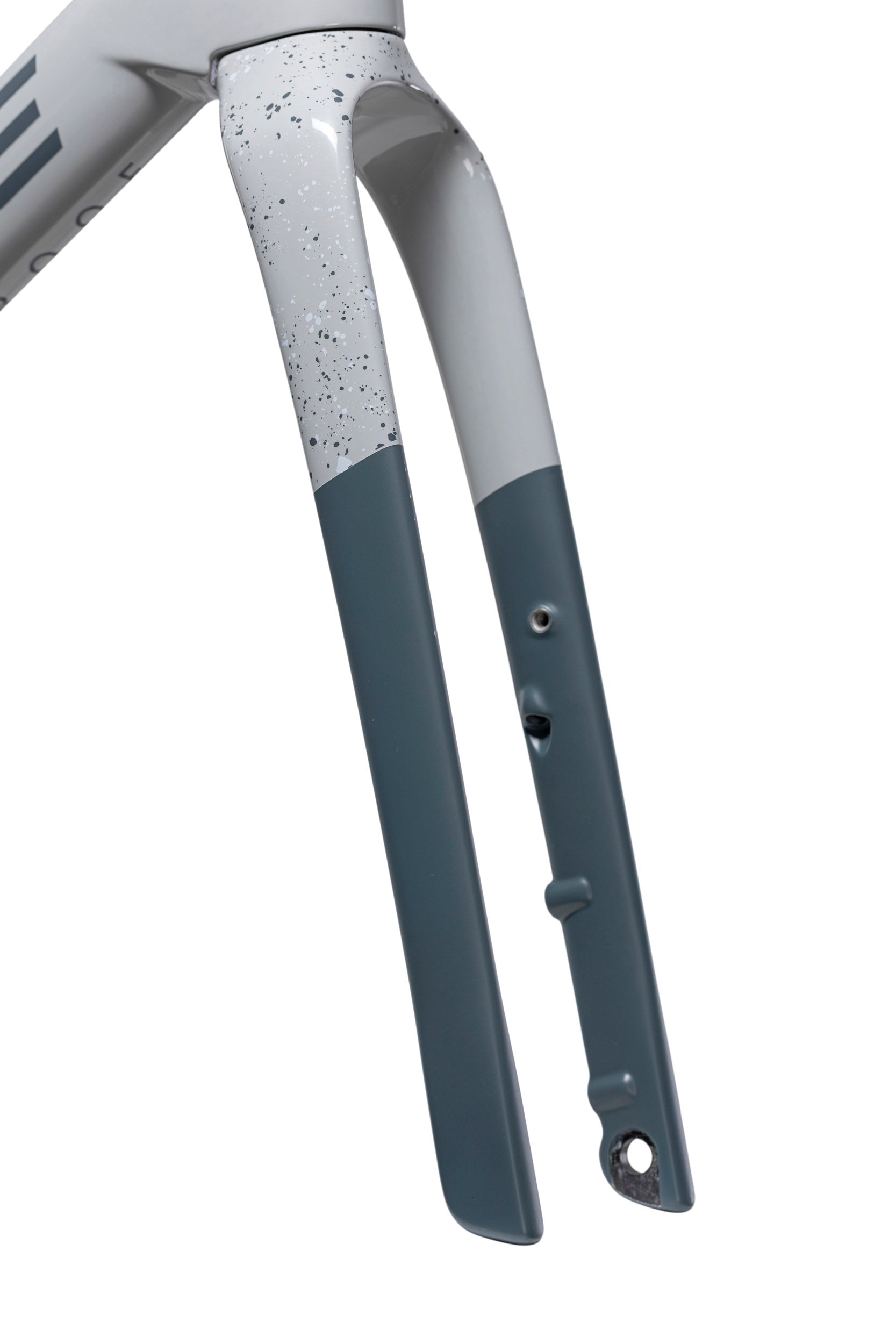

Axle Spacing: Front: 100mm & Rear: 142mm

Thru-Axle Dimensions: Front: M12P1.0114L & Rear: M12P1.0163L

Max Tire Clearance: 700x50C

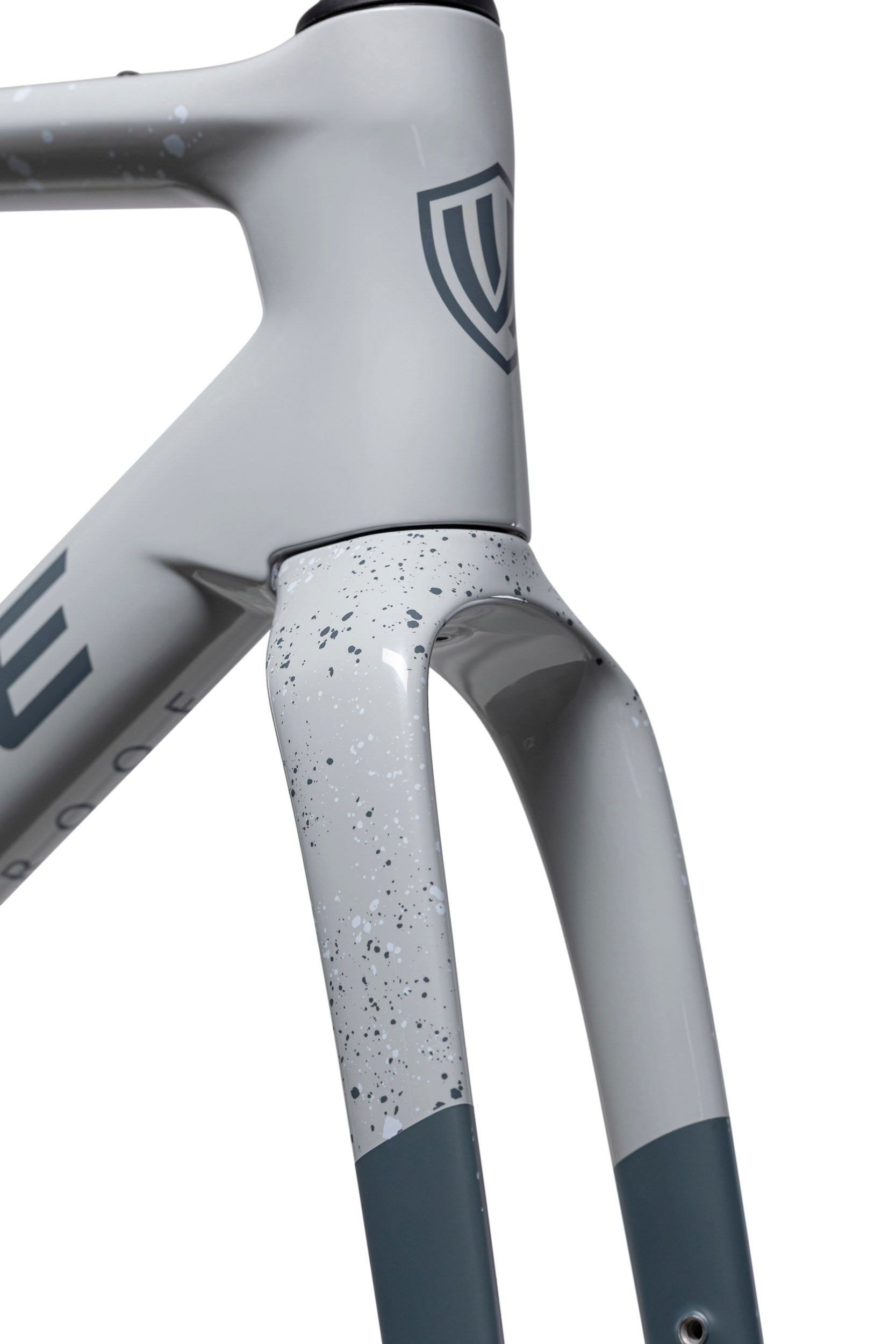

Headset: 1-1/2" / 1-1/2" (FSA ACR system)

Cable Routing: Internal

Raw Weight (approximate): Frame (M size): 950g, Fork: 450g, 360mm Seatpost: 130g

Finish: UD

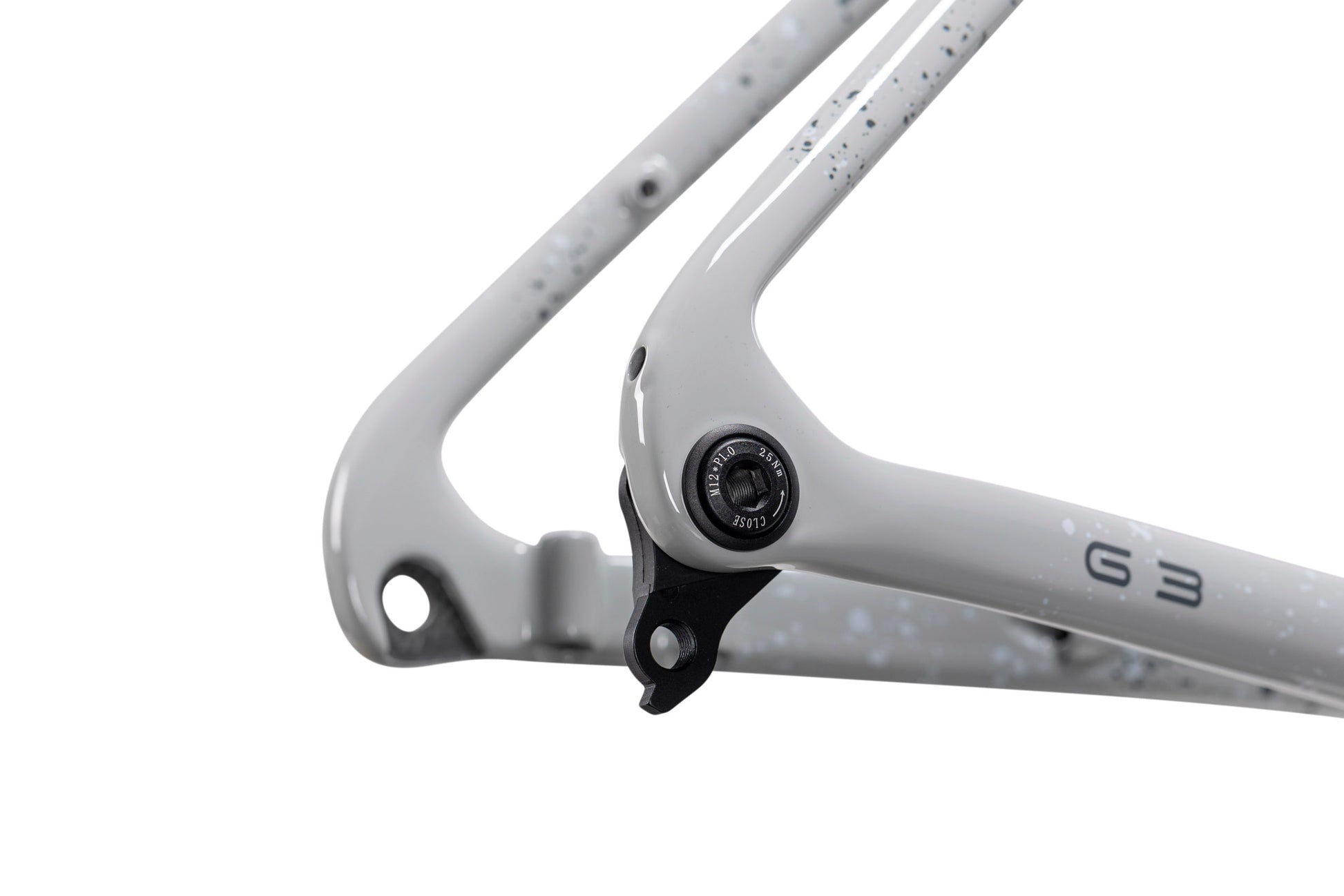

Derailleur Hanger: UDH
