GRAVEL

G3

SRAM Red XPLR AXS

Build yours

Explore

SCROLL

T800 T700, T800 and M40 carbon

13-speed SRAM Red XPLR, 1x

50 mm Max tyre clearance

T47 Threaded bottom bracket

Get it right from the first ride.

Every bike is built to order.

Build your new bike to your exact specs. No more buying stock bikes and needing to make changes and adjustments.

01 · Size and colour

Five sizes, four colours

Reach first geometry. Bars and stem are sized to you in the builder.

Size

XSSMLXL

Colour

Get started in the bike builder to select your options.

Start building

02 · Wheels

Three wheelsets

Lún Gryper2 to Lún Grapid. Depth and finish are chosen in the builder.

Lún Gryper2

Lún Gryper

Lún Grapid

Get started in the bike builder to select your options.

Start building

03 · Drivetrain

SRAM Red E1 XPLR AXS

Electronic 13-speed 1x, hydraulic disc.

Chainrings: Standard 38T to 46T, Aero 44T to 50T
Cranks: 160 to 175mm
Cassette: XPLR 10-46, 13-speed

Get started in the bike builder to select your options.

Start building

04 · Cockpit

Carbon bars and saddles

Bar width, stem length are your choice of 3D printed carbon saddle.

Legit Adventure

Get started in the bike builder to select your options.

Start building

A Master Of All Terrain

Lightweight and aero-inspired, the G3 was built for both speed and endurance. It combines stiffness for efficient power transfer with compliance for comfort on rough terrain, ensuring confident handling across mixed surfaces.

50mm Tyre Clearance

With clearance for up to 50mm tyres, it gives riders the freedom to tackle more demanding gravel routes while maintaining agility and performance.

Built To Withstand

With enclosed thru-axles for added stiffness and cleaner aesthetics, a UDH hanger for crash protection, and integrated carbon disc brake mounts, the G3 is built to keep riders moving no matter the conditions.

Ready To Race & Explore

Fast where it counts, comfortable where it matters. The G3 pairs aerodynamic shaping and fully internal cable routing with a T47 threaded bottom bracket and dropped chainstays - the kind of details that hold up on race day and multi-day bikepacking adventures.

Every angle

Take a closer look

The detail

Specification and geometry

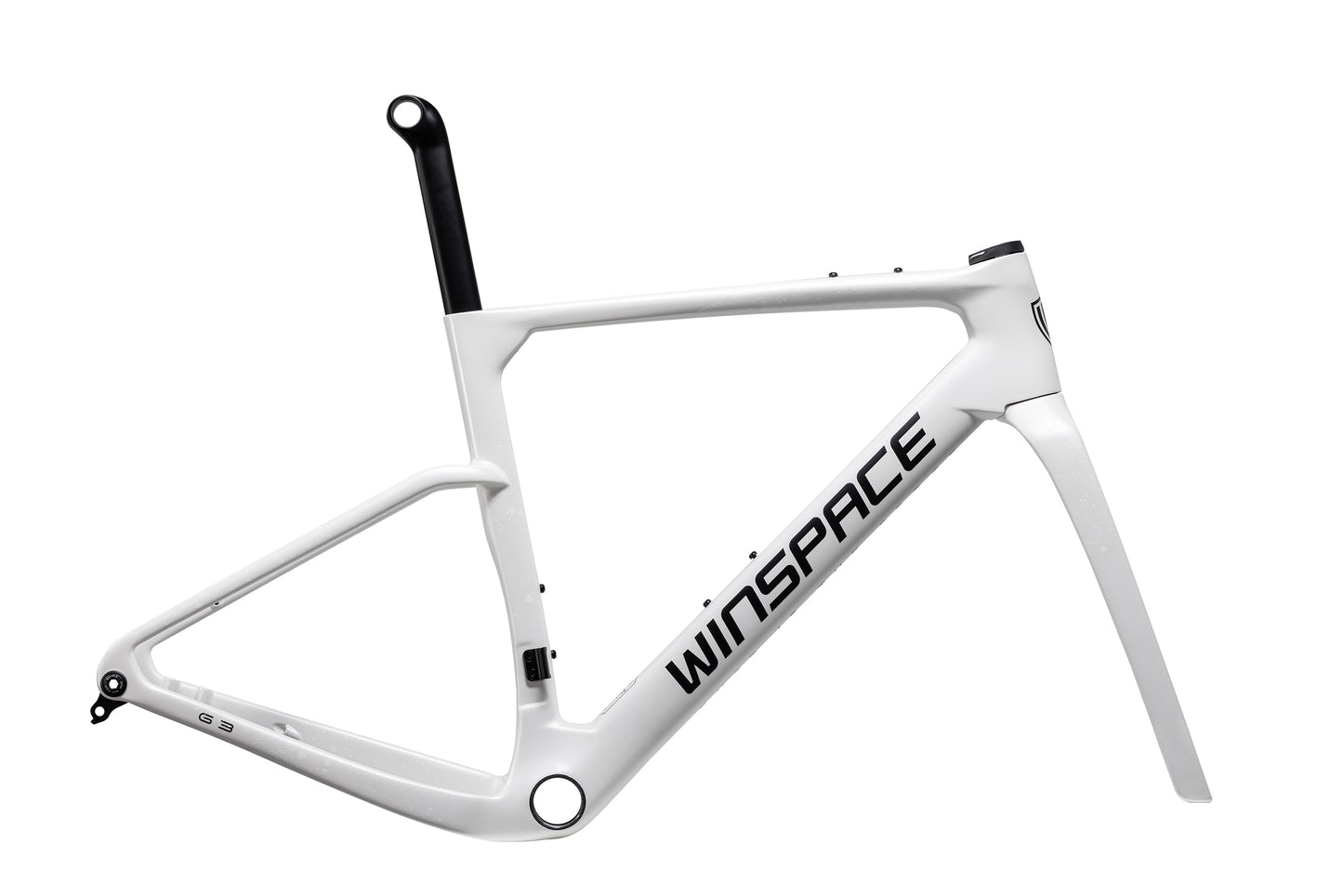

Frame: G3 full carbon, Toray T700 + T800 + M40
Fork: Full carbon
Headset: 1-1/2 inch upper and lower, FSA ACR system
Groupset: SRAM Red E1 XPLR AXS, 13-speed, hydraulic disc
Chainrings: Standard 38T · 40T · 42T · 44T · 46T, Aero 44T · 46T · 48T · 50T
Cranks: 160 · 165 · 167.5 · 170 · 172.5 · 175mm
Cassette: XPLR 10-46, 13-speed
Rotors: SRAM Centreline, 160mm
Cockpit: Legit Adventure gravel bar, carbon, flared
Seatpost: Winspace carbon aero seatpost
Saddle: TCP Aero Light or Flow, 3D printed carbon
Wheels: Lún Gryper2 · Lún Gryper · Lún Grapid
Bar tape: C2 Black
Bottom bracket: Wishbone ceramic
Warranty: Frameset 3 years · wheels 2 years · bars 1 year
Bar widths: 360 · 380 · 400 · 420 · 440mm
Stem lengths: 85 · 95 · 105 · 115 · 125 · 135mm

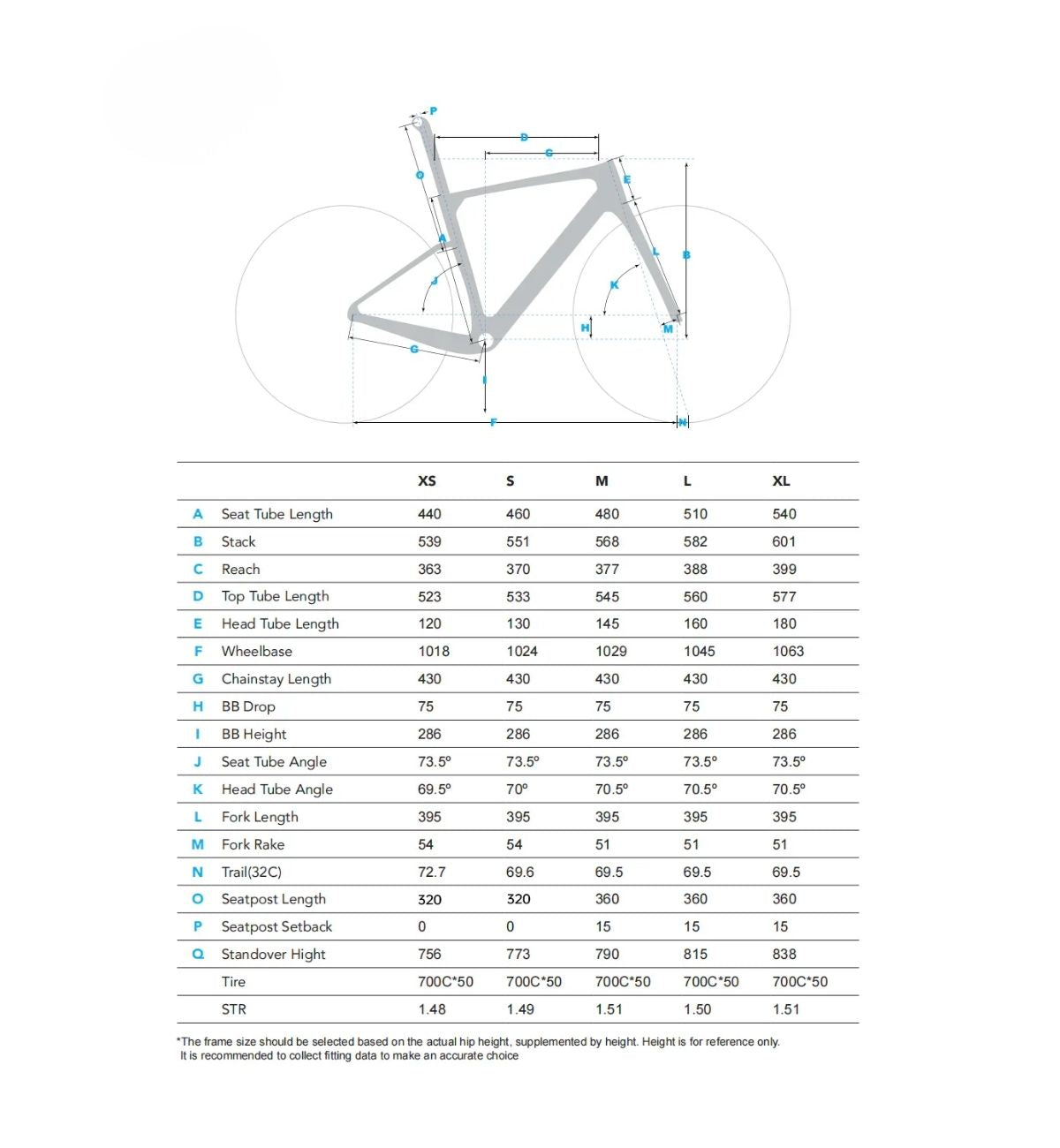

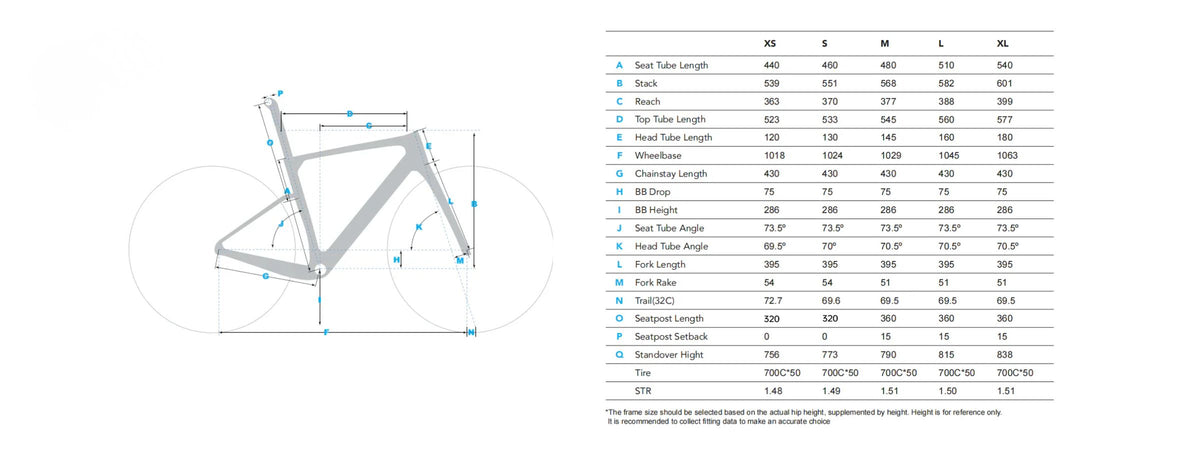

Size	Seat tube	Stack	Reach	Top tube	Rider height
XS	440	539	363	523	155 to 163
S	460	551	370	533	163 to 171
M	480	568	377	545	171 to 179
L	510	582	388	560	179 to 186
XL	540	601	399	577	186 to 193

Open the full size chart

Download Product Catalogue

Try before you buy

Deduct up to 7 days of rental from your new Winspace by boooking a demo ride with pur partner, BikeRental.cc.

Book a rental →

Built to order in Australia

Assembled and quality checked at our Ultimo HQ, delivered to your door or ready for collection. Or, one of our local partners can build it for you closer to home.

Local support

Servicing, parts and advice across Australia. No matter how long you've had your bike for, we're here to help.

G3 · SRAM Red XPLR AXS

Your colour. Your fit. Your wheels.

Around ten minutes in the builder, and every choice is priced as you make it.

Build yours

G3 · SRAM Red XPLR AXS inc GST, before options

Build yours
