FRAMESET

T1600

Frameset

Build yours

Explore

What's included

Frame, fork, headset, seatpost

Supplied together and matched, so the build starts the moment it arrives.

Frame T1600 Toray T800 + T1000 + T1100 carbon with Kevlar reinforcement

Fork Full carbon

Headset 1-1/2 inch upper and lower, FSA ACR system

Seatpost Winspace carbon aero seatpost

Thru axle Front hub 100×12mm, rear hub 142×12mm

Tyre clearance 32mm

RAZOR SHARP AERODYNAMICS

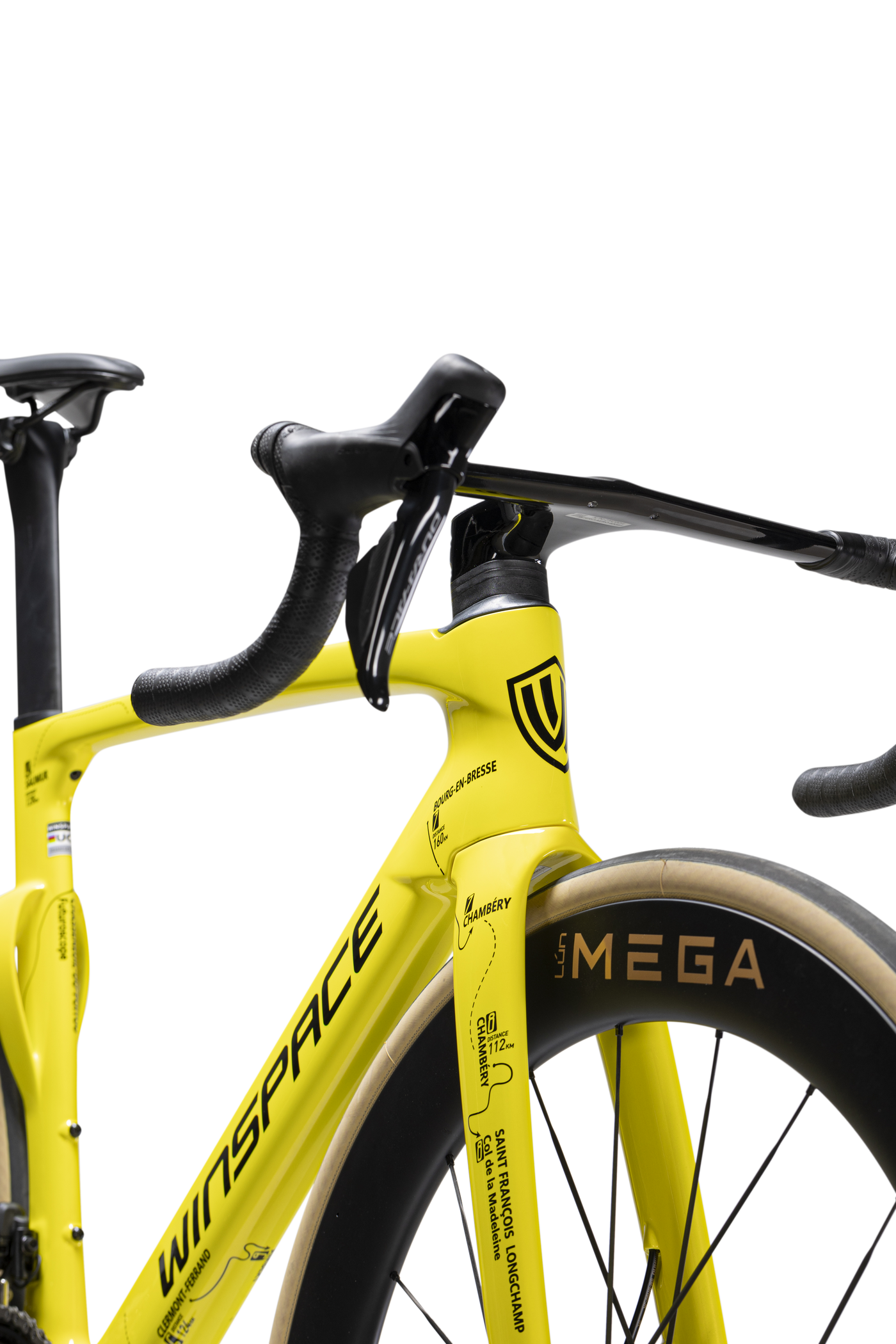

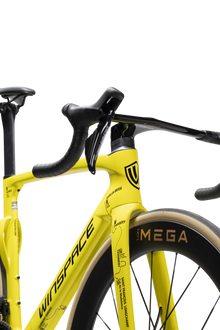

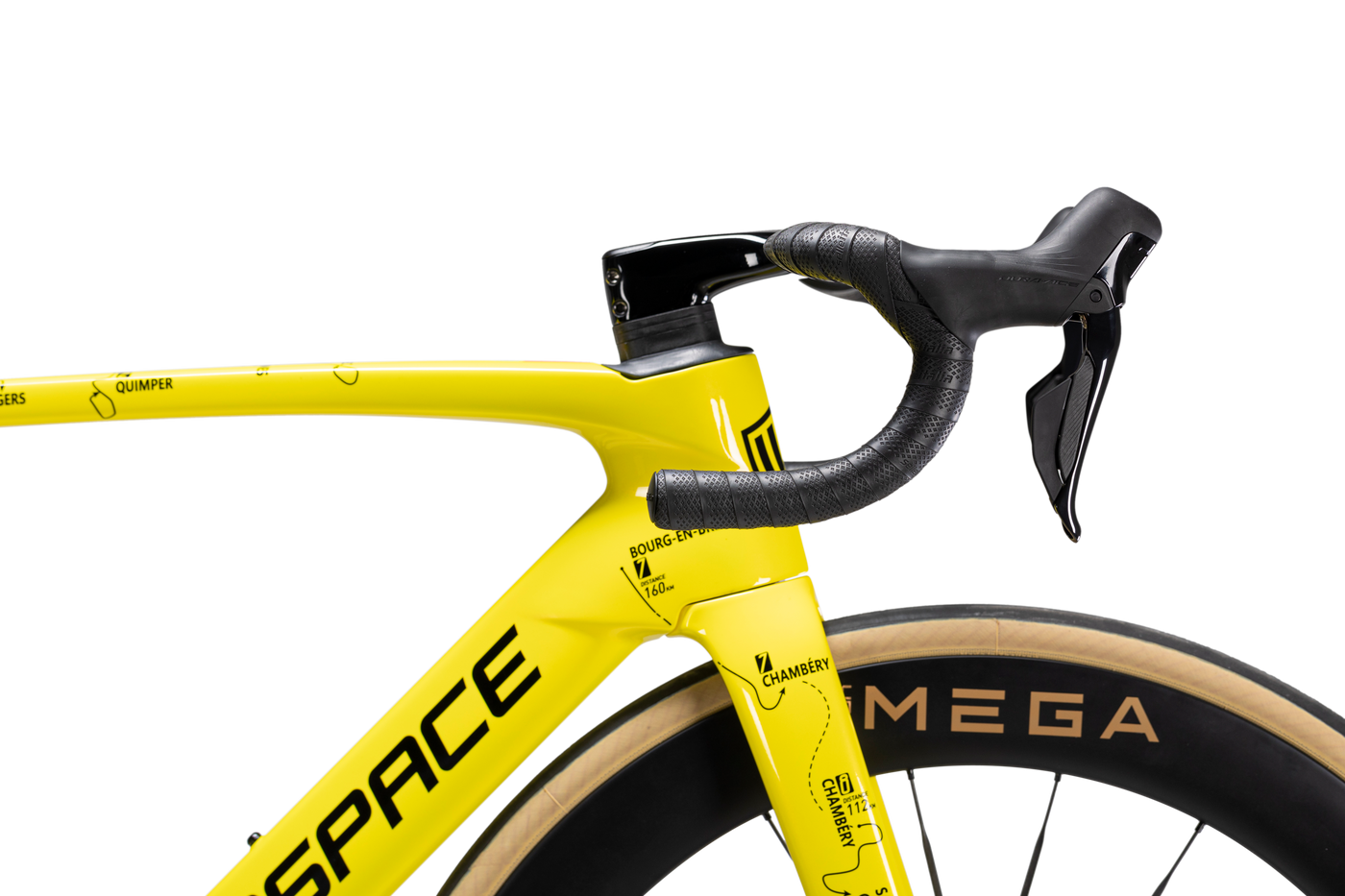

Jet-inspired head tube

Inspired by the nosecone of a supersonic aircraft, the ultra-narrow head tube slices through the wind with minimal frontal drag, for a clear advantage in breakaways and sprints.

AERO DOWNFORCE AND EFFICIENCY

D-Type intake, ultra-slim seatpost

Sculpted fairing and aerodynamic tailfin create a D-shaped airflow, adding efficiency and downforce at speed.

LIGHT AND FAST

A 900g frame

High-modulus carbon and precision layup bring the frame in at 900g, with the structure optimised for stiffness and strength so acceleration never comes at the cost of durability.

BACKED BY DATA

Wind tunnel proven

In wind tunnel testing the T1600 saved an average of 5.5 watts at 48km/h over 100km compared with the previous generation T1550. Real-world performance, proven by science.

The numbers

Geometry

Size	Seat tube	Stack	Reach	Rider height
XS	440	500	371	155 to 163
S	470	512	378	163 to 171
M	490	525	388	171 to 179
L	510	546	398	179 to 186
XL	540	566	413	186 to 193

3 years frameset warranty

Open the full size chart Download Product Catalogue

Try before you buy

Deduct up to 7 days of rental from your new Winspace.

Built in Australia

Assembled and quality checked before it reaches you.

Local support

Servicing, parts and advice across Australia, for the life of the frame.

T1600 · Frameset inc GST, before options
