FRAMESET

T1600 Ultra

Frameset

Build yours

Explore

What's included

Frame, fork, headset, seatpost

Supplied together and matched, so the build starts the moment it arrives.

Frame Premium Toray T1000 + T1100 carbon with Kevlar reinforcement

Fork Full carbon

Headset 1-1/2 inch upper and lower, FSA ACR system

Seatpost Winspace carbon aero seatpost

Thru axle Front hub 100×12mm, rear hub 142×12mm

Tyre clearance 32mm

All Speed, No Compromise

The brief was speed with no restrictions. Our engineers created a machine that sits outside of UCI regulations. It's unapologetically fast.

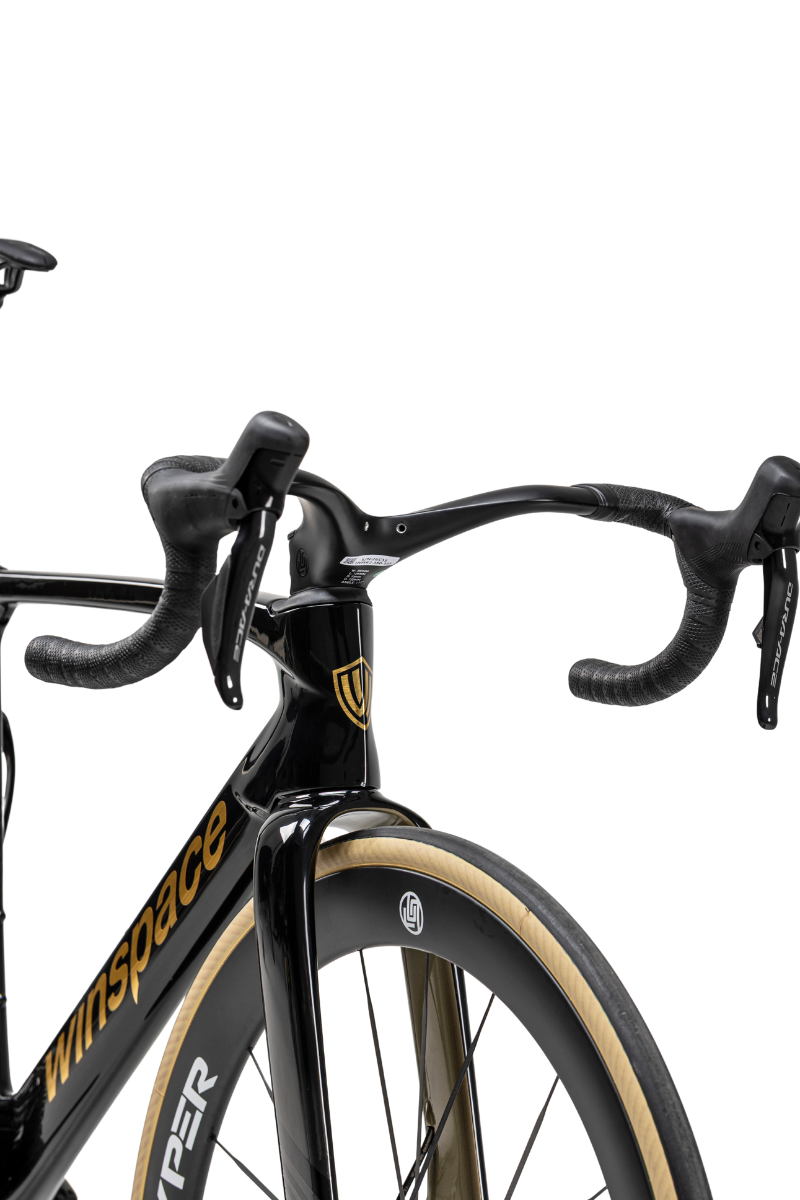

All-New Wide-Stance Fork

All-new wide-stance fork design drastically reduces turbulent airflow around the front wheel, delivering measurable aerodynamic gains while creating an aggressive, race-ready visual presence that commands attention.

D-Type Intake Aero System

The Ultra features our revolutionary D-Type Aero System, a breakthrough integration of head tube fairing and seat stay tailfin that creates a seamless airflow path over the entire frame.

Ultra-Thin Head Tube Profile

A razor-thin frontal area slices through headwinds like a fighter jet, minimising drag and maximising straight-line speed.

The numbers

Geometry

Size	Seat tube	Stack	Reach	Rider height
XS	440	500	371	155 to 163
S	470	512	378	163 to 171
M	490	525	388	171 to 179
L	510	546	398	179 to 186
XL	540	566	413	186 to 193

3 years frameset warranty

Open the full size chart Download Product Catalogue

Try before you buy

Deduct up to 7 days of rental from your new Winspace.

Built in Australia

Assembled and quality checked before it reaches you.

Local support

Servicing, parts and advice across Australia, for the life of the frame.
