Description

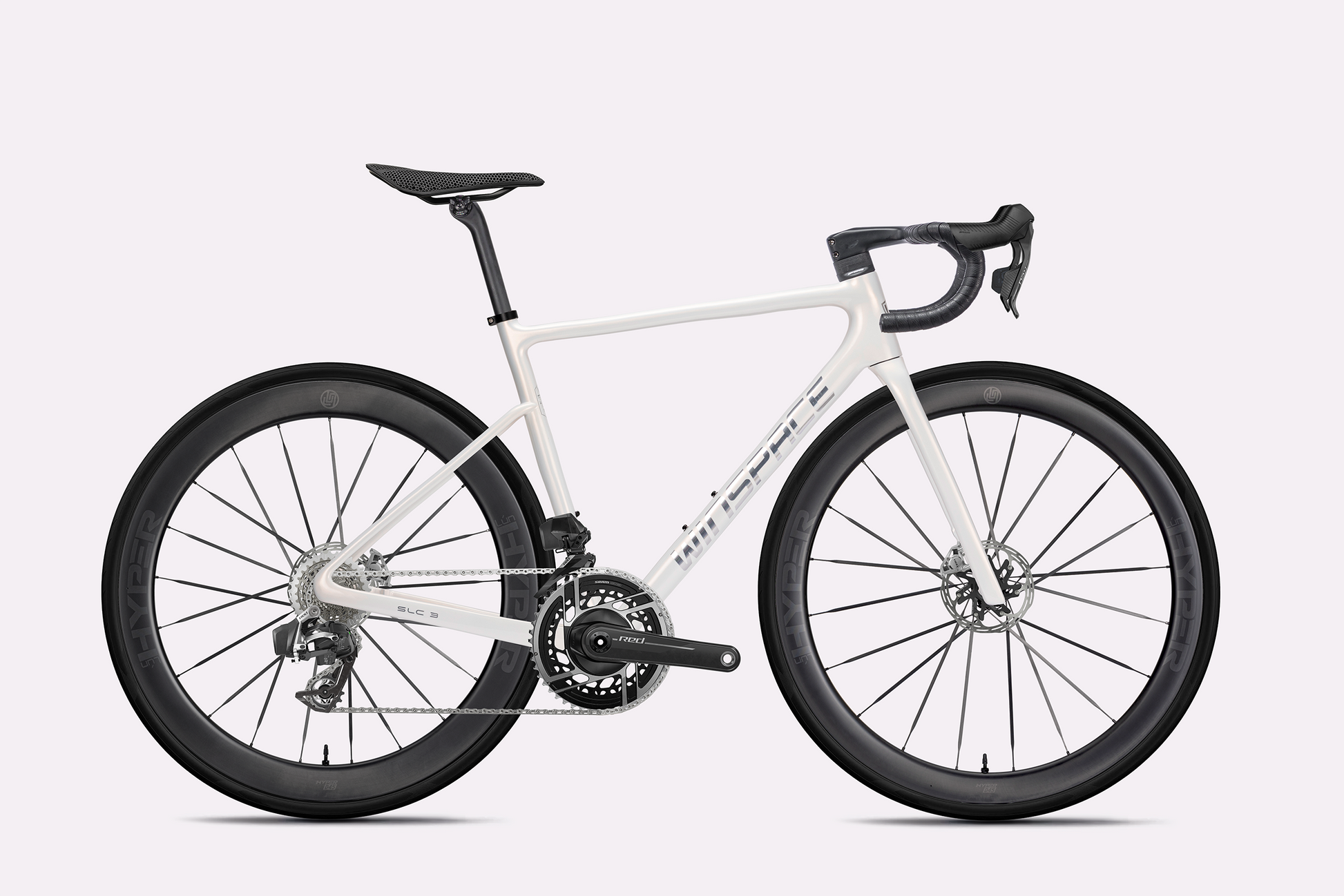

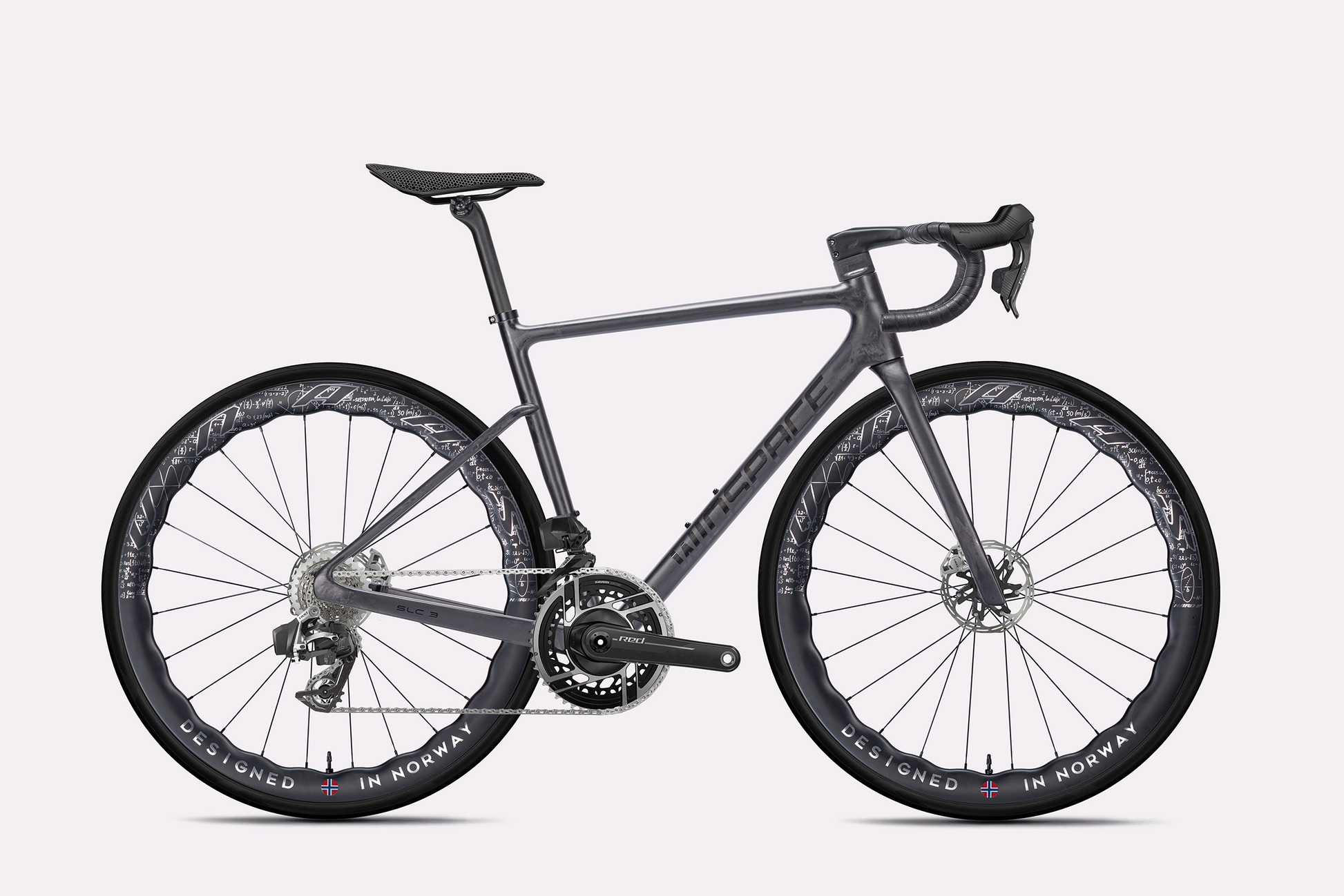

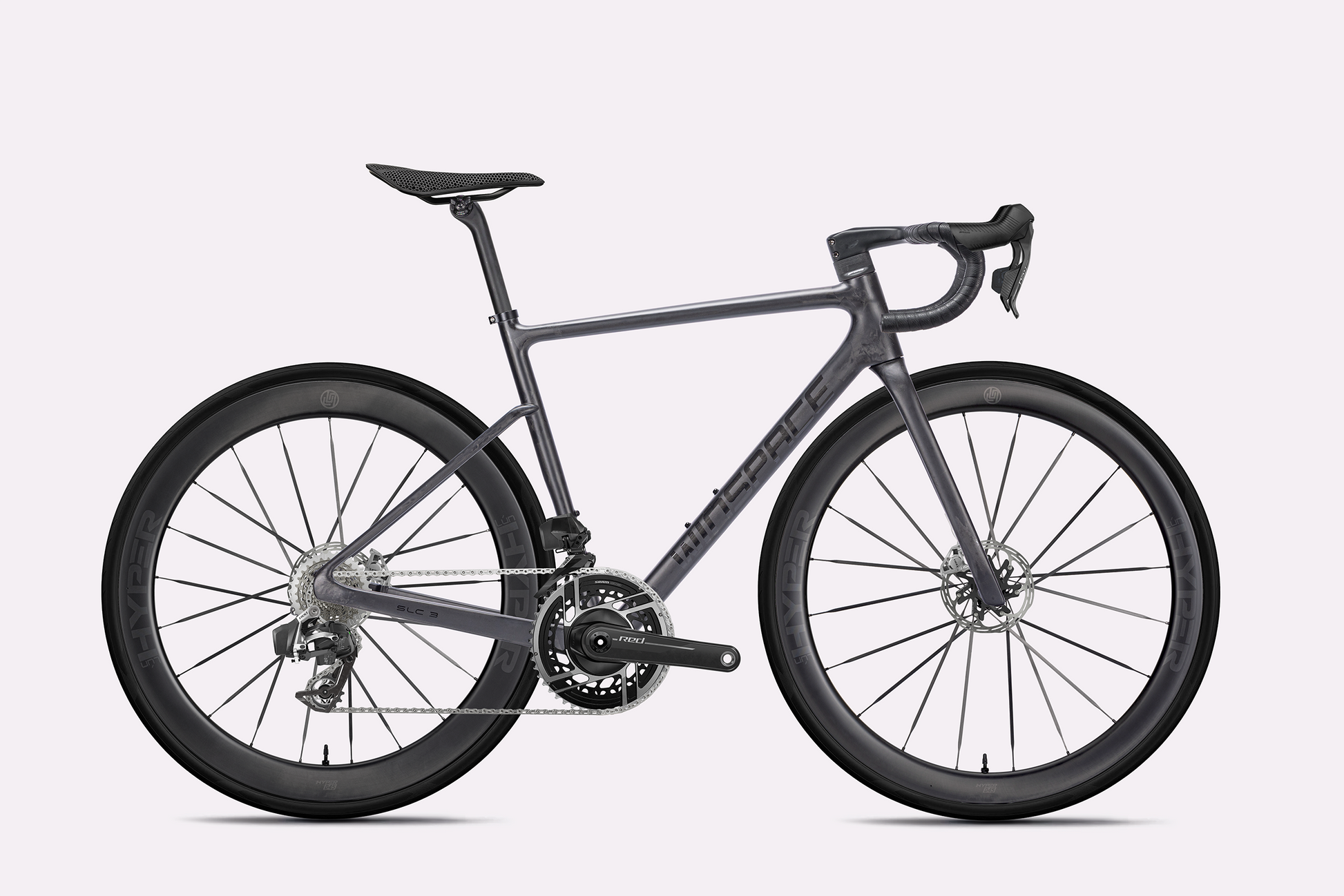

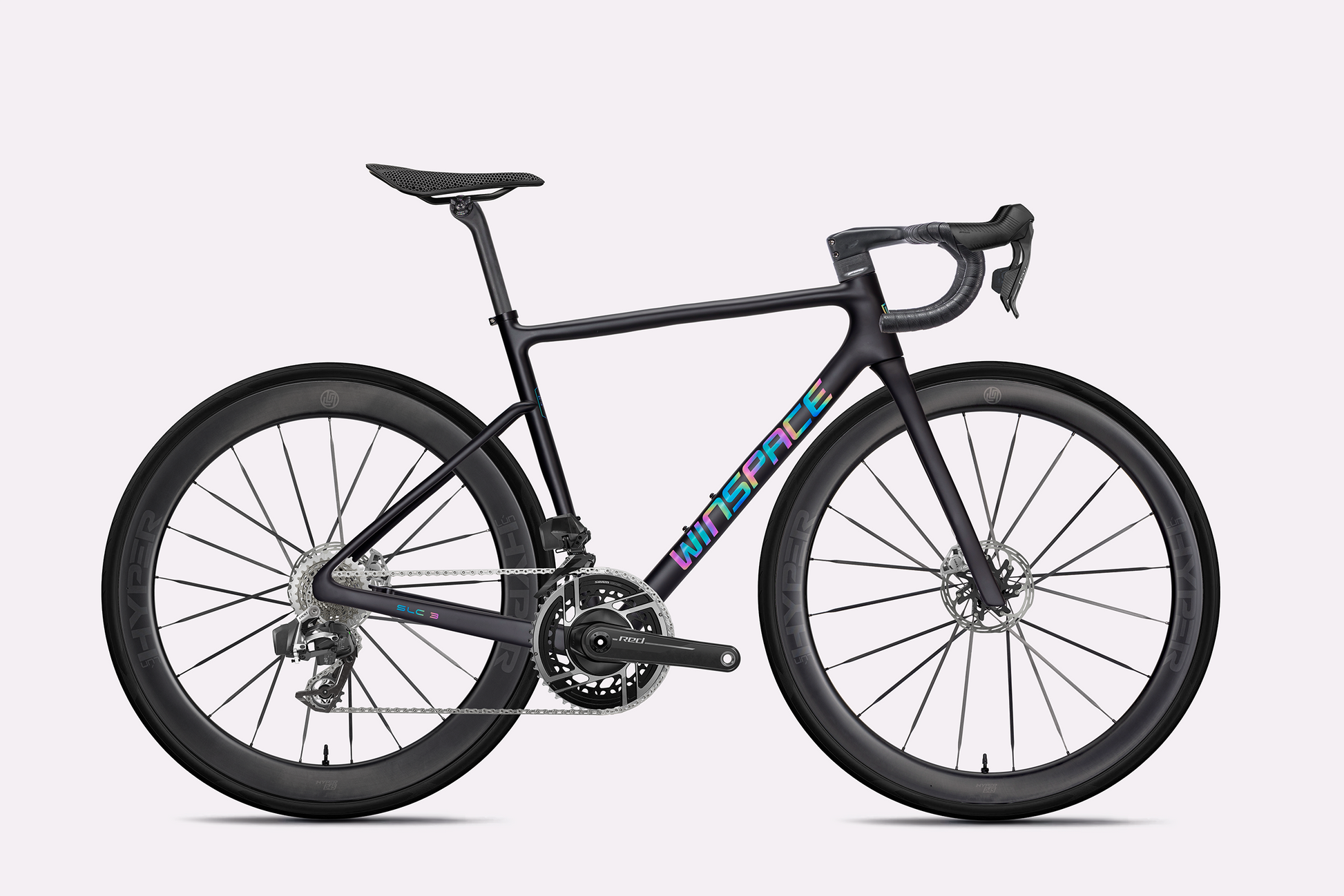

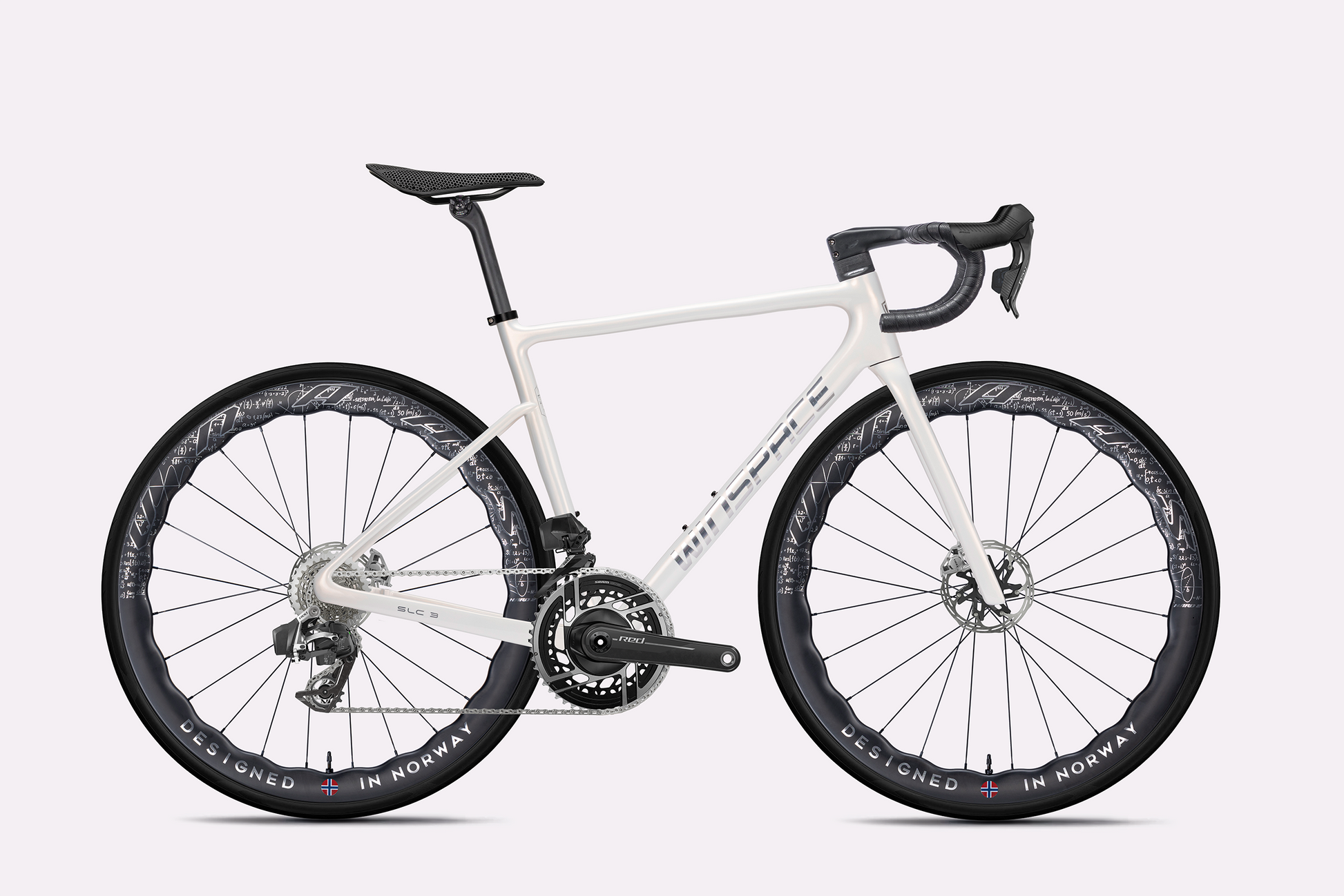

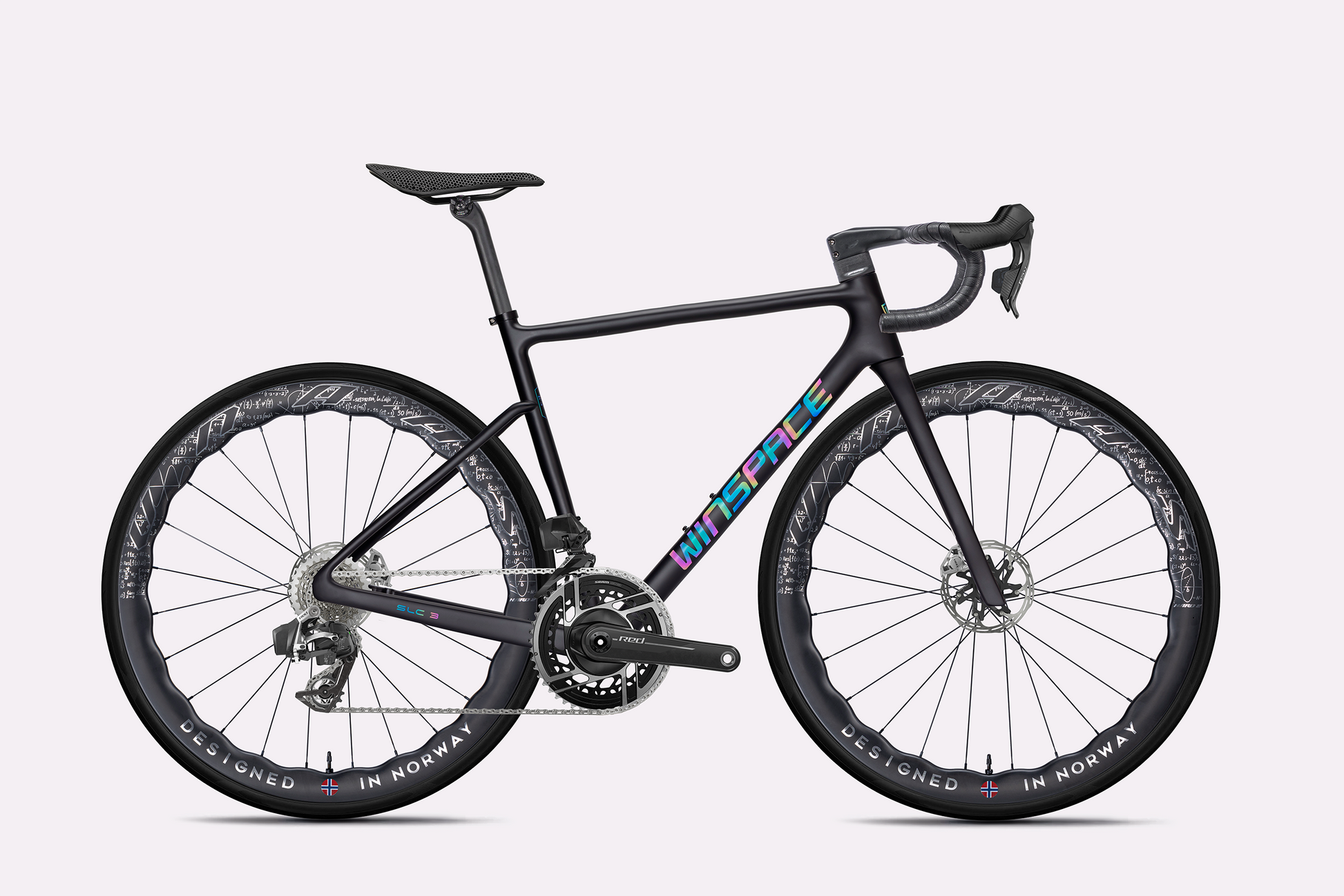

Winspace SLC3 SRAM Red — Build Your Dream Bike
Complete Bike Set Up & Custom Options
- SRAM Red E1 eTap AXS groupset, with lightning-fast, electronic shifting and world-class braking precision.
- The Carbon Project carbon 3D printed saddle weighing only 200g.
- Choose your bar and stem size. The seamless Winspace Zero SL intergrated bar and stem can be customised to your size preferences for width (380mm, 400mm, 430mm) and length (85mm-135mm).
- Choose your cassette and crank length to customise the bike to your size preferences.
- Choose your preferred wheel, rim depth and tire (28mm or 30mm, black/tan wall). Choose between the UNAAS Hard2 or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
Technical Specifications
- Frame: SLC3 Toray Carbon Fiber T1100 + T1000 + M46 + M65
- Headtube: 1-1/2"/1-1/2" (FSA ACR System).
- Wheel Axles: 12mm thru-axle (F119mm, R163mm).

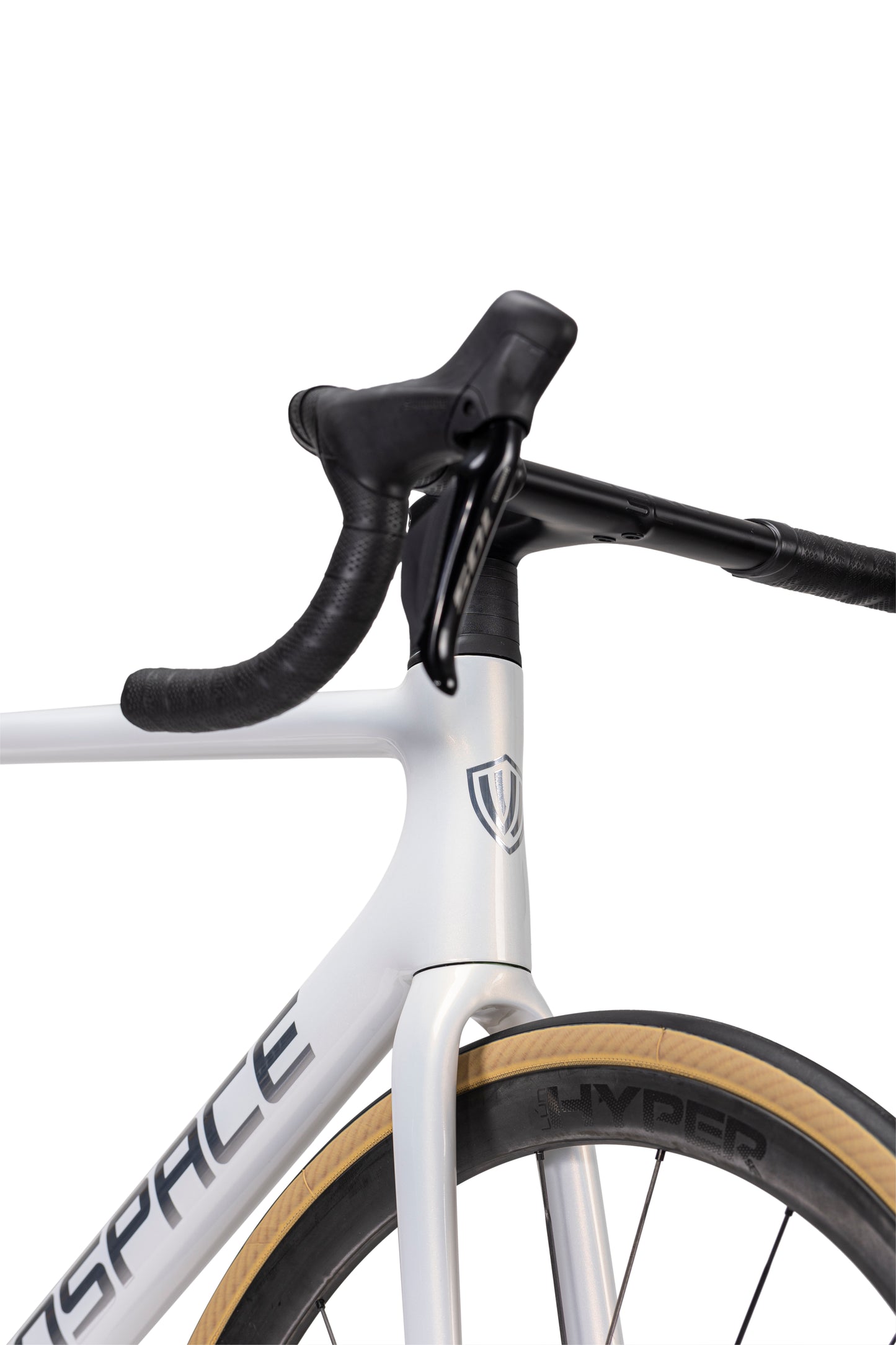

- Handlebar/Stem: Winspace Zero SL Integrated Bar and Stem. Customise to your size preferences.
- Seatpost: Winspace seatpost 27.2mm
- Saddle: TCP 3D printed carbon saddle
- Drivetrain: SRAM Red E1 eTap AXS 12-speed (46/33, 48/35, or 50/34 Crankset + 10-28, 10-30, 10-33, or 10-36 Cassette)
- Front brake: SRAM Red E1
- Rear Brake: SRAM Red E1
- Shift Levers: SRAM Red E1 eTap AXS
- Front Derailleur: SRAM Red E1 eTap AXS
- Rear Derailleur: SRAM Red E1 eTap AXS
- Rotors: SRAM Paceline X Rotor (140 or 160mm)
- Crankset: SRAM Red E1 (46/33, 48/35 or 50/34) + (160, 165, 167.5, 170, 172.5 or 175mm)
- Chain:SRAM Red E1 12-Speed
- Bottom Bracket: Wishbone Ceramic T47 Inboard
- Tyres: Goodyear Eagle F1 (700x28c or 700x30c).
- Bartape: C2 Black
- Wheels: Choose between the UNAAS Pro (rim depth 40mm or 50mm) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
