GRAVEL

G5

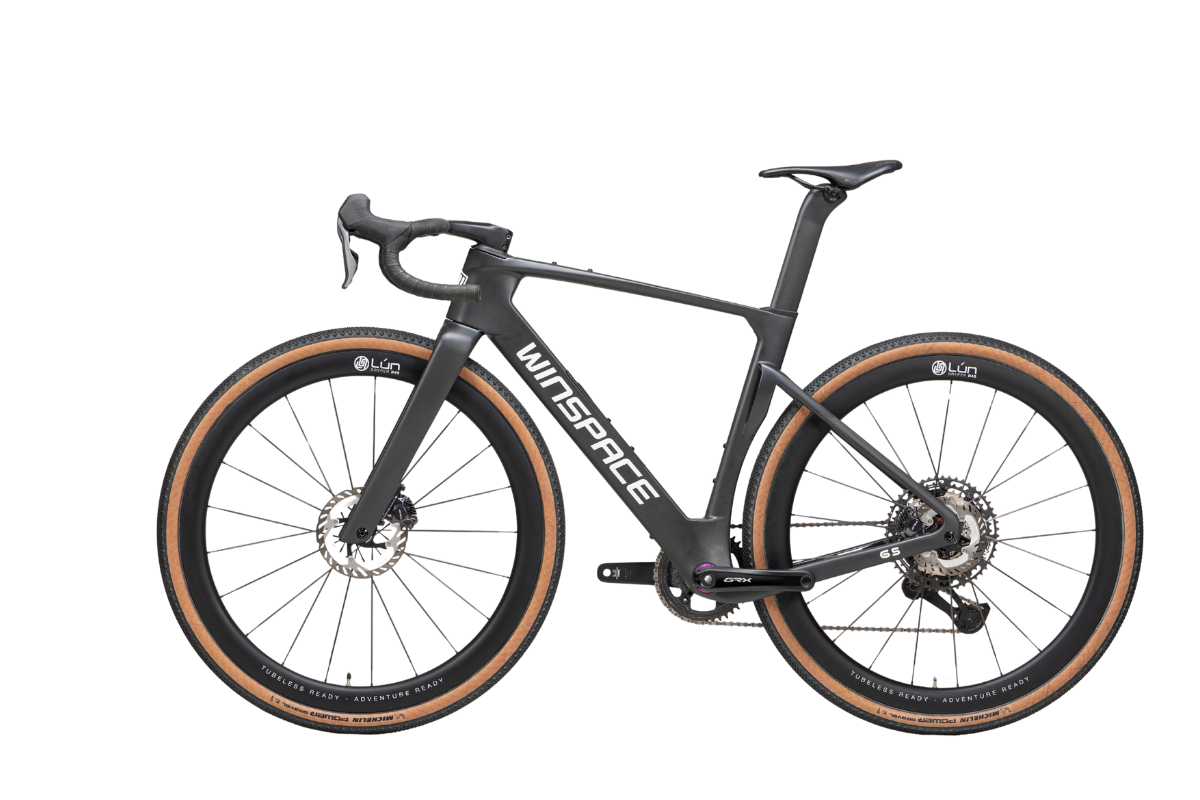

SRAM Force XPLR AXS

Build yours

Explore

SCROLL

T800 Toray T700 and T800 blend

13-speed SRAM Force XPLR, 1x

57 mm Max tyre clearance, front

T47 Threaded bottom bracket

Get it right from the first ride.

Every bike is built to order.

Build your new bike to your exact specs. No more buying stock bikes and needing to make changes and adjustments.

01 · Size and colour

Six sizes, four colours

Reach first geometry. Bars and stem are sized to you in the builder.

Size

XSSMLXLXXL

Colour

Get started in the bike builder to select your options.

Start building

02 · Wheels

Three wheelsets

Lún Gryper2 to Lún Grapid. Depth and finish are chosen in the builder.

Lún Gryper2

Lún Gryper

Lún Grapid

Get started in the bike builder to select your options.

Start building

03 · Drivetrain

SRAM Force XPLR AXS

Electronic 13-speed 1x, hydraulic disc.

Chainrings: Standard 38T to 46T, Aero 44T to 50T
Cranks: 160 to 175mm

Get started in the bike builder to select your options.

Start building

04 · Cockpit

Carbon bars and saddles

Bar width, stem length are your choice of 3D printed carbon saddle.

Legit Adventure

Get started in the bike builder to select your options.

Start building

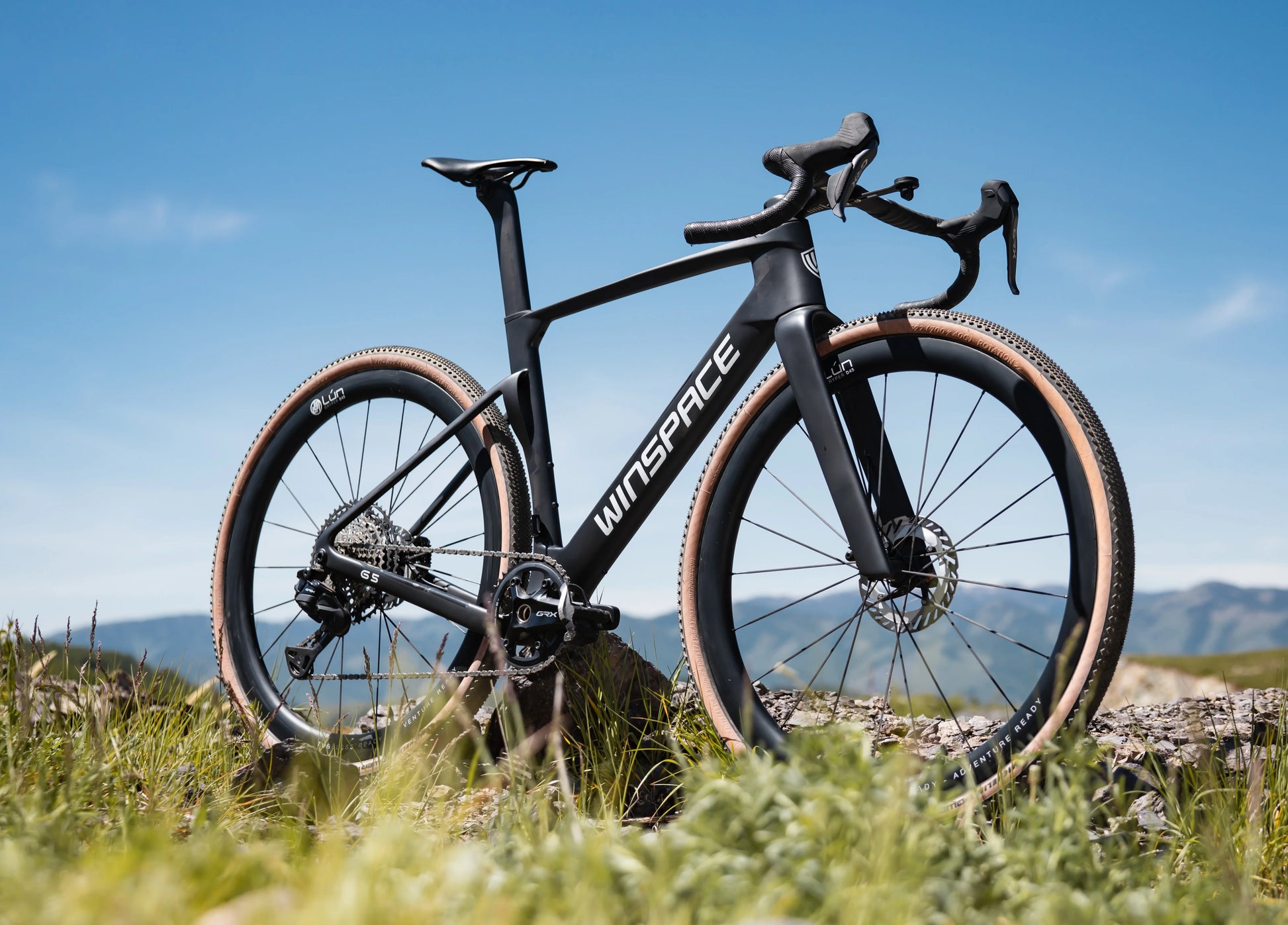

Advanced Aerodynamics

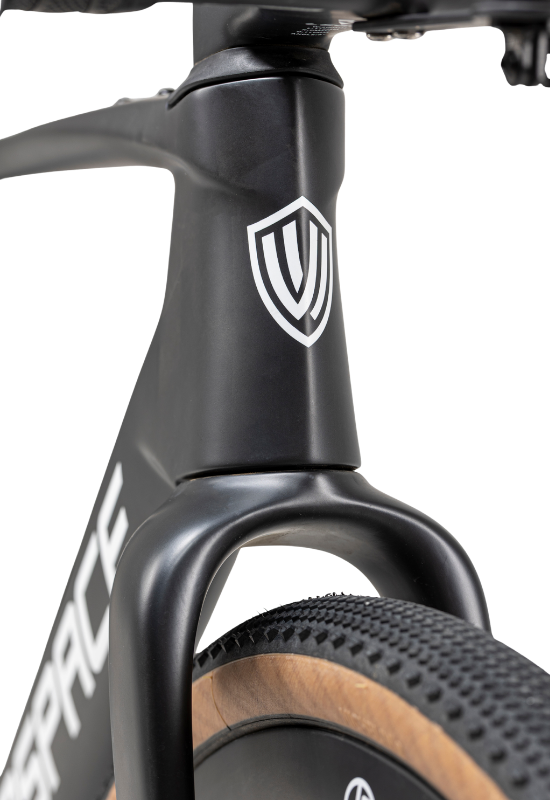

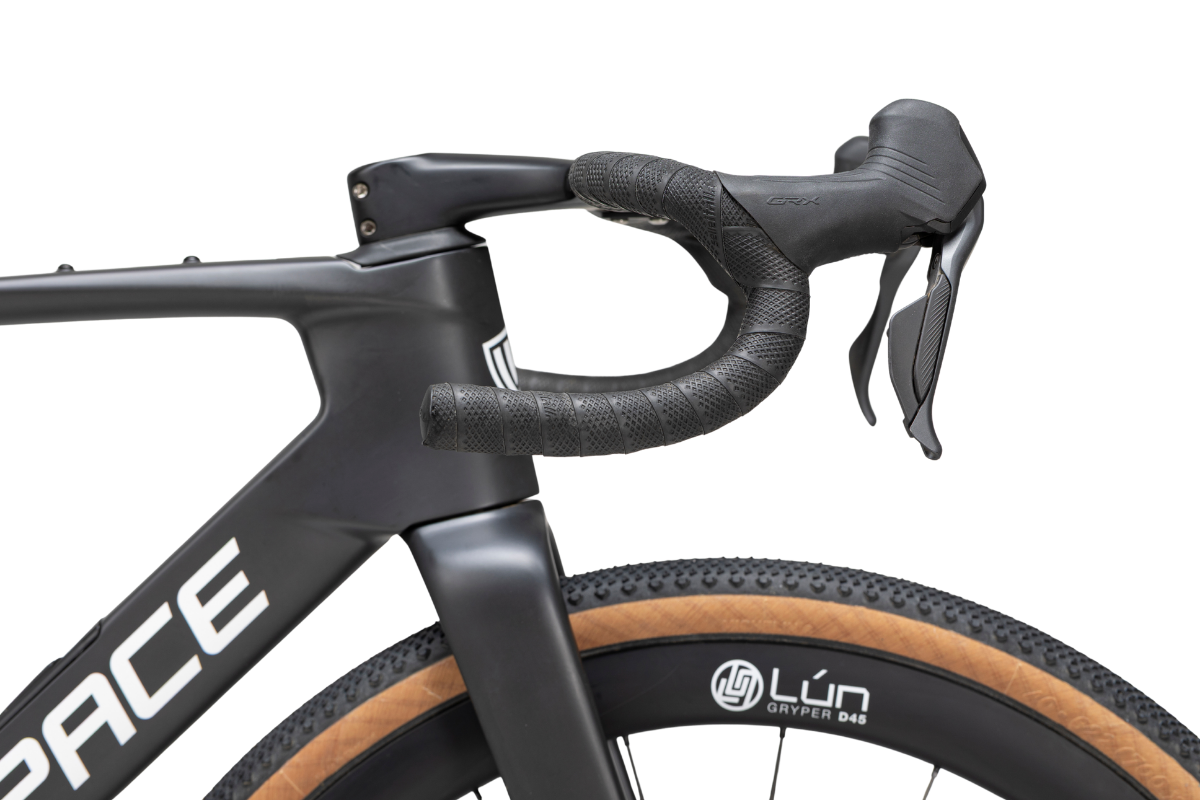

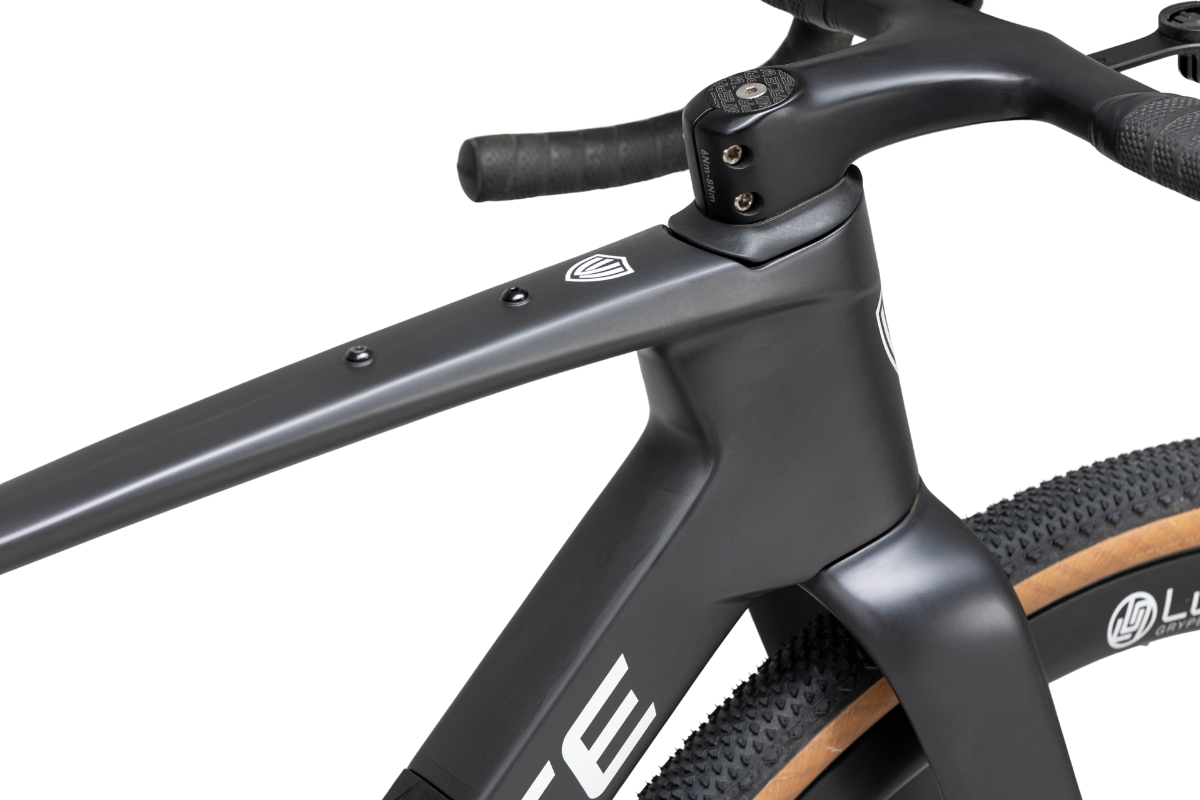

Patented D-Type aero system with integrated fairing and seat stay tailfin, ultra-thin head tube profile, and full ACR internal cable routing minimise drag across all angles.

Exceptional Tyre Clearance

Accommodates up to 57mm front / 52mm rear tires, with dropped seatstays for enhanced compliance and comfort on rough terrain.

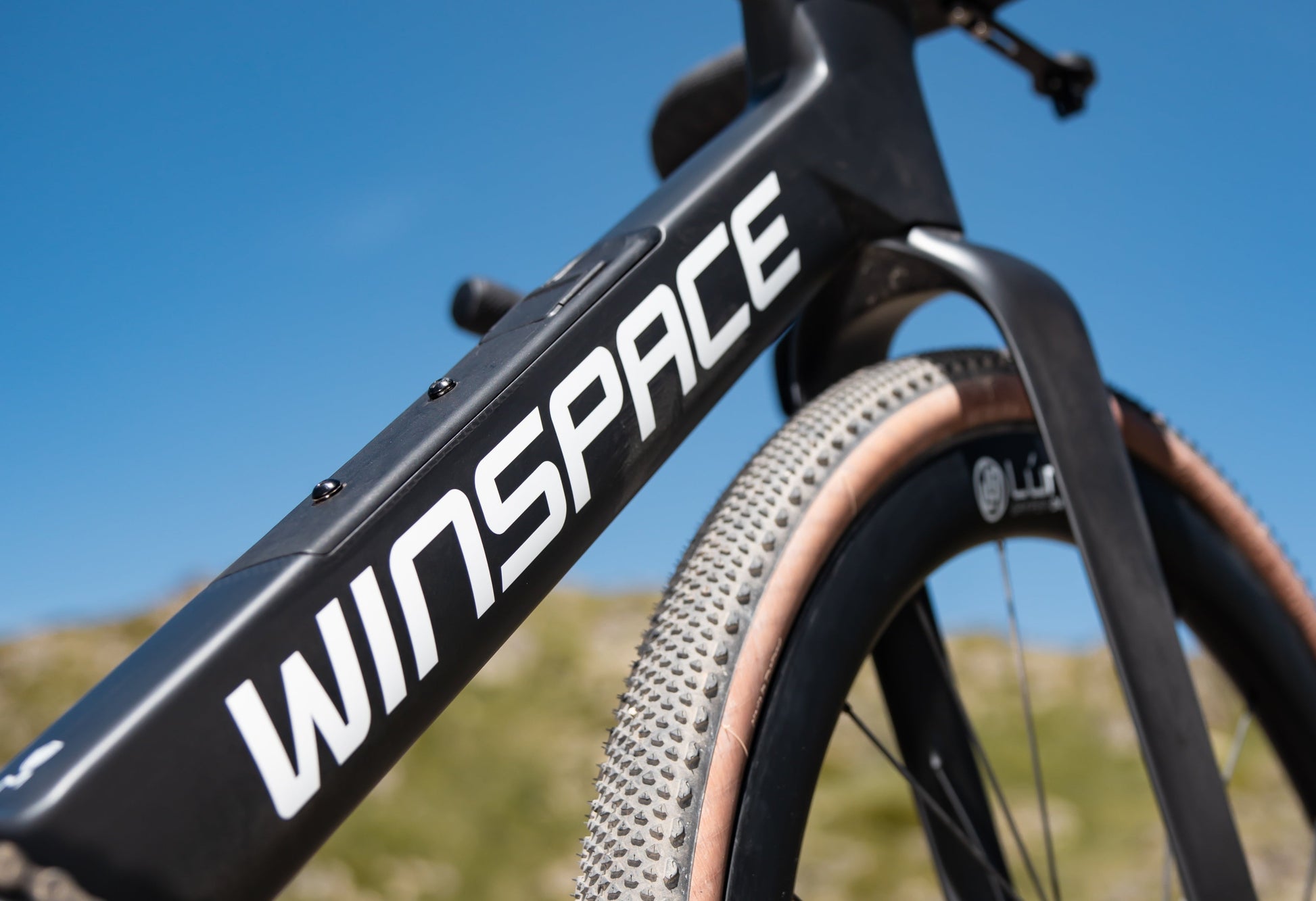

Race & Adventure Ready

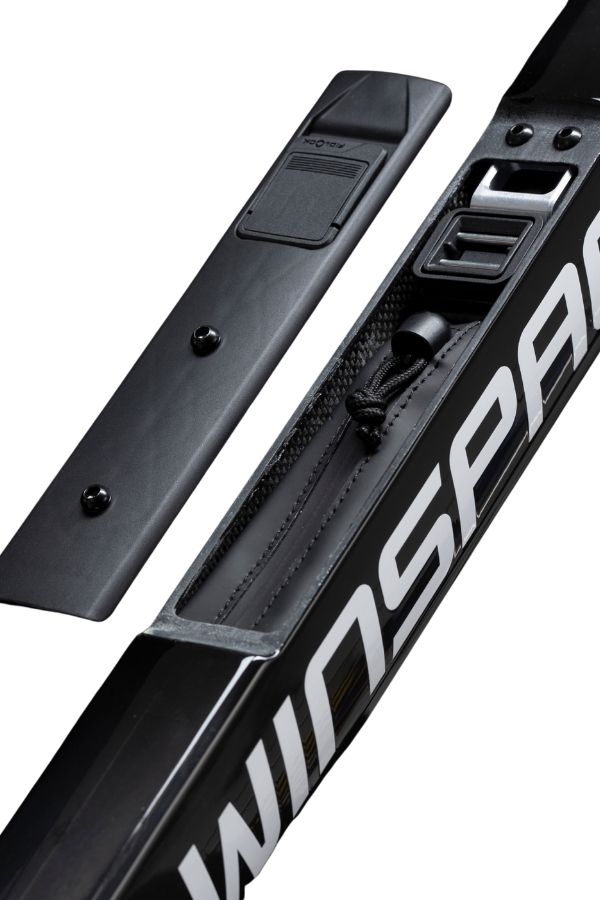

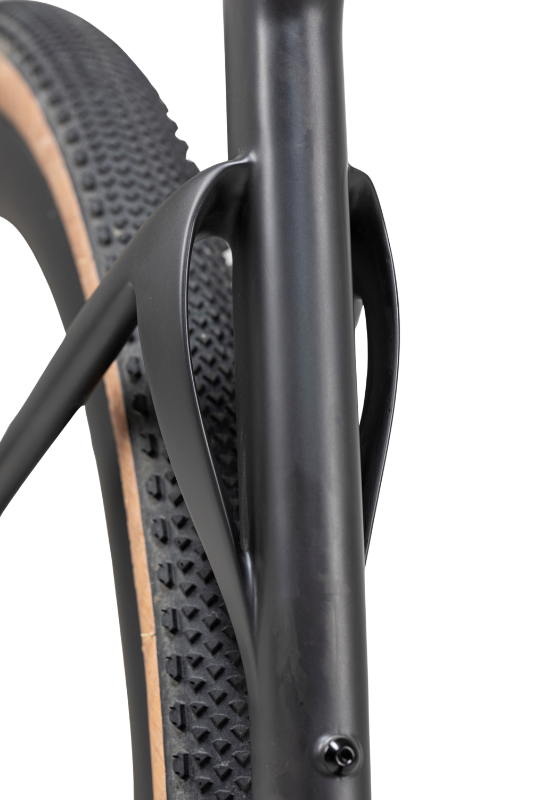

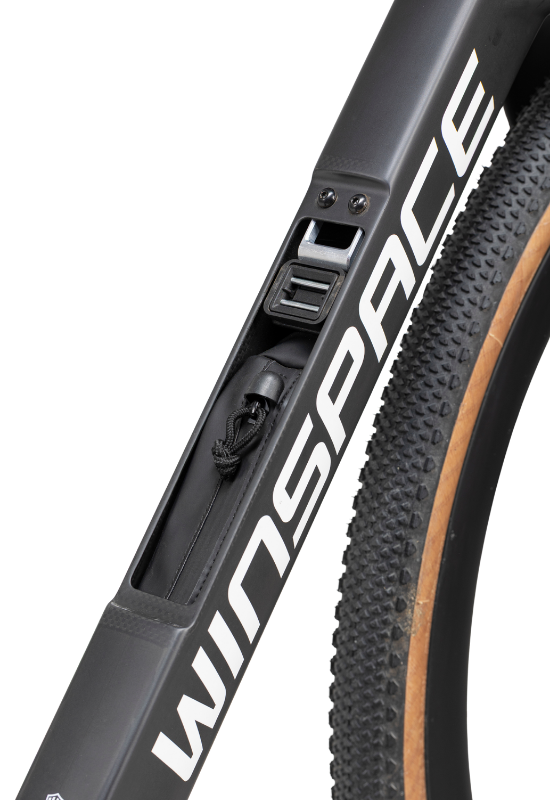

Universal Derailleur Hanger (UDH), T47 threaded bottom bracket, patented closed thru-axle fork, and integrated FIDLOCK magnetic storage box deliver reliability and convenience for racing and adventure.

Every angle

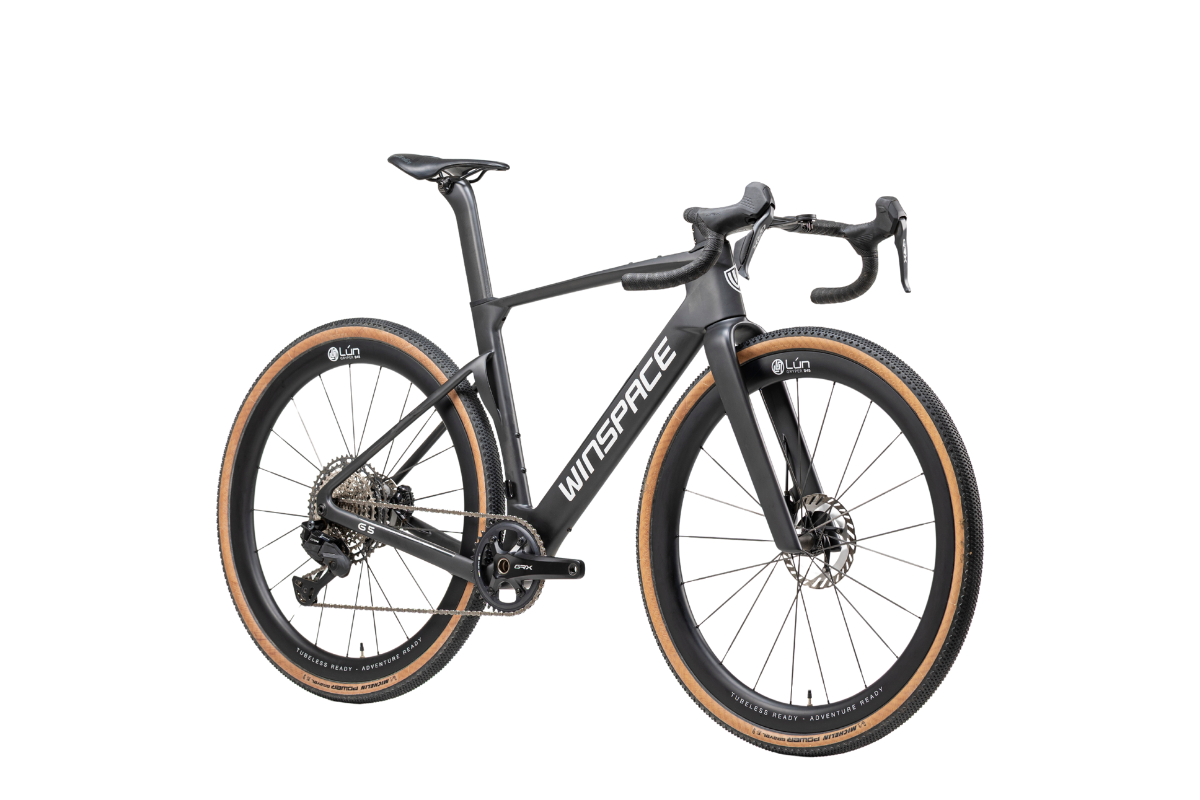

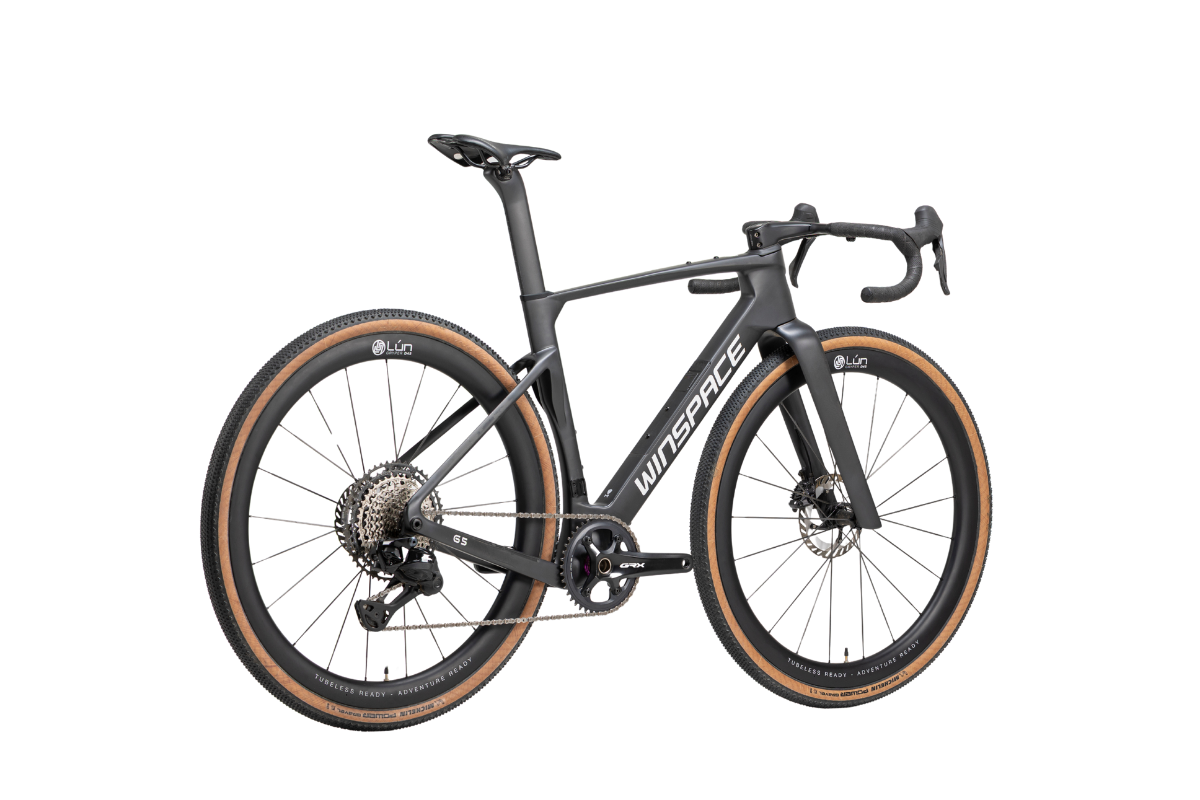

Take a closer look

The detail

Specification and geometry

Frame: G5 Toray T700 + T800 carbon blend
Fork: Full carbon
Headset: 1-1/2 inch upper and lower, FSA ACR system
Groupset: SRAM Force XPLR AXS, 13-speed, hydraulic disc
Chainrings: Standard 38T · 40T · 42T · 44T · 46T, Aero 44T · 46T · 48T · 50T

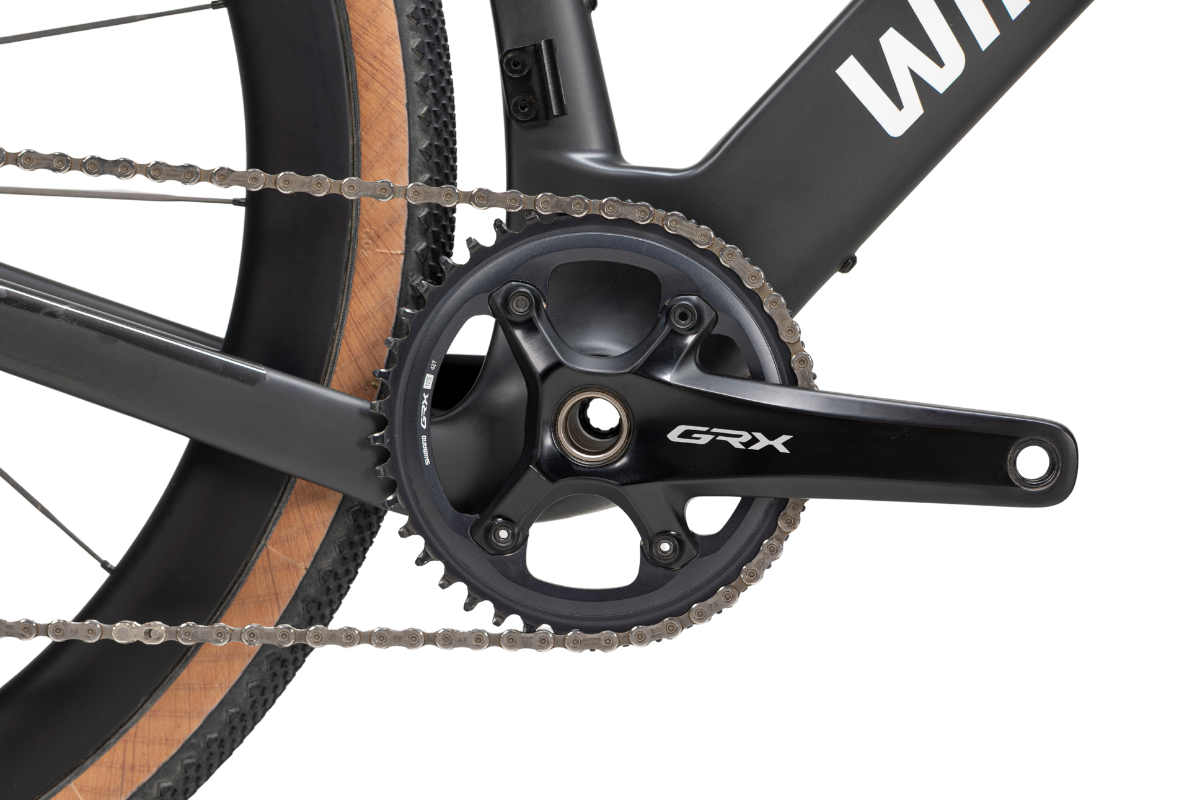

Cranks: 160 · 165 · 170 · 172.5 · 175mm

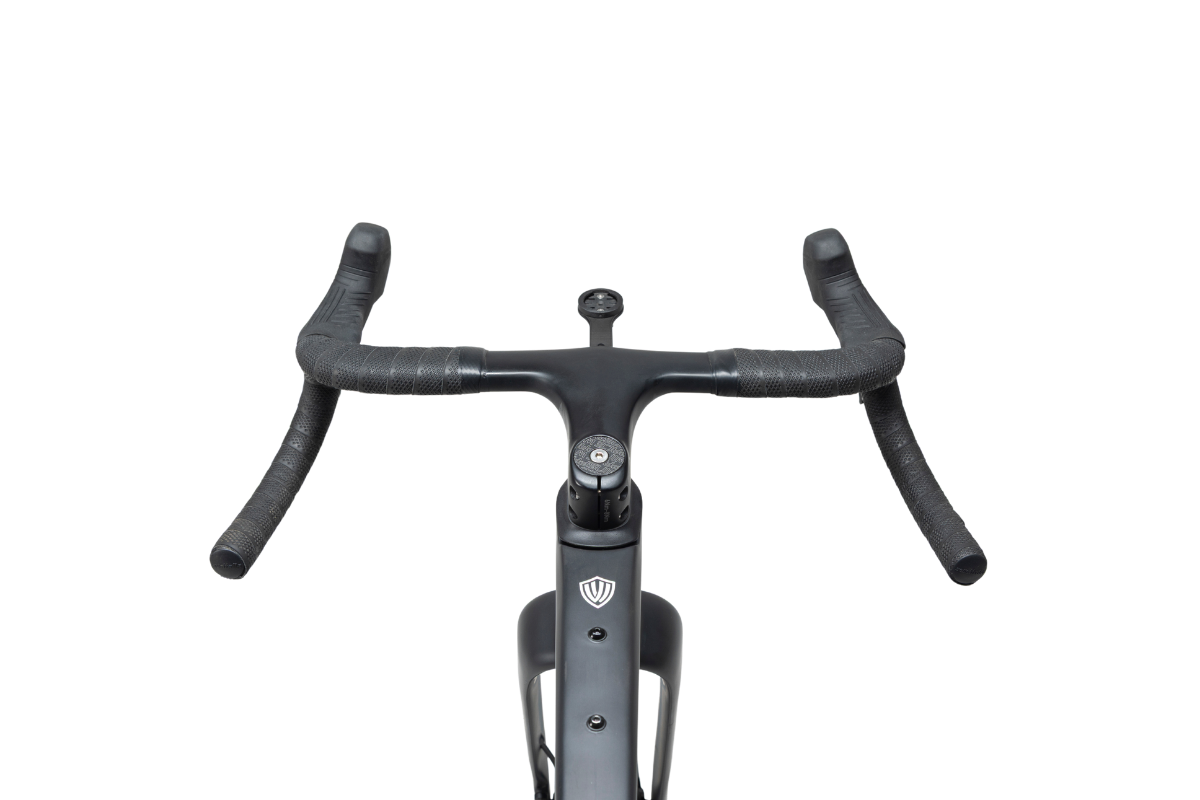

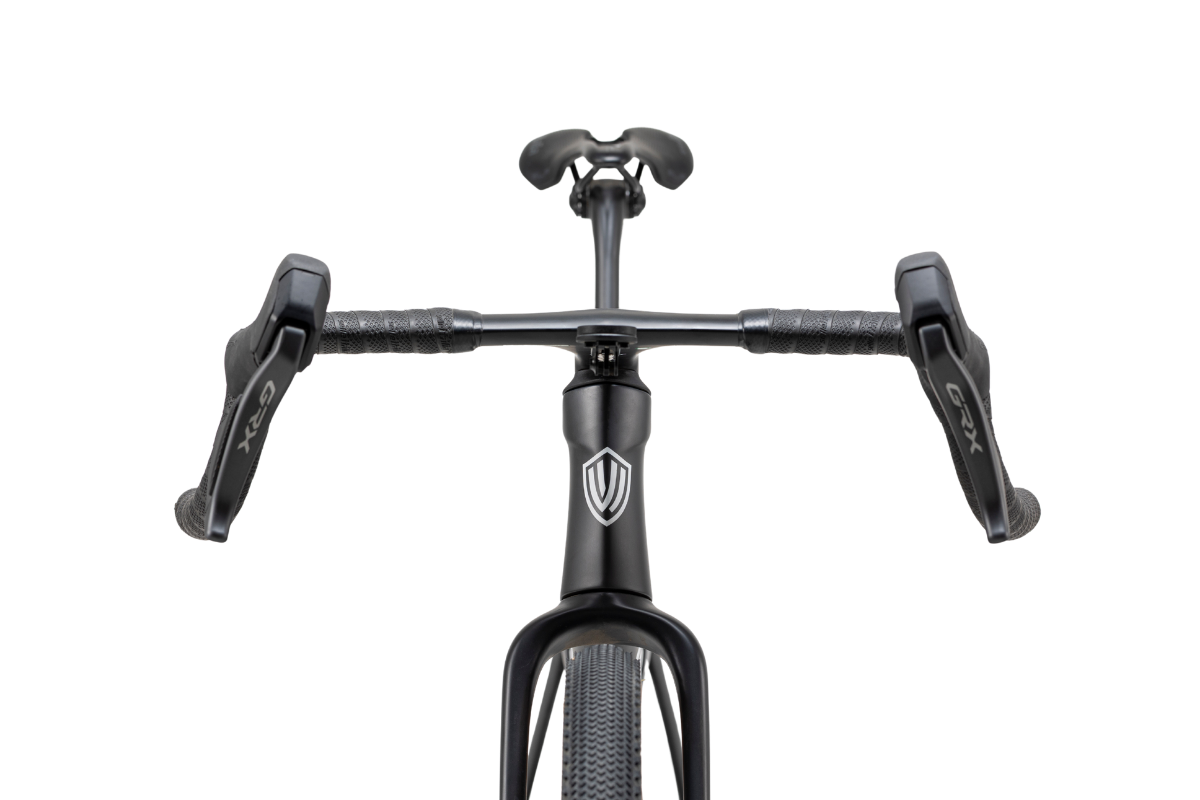

Cockpit: Legit Adventure gravel bar, carbon, flared
Seatpost: Winspace carbon aero seatpost
Saddle: TCP Aero Light or Flow, 3D printed carbon
Wheels: Lún Gryper2 · Lún Gryper · Lún Grapid
Tyre clearance: 57mm front, 52mm rear
Bottom bracket: Wishbone ceramic
Warranty: Frameset 3 years · wheels 2 years · bars 1 year
Bar widths: 360 · 380 · 400 · 420 · 440mm
Stem lengths: 85 · 95 · 105 · 115 · 125 · 135mm

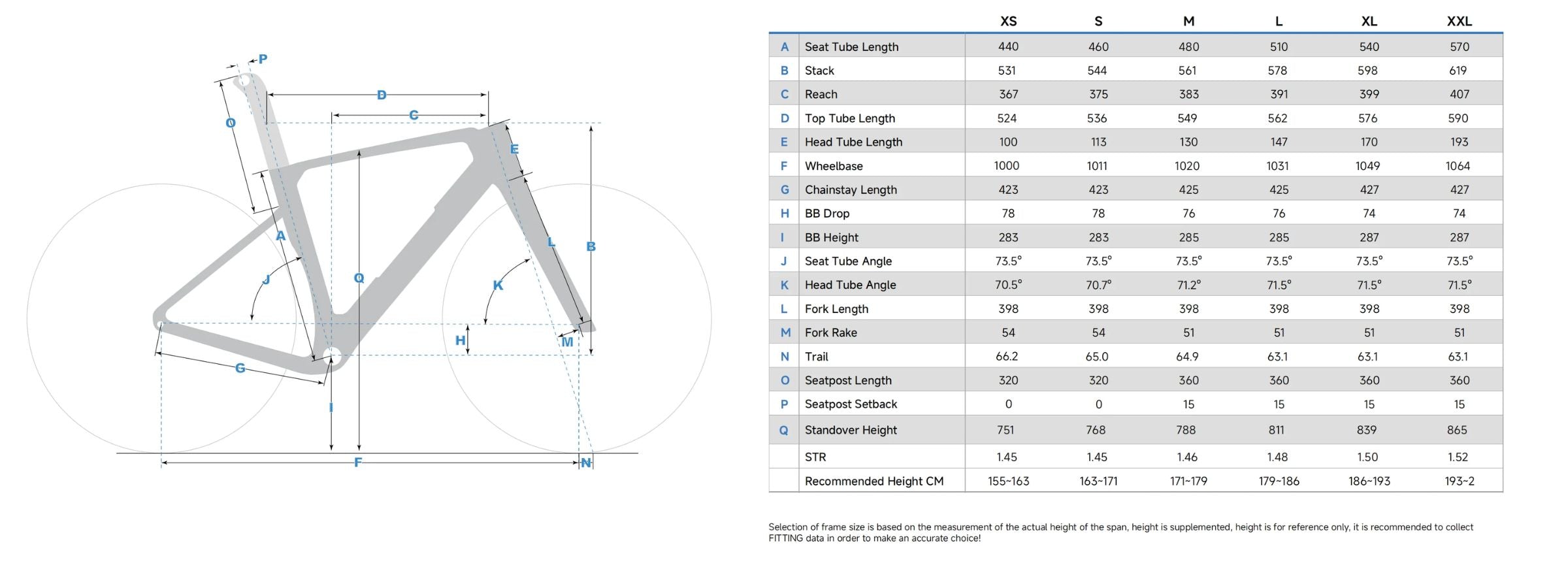

Size	Seat tube	Stack	Reach	Top tube	Rider height
XS	440	531	367	524	155 to 163
S	460	544	375	536	163 to 171
M	480	561	383	549	171 to 179
L	510	578	391	562	179 to 186
XL	540	598	399	576	186 to 193
XXL	570	619	407	590	193 to 200

Open the full size chart

Download Product Catalogue

Try before you buy

Deduct up to 7 days of rental from your new Winspace by boooking a demo ride with pur partner, BikeRental.cc.

Book a rental →

Built to order in Australia

Assembled and quality checked at our Ultimo HQ, delivered to your door or ready for collection. Or, one of our local partners can build it for you closer to home.

Local support

Servicing, parts and advice across Australia. No matter how long you've had your bike for, we're here to help.

G5 · SRAM Force XPLR AXS

Your colour. Your fit. Your wheels.

Around ten minutes in the builder, and every choice is priced as you make it.

Build yours

G5 · SRAM Force XPLR AXS inc GST, before options

Build yours
