Agile Winspace Carbon Frameset - Performance Race Road Bike

Agile Winspace Carbon Frameset - Performance Race Road Bike

$2,499.00 AUD
$3,249.00 AUD $2,499.00 AUD
Sale Sold out
Shipping calculated at checkout.
Discipline: Road - Allround
Max tyre width: 32mm
Size
Colour
View full details

Description

Agile is an all-round high-performance road bike frame. True to its name, it promises an extraordinary handling experience and an exceptional ride quality. It bridges the gap between aerodynamics and lightweight models, offering exceptional handling and is fully UCI certified.

  • Horizontal Angled T-Tail
  • Support for Up to 32mm Tire Clearance
  • T47 Bottom Bracket
  • Responsive Trail Value Setting
  • ACR Headset
  • T800+T1000 Carbon Fiber EPS+LATEX Molding Process
  • Aggressive Geometry

    * Raw carbon option now available for custom paint. Regardless of the form, please make sure the ‘Winspace’ logo is prominently displayed on the frame, and no other brand names are visible. As the brand owner, we reserve the right to protect our products and trademarks.

Specifications

Model name: Agile

Sizes: XS (410mm), S (440mm), M (470mm), L (510mm), XL (550mm)

Headtube: NO.55R 1.5"/ACR/STD (headset included.)

BB: T47-85.5

Seatpost: Aero Seat Post (Included.)

Brake: Flat mount disc brake

Front derailleur: Brazed on

Derailleur Routing: Mechanical / Di2 / Campy EPS / SRAM eTAP

Tire clearance: Max. 700C*32C, 700C*28C for M size

Wheel Axle: 12mm through axle F100mm R142mm

Carbon fiber: T800+T1000

Weight: frame 850+/-35g for M size (Unpainted)

UCI approved:

Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Direct Mount Derailleur Hanger

Warranty: Limited 3yr warranty on the frameset

Retail Price: $1980USD

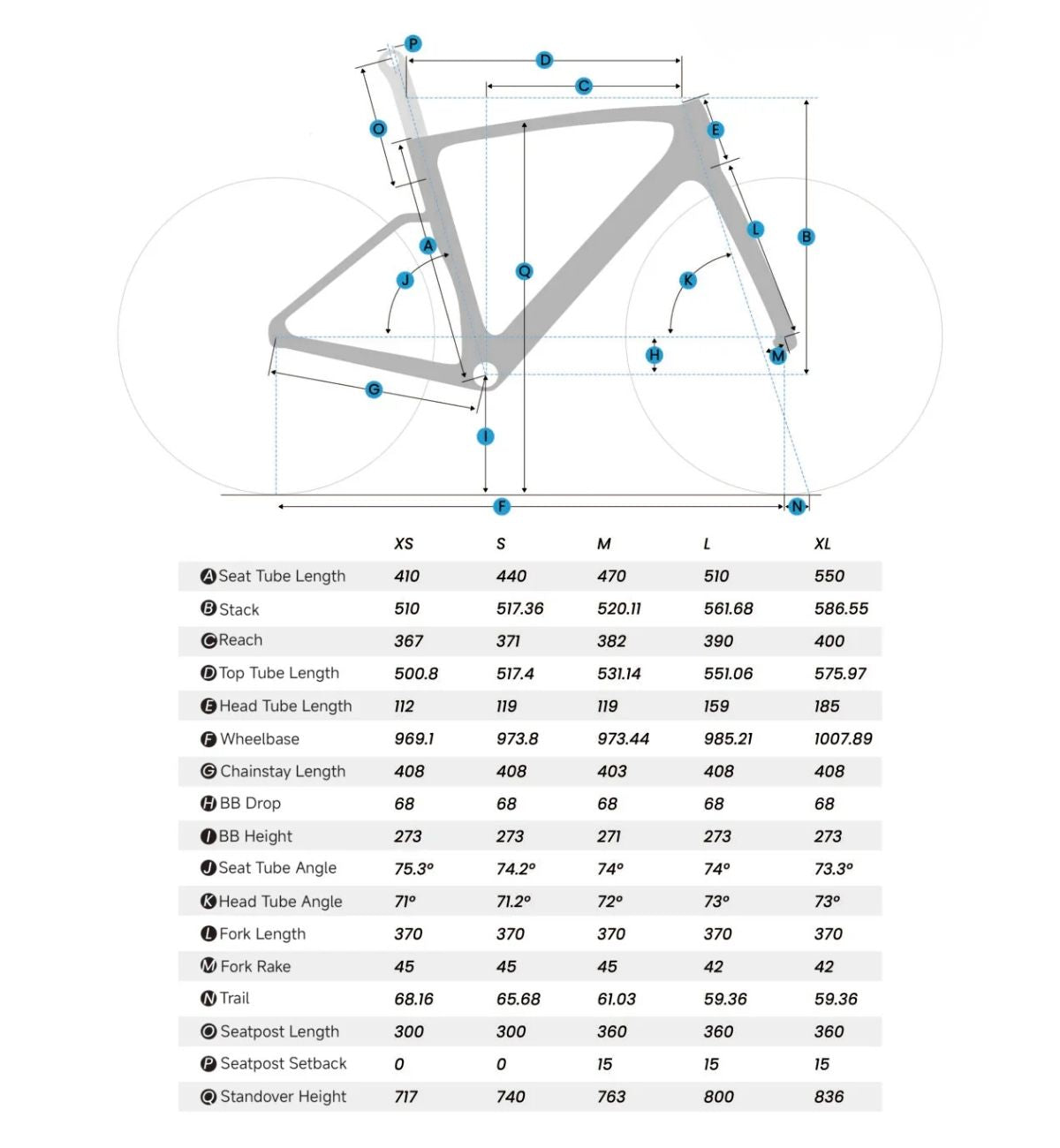

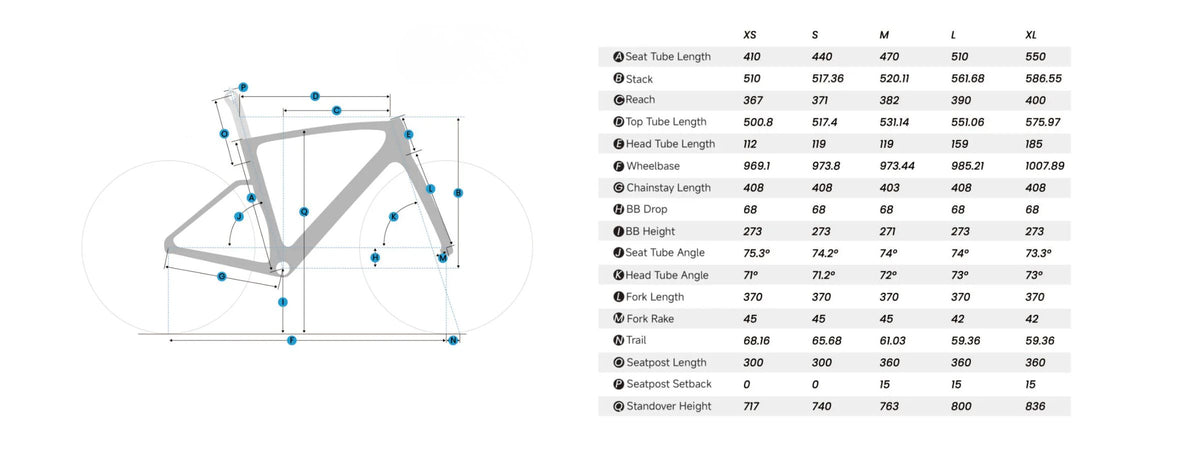

Dimensions/ Sizing
